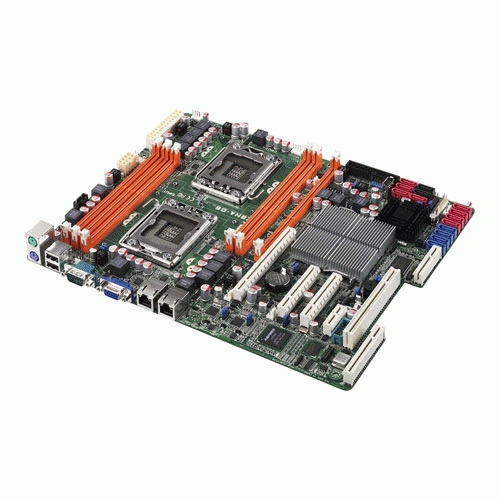

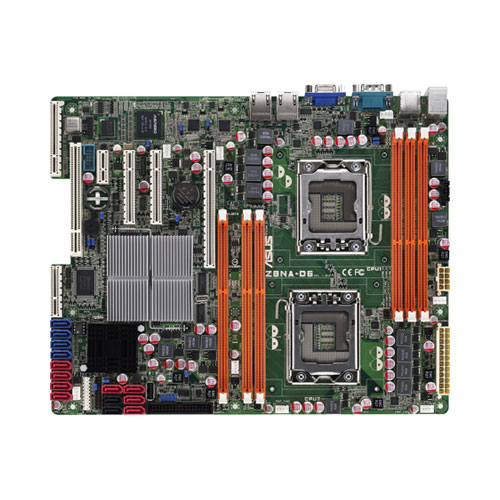

ASUS Z8NA-D6 Intel® 5500 Socket B (LGA 1366) ATX
Model Z8NA-D6Part no. 90-MSVCI2-G0UAY00ZEAN 4719543170533
36 specifications
- Processor manufacturerIntel
- Number of memory slots6
- RAID levels0, 1
- Maximum graphics card memory8 MB
- USB 2.0 connectors2
- LAN controllerIntel® 82574L
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 6
- RAID levels
- 0, 1
- Maximum graphics card memory
- 8 MB
- USB 2.0 connectors
- 2
- LAN controller
- Intel® 82574L
- Brand
- ASUS
- Category
- Motherboard
- Model
- Z8NA-D6
- Part numbers
- 90-MSVCI2-G0UAY00Z, 90-MSVCI0-G0UAY00Z, Z8NA-D6, 90-MSVCI2-G0UAY0YZ
- EAN / UPC
- 4719543170533, 610839170531
- Also known as
- ASUS Z8NA-D6 Intel® 5500 Socket B (LGA 1366) ATX
Specifications
36 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket B (LGA 1366) |
| Maximum number of SMP processors | 2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory module capacities | 1GB, 2GB, 4GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 8 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® 82574L |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® 5500 |
| Power source type | ATX |
| Certification | - FCC, CFR47 Part 15, Class B - CE, EN55022 & EN55024 - C-TICK |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
| Expansion slots | 1 x MIO 1 x PIKE |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASWM2.0 |
Other features
| Specification | Value |
|---|---|
| Controller interface type | SATA2 300MB/s |
| I/O ports | 2 x SMBus 2 x Front LAN LED 1 x Serial |
