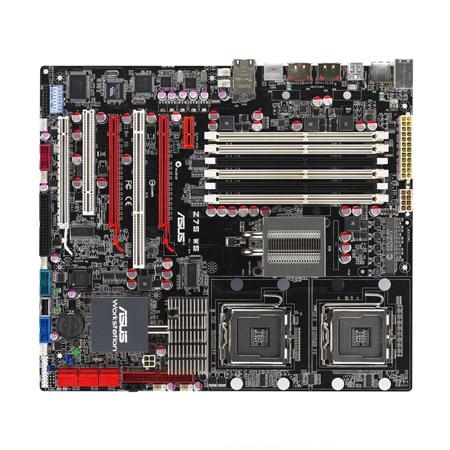

ASUS Z7S WS
Model Z7S WSPart no. 90-MSVC40-G0UAY00ZEAN 610839158188
25 specifications
- Processor manufacturerIntel
- ECC сompatibilityECC
- RAID levels0, 1
- USB 2.0 connectors2
- USB 2.0 ports quantity5
- LAN controllerMarvell 88E8056
Overview
- Processor manufacturer
- Intel
- ECC сompatibility
- ECC
- RAID levels
- 0, 1
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 5
- LAN controller
- Marvell 88E8056
- Brand
- ASUS
- Category
- Motherboard
- Model
- Z7S WS
- Part numbers
- 90-MSVC40-G0UAY00Z, Z7S WS, 90-MSVC70-G0UAY00Z
- EAN / UPC
- 610839158188, 4719543158180
- Also known as
- ASUS Z7S WS LGA 771 (Socket J) SSI CEB
Specifications
25 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 771 (Socket J) |
Memory
| Specification | Value |
|---|---|
| ECC сompatibility | ECC |
| Maximum internal memory | 24 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 2 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 5 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Serial ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| LAN controller | Marvell 88E8056 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | SSI CEB |
| Audio output channels | 7.1 channels |
| Certification | FCC, CFR47 Part 15, Class B, CE, EN55022 & EN55024, C-TICK, VCCI, BSMI, CCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 267 mm |
