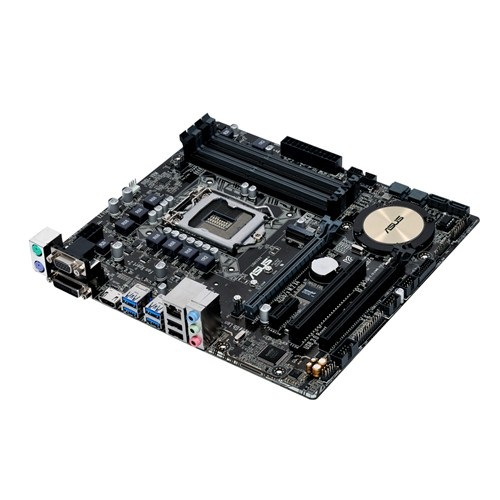

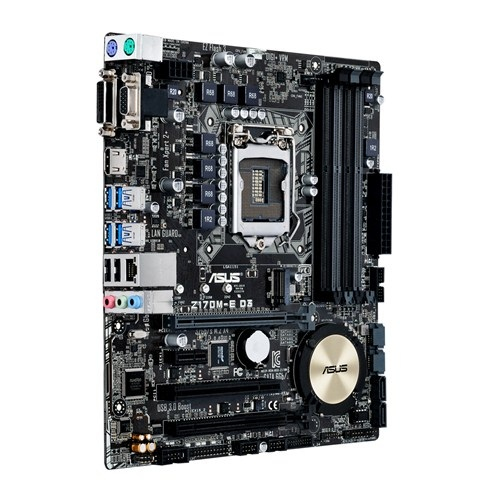

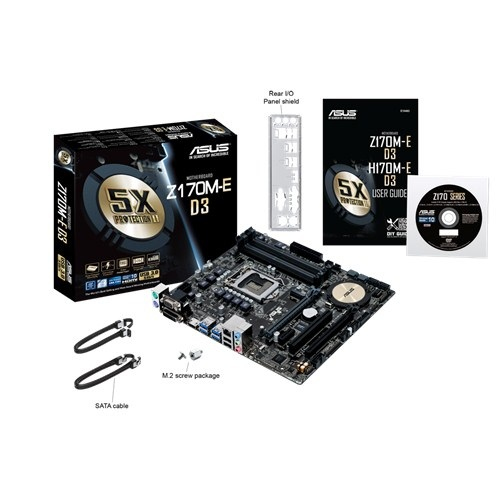

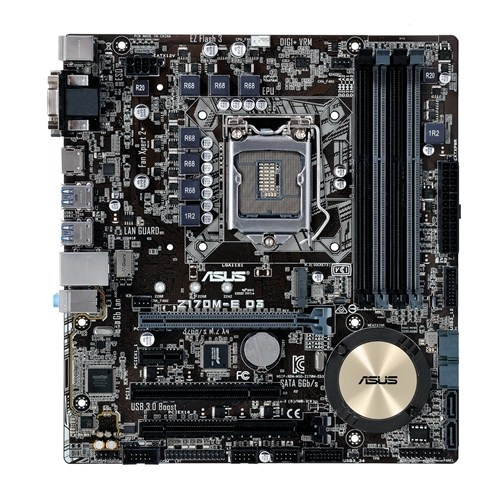

ASUS Z170M-E D3

ASUS Z170M-E D3

Model Z170M-E D3Part no. 90MB0MR0-M0EAY0EAN 4712900153668

59 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesM.2, SATA III
  • Parallel processing technology support2-Way CrossFireX
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
M.2, SATA III
Parallel processing technology support
2-Way CrossFireX
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
Z170M-E D3
Part numbers
90MB0MR0-M0EAY0, Z170M-E D3
EAN / UPC
4712900153668, 807035642874, 809395424572, 889349153666 +3 more
Also known as
ASUS Z170M-E D3 motherboard Intel® Z170 LGA 1151 (Socket H4) micro ATX

Specifications

59 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1600,1866,2000,2133,2200,2400,2666,2800,2933,3100 MHz
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesM.2, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way CrossFireX

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors4
Number of SATA II connectors0
Number of SATA connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors2
Number of COM connectors1
TPM connectorYes

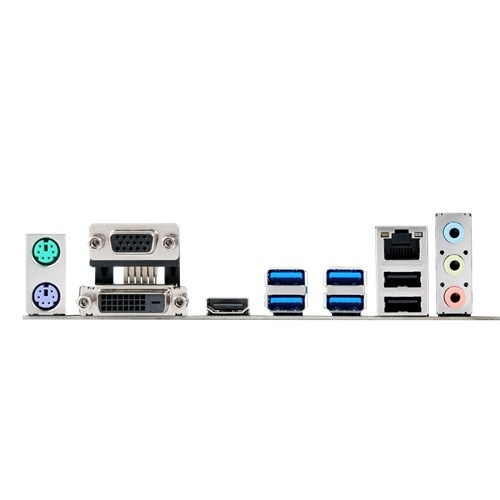

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z170
Audio chipRealtek ALC887-VD2
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) slots2
PCI slots1
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size16 Mbit
ACPI version5.0
Clear CMOS jumperYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes

Weight & dimensions

Width244 mm
Depth224 mm
