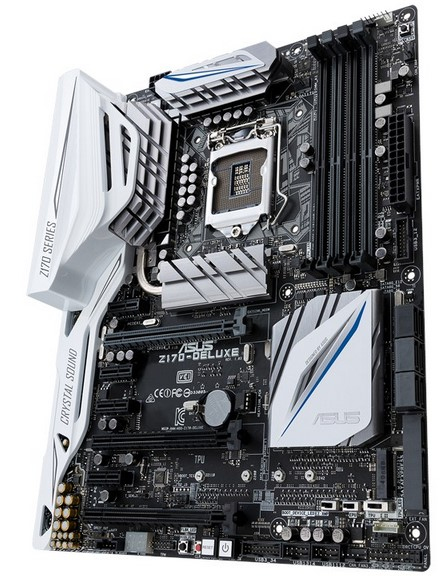

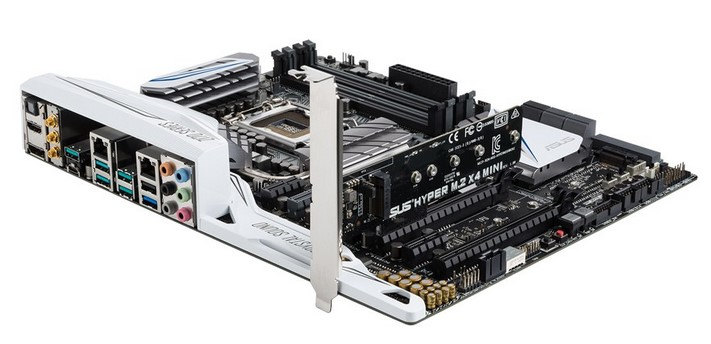

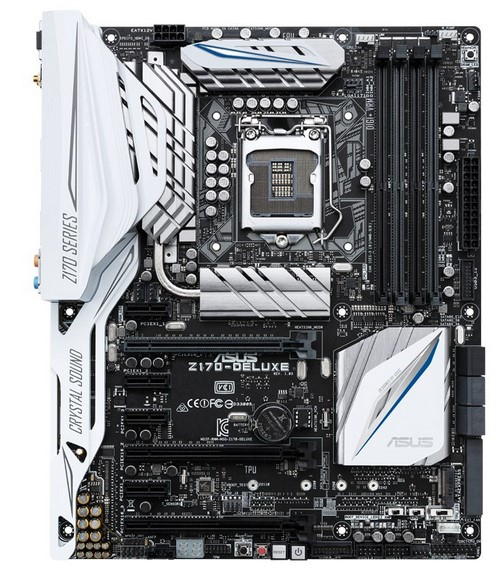

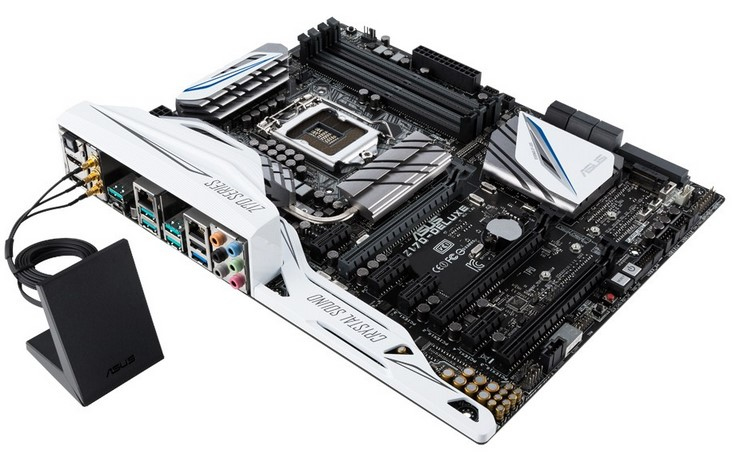

ASUS Z170-DELUXE Intel® Z170 LGA 1151 (Socket H4) ATX
Model Z170-DELUXEPart no. 90MB0LR0-M0AAY0EAN 889349113882
77 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- Maximum graphics card memory512 MB
- USB 2.0 connectors2
- USB 2.0 ports quantity1
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- Maximum graphics card memory
- 512 MB
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 1
- Brand
- ASUS
- Category
- Motherboard
- Model
- Z170-DELUXE
- Part numbers
- 90MB0LR0-M0AAY0, 90MB0LR0-M0EAY0
- EAN / UPC
- 889349113882, 807034901590, 809395310516, 4053162932425 +3 more
- Also known as
- ASUS Z170-DELUXE Intel® Z170 LGA 1151 (Socket H4) ATX
Specifications
77 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3300 MHz |
| Maximum internal memory | 64 GB |
| Supported memory module capacities | 16GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 512 MB |
| Parallel processing technology support | 2-Way SLI, 3-Way CrossFireX |
| On-board graphics card | No |
| Graphics card | HD Graphics |
| Discrete graphics support | Yes |
| Number of displays supported | 3 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of SATA Express connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| Thunderbolt headers | 1 |

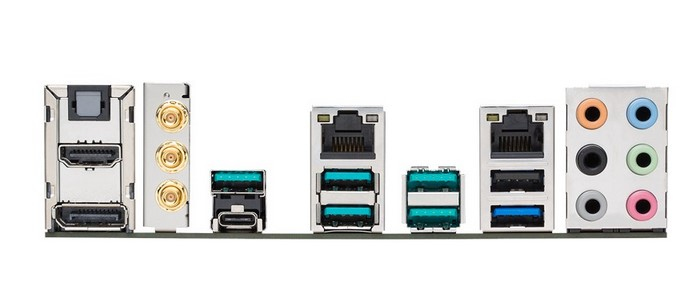

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I211-AT |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® Z170 |
| Audio chip | Realtek ALC1150 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 Education, Windows 10 Enterprise, Windows 10 Home, Windows 10 Pro, Windows 7 Enterprise x64, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Wi |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 4 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
Processor special features
| Specification | Value |
|---|---|
| Intel Extreme Memory Profile (XMP) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
