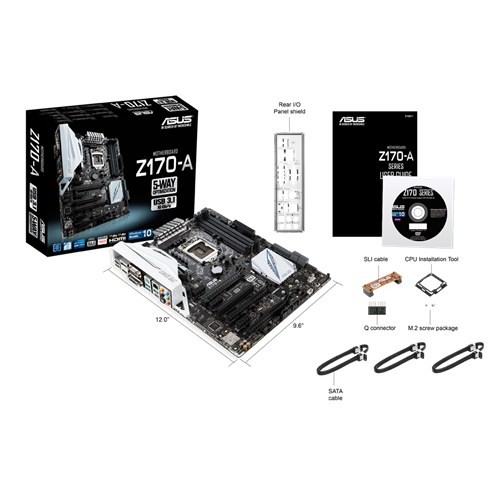

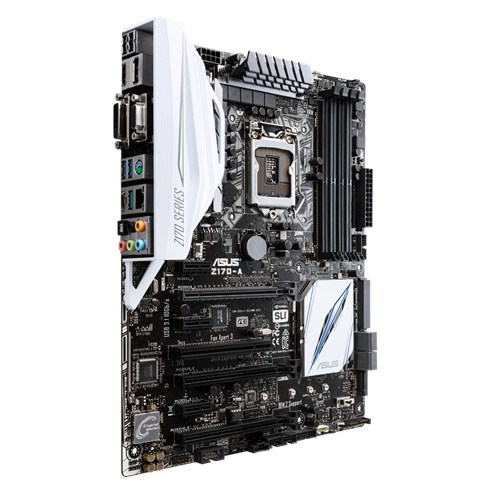

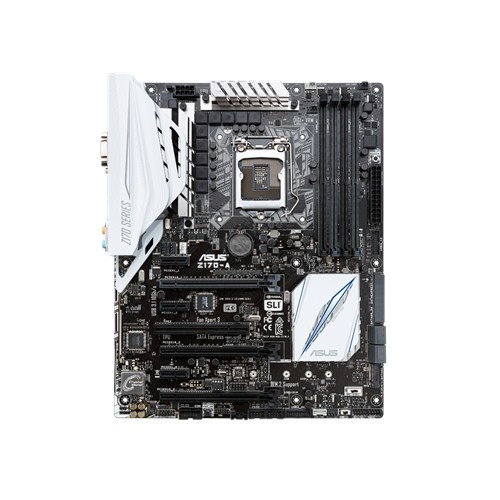

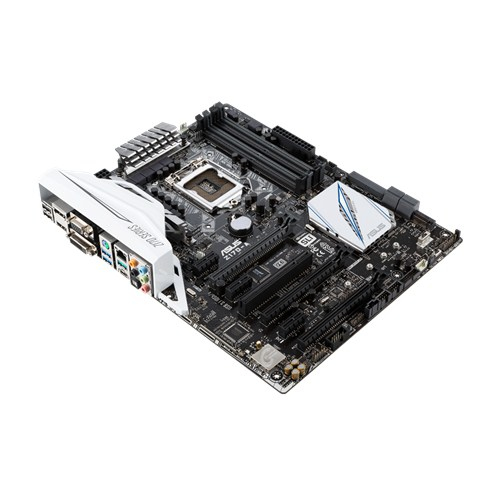

ASUS Z170-A Intel® Z170 LGA 1151 (Socket H4) ATX
Model Z170-APart no. 90MB0LS0-M0AAY0EAN 9154403753207
64 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA, SATA III
- Parallel processing technology support4-Way CrossFireX, Quad-GPU SLI
- USB 2.0 connectors2
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA, SATA III
- Parallel processing technology support
- 4-Way CrossFireX, Quad-GPU SLI
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Brand
- ASUS
- Category
- Motherboard
- Model
- Z170-A
- Part numbers
- 90MB0LS0-M0AAY0, 90MB0LS0-M0EAY0
- EAN / UPC
- 9154403753207, 672773731070, 807034901606, 809395310523 +12 more
- Also known as
- ASUS Z170-A Intel® Z170 LGA 1151 (Socket H4) ATX
Specifications
64 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2600,2666,2800,2933,3000,3100,3200,3300 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA, SATA III |
| RAID levels | 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 4-Way CrossFireX, Quad-GPU SLI |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| Thunderbolt headers | 1 |

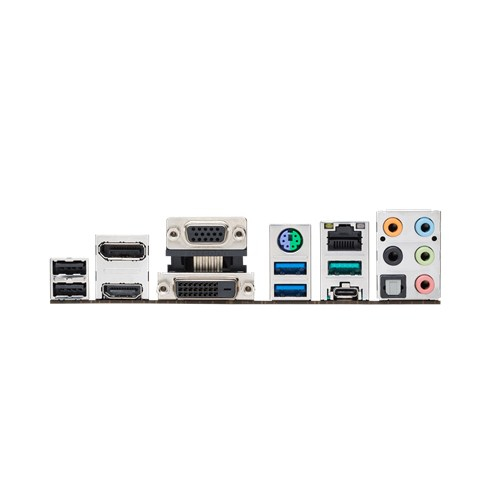

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® Z170 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| PCI slots | 1 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
Processor special features
| Specification | Value |
|---|---|
| Intel Extreme Memory Profile (XMP) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Number of SATA Express ports | 1 |
| S/PDIF in port | Yes |
| EZ plug connector | Yes |
What people say
Reviews & ratings
ASUS Z170-A Intel® Z170 LGA 1151 (Socket H4) ATX
No reviews yet
Be the first to tell others how ASUS Z170-A Intel® Z170 LGA 1151 (Socket H4) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS Z170-A Intel® Z170 LGA 1151 (Socket H4) ATX
All motherboard comparisons- ASUS Z170-A Intel® Z170 LGA 1151 (Socket H4) ATX vsASUS MAXIMUS VIII RANGERCompare specs
- ASUS Z170-A Intel® Z170 LGA 1151 (Socket H4) ATX vsASUS Z170-DELUXE Intel® Z170 LGA 1151 (Socket H4) ATXCompare specs
- ASUS Z170-A Intel® Z170 LGA 1151 (Socket H4) ATX vsASUS Z170 PRO GAMINGCompare specs

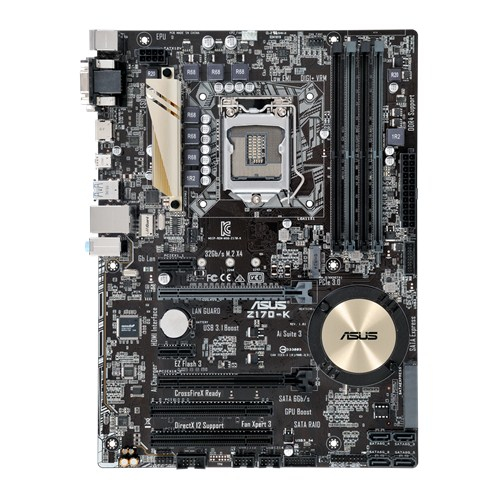

- ASUS Z170-A Intel® Z170 LGA 1151 (Socket H4) ATX vsASUS Z170-K Intel® Z170 LGA 1151 (Socket H4) ATXCompare specs

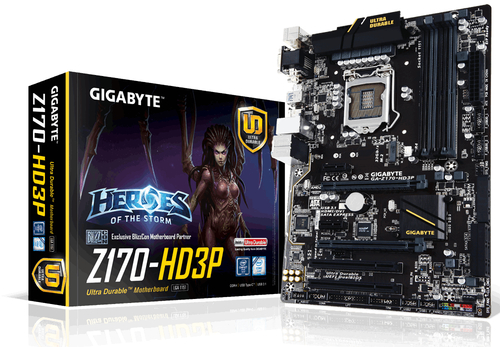

- ASUS Z170-A Intel® Z170 LGA 1151 (Socket H4) ATX vsGIGABYTE GA-Z170-HD3P (rev. 1.0)Compare specs

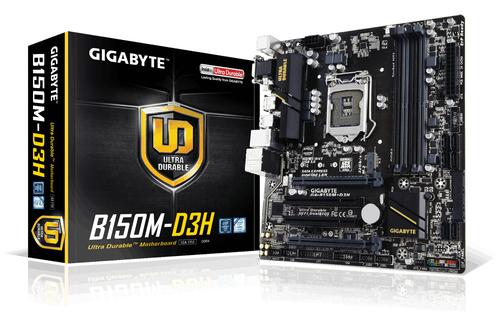

- ASUS Z170-A Intel® Z170 LGA 1151 (Socket H4) ATX vsGIGABYTE GA-B150M-D3H motherboard Intel® B150 LGA 1151 (Socket H4) micro ATXCompare specs

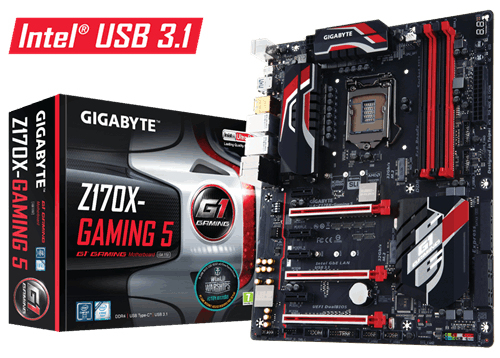

- ASUS Z170-A Intel® Z170 LGA 1151 (Socket H4) ATX vsGIGABYTE GA-Z170X-Gaming 5-EUCompare specs

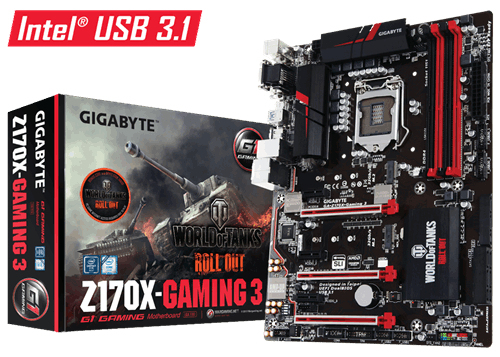

- ASUS Z170-A Intel® Z170 LGA 1151 (Socket H4) ATX vsGIGABYTE GA-Z170X-Gaming 3-EUCompare specs
