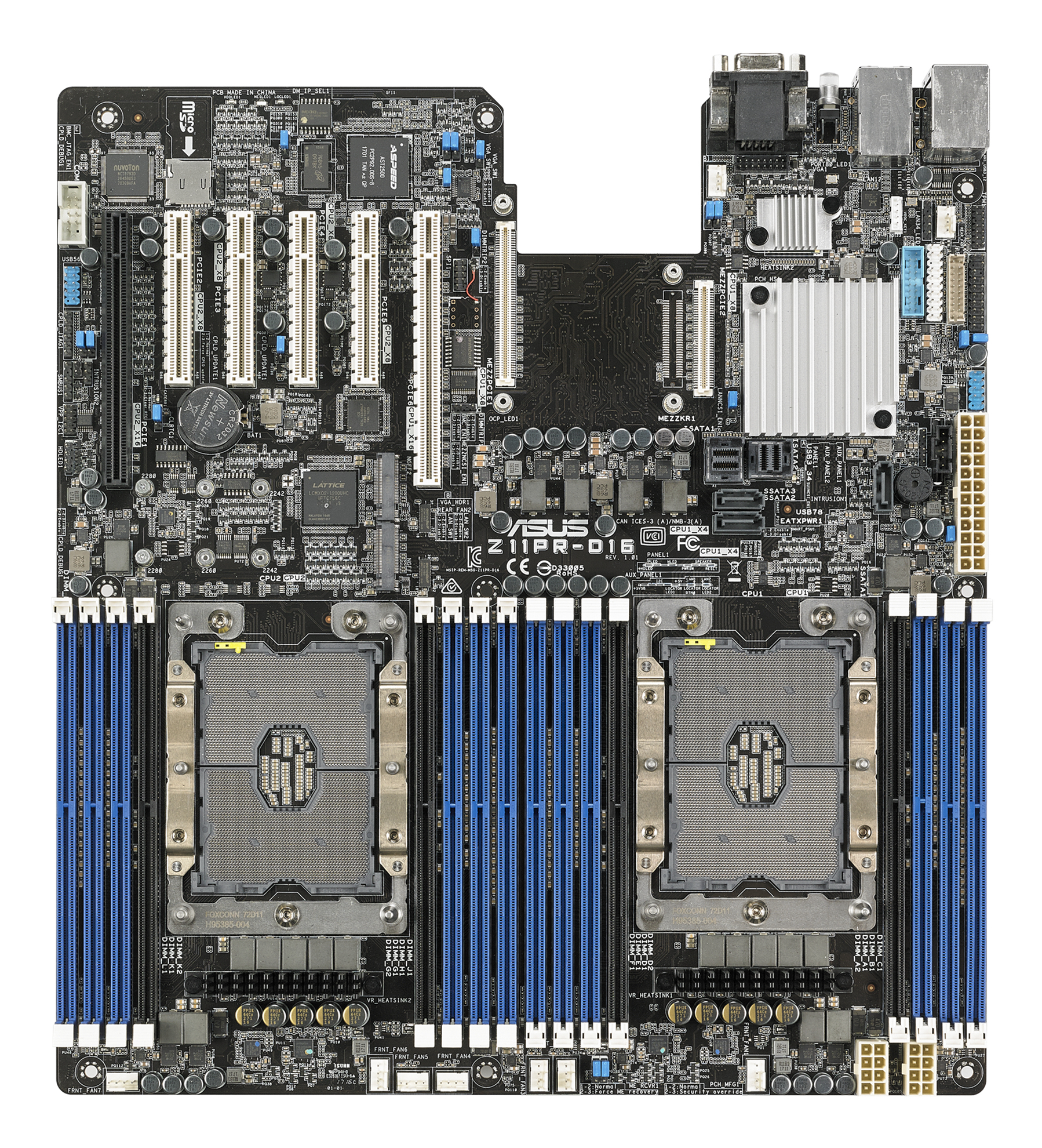

ASUS Z11PR-D16 Intel® C621 LGA 3647 (Socket P) SSI EEB
Model Z11PR-D16Part no. 90SB0670-M0UAY0EAN 889349601334
49 specifications
- Weight1.4 kg
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
Overview
- Weight
- 1.4 kg
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- Brand
- ASUS
- Category
- Motherboard
- Model
- Z11PR-D16
- Part number
- 90SB0670-M0UAY0
- EAN / UPC
- 889349601334, 4712900601336
- Also known as
- ASUS Z11PR-D16 Intel® C621 LGA 3647 (Socket P) SSI EEB
Specifications
49 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 3647 (Socket P) |
| System bus rate | 10.4 GT/s |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 2400,2666 MHz |
| Maximum internal memory | 512 GB |
| Maximum RDIMM memory | 512 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card memory | 64 MB |
| On-board graphics card model | Aspeed AST2500 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |

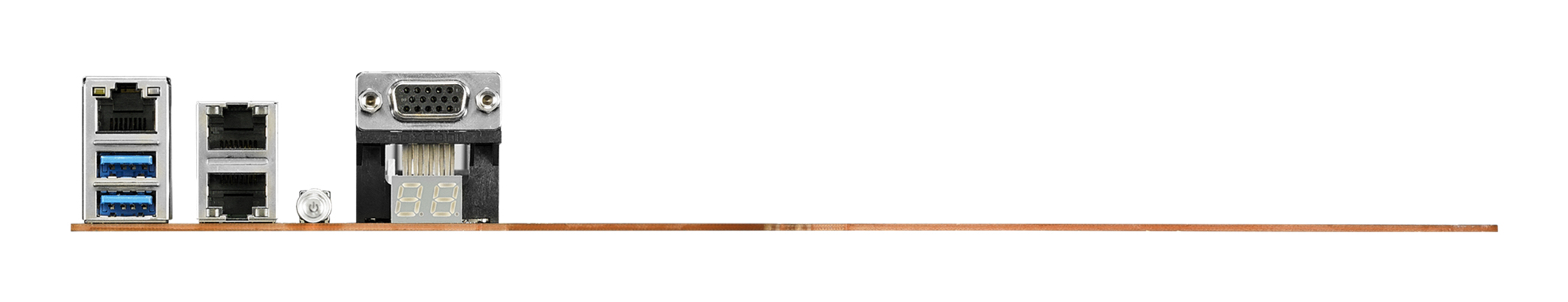

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| PS/2 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I350-AM2 |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | SSI EEB |
| Motherboard chipset | Intel® C621 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 2.x) slots | 0 |
| PCI Express x8 (Gen 3.x) slots | 4 |
| PCI Express x16 (Gen 2.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 2 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.42 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 330 mm |
Other features
| Specification | Value |
|---|---|
| Supported DIMM module capacities | 4GB, 8GB, 16GB, 32GB, 64GB |
| Supported LRDIMM module capacity | 32GB, 64GB |
| Supported LRDIMM clock speeds | 2400,2666 MHz |
| Maximum LRDIMM memory | 1 TB |
| Supported RDIMM clock speeds | 2400,2666 MHz |
| Supported RDIMM module capacity | 4GB, 8GB, 16GB, 32GB |
| Weight | 1.4 kg |
| Number of DIMM slots | 16 |
| Number of processors supported | 2 |
Compare ASUS Z11PR-D16 Intel® C621 LGA 3647 (Socket P) SSI EEB
Compare any products- ASUS Z11PR-D16 Intel® C621 LGA 3647 (Socket P) SSI EEB vsASUS Z11PA-U12 Intel® C621 ATXCompare specs

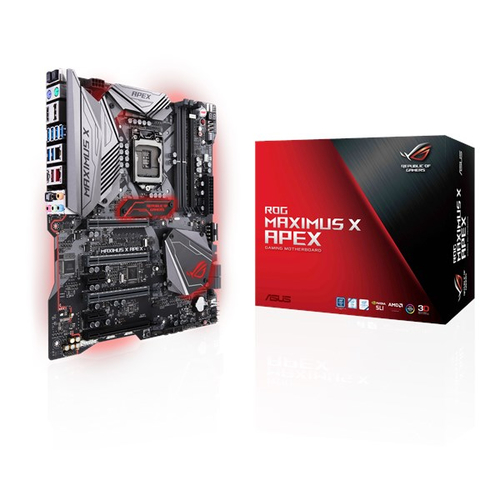

- ASUS Z11PR-D16 Intel® C621 LGA 3647 (Socket P) SSI EEB vsASUS ROG MAXIMUS X APEXCompare specs

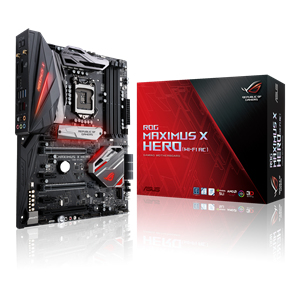

- ASUS Z11PR-D16 Intel® C621 LGA 3647 (Socket P) SSI EEB vsASUS ROG MAXIMUS X HERO (WI-FI AC)Compare specs

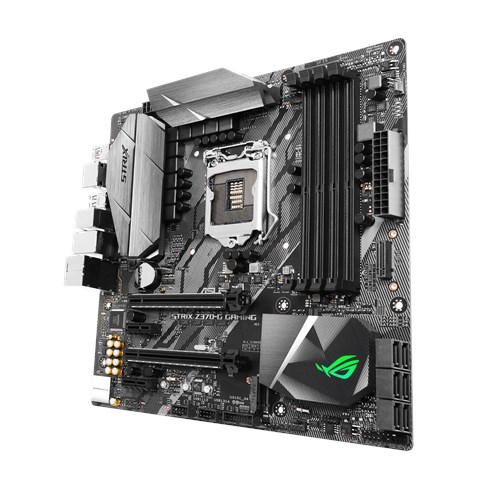

- ASUS Z11PR-D16 Intel® C621 LGA 3647 (Socket P) SSI EEB vsASUS ROG STRIX Z370-G GAMINGCompare specs

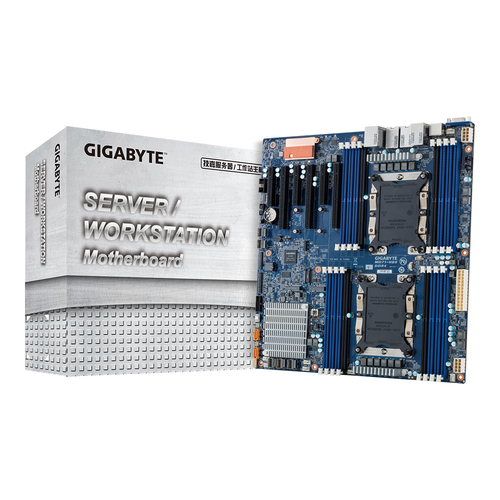

- ASUS Z11PR-D16 Intel® C621 LGA 3647 (Socket P) SSI EEB vsGIGABYTE MD71-HB0 Intel C622 LGA 3647 (Socket P) Extended ATXCompare specs

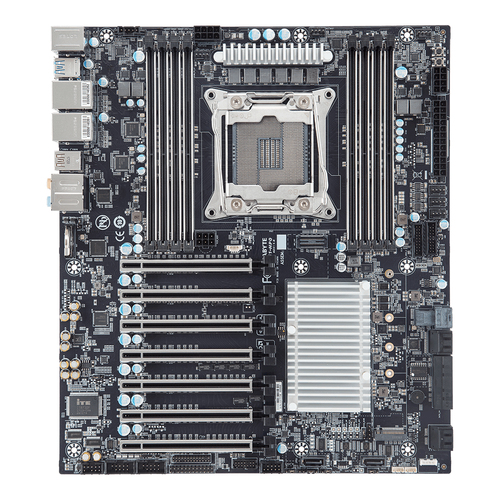

- ASUS Z11PR-D16 Intel® C621 LGA 3647 (Socket P) SSI EEB vsGIGABYTE MW51-HP0 (rev. 1.0)Compare specs

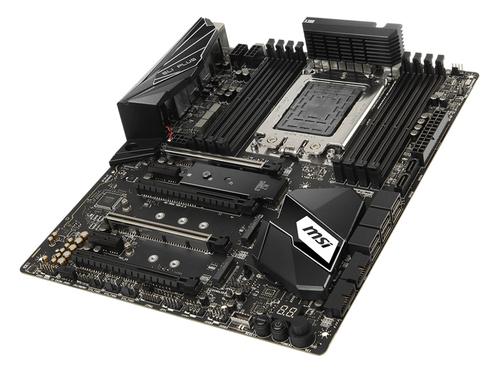

- ASUS Z11PR-D16 Intel® C621 LGA 3647 (Socket P) SSI EEB vsMSI X399 SLI PLUSCompare specs

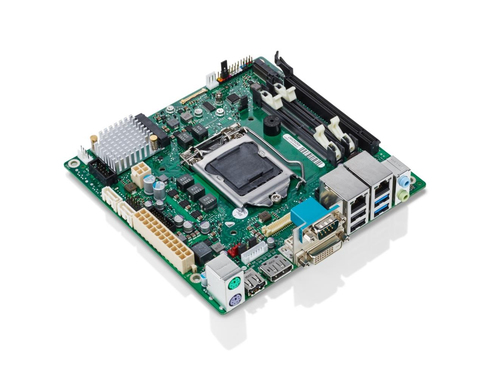

- ASUS Z11PR-D16 Intel® C621 LGA 3647 (Socket P) SSI EEB vsFujitsu D3434-S22 motherboard Intel® H170 LGA 1151 (Socket H4) mini ITXCompare specs
