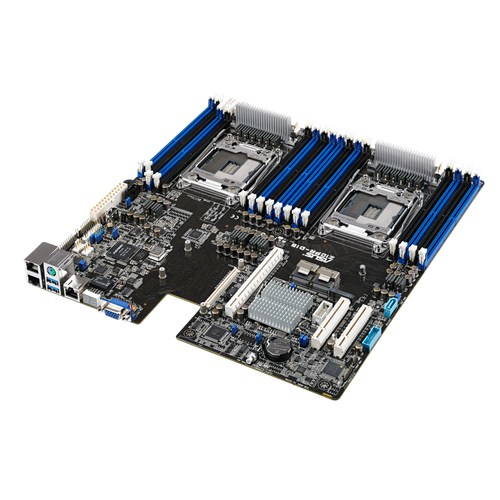

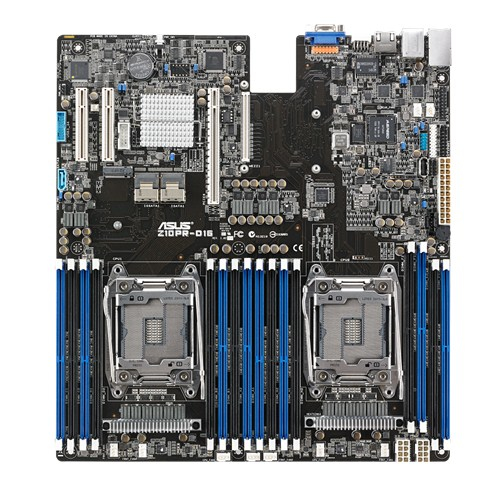

ASUS Z10PR-D16 Intel® C612 LGA 2011-v3 SSI EEB
Model Z10PR-D16Part no. 90SB03V0-M0UAY0EAN 4058154127360
53 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- Discrete graphics supportYes
- Number of SATA III connectors9
- USB 2.0 ports quantity0
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- Discrete graphics support
- Yes
- Number of SATA III connectors
- 9
- USB 2.0 ports quantity
- 0
- Brand
- ASUS
- Category
- Motherboard
- Model
- Z10PR-D16
- Part number
- 90SB03V0-M0UAY0
- EAN / UPC
- 4058154127360, 4716659783114
- Also known as
- ASUS Z10PR-D16 Intel® C612 LGA 2011-v3 SSI EEB
Specifications
53 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2011-v3 |
| Intel Xeon series | E5-2600 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Memory channels | Quad-channel |
| Maximum internal memory | 1 TB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics support | Yes |
| On-board graphics card memory | 32 MB |
| On-board graphics card model | Aspeed AST2400 |
Internal I/O
| Specification | Value |
|---|---|
| Number of SATA III connectors | 9 |
| Number of SATA II connectors | 0 |
| Chassis intrusion connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |

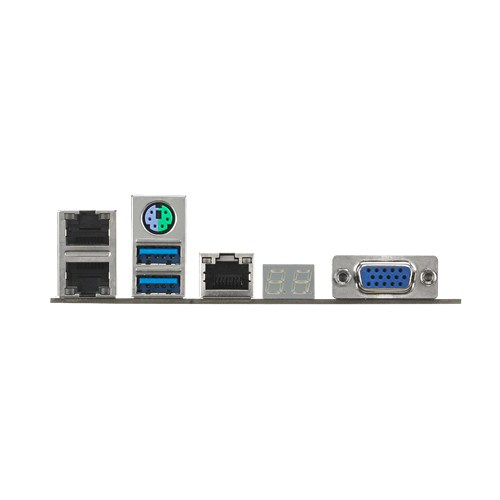

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210 |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | SSI EEB |
| Motherboard chipset | Intel® C612 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
Processor special features
| Specification | Value |
|---|---|
| Conflict-Free | Yes |
| Intel Intelligent Power Node Manager | Yes |
| Intel Quiet System Technology (QST) | No |
| Intel Rapid Storage Technology | No |
| Intel Rapid Storage Technology enterprise | Yes |
| Intel Remote PC Assist Technology (RPAT) | No |
| Intel Trusted Execution Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Intel® Virtualization Technology (Intel® VT) | VT-d |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 330 mm |
Other features
| Specification | Value |
|---|---|
| Supported LRDIMM module capacity | 32GB, 64GB |
| Supported LRDIMM clock speeds | 1333,1600,1866,2133 MHz |
| Supported RDIMM clock speeds | 1333,1600,1866,2133,2400 MHz |
| Supported RDIMM module capacity | 4GB, 8GB, 16GB, 32GB |
| Intel® vPro™ Platform Eligibility | Yes |
| Number of DIMM slots | 16 |
What people say
Reviews & ratings
ASUS Z10PR-D16 Intel® C612 LGA 2011-v3 SSI EEB
No reviews yet
Be the first to tell others how ASUS Z10PR-D16 Intel® C612 LGA 2011-v3 SSI EEB works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS Z10PR-D16 Intel® C612 LGA 2011-v3 SSI EEB

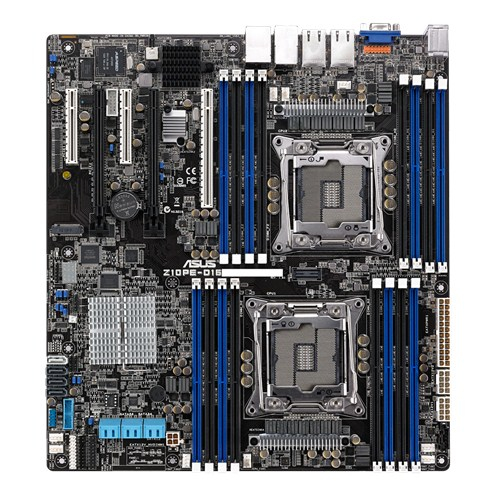

All motherboard comparisons- ASUS Z10PR-D16 Intel® C612 LGA 2011-v3 SSI EEB vsASUS Z10PE-D16/4L Intel® C612 LGA 2011-v3 SSI EEBCompare specs

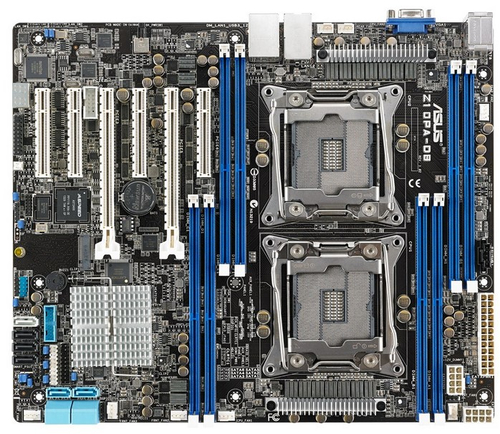

- ASUS Z10PR-D16 Intel® C612 LGA 2011-v3 SSI EEB vsASUS Z10PA-D8 Intel® C612 LGA 2011-v3 ATXCompare specs
