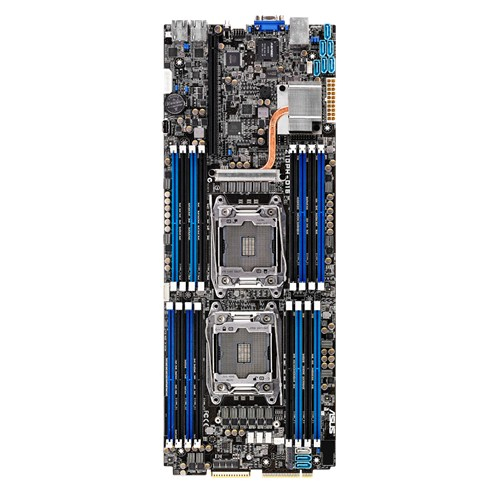

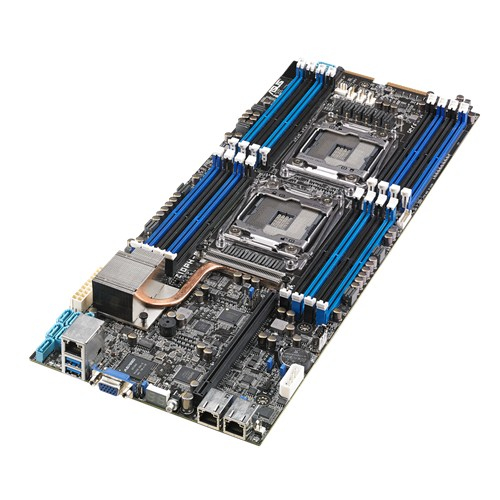

ASUS Z10PH-D16 Intel® C612 LGA 2011-v3 Half SSI
Model Z10PH-D16Part no. 90SB0440-M0UAY0EAN 4716659825661
47 specifications
- Weight1.4 kg
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- On-board graphics card memory32 MB
- USB 2.0 connectors1
Overview
- Weight
- 1.4 kg
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- On-board graphics card memory
- 32 MB
- USB 2.0 connectors
- 1
- Brand
- ASUS
- Category
- Motherboard
- Model
- Z10PH-D16
- Part number
- 90SB0440-M0UAY0
- EAN / UPC
- 4716659825661
- Also known as
- ASUS Z10PH-D16 Intel® C612 LGA 2011-v3 Half SSI
Specifications
47 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2011-v3 |
| Intel Xeon series | E5-2600 |
| Processor number of cores supported | 4, 6, 8, 10, 12, 14, 16, 18 |
| Supported QPI | 6.4,8,9.6 GT/s |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 1333,1600,1866,2133 MHz |
| Maximum internal memory | 1 TB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card memory | 32 MB |
| On-board graphics card model | Aspeed AST2400 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| Number of SATA III connectors | 6 |
| Number of chassis fan connectors | 4 |
| Chassis intrusion connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |

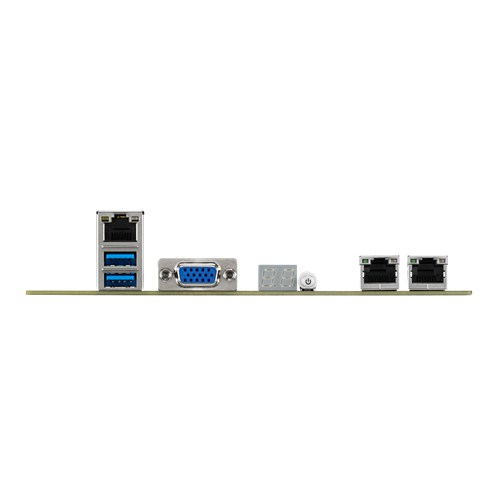

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| PS/2 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I210-AT |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | Half SSI |
| Motherboard chipset | Intel® C612 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 2.x) slots | 0 |
| PCI Express x8 (Gen 3.x) slots | 0 |
| PCI Express x16 (Gen 2.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 0 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.24 kg |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 458 mm |
| Depth | 174 mm |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Other features
| Specification | Value |
|---|---|
| Supported LRDIMM module capacity | 32GB, 64GB |
| Supported RDIMM module capacity | 4GB, 8GB, 16GB, 32GB |
| Weight | 1.4 kg |
| Number of DIMM slots | 16 |
| Number of processors supported | 2 |
| Quick installation guide | Yes |
