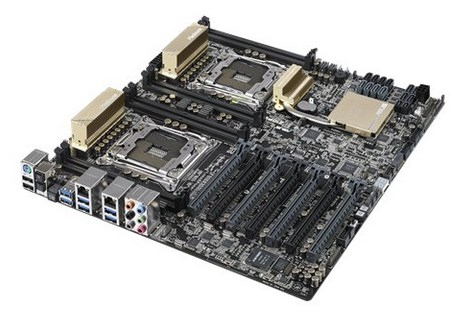

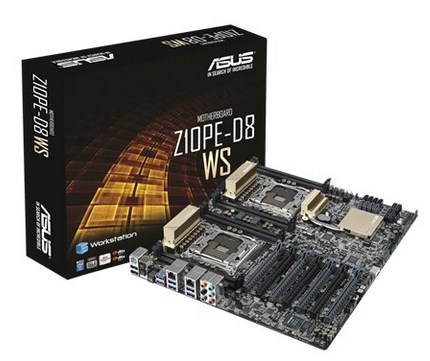

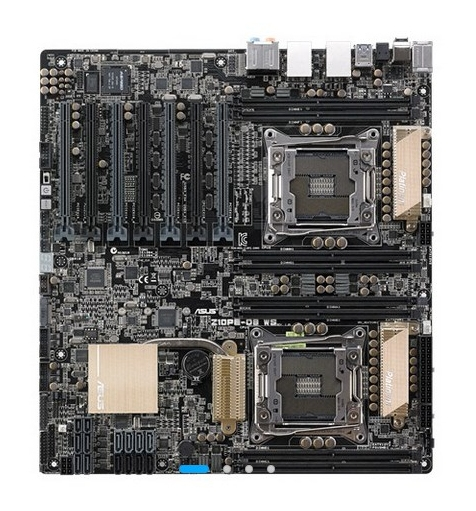

ASUS Z10PE-D8 WS

ASUS Z10PE-D8 WS

Model Z10PE-D8 WSPart no. 90SB0460-M0EAY0EAN 8862278270606

51 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA III
  • Parallel processing technology support4-Way CrossFireX, 4-Way SLI
  • USB 2.0 connectors1
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
Parallel processing technology support
4-Way CrossFireX, 4-Way SLI
USB 2.0 connectors
1
USB 2.0 ports quantity
2
Brand
ASUS
Category
Motherboard
Model
Z10PE-D8 WS
Part number
90SB0460-M0EAY0
EAN / UPC
8862278270606, 886227827060, 4053162747012, 4056572772841 +2 more
Also known as
ASUS Z10PE-D8 WS Intel® C612 LGA 2011-v3 SSI EEB

Specifications

51 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011-v3
Intel Xeon seriesE5-2600

Memory

Supported memory typesDDR4-SDRAM
Memory channelsQuad-channel
Supported memory clock speeds1333,1600,1866,2133 MHz
Maximum internal memory512 GB
Maximum RDIMM memory512 GB

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support4-Way CrossFireX, 4-Way SLI
Discrete graphics supportYes
On-board graphics card memory32 MB
On-board graphics card modelAspeed AST2400

Internal I/O

USB 2.0 connectors1
Number of SATA III connectors8
CD/AUX audio inYes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors7
Number of COM connectors1
Serial port headers1
TPM connectorYes

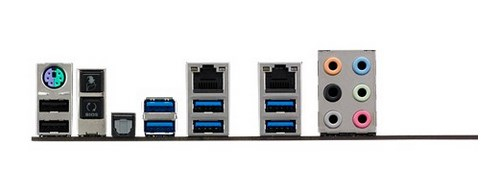

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2, 6
Ethernet LAN (RJ-45) ports2
PS/2 ports quantity1
VGA (D-Sub) ports quantity0

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I210-AT
Wi-FiNo

Features

Component forServer
Motherboard form factorSSI EEB
Motherboard chipsetIntel® C612
Audio output channels7.1 channels

Expansion slots

PCI Express x8 (Gen 2.x) slots0
PCI Express x8 (Gen 3.x) slots0
PCI Express x16 slots7

BIOS

BIOS typeUEFI
BIOS memory size128 Mbit
ACPI version3.0
Clear CMOS buttonYes

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width330 mm
Depth305 mm

Other features

Supported LRDIMM clock speeds1333,1600,1866 MHz
Maximum LRDIMM memory512 GB
Supported RDIMM clock speeds1333,1600,1866 MHz
Number of DIMM slots8
Number of processors supported2
