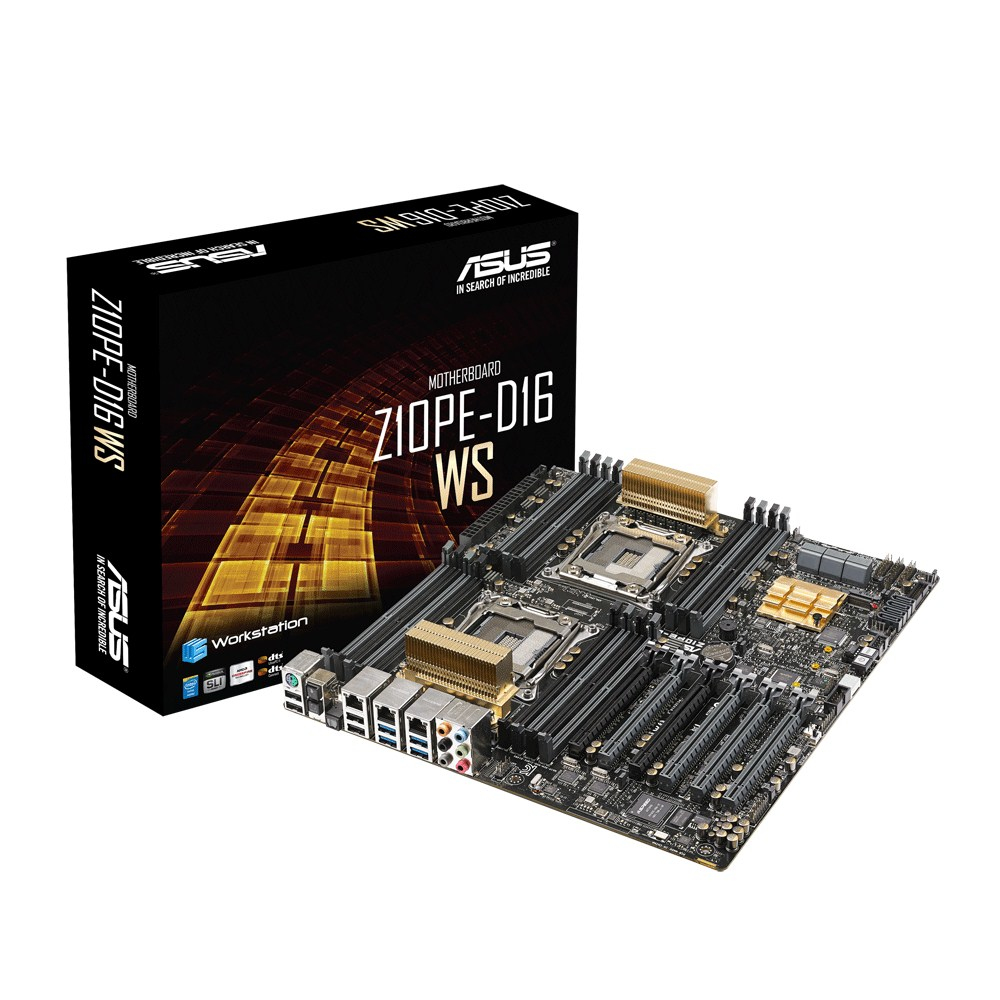

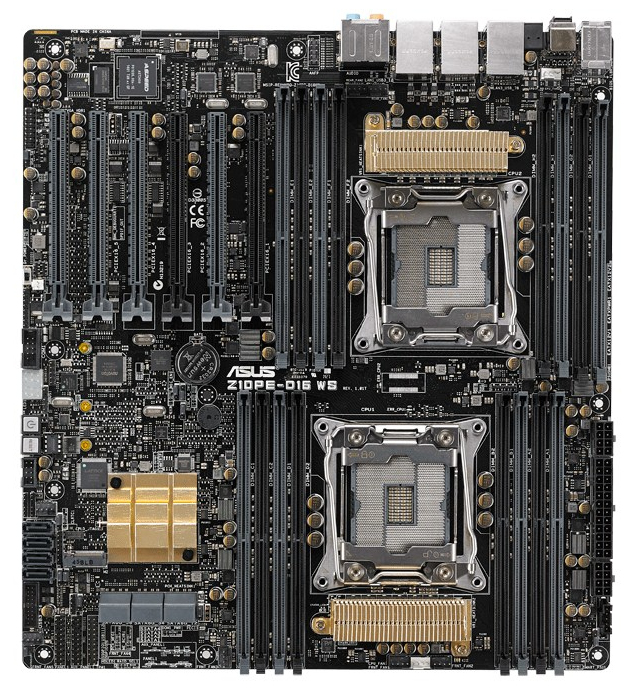

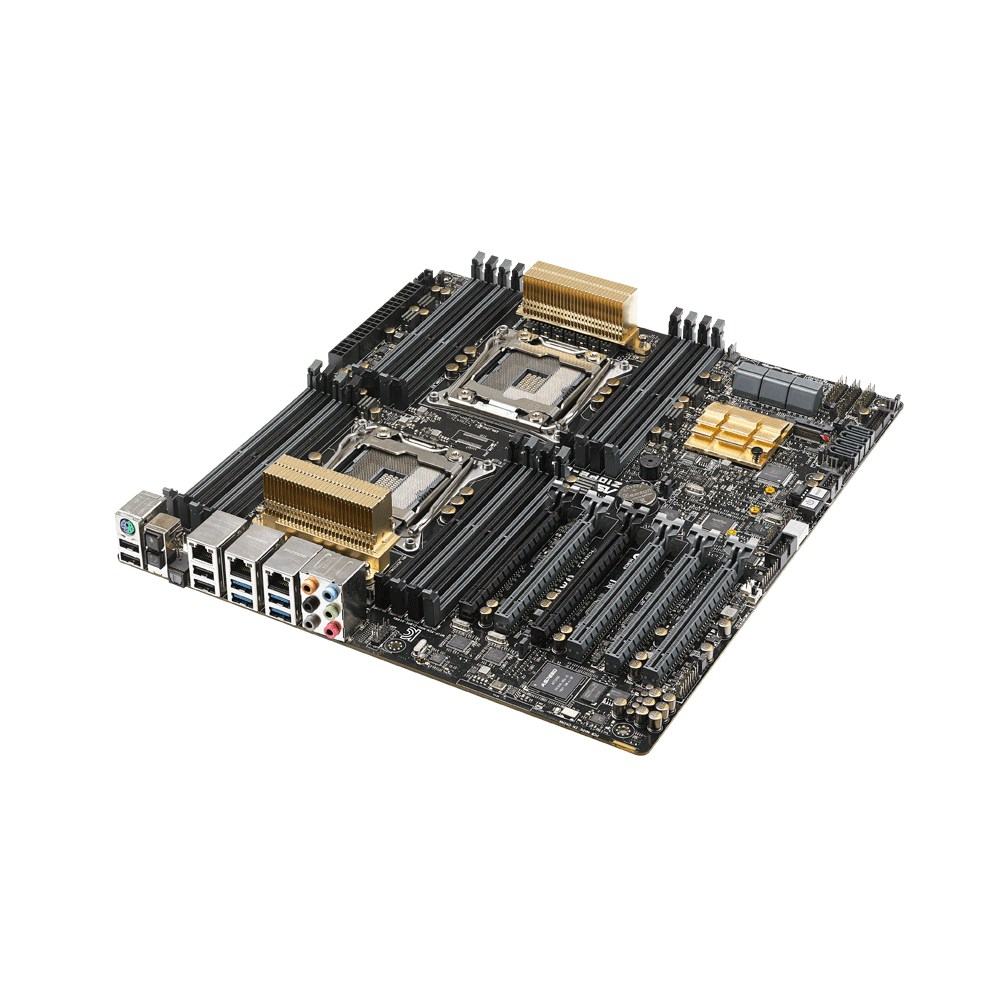

ASUS Z10PE-D16 WS

ASUS Z10PE-D16 WS

Model Z10PE-D16 WSEAN 8862279216900

51 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA III
  • Parallel processing technology support3-Way SLI, Quad-GPU CrossFireX
  • USB 2.0 connectors1
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
Parallel processing technology support
3-Way SLI, Quad-GPU CrossFireX
USB 2.0 connectors
1
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
Z10PE-D16 WS
Part numbers
Z10PE-D16 WS, 90SB04L0-M0EAY0
EAN / UPC
8862279216900, 4053162747036, 4716659921691, 886227921690 +1 more
Also known as
ASUS Z10PE-D16 WS Intel® C612 LGA 2011-v3 SSI EEB

Specifications

51 specifications in 15 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011-v3
Intel Xeon seriesE5-2600
Processor number of cores supported4, 6, 8, 10, 12, 16, 18

Memory

Supported memory typesDDR4-SDRAM
Memory channelsQuad-channel
Supported memory clock speeds1600,1866,2133 MHz
Maximum internal memory1 TB

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support3-Way SLI, Quad-GPU CrossFireX
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors1
Number of SATA III connectors10
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors2
CPU fan connectorYes
Number of chassis fan connectors7
Chassis intrusion connectorYes
Number of COM connectors1
Serial port headers2
TPM connectorYes

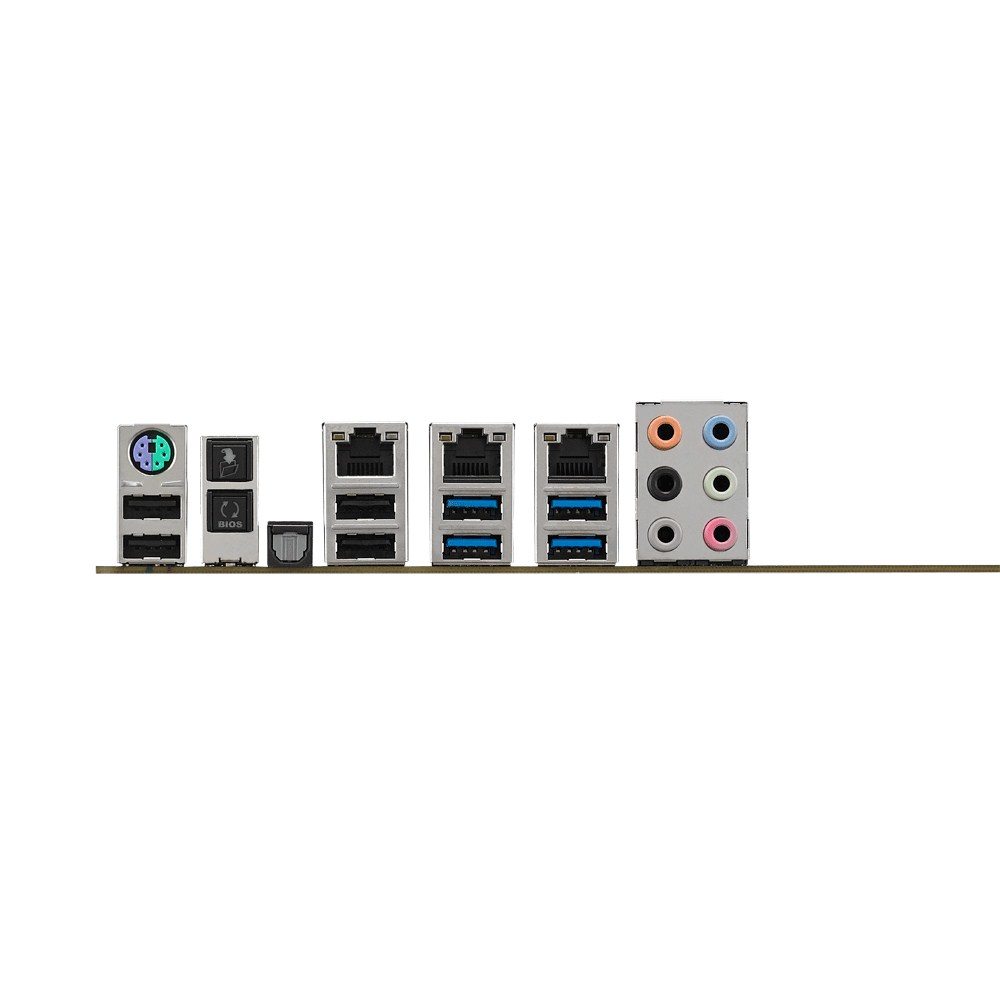

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1, 4
Ethernet LAN (RJ-45) ports3
IPMI LAN (RJ-45) portYes
PS/2 ports quantity1
VGA (D-Sub) ports quantity0

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wi-FiNo

Features

Component forWorkstation
Motherboard form factorSSI EEB
Motherboard chipsetIntel® C612
Audio output channels7.1 channels

Expansion slots

PCI Express x8 (Gen 2.x) slots0
PCI Express x8 (Gen 3.x) slots2
PCI Express x16 (Gen 2.x) slots0
PCI Express x16 (Gen 3.x) slots4

BIOS

BIOS typeUEFI
BIOS memory size128 Mbit
ACPI version3.0
Clear CMOS buttonYes

Processor special features

Trusted Platform Module (TPM)Yes

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width305 mm
Depth330.2 mm

Packaging content

Cables includedSATA

Other features

Number of DIMM slots16
Number of processors supported2
