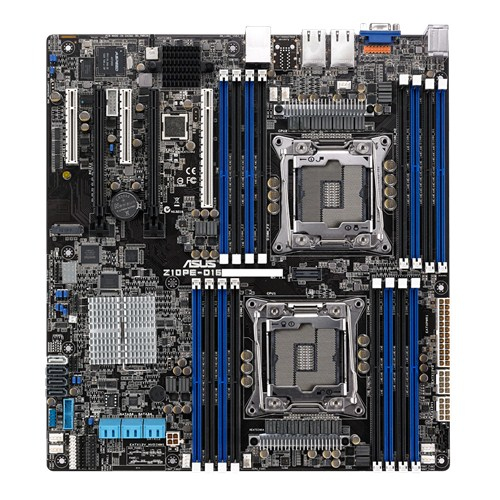

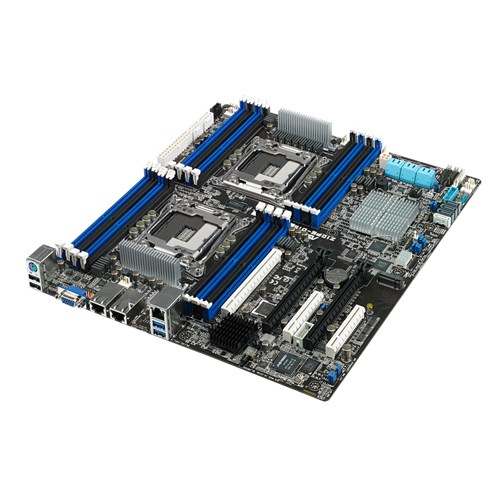

ASUS Z10PE-D16/10G-2T Intel® C612 LGA 2011-v3 SSI EEB
Model Z10PE-D16/10G-2TPart no. 90SB03P0-M0UAY0EAN 886227732395
51 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- On-board graphics card memory32 MB
- USB 2.0 connectors1
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- On-board graphics card memory
- 32 MB
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 2
- Brand
- ASUS
- Category
- Motherboard
- Model
- Z10PE-D16/10G-2T
- Part number
- 90SB03P0-M0UAY0
- EAN / UPC
- 886227732395, 4058154130421, 4716659732396
- Also known as
- ASUS Z10PE-D16/10G-2T Intel® C612 LGA 2011-v3 SSI EEB
Specifications
51 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2011-v3 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 1333,1600,1866,2133,2400 MHz |
| Maximum internal memory | 1 TB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card memory | 32 MB |
| On-board graphics card model | Aspeed AST2400 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 10 |
| Number of chassis fan connectors | 9 |
| Chassis intrusion connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |

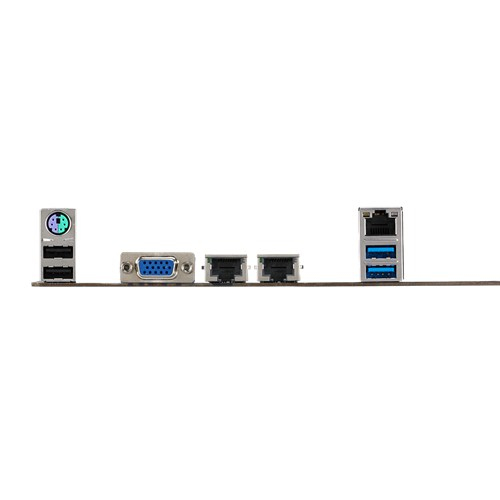

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | SSI EEB |
| Motherboard chipset | Intel® C612 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 3 |
Processor special features
| Specification | Value |
|---|---|
| Conflict-Free | Yes |
| Intel Quiet System Technology (QST) | No |
| Intel Rapid Storage Technology | No |
| Intel Rapid Storage Technology enterprise | Yes |
| Intel Remote PC Assist Technology (RPAT) | No |
| Intel Trusted Execution Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Intel® Virtualization Technology (Intel® VT) | VT-d |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 330 mm |
Other features
| Specification | Value |
|---|---|
| Supported LRDIMM module capacity | 32GB, 64GB |
| Supported RDIMM module capacity | 4GB, 8GB, 16GB, 32GB |
| Intel® vPro™ Platform Eligibility | Yes |
| Number of DIMM slots | 16 |
| Number of processors supported | 1 |
