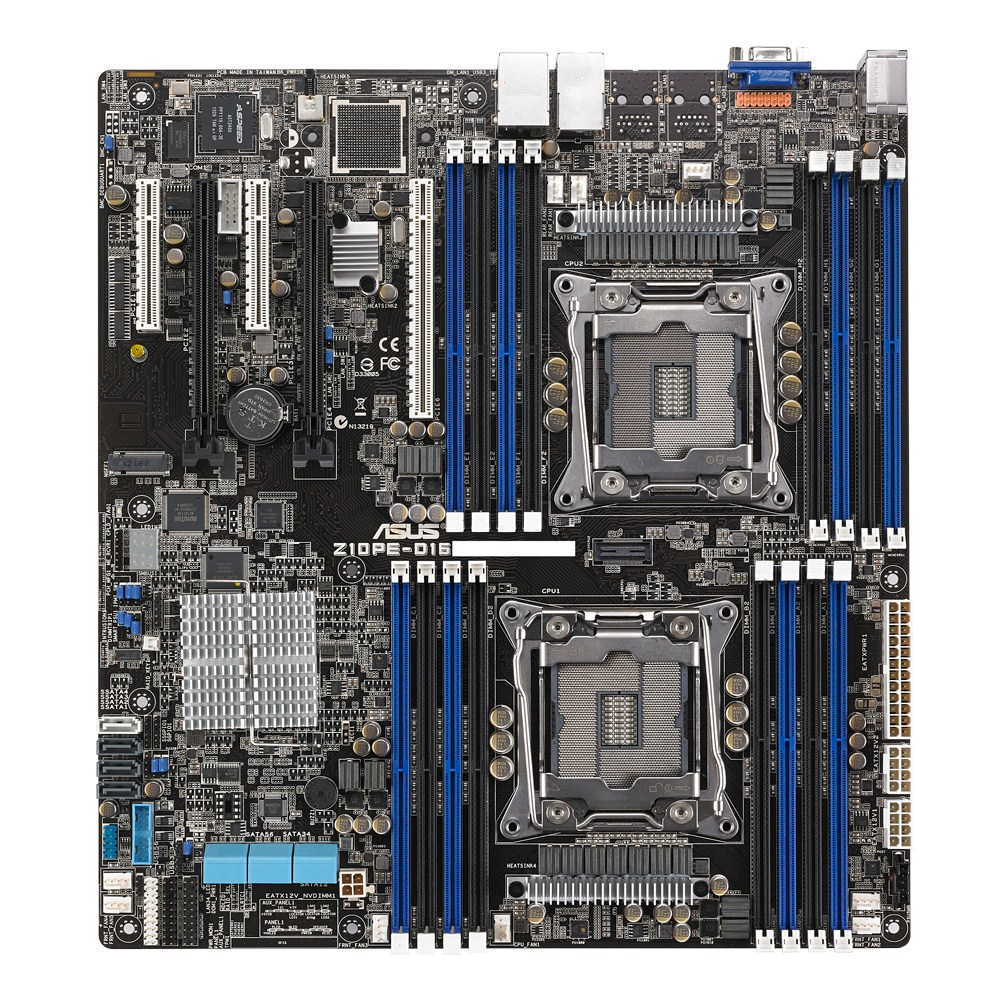

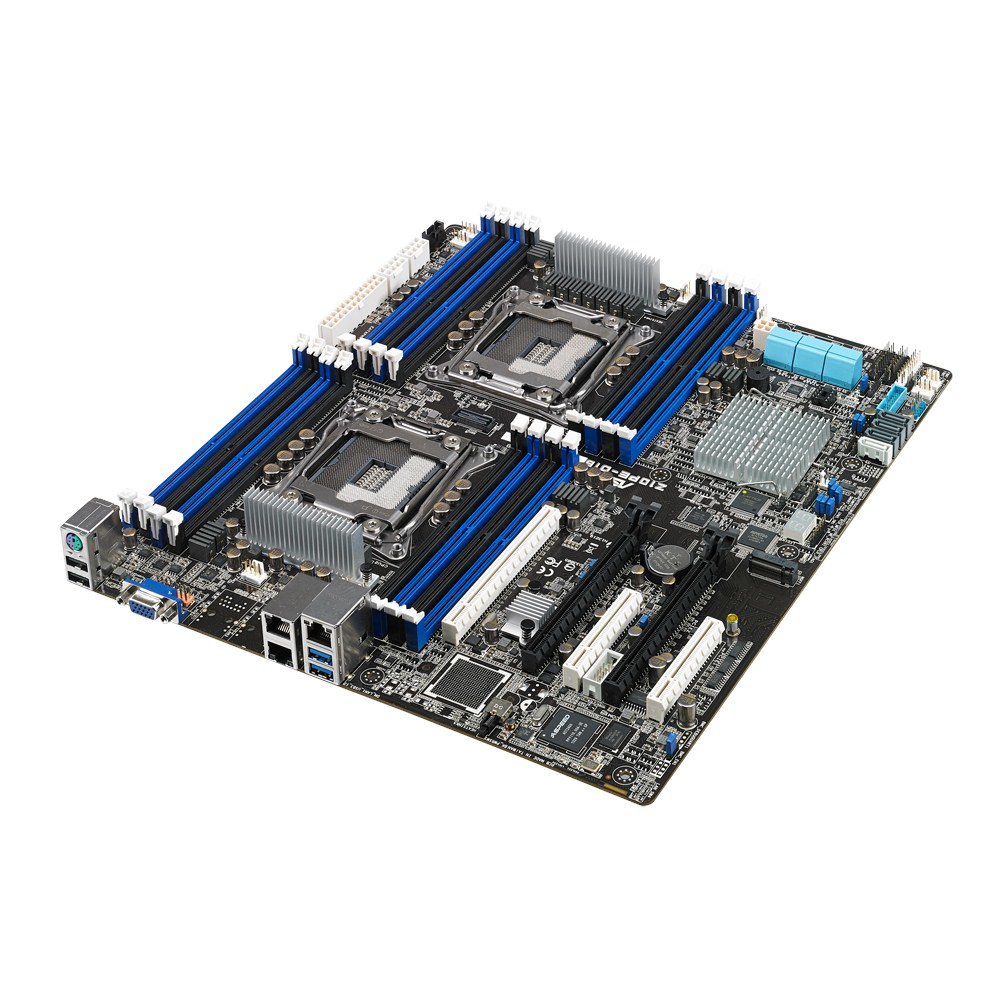

ASUS Z10PE-D16 Intel® C612 LGA 2011-v3 SSI EEB
Model Z10PE-D16Part no. 90SB03M0-M0UAY0EAN 886227751075
53 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- On-board graphics card memory32 MB
- USB 2.0 connectors1
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- On-board graphics card memory
- 32 MB
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 2
- Brand
- ASUS
- Category
- Motherboard
- Model
- Z10PE-D16
- Part number
- 90SB03M0-M0UAY0
- EAN / UPC
- 886227751075, 4058154127353, 4716659751076, 8862277510758
- Also known as
- ASUS Z10PE-D16 Intel® C612 LGA 2011-v3 SSI EEB
Specifications
53 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2011-v3 |
| Intel Xeon series | E5-2600 |
| Processor number of cores supported | 4, 6, 8, 10, 12, 16, 18 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Memory channels | Quad-channel |
| Supported memory clock speeds | 1333,1600,1866,2133 MHz |
| Maximum internal memory | 1 TB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card memory | 32 MB |
| On-board graphics card model | Aspeed AST2400 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| Number of SATA III connectors | 10 |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 2 |
| Power fan connector | Yes |
| Number of chassis fan connectors | 9 |
| Chassis intrusion connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |

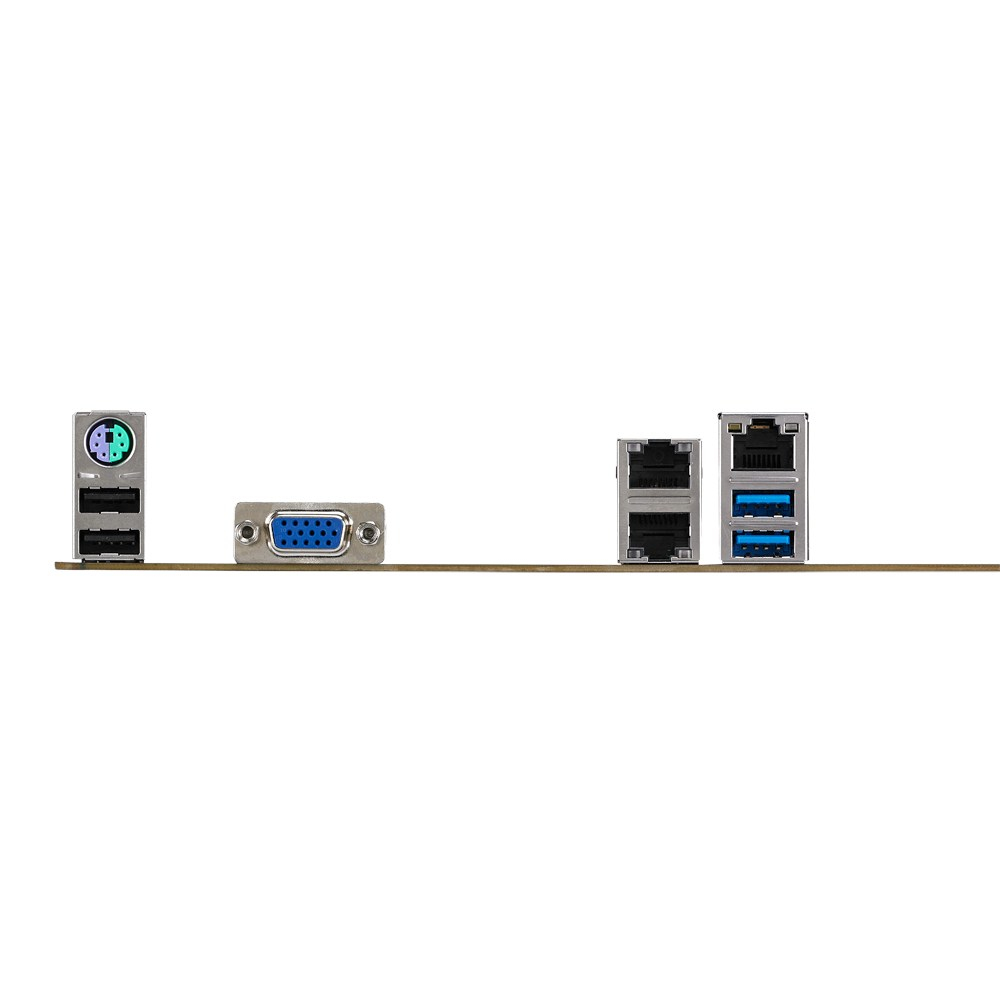

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1, 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| IPMI LAN (RJ-45) port | Yes |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I350-AM2 |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Workstation |
| Motherboard form factor | SSI EEB |
| Motherboard chipset | Intel® C612 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 2.x) slots | 0 |
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 2.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 3 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 330.2 mm |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Other features
| Specification | Value |
|---|---|
| Supported LRDIMM module capacity | 32GB, 64GB |
| Supported LRDIMM clock speeds | 1333,1600,1866,2133 MHz |
| Maximum LRDIMM memory | 1 TB |
| Supported RDIMM clock speeds | 1333,1600,1866,2133 MHz |
| Supported RDIMM module capacity | 16GB, 32GB, 4GB, 8GB |
| Number of DIMM slots | 16 |
| Number of processors supported | 2 |
