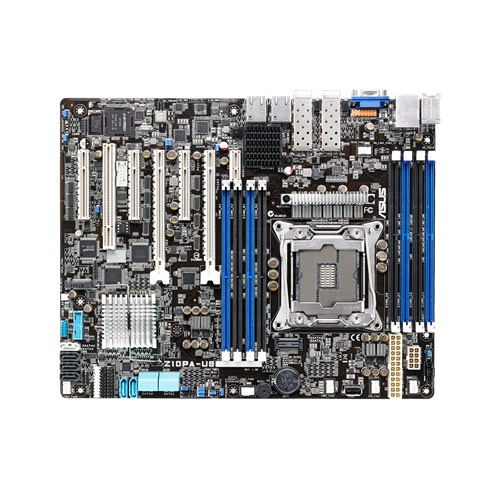

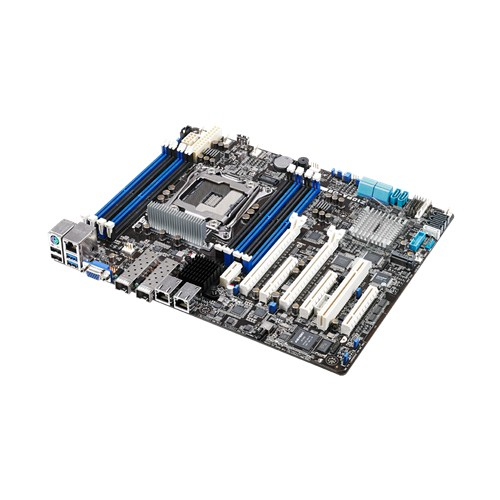

ASUS Z10PA-U8/10G-2S Intel® C612 LGA 2011-v3 ATX

ASUS Z10PA-U8/10G-2S Intel® C612 LGA 2011-v3 ATX

Model Z10PA-U8/10G-2SPart no. 90SB04U0-M0UAY0EAN 4058154134931

44 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA III
  • On-board graphics card memory32 MB
  • USB 2.0 connectors1
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
On-board graphics card memory
32 MB
USB 2.0 connectors
1
USB 2.0 ports quantity
2
Brand
ASUS
Category
Motherboard
Model
Z10PA-U8/10G-2S
Part number
90SB04U0-M0UAY0
EAN / UPC
4058154134931, 4716659957768
Also known as
ASUS Z10PA-U8/10G-2S Intel® C612 LGA 2011-v3 ATX

Specifications

44 specifications in 14 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011-v3
Processor number of cores supported4, 6, 8

Memory

Supported memory typesDDR4-SDRAM
Memory channelsQuad-channel
Supported memory clock speeds1333,1600,1866,2133,2400 MHz
Maximum internal memory512 GB

Storage controllers

Supported storage drive interfacesSATA III
RAID supportYes
RAID levels0, 1, 5, 10

Graphics

On-board graphics card memory32 MB
On-board graphics card modelAspeed AST2400

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
ATX Power connector (24-pin)Yes
Power fan connectorYes
Chassis intrusion connectorYes
Serial port headers1
TPM connectorYes

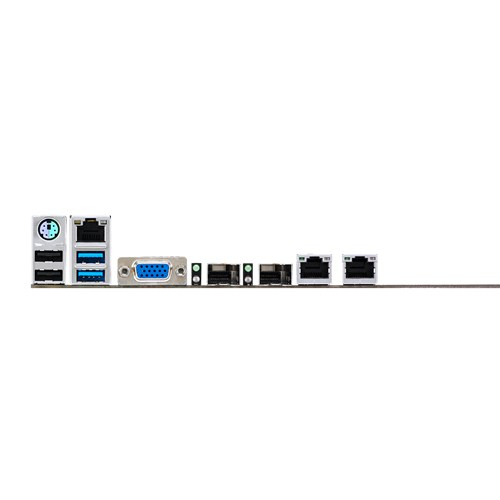

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports3
PS/2 ports quantity1
VGA (D-Sub) ports quantity1

Network

Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet, Gigabit Ethernet
LAN controllerIntel I210
Wi-FiNo

Features

Component forServer
Motherboard form factorATX
Motherboard chipsetIntel® C612

Expansion slots

PCI Express x8 (Gen 2.x) slots1
PCI Express x8 (Gen 3.x) slots2
PCI Express x16 (Gen 2.x) slots0
PCI Express x16 (Gen 3.x) slots2

Processor special features

Integrated BMC with IPMIYes
Intelligent Platform Management Interface (IPMI) supportYes

Operational conditions

Operating temperature (T-T)10 - 35 °C

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width305 mm
Depth244 mm

Other features

Supported DIMM module capacities4GB, 8GB, 16GB, 32GB, 64GB
Number of DIMM slots8
Number of processors supported1
