ASUS Z10PA-U8 Intel® C612 LGA 2011-v3 ATX

ASUS Z10PA-U8 Intel® C612 LGA 2011-v3 ATX

Model Z10PA-U8Part no. 90SB04P0-M0UAY0EAN 4716659859024

44 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA III
  • On-board graphics card memory32 MB
  • USB 2.0 connectors1
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
On-board graphics card memory
32 MB
USB 2.0 connectors
1
USB 2.0 ports quantity
2
Brand
ASUS
Category
Motherboard
Model
Z10PA-U8
Part numbers
90SB04P0-M0UAY0, 90SB04P0-S0P000
EAN / UPC
4716659859024, 886227859023, 5425656229233, 8862278590230 +1 more
Also known as
ASUS Z10PA-U8 Intel® C612 LGA 2011-v3 ATX

Specifications

44 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011-v3
Intel Xeon seriesE5-1600, E5-2600

Memory

Supported memory typesDDR4-SDRAM
Memory channelsQuad-channel
Supported memory clock speeds1333,1600,1866,2133 MHz
Maximum internal memory512 GB

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 5, 10

Graphics

On-board graphics card memory32 MB
On-board graphics card modelAspeed AST2400

Internal I/O

USB 2.0 connectors1
Number of SATA III connectors9
ATX Power connector (24-pin)Yes
Power fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Serial port headers1
TPM connectorYes

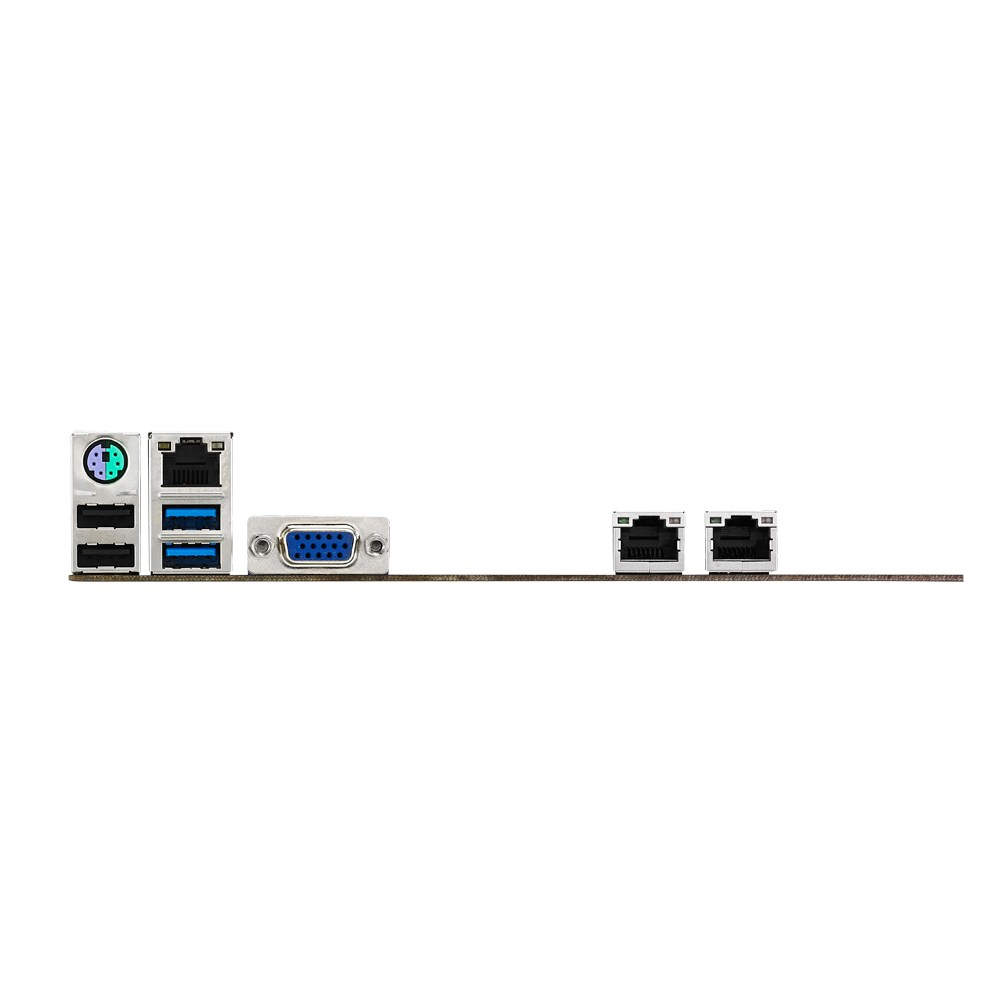

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1, 2
Ethernet LAN (RJ-45) ports2
PS/2 ports quantity1
VGA (D-Sub) ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I210-AT
Wi-FiNo

Features

Component forServer
Motherboard form factorATX
Motherboard chipsetIntel® C612

Expansion slots

PCI Express x8 (Gen 2.x) slots1
PCI Express x8 (Gen 3.x) slots2
PCI Express x16 (Gen 2.x) slots0
PCI Express x16 (Gen 3.x) slots2
PCI slots1

Operational conditions

Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)10 - 35 °C
Operating relative humidity (H-H)20 - 90%

Weight & dimensions

Width244 mm
Depth305 mm

Other features

Number of DIMM slots8
Number of processors supported1
