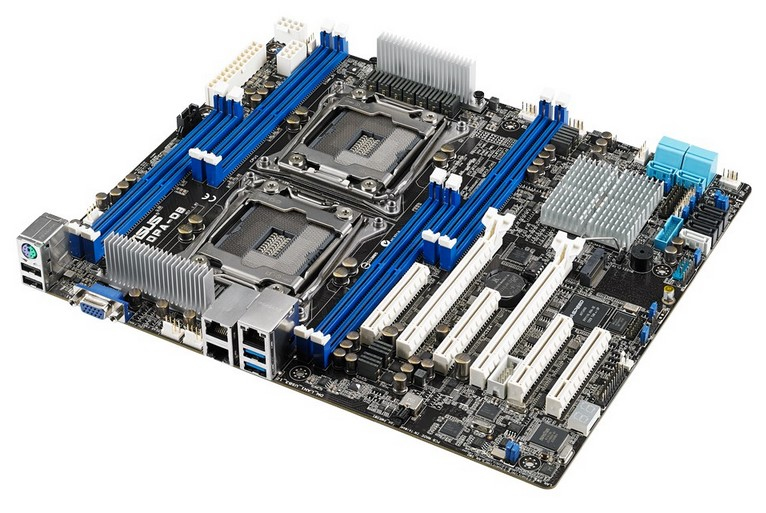

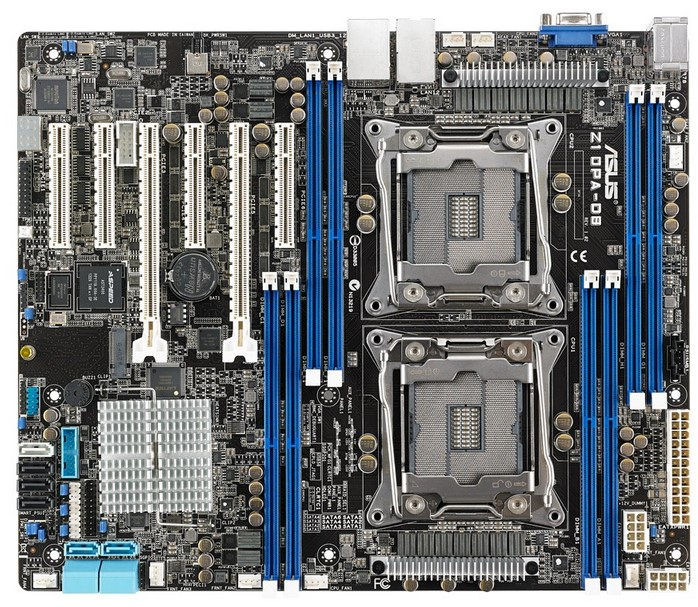

ASUS Z10PA-D8 Intel® C612 LGA 2011-v3 ATX

ASUS Z10PA-D8 Intel® C612 LGA 2011-v3 ATX

Model Z10PA-D8Part no. 90SB03X1-M0UAY0EAN 886227806492

46 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA III
  • USB 2.0 connectors1
  • USB 2.0 ports quantity2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
USB 2.0 connectors
1
USB 2.0 ports quantity
2
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
Z10PA-D8
Part number
90SB03X1-M0UAY0
EAN / UPC
886227806492, 4053162875395, 4716659806493, 8862278064922
Also known as
ASUS Z10PA-D8 Intel® C612 LGA 2011-v3 ATX

Specifications

46 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011-v3
Intel Xeon seriesE5-2600
Processor number of cores supported4, 6, 8, 10, 12, 14, 16, 18
Supported QPI6.4,8,9.6 GT/s

Memory

Supported memory typesDDR4-SDRAM
Supported memory clock speeds1333,1600,1866,2133 MHz
Maximum internal memory512 GB

Storage controllers

Supported storage drive interfacesSATA III
RAID supportYes
RAID levels1, 5, 10

Internal I/O

USB 2.0 connectors1
ATX Power connector (24-pin)Yes
Chassis intrusion connectorYes
Number of IEEE1394 connectors2
Serial port headers1
TPM connectorYes

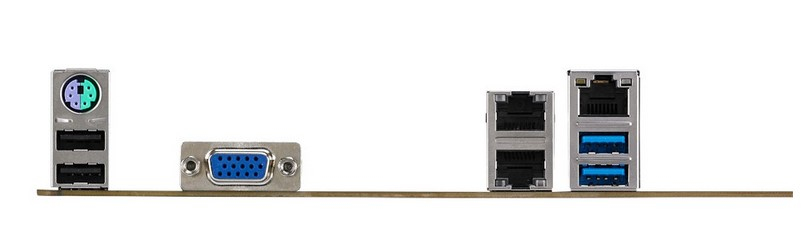

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1, 2
Ethernet LAN (RJ-45) ports2
PS/2 ports quantity1
VGA (D-Sub) ports quantity1

Network

Ethernet LANYes
LAN controllerIntel® I210-AT
Wi-FiNo

Features

Component forServer
Motherboard form factorATX
Motherboard chipsetIntel® C612

Expansion slots

PCI Express x8 (Gen 2.x) slots1
PCI Express x8 (Gen 3.x) slots3
PCI Express x16 (Gen 2.x) slots0
PCI Express x16 (Gen 3.x) slots2

Operational conditions

Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 90%

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width304.8 mm
Depth254 mm

Other features

Supported DIMM module capacities16GB, 32GB, 4GB, 64GB, 8GB
Supported LRDIMM module capacity32GB, 64GB
Supported LRDIMM clock speeds1333,1600,1866,2133 MHz
Maximum LRDIMM memory512 GB
Supported RDIMM clock speeds1333,1600,1866,2133 MHz
Supported RDIMM module capacity16GB, 32GB, 4GB, 8GB
Number of DIMM slots8
Number of processors supported2
