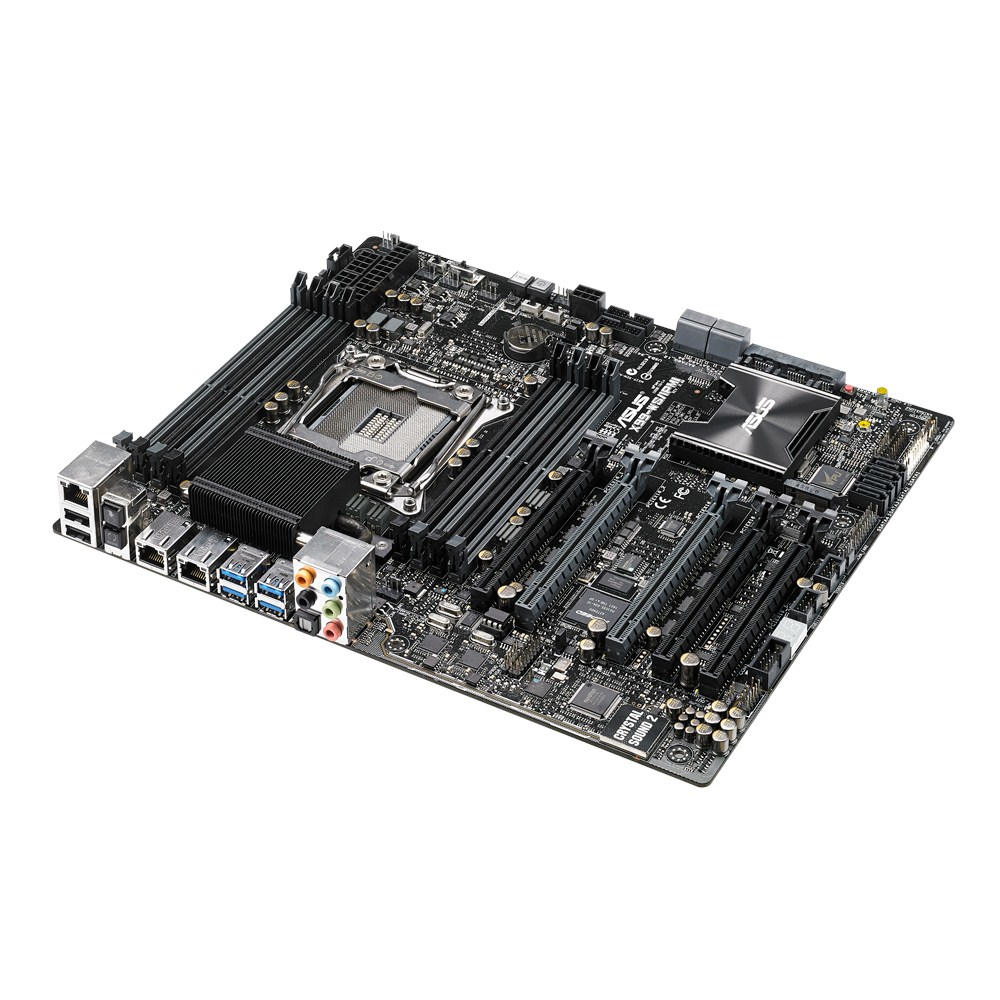

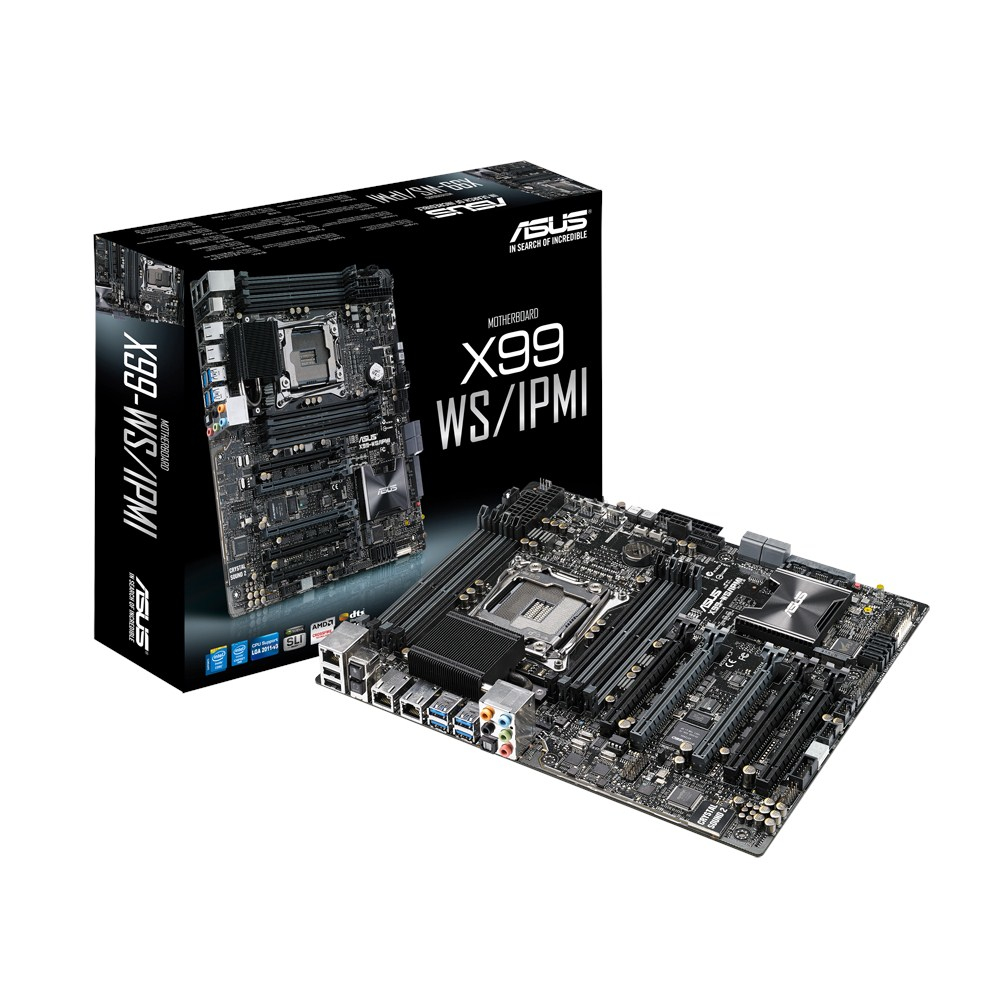

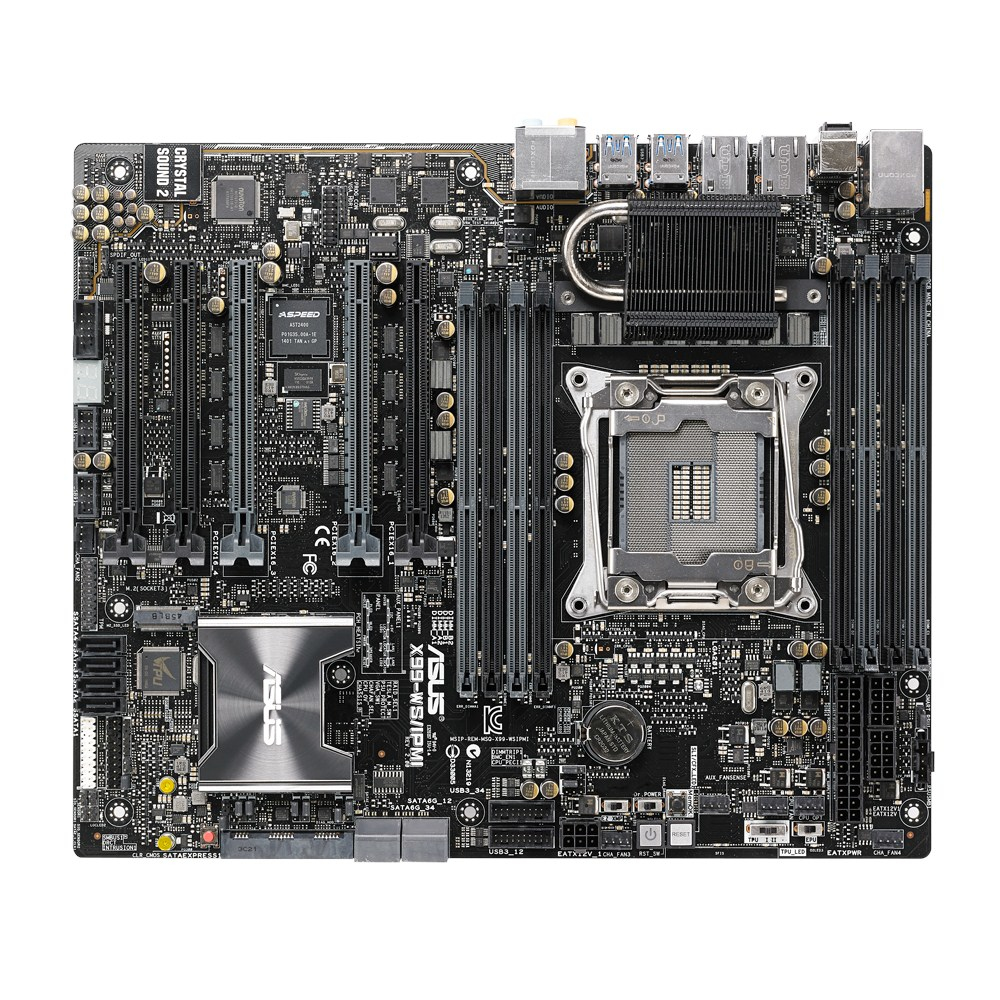

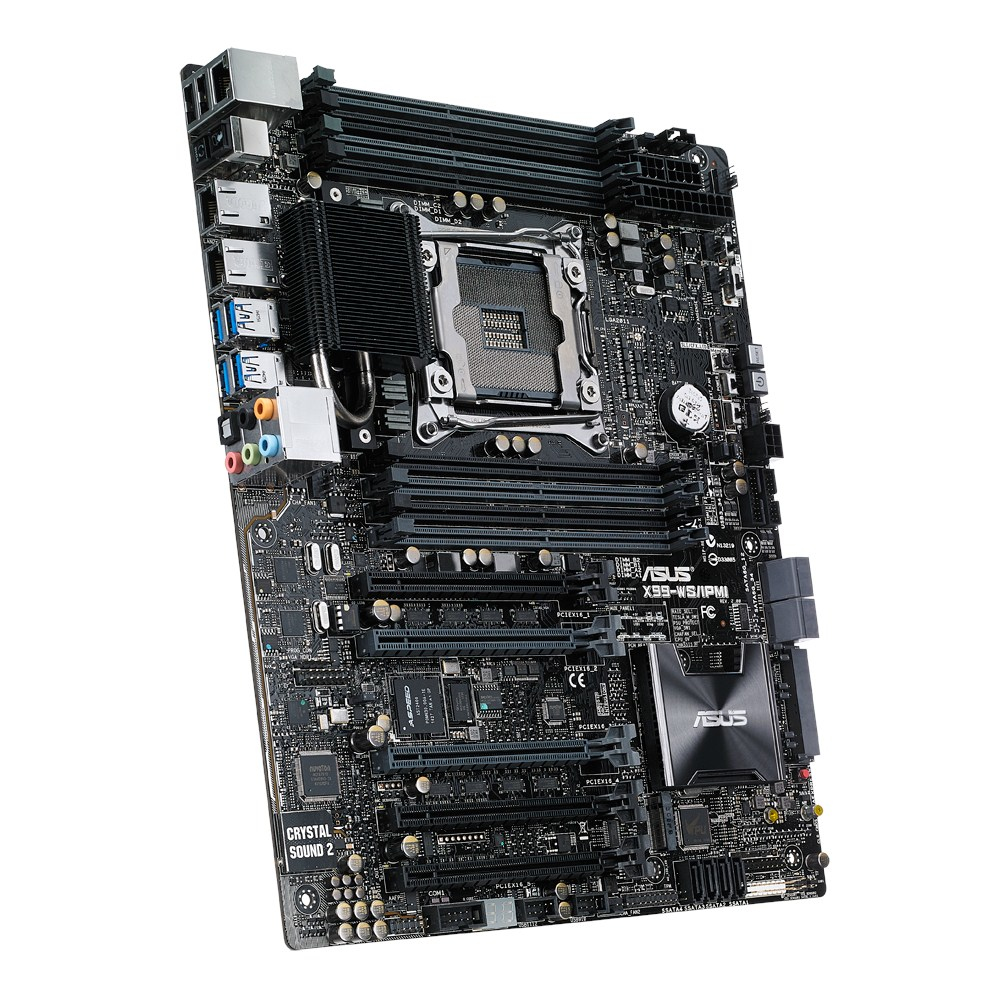

ASUS X99-WS/IPMI Intel® X99 LGA 2011-v3 ATX

ASUS X99-WS/IPMI Intel® X99 LGA 2011-v3 ATX

Model X99-WS/IPMIPart no. 90SB04S0-M0EAY0EAN 4716659921325

52 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA III
  • Parallel processing technology support3-Way SLI, Quad-GPU CrossFireX
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
Parallel processing technology support
3-Way SLI, Quad-GPU CrossFireX
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
X99-WS/IPMI
Part numbers
90SB04S0-M0EAY0, X99-WS/IPMI, 90SB04S0-M1EAY0
EAN / UPC
4716659921325, 886227921331, 4058154135815
Also known as
ASUS X99-WS/IPMI Intel® X99 LGA 2011-v3 ATX

Specifications

52 specifications in 15 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011-v3

Memory

Supported memory typesDDR4-SDRAM
Memory channelsQuad-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1866,2133,2400,2666,2800,3000,3200 MHz
Maximum internal memory128 GB

Storage controllers

Supported storage drive interfacesSATA III
RAID levels1, 5, 10

Graphics

Parallel processing technology support3-Way SLI, Quad-GPU CrossFireX

Internal I/O

USB 2.0 connectors2
Number of SATA III connectors8
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors4
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes

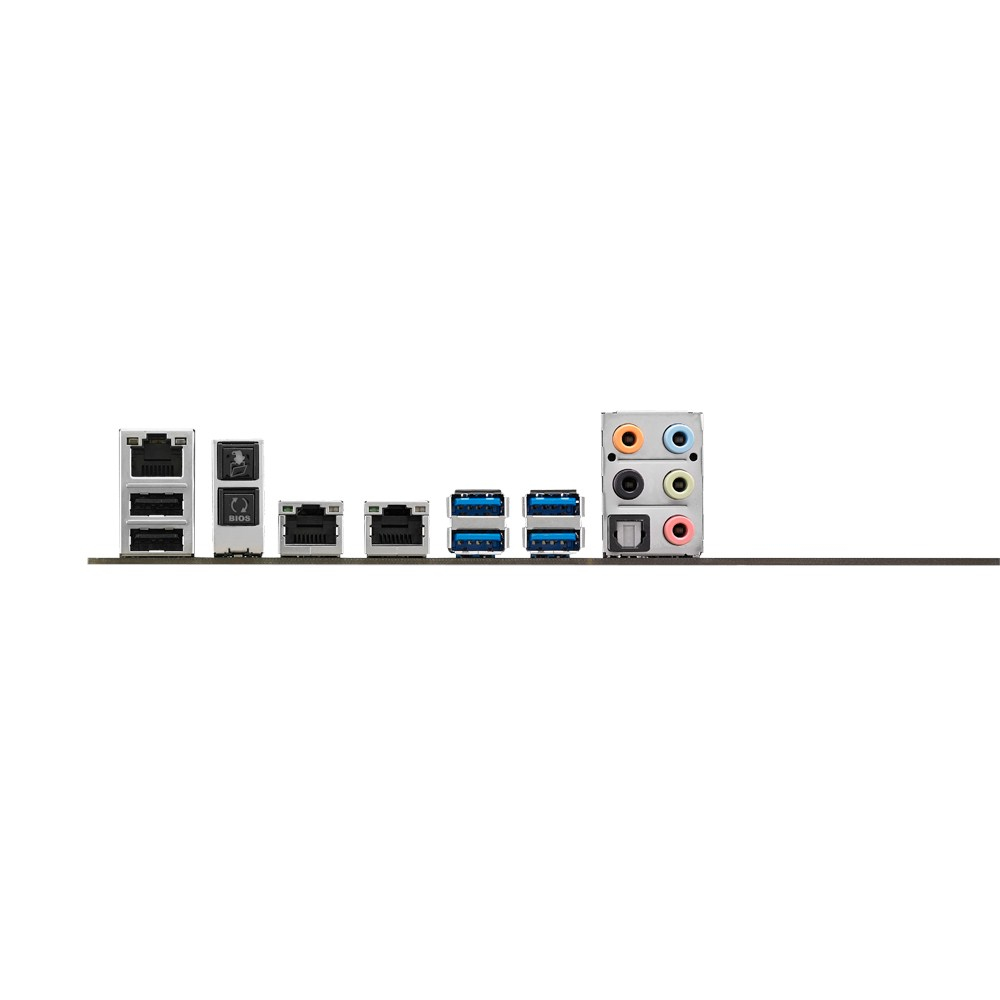

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2, 4
Ethernet LAN (RJ-45) ports2
PS/2 ports quantity0
VGA (D-Sub) ports quantity0
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I210-AT
Wake-on-LAN readyYes
Wi-FiNo

Features

Component forServer
Motherboard form factorATX
Motherboard chipsetIntel® X99
Audio output channels7.1 channels

Expansion slots

PCI Express x8 (Gen 2.x) slots0
PCI Express x8 (Gen 3.x) slots0
PCI Express x16 (Gen 2.x) slots0
PCI Express x16 (Gen 3.x) slots5

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version5.0
Clear CMOS buttonYes

Processor special features

Trusted Platform Module (TPM)Yes

Operational conditions

Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 90%

Weight & dimensions

Width305 mm
Depth254 mm

Packaging content

Cables includedSATA

Other features

Number of DIMM slots8
Number of processors supported1
