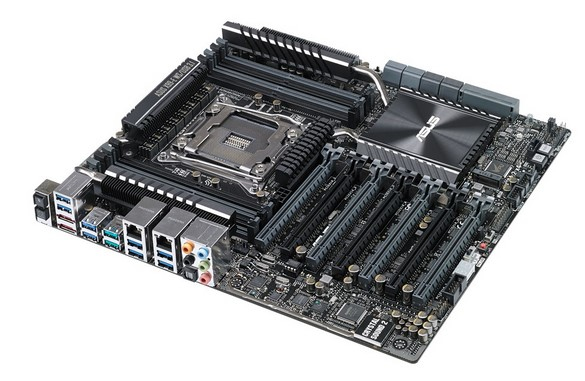

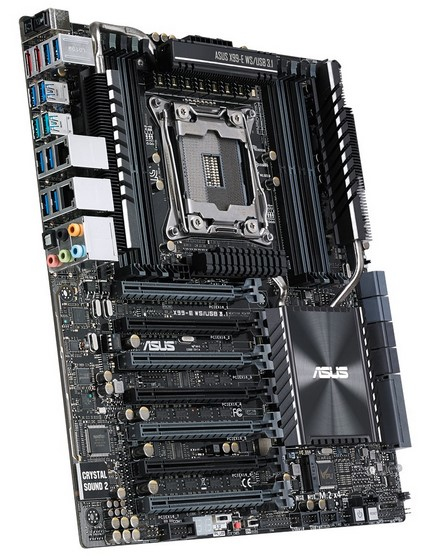

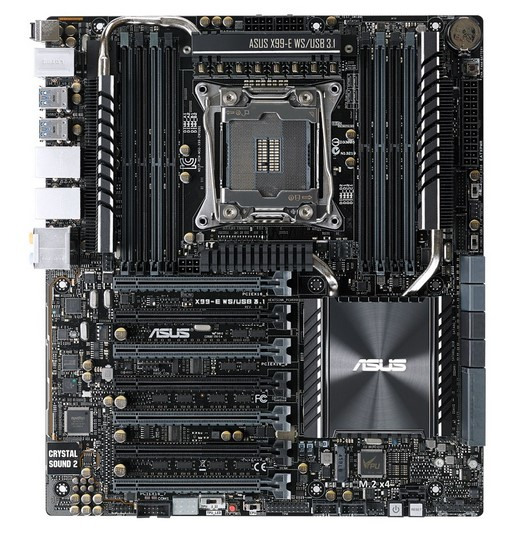

ASUS X99-E WS/USB 3.1
Model X99-E WS/USB 3.1EAN 889349074534
40 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA
- Parallel processing technology support4-Way CrossFireX, 4-Way SLI
- USB 2.0 connectors2
- USB 2.0 ports quantity0
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA
- Parallel processing technology support
- 4-Way CrossFireX, 4-Way SLI
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 0
- Brand
- ASUS
- Category
- Motherboard
- Model
- X99-E WS/USB 3.1
- Part numbers
- X99-E WS/USB 3.1, 90SB05D0-M0EAY0
- EAN / UPC
- 889349074534, 4058154018743, 4712900074536
- Also known as
- ASUS X99-E WS/USB 3.1 motherboard LGA 2011-v3 SSI CEB
Specifications
40 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2011-v3 |
| Intel Xeon series | E5-1600, E5-2600 |
| Lithography | 22 nm |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Memory channels | Quad-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200 MHz |
| Maximum internal memory | 128 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 4-Way CrossFireX, 4-Way SLI |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA III connectors | 8 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |

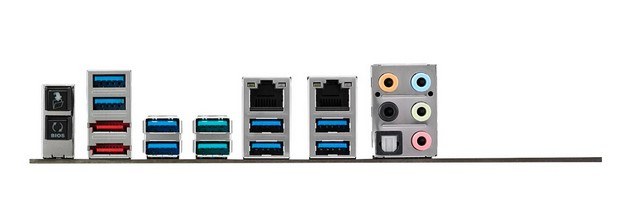

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2, 10 |
| Ethernet LAN (RJ-45) ports | 2 |
| IPMI LAN (RJ-45) port | Yes |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | SSI CEB |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 2.x) slots | 0 |
| PCI Express x8 (Gen 3.x) slots | 0 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 267 mm |
Other features
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 1.x) slots | 7 |
| Number of DIMM slots | 8 |
| Number of processors supported | 1 |
What people say
Reviews & ratings
ASUS X99-E WS/USB 3.1
No reviews yet
Be the first to tell others how ASUS X99-E WS/USB 3.1 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS X99-E WS/USB 3.1
All motherboard comparisons- ASUS X99-E WS/USB 3.1 vsASUS H81M-P Intel® H81 LGA 1150 (Socket H3) micro ATXCompare specs

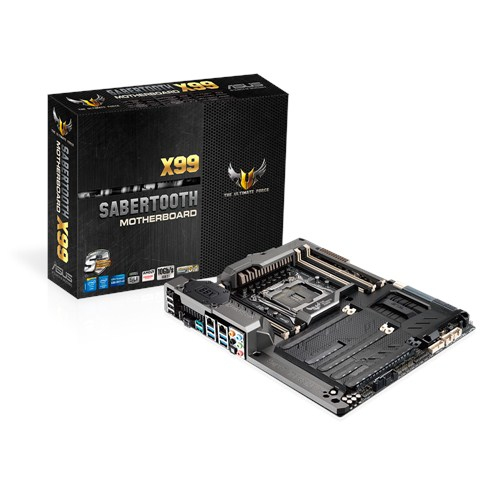

- ASUS X99-E WS/USB 3.1 vsASUS SABERTOOTH X99Compare specs
- ASUS X99-E WS/USB 3.1 vsASUS X99-Pro/USB 3.1Compare specs
- ASUS X99-E WS/USB 3.1 vsASUS X99-A/USB 3.1Compare specs
- ASUS X99-E WS/USB 3.1 vsGIGABYTE GA-6LASH motherboard Intel® C222 LGA 1150 (Socket H3) micro ATXCompare specs

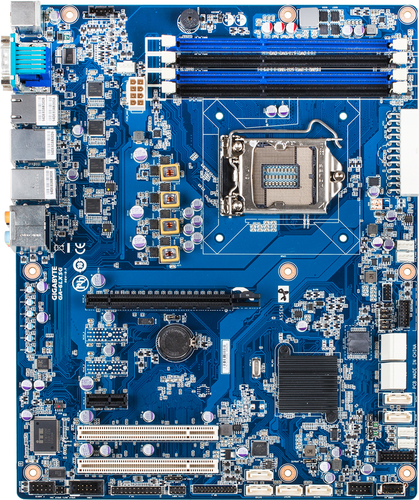

- ASUS X99-E WS/USB 3.1 vsGIGABYTE GA-6LXSG motherboard LGA 1150 (Socket H3) ATXCompare specs
