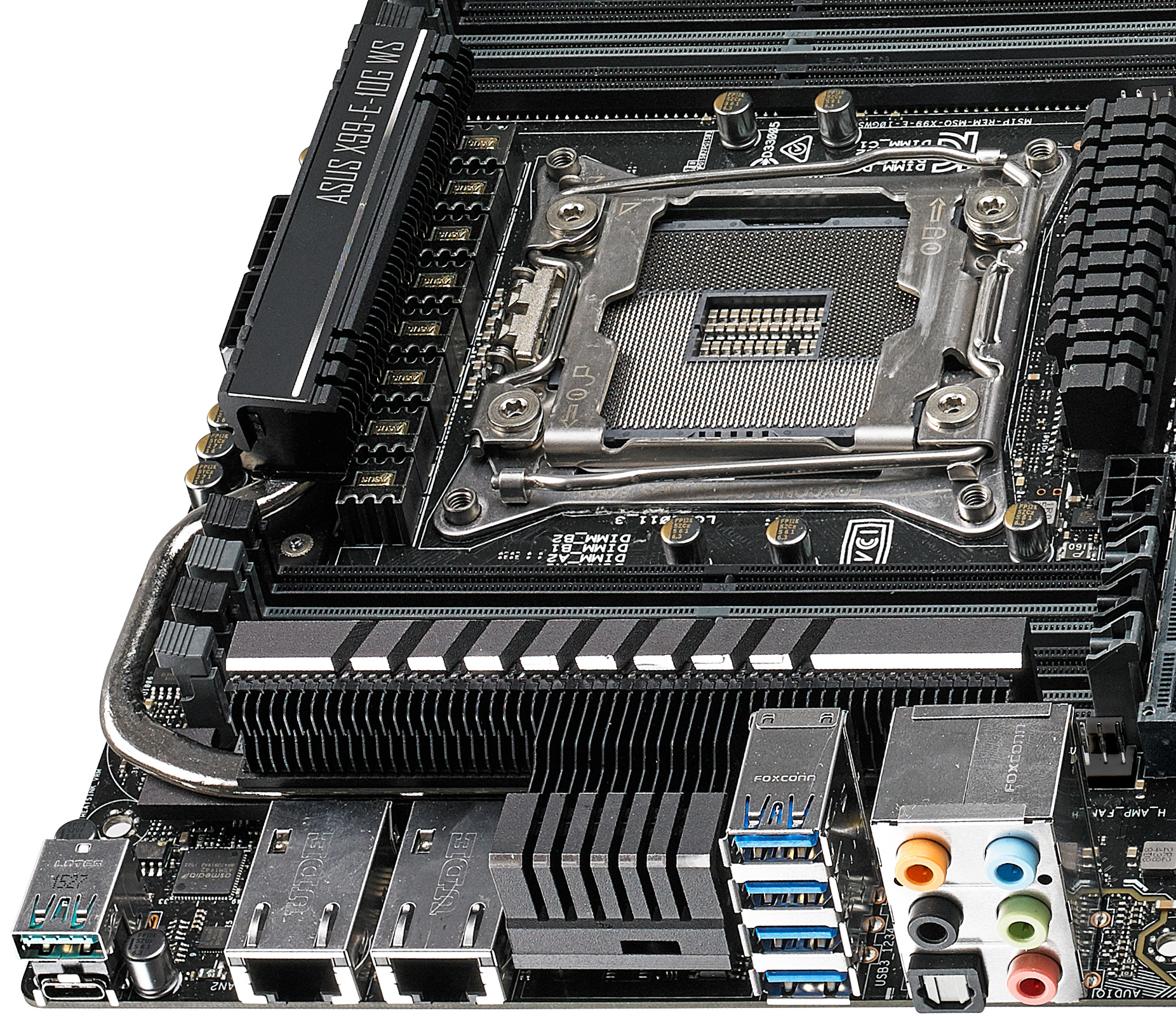

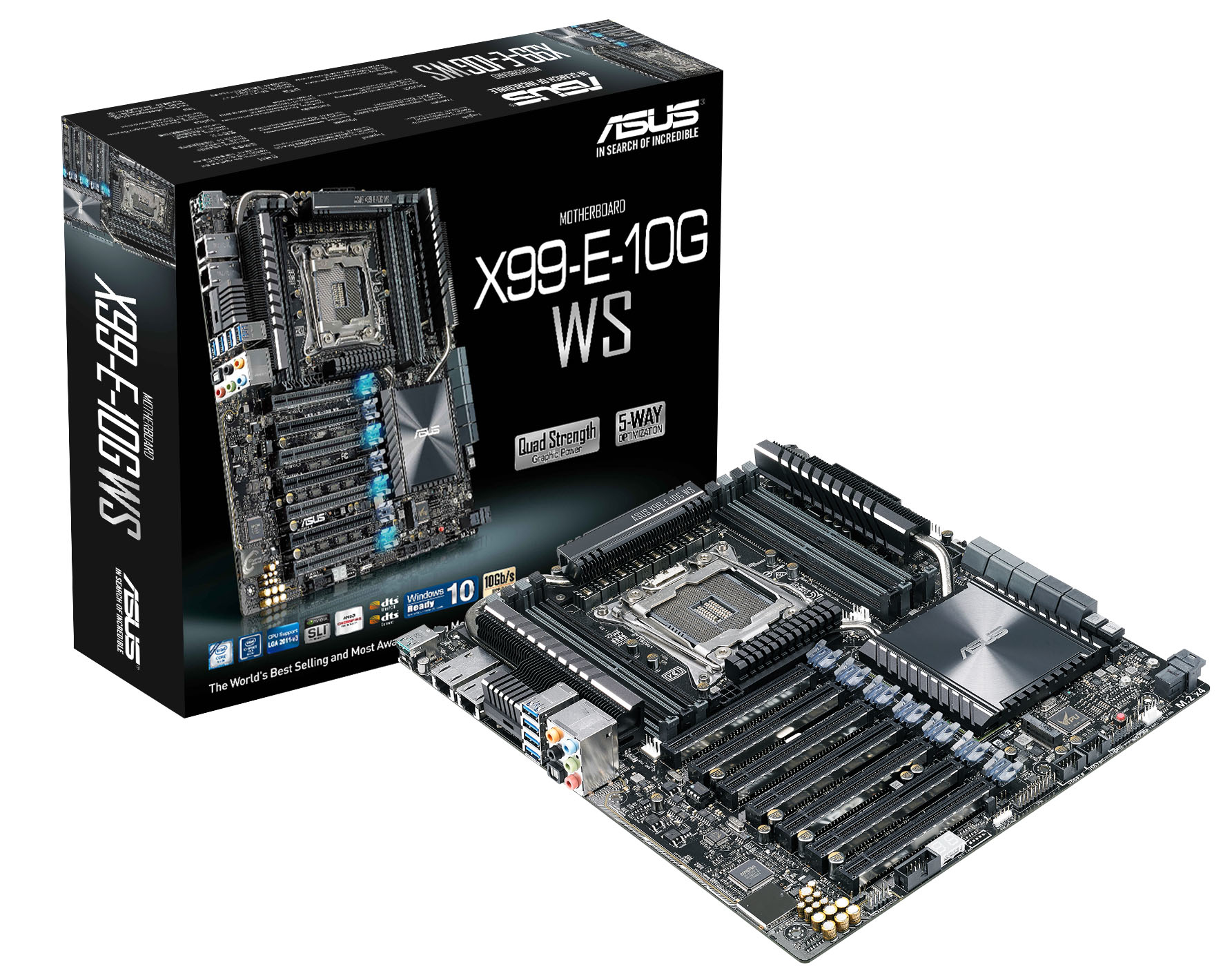

ASUS X99-E-10G WS

ASUS X99-E-10G WS

Model X99-E-10G WSPart no. 90SW05Z0-M0EAY0EAN 4058154233801

57 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • RAID levels0, 1, 5, 10
  • USB 2.0 connectors2
  • USB 2.0 ports quantity0
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
RAID levels
0, 1, 5, 10
USB 2.0 connectors
2
USB 2.0 ports quantity
0
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
X99-E-10G WS
Part numbers
90SW05Z0-M0EAY0, X99-E-10G WS
EAN / UPC
4058154233801, 4712900405385, 889349405383
Also known as
ASUS X99-E-10G WS Intel® X99 LGA 2011-v3 SSI CEB

Specifications

57 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011-v3
Compatible processor seriesIntel® Core™ i7

Memory

Supported memory typesDDR4-SDRAM
Memory channelsQuad-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666,2800,3000,3200,3333 MHz
Maximum internal memory128 GB

Storage controllers

RAID levels0, 1, 5, 10

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors10
Number of SATA II connectors0
Number of SATA connectors10
Number of Parallel ATA connectors0
ATX Power connector (24-pin)Yes
Number of EATX power connectors4
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Number of COM connectors1
TPM connectorYes

Rear panel I/O ports

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports2
eSATA ports quantity0
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
DVI-D ports quantity0
Headphone outputs6
Microphone inYes
COM ports quantity0
Parallel ports quantity0
Serial ports quantity0
Modem (RJ-11) ports0

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® X550

Features

Component forPC
Motherboard form factorSSI CEB
Motherboard chipsetIntel® X99
Audio output channels8.1 channels

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version5.0

Operational conditions

Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)10 - 35 °C
Operating relative humidity (H-H)20 - 90%

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width305 mm
Depth267 mm
