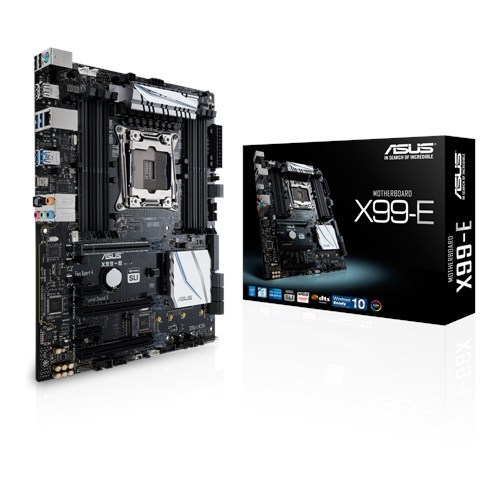

ASUS X99-E motherboard Intel® X99 LGA 2011-v3 ATX
Model X99-EPart no. 90MB0QL0-M0EAY1EAN 4058154108390
64 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- RAID levels0
- Graphics card familyAMD, NVIDIA
- USB 2.0 connectors2
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- RAID levels
- 0
- Graphics card family
- AMD, NVIDIA
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Brand
- ASUS
- Category
- Motherboard
- Model
- X99-E
- Part numbers
- 90MB0QL0-M0EAY1, X99-E, 90MB0QL0-M0EAY0
- EAN / UPC
- 4058154108390, 889349409015, 2150000001342, 4712900409017 +1 more
- Also known as
- ASUS X99-E motherboard Intel® X99 LGA 2011-v3 ATX
Specifications
64 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2011-v3 |
| Compatible processor series | Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Quad-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200 MHz |
| Maximum internal memory | 128 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III, USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| RAID levels | 0 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 3-Way CrossFireX, 3-Way SLI, Quad-GPU CrossFireX, Quad-GPU SLI |
| Graphics card family | AMD, NVIDIA |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 8 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 8 |
| S/PDIF out connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| 12V power connector | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I218-V |
| Wi-Fi | Yes |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® X99 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 2.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Manual | Yes |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Number of SATA Express ports | 1 |
| EZ plug connector | Yes |
