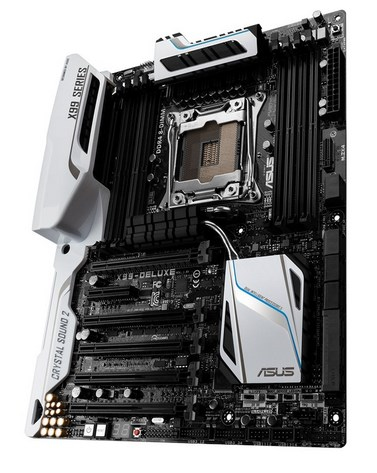

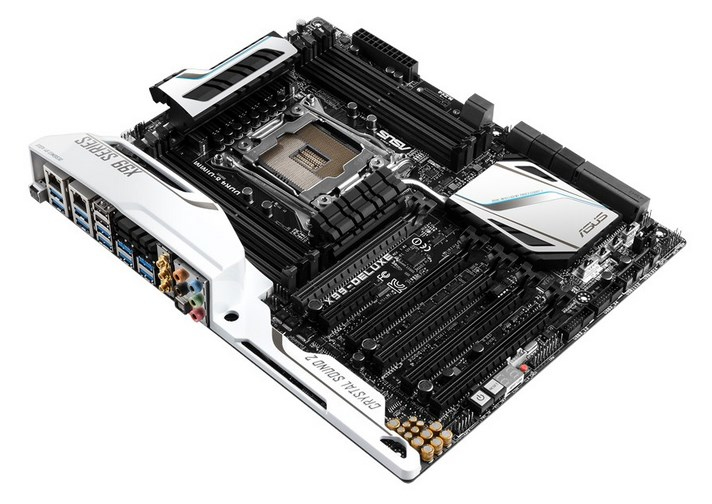

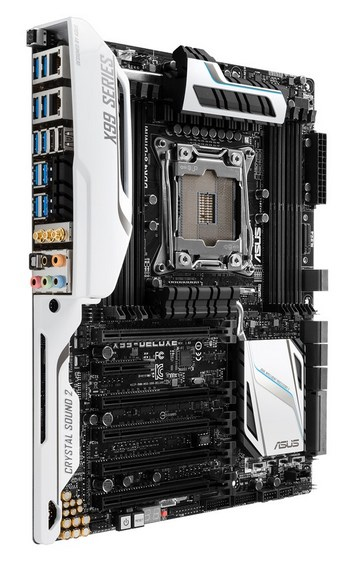

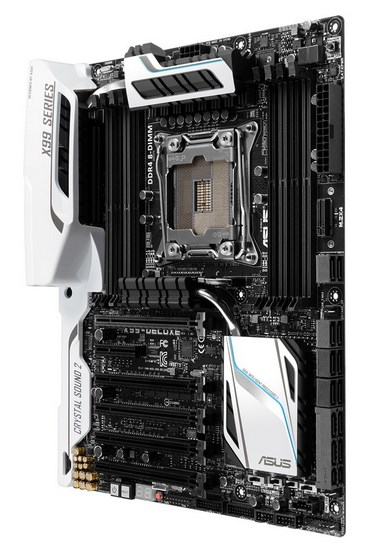

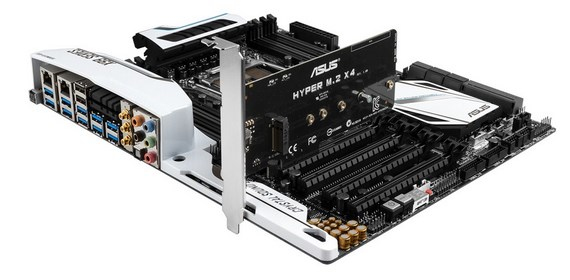

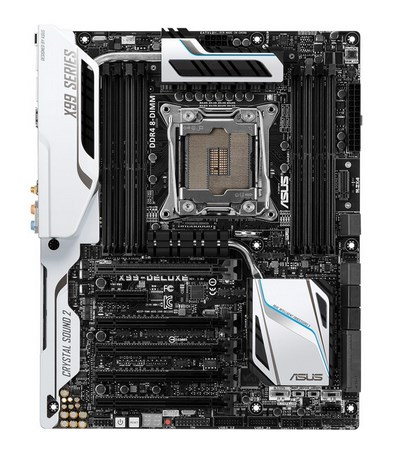

ASUS X99-DELUXE motherboard Intel® X99 LGA 2011-v3 ATX

ASUS X99-DELUXE motherboard Intel® X99 LGA 2011-v3 ATX

Model X99-DELUXEPart no. 90MB0JF0-M0EAY0EAN 8862278522460

55 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA
  • USB 2.0 connectors2
  • Ethernet LANYes
  • Component forPC
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA
USB 2.0 connectors
2
Ethernet LAN
Yes
Component for
PC
Brand
ASUS
Category
Motherboard
Model
X99-DELUXE
Part numbers
90MB0JF0-M0EAY0, X99-DELUXE
EAN / UPC
8862278522460, 803983048102, 807320226765, 886227852246 +5 more
Also known as
ASUS X99-DELUXE motherboard Intel® X99 LGA 2011-v3 ATX

Specifications

55 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011-v3
Compatible processor seriesIntel® Core™ i7

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots8
Memory slots typeDIMM
Memory channelsQuad-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666,2800,3000,3200 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA

Graphics

Parallel processing technology support3-Way CrossFireX, 3-Way SLI, Quad-GPU CrossFireX, Quad-GPU SLI

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA connectors8
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors4
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
EPS power connector (8-pin)Yes
TPM connectorYes

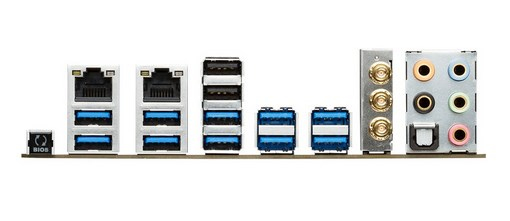

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity10
Ethernet LAN (RJ-45) ports2
eSATA ports quantity0
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
S/PDIF out portYes
Thunderbolt ports quantity1

Network

Ethernet LANYes
Wi-FiYes
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
BluetoothYes
Bluetooth version4.0

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® X99
Audio chipRealtek ALC1150
Power source typeATX
Windows operating systems supportedYes

Expansion slots

PCI Express x4 slots1
PCI Express x16 slots5

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version5.0

Weight & dimensions

Width305 mm
Depth244 mm
