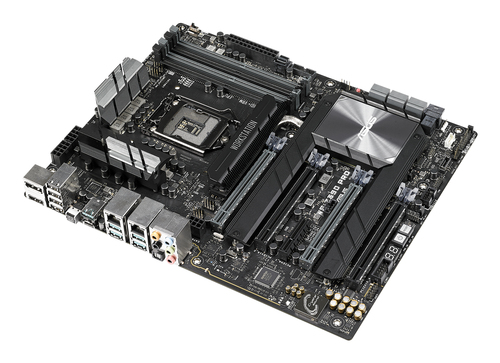

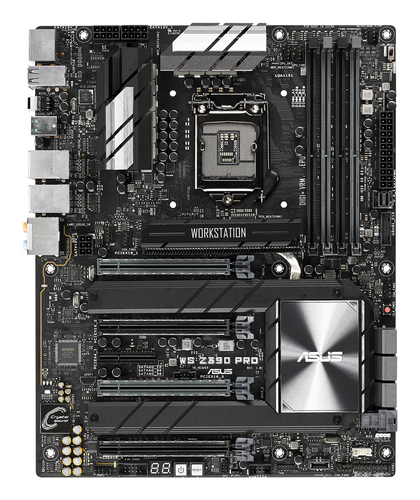

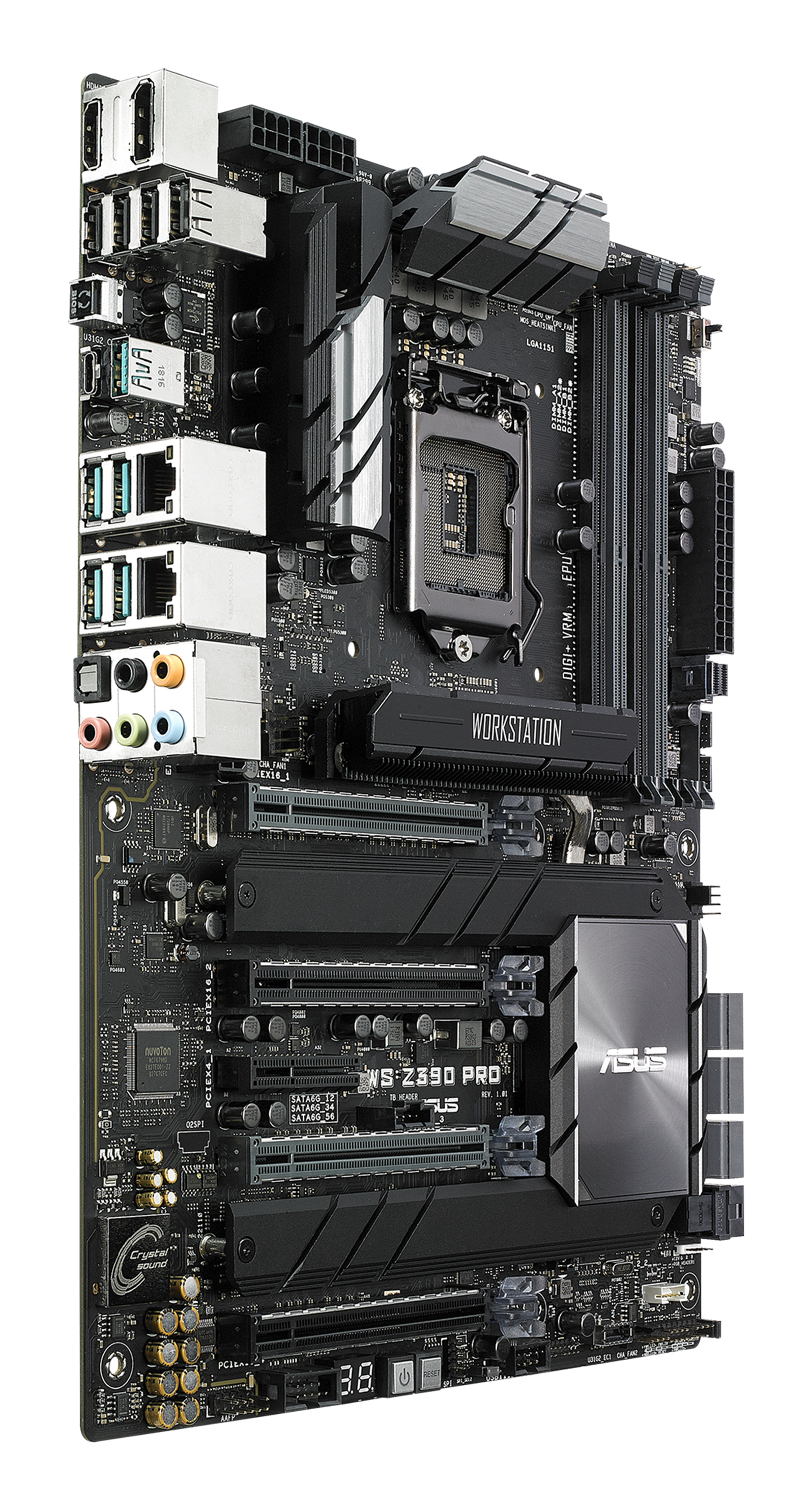

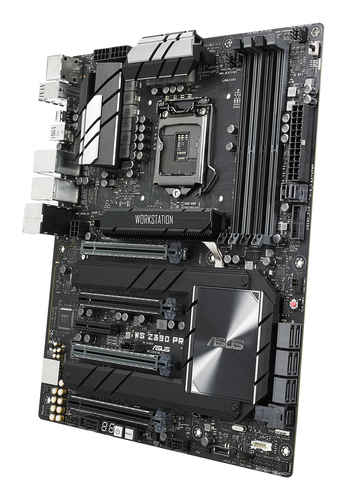

ASUS WS Z390 PRO

ASUS WS Z390 PRO

Model WS Z390 PROPart no. 90SW00L0-M0EAY0EAN 192876024690

71 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • RAID levels0, 1, 5, 10
  • Maximum resolution4096 x 2160 pixels
  • USB 2.0 connectors1
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
RAID levels
0, 1, 5, 10
Maximum resolution
4096 x 2160 pixels
USB 2.0 connectors
1
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
WS Z390 PRO
Part number
90SW00L0-M0EAY0
EAN / UPC
192876024690, 4718017024693
Also known as
ASUS WS Z390 PRO Intel Z390 LGA 1151 (Socket H4) ATX

Specifications

71 specifications in 15 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds2133,2400,2666,2800,3000,3200,3300,3333,3400,3466,3600,3733,3800,3866,4000,4133,4200,4266 MHz
Maximum internal memory64 GB

Storage controllers

RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support4-Way CrossFireX, 4-Way SLI, Quad-GPU CrossFireX, Quad-GPU SLI
Maximum resolution4096 x 2160 pixels
Discrete graphics supportYes
Number of displays supported3

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors3
EPS power connector (8-pin)Yes
Number of COM connectors1
TPM connectorYes
Thunderbolt headers1
RGB LED pin headerYes

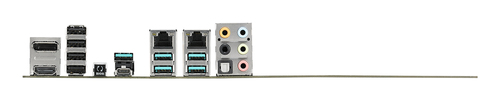

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports2
eSATA ports quantity0
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version2.0
DVI-D ports quantity0
DisplayPorts quantity1
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I210-AT, Intel I219LM

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z390
Audio chipRealtek ALC S1220A
Audio output channels8.0 channels

Expansion slots

PCI Express x4 slots1
PCI Express x16 (Gen 3.x) slots4
Number of M.2 (M) slots2

BIOS

BIOS typeUEFI
BIOS memory size256 Mbit
ACPI version6.0
Clear CMOS buttonYes
Plug and PlayYes
System Management BIOS (SMBIOS) version3.0

Processor special features

Intel Extreme Memory Profile (XMP)Yes
Intel Rapid Storage TechnologyYes
Intel® Optane™ Memory ReadyYes

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Cables includedSATA
ManualYes

Other features

PCI Express power connectors (6-pin)1
