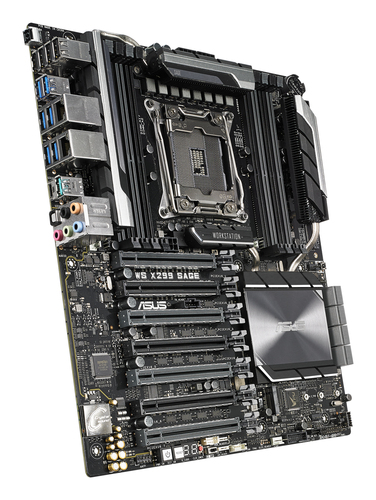

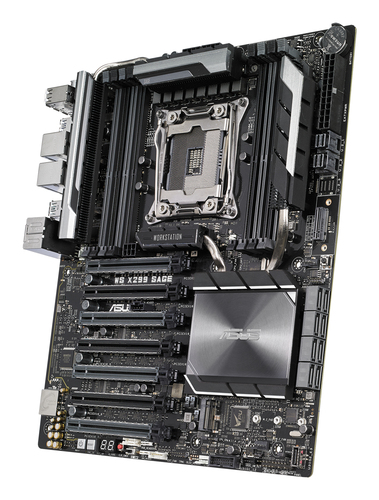

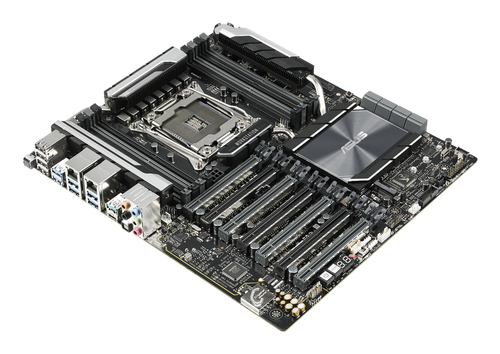

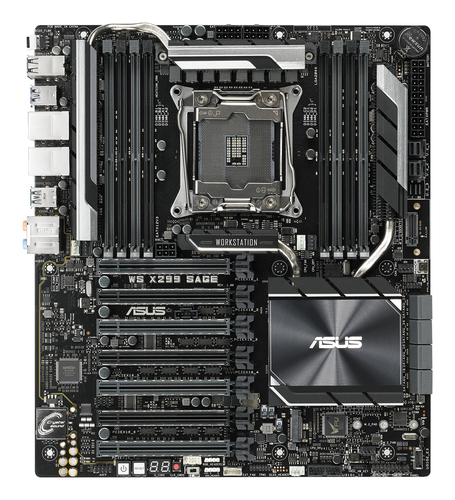

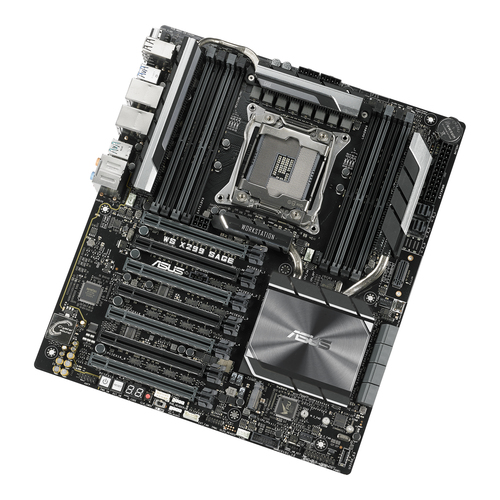

ASUS WS X299 SAGE

ASUS WS X299 SAGE

Model WS X299 SAGEPart no. 90SW0070-M0EAY0EAN 889349853672

48 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA III
  • Parallel processing technology support4-Way CrossFireX, 4-Way SLI
  • USB 2.0 connectors0
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA III
Parallel processing technology support
4-Way CrossFireX, 4-Way SLI
USB 2.0 connectors
0
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
WS X299 SAGE
Part number
90SW0070-M0EAY0
EAN / UPC
889349853672, 4712900853674
Also known as
ASUS WS X299 SAGE Intel® X299 LGA 2066 (Socket R4) SSI CEB

Specifications

48 specifications in 15 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2066 (Socket R4)
Compatible processor seriesIntel® Core™ X-series

Memory

Supported memory typesDDR4-SDRAM
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666,3600,4000,4133,4200 MHz
Maximum internal memory128 GB

Storage controllers

Supported storage drive interfacesSATA III
RAID supportYes
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support4-Way CrossFireX, 4-Way SLI

Internal I/O

USB 2.0 connectors0
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors8
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors2
EPS power connector (8-pin)Yes
Number of COM connectors1

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports2
PS/2 ports quantity0
VGA (D-Sub) ports quantity0

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I210-AT, Intel I219LM
Wi-FiNo

Features

Motherboard form factorSSI CEB
Motherboard chipsetIntel® X299
Audio output channels7.1 channels

Expansion slots

PCI Express x8 (Gen 2.x) slots0
PCI Express x8 (Gen 3.x) slots0
PCI Express x16 slots7

BIOS

Clear CMOS buttonYes

Operational conditions

Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 90%

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width305 mm
Depth267 mm

Packaging content

Cables includedSATA
User guideYes

Other features

Number of DIMM slots8
Number of processors supported1
