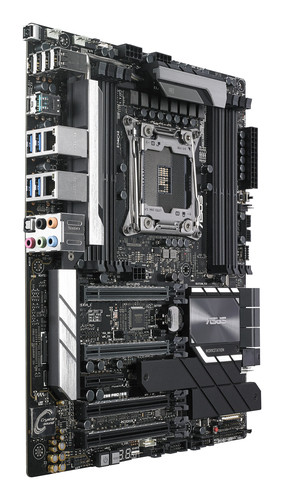

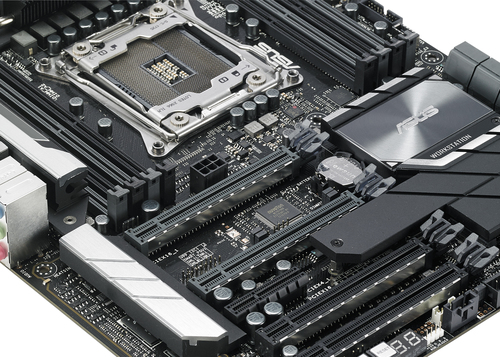

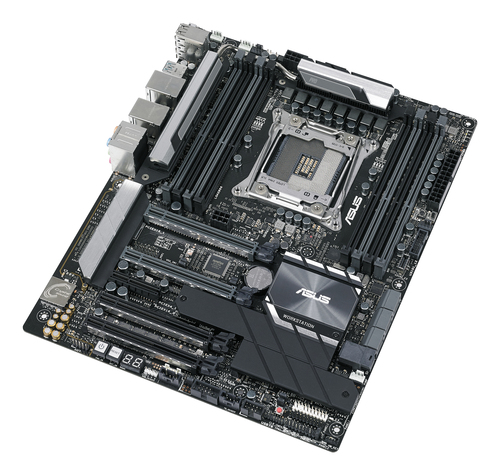

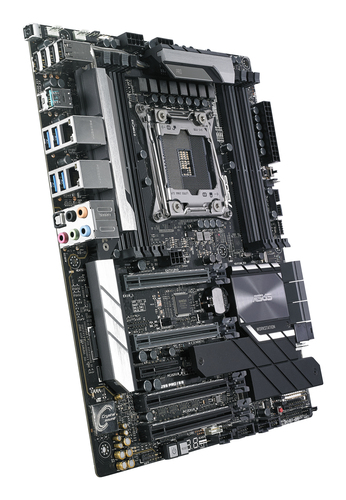

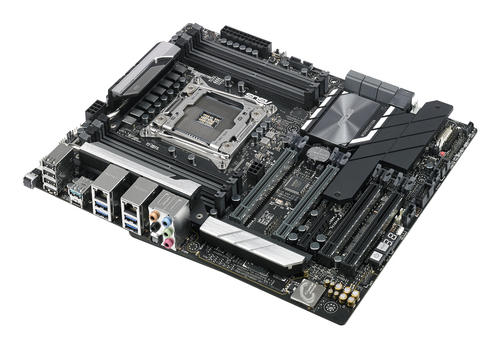

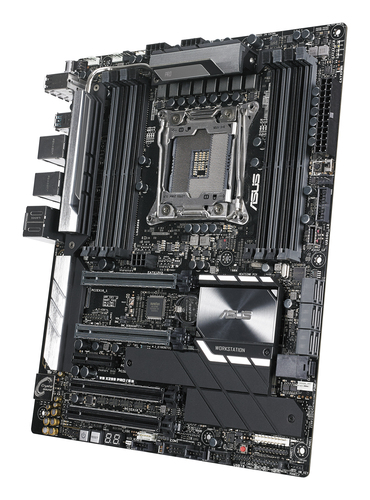

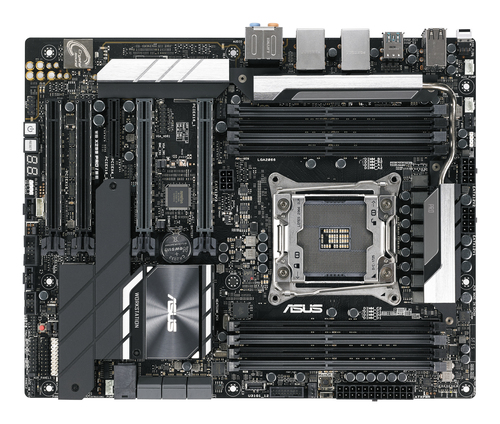

ASUS WS X299 PRO/SE
Model WS X299 PRO/SEPart no. 90SW00A0-M0EAY0EAN 889349813638
66 specifications
- Weight2.29 kg
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
- Parallel processing technology support3-Way CrossFireX, 3-Way SLI
- USB 2.0 connectors1
Overview
- Weight
- 2.29 kg
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- Parallel processing technology support
- 3-Way CrossFireX, 3-Way SLI
- USB 2.0 connectors
- 1
- Brand
- ASUS
- Category
- Motherboard
- Model
- WS X299 PRO/SE
- Part number
- 90SW00A0-M0EAY0
- EAN / UPC
- 889349813638, 4712900813630
- Also known as
- ASUS WS X299 PRO/SE Intel® X299 LGA 2066 (Socket R4) ATX
Specifications
66 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2066 (Socket R4) |
| Compatible processor series | Intel® Core™ X-series |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2400,2666,2933,3600,4000,4133 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 6 |
| Number of storage drives supported | 8 |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 3-Way CrossFireX, 3-Way SLI |
| On-board graphics card | Yes |
| On-board graphics card memory | 64 MB |
| On-board graphics card model | Aspeed AST2500 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 6 |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| Thunderbolt headers | 1 |

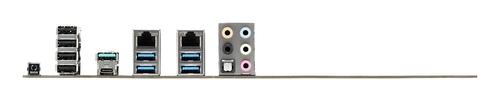

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I211-AT |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® X299 |
| Audio chip | Realtek S1220A |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Number of M.2 (M) slots | 2 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS button | Yes |
Processor special features
| Specification | Value |
|---|---|
| Intel Extreme Memory Profile (XMP) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Height | 291 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 3.x) slots | 1 |
| Weight | 2.29 kg |
| VGA connectors | 1 |
Compare ASUS WS X299 PRO/SE
Compare any products- ASUS WS X299 PRO/SE vsASUS WS C422 PRO/SECompare specs

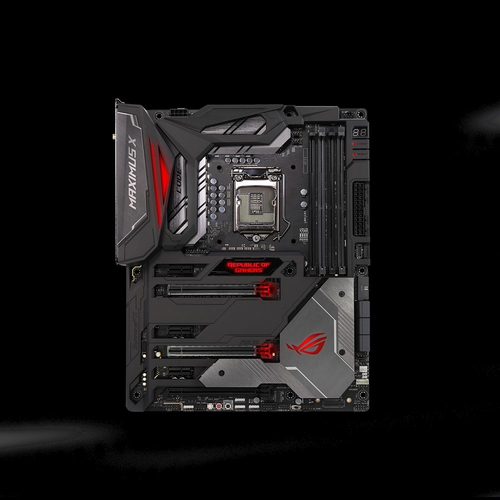

- ASUS WS X299 PRO/SE vsASUS ROG Maximus X CodeCompare specs
- ASUS WS X299 PRO/SE vsASUS WS X299 PROCompare specs
- ASUS WS X299 PRO/SE vsASUS Z11PA-D8 LGA 3647 (Socket P) SSI CEBCompare specs

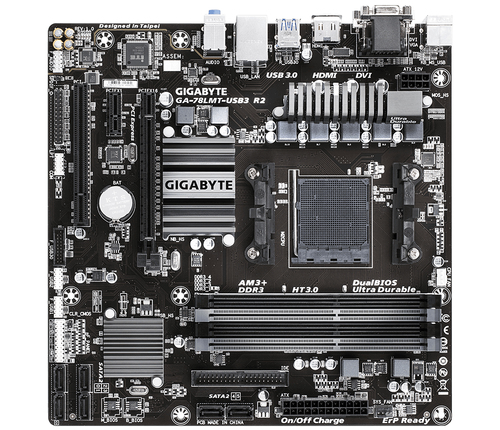

- ASUS WS X299 PRO/SE vsGIGABYTE GA-78LMT-USB3 R2 (rev. 1.0)Compare specs

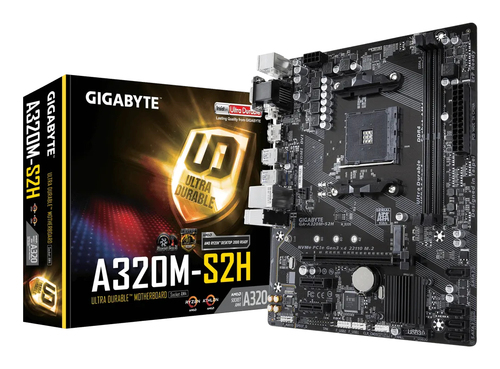

- ASUS WS X299 PRO/SE vsGIGABYTE GA-A320M-S2H motherboard AMD A320 Socket AM4 micro ATXCompare specs

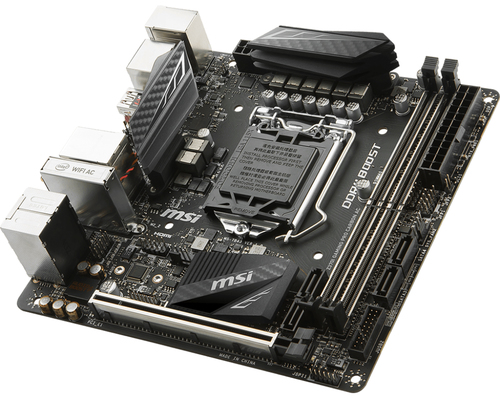

- ASUS WS X299 PRO/SE vsMSI Z370I GAMING PRO CARBON ACCompare specs

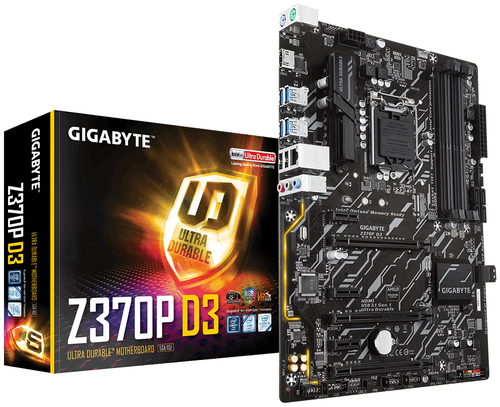

- ASUS WS X299 PRO/SE vsGIGABYTE Z370P D3Compare specs
