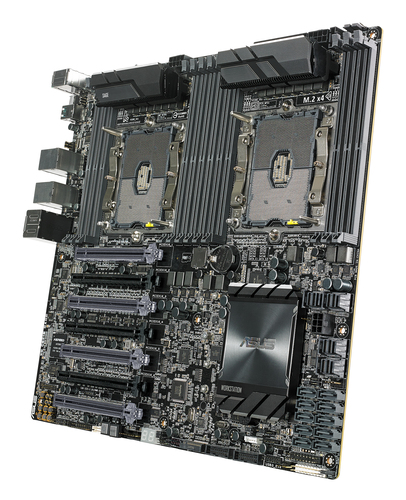

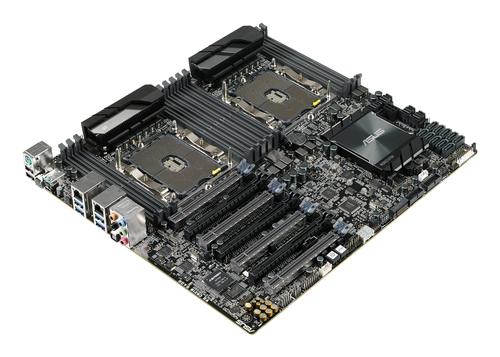

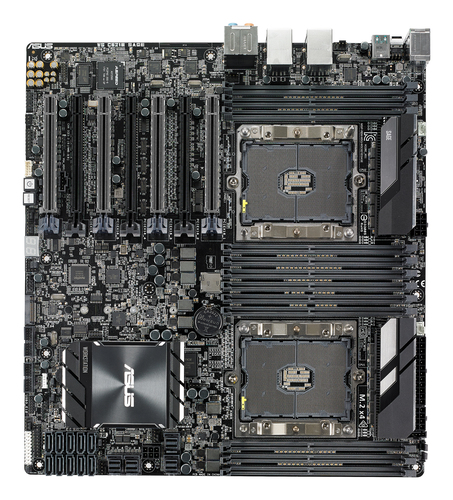

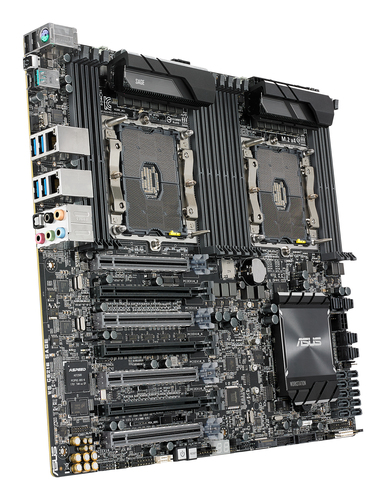

ASUS WS C621E SAGE (BMC)

ASUS WS C621E SAGE (BMC)

Model WS C621E SAGE (BMC)Part no. 90SW0021-M0EAY0EAN 4712900910377

54 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesM.2, SATA III, U.2
  • Parallel processing technology support4-Way CrossFireX, 4-Way SLI
  • USB 2.0 connectors1
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
M.2, SATA III, U.2
Parallel processing technology support
4-Way CrossFireX, 4-Way SLI
USB 2.0 connectors
1
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
WS C621E SAGE (BMC)
Part number
90SW0021-M0EAY0
EAN / UPC
4712900910377
Also known as
ASUS WS C621E SAGE (BMC) Intel® C621 LGA 3647 (Socket P) EEB

Specifications

54 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 3647 (Socket P)
Compatible processor seriesIntel® Xeon®

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots12
Memory slots typeDIMM
Supported memory clock speeds2400,2666 MHz
Maximum internal memory768 GB

Storage controllers

Supported storage drive interfacesM.2, SATA III, U.2
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support4-Way CrossFireX, 4-Way SLI
Graphics card familyASPEED
Graphics cardAST2500

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors10
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
Number of EATX power connectors4
CPU fan connectorYes
Number of chassis fan connectors7
Number of COM connectors1

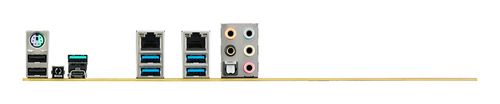

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports2
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I210-AT

Features

Component forPC
Motherboard form factorEEB
Motherboard chipset familyIntel
Motherboard chipsetIntel® C621
Audio chipRealtek S1220A
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x16 (Gen 3.x) slots7
Number of M.2 (M) slots1

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width305 mm
Depth330 mm

Other features

Supported RDIMM clock speeds2400,2666 MHz
VGA connectors1
