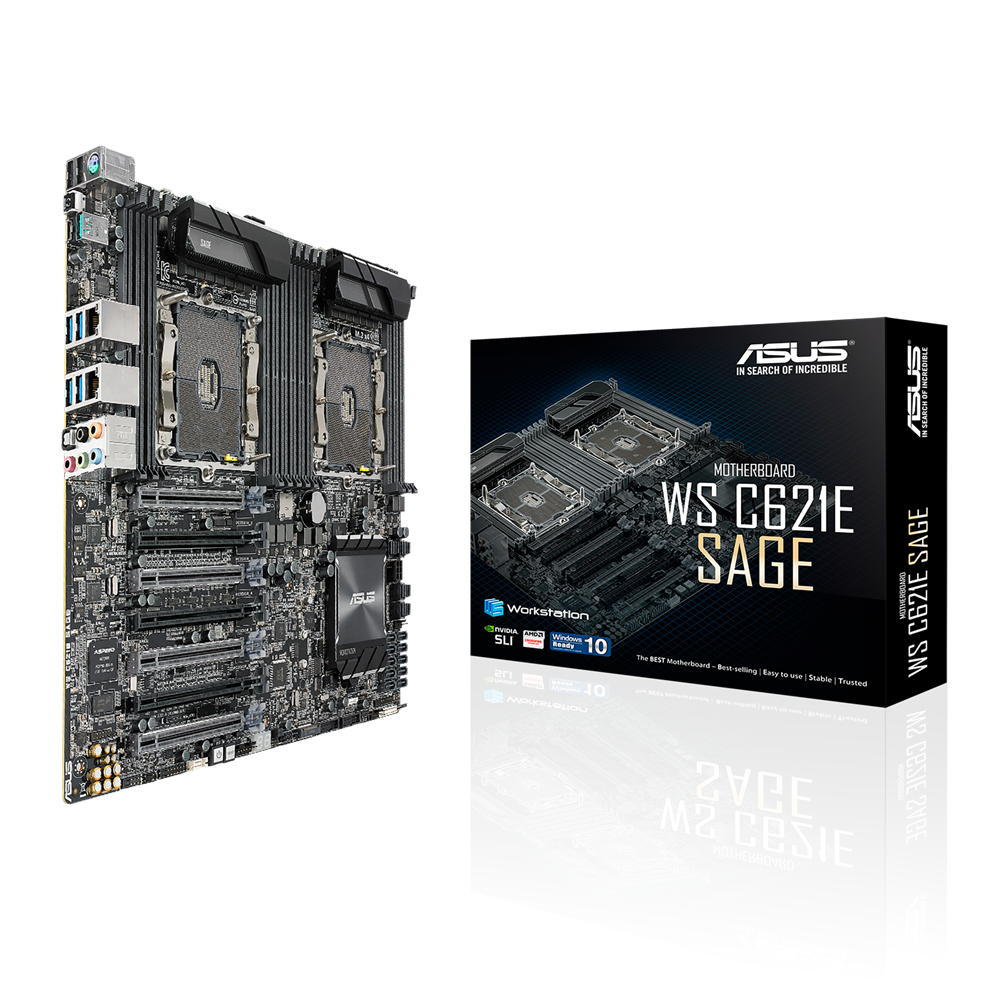

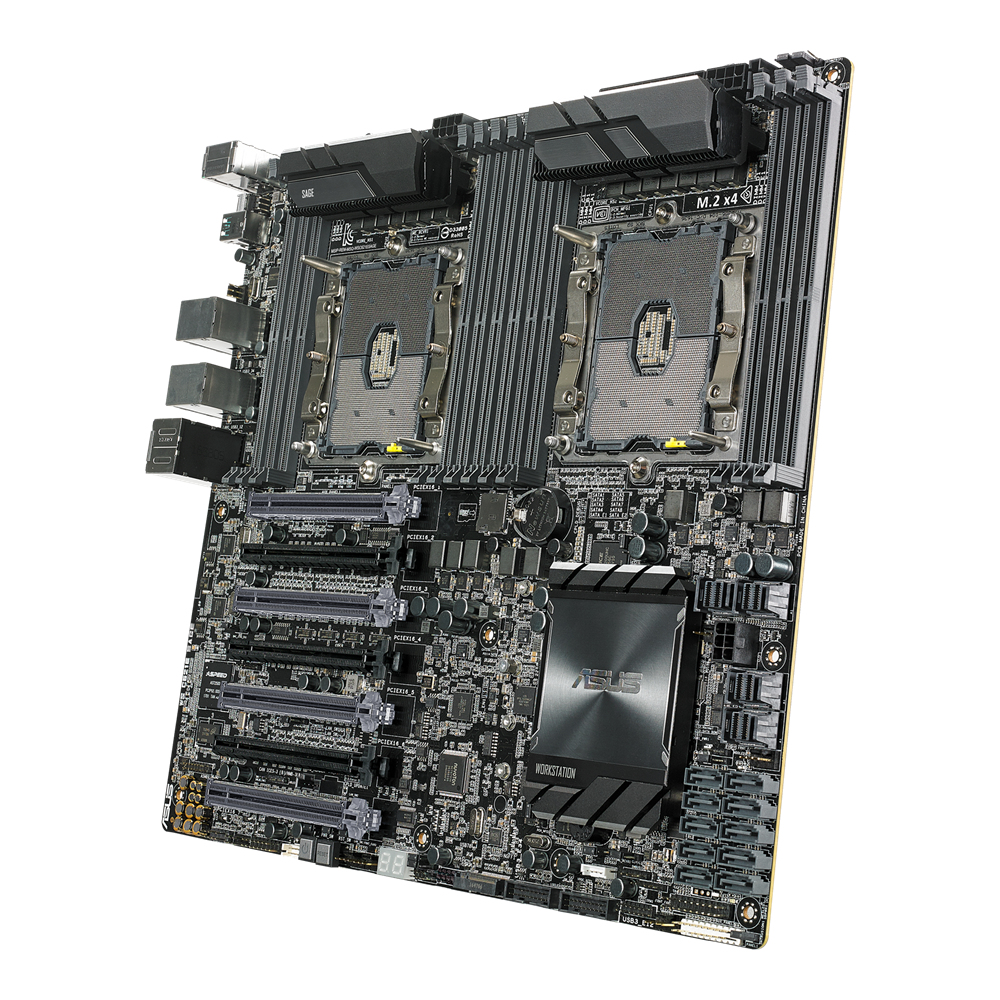

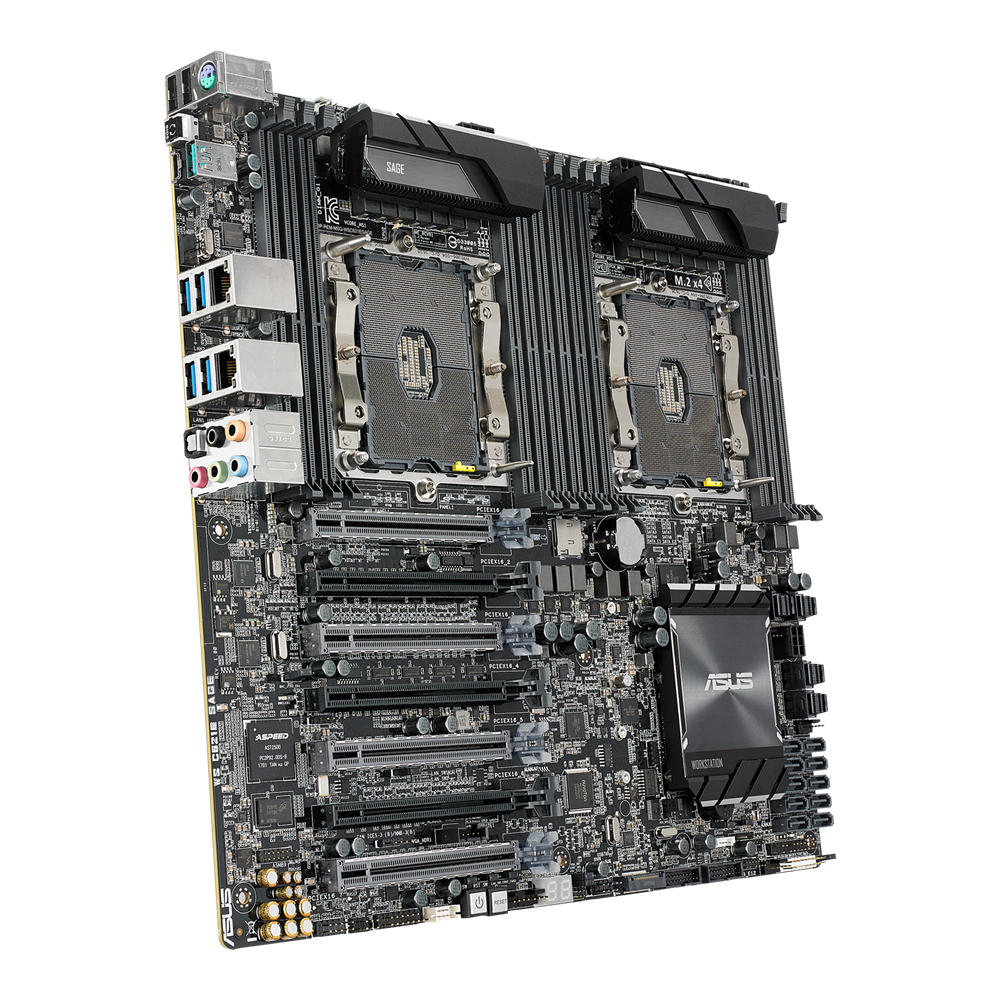

WS C621E SAGE
Model WS C621E SAGEPart no. 90SW0020-M0AAY0EAN 889349611234
62 specifications
- ColourBlack
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
- Parallel processing technology support4-Way CrossFireX, 4-Way SLI
- USB 2.0 connectors1
Overview
- Colour
- Black
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- Parallel processing technology support
- 4-Way CrossFireX, 4-Way SLI
- USB 2.0 connectors
- 1
- Brand
- ASUS
- Category
- Motherboard
- Model
- WS C621E SAGE
- Part numbers
- 90SW0020-M0AAY0, 90SW0020-M0EAY0
- EAN / UPC
- 889349611234, 4712900611236, 889349910375
- Also known as
- ASUS WS C621E SAGE Intel® C621 LGA 3647 (Socket P) EEB
Specifications
62 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 3647 (Socket P) |
| Compatible processor series | Intel® Xeon® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 12 |
| Memory slots type | DIMM |
| Supported memory clock speeds | 2400,2666,2933 MHz |
| Supported memory clock speed (max) | 2933 MHz |
| Maximum internal memory | 1.53 TB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 15 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 4-Way CrossFireX, 4-Way SLI |
| Graphics card family | ASPEED |
| Graphics card | AST2500 |
| Maximum resolution | 1920 x 1200 pixels |
| On-board graphics card memory | 64 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 10 |
| Front panel audio connector | Yes |
| Number of EATX power connectors | 4 |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 7 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 2 |
| 12V power connector | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |

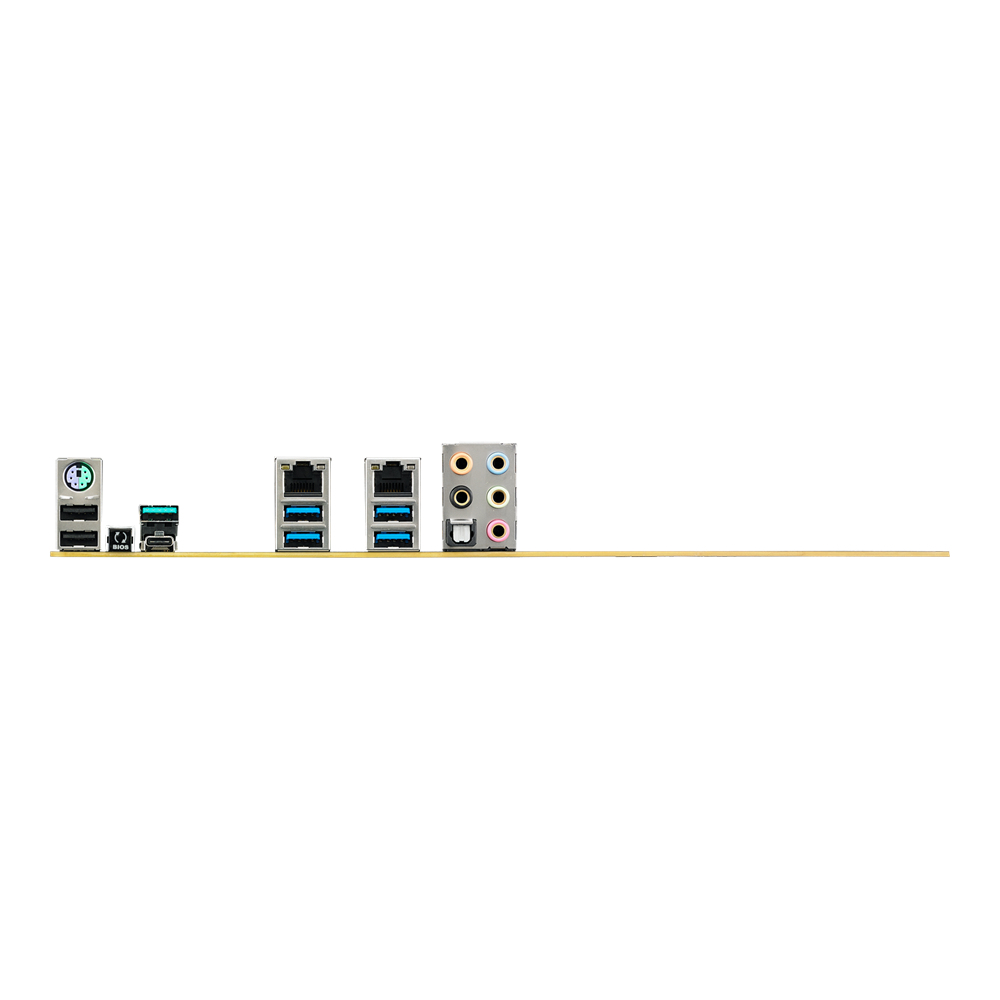

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I210-AT |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Workstation |
| Motherboard form factor | EEB |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® C621 |
| Audio chip | Realtek S1220A |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 7 |
| Number of M.2 (M) slots | 1 |
| 1st M.2 largest key size | 22110 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 330 mm |
