ASUS WS C246M PRO
Model WS C246M PROPart no. 90SW00E0-M0EAY0EAN 889349981634
49 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- USB 2.0 connectors2
- Ethernet LANYes
- Component forPC
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Component for
- PC
- Brand
- ASUS
- Category
- Motherboard
- Model
- WS C246M PRO
- Part number
- 90SW00E0-M0EAY0
- EAN / UPC
- 889349981634, 4712900981636
- Also known as
- ASUS WS C246M PRO Intel C246 LGA 1151 (Socket H4) micro ATX
Specifications
49 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®, Intel® Xeon® |
| Supported processor sockets | LGA 1151 (Socket H4) |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| Maximum internal memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| ATX Power connector (24-pin) | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel® I210-AT, Intel I219LM |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C246 |
| Audio output channels | 8.0 channels |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
Packaging data
| Specification | Value |
|---|---|
| Package width | 367 mm |
| Package depth | 353 mm |
| Package height | 300 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 3.x) slots | 1 |
| Maximum UDIMM memory | 64 GB |
| Quick installation guide | Yes |
Compare ASUS WS C246M PRO

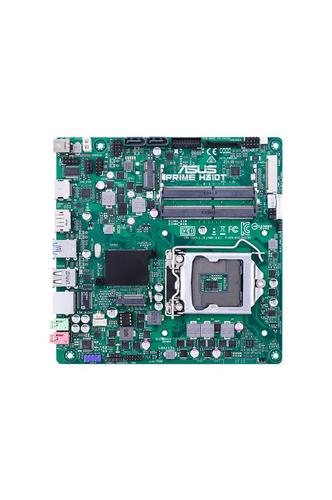

Compare any products- ASUS WS C246M PRO vsASUS PRIME H310T/CSMCompare specs
- ASUS WS C246M PRO vsASUS WS C246 PROCompare specs

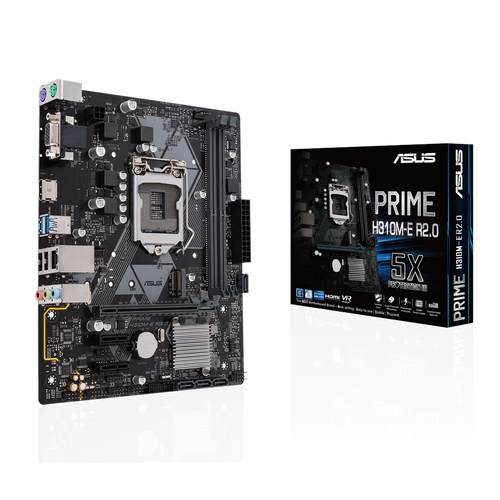

- ASUS WS C246M PRO vsASUS PRIME H310M-E R2.0Compare specs

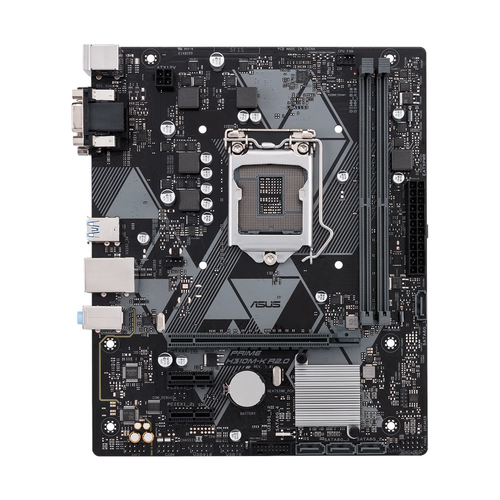

- ASUS WS C246M PRO vsASUS PRIME H310M-K R2.0Compare specs

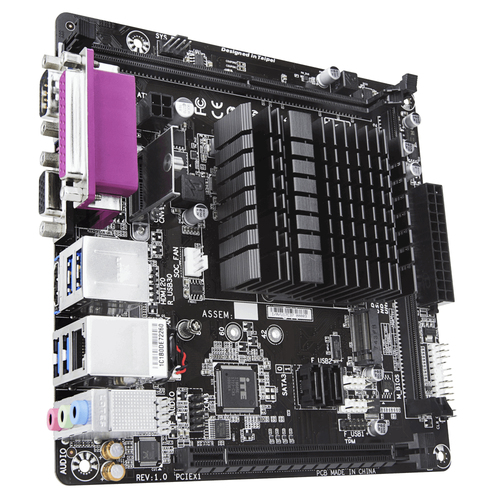

- ASUS WS C246M PRO vsGIGABYTE J4005N D2PCompare specs

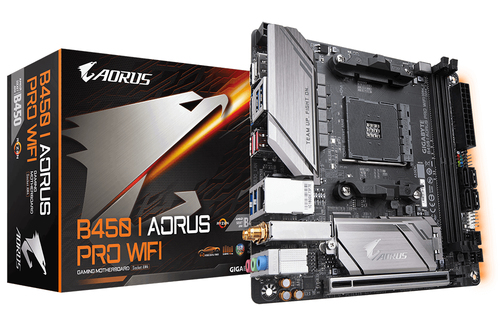

- ASUS WS C246M PRO vsGIGABYTE B450 I AORUS PRO WIFICompare specs

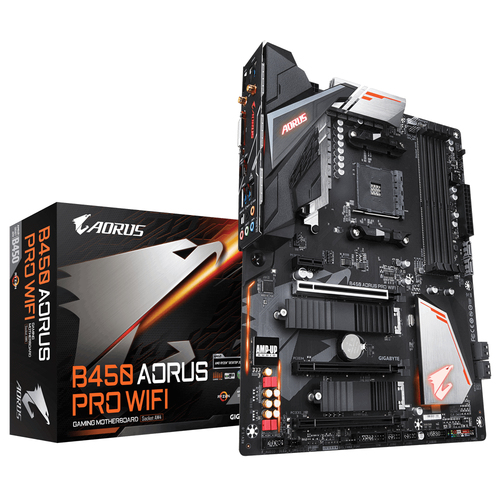

- ASUS WS C246M PRO vsGIGABYTE B450 AORUS PRO WIFI (rev. 1.0)Compare specs

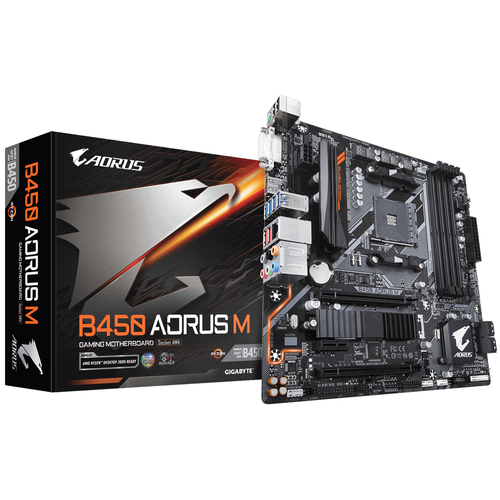

- ASUS WS C246M PRO vsGIGABYTE B450 AORUS M (rev. 1.0)Compare specs
