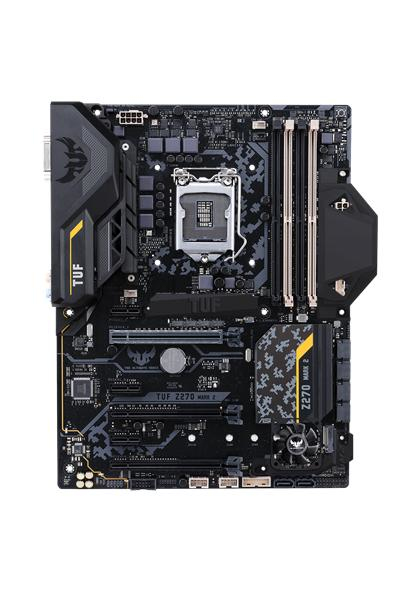

ASUS TUF Z270 MARK 2

ASUS TUF Z270 MARK 2

Model TUF Z270 MARK 2Part no. 90MB0ST0-M0EAY0EAN 889349592052

63 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • USB 2.0 connectors2
  • Ethernet LANYes
  • Component forPC
  • PCI Express x16 (Gen 3.x) slots1
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
USB 2.0 connectors
2
Ethernet LAN
Yes
Component for
PC
PCI Express x16 (Gen 3.x) slots
1
Brand
ASUS
Category
Motherboard
Model
TUF Z270 MARK 2
Part number
90MB0ST0-M0EAY0
EAN / UPC
889349592052, 4058154158999, 4712900592054
Also known as
ASUS TUF Z270 MARK 2 Intel® Z270 LGA 1151 (Socket H4) ATX

Specifications

63 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666,2800,3000,3200,3300,3333,3400,3466,3600,3733,3866 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Graphics

Graphics card familyIntel
Number of displays supported3

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors2
12V power connectorYes
Number of COM connectors1
TPM connectorYes

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes
Parallel ports quantity0
Serial ports quantity0

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I219-V
Wake-on-LAN readyYes

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z270
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Window

Expansion slots

PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots2
Number of M.2 (M) slots2

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version6.0

Processor special features

Intel® Optane™ Memory ReadyYes

Weight & dimensions

Width305 mm
Depth244 mm

Other features

PCI Express x16 dual x8/x8 modeYes
