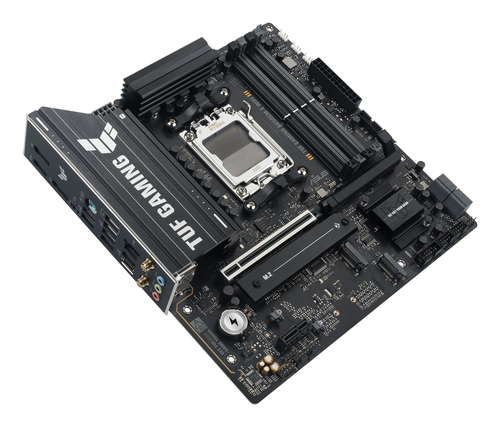

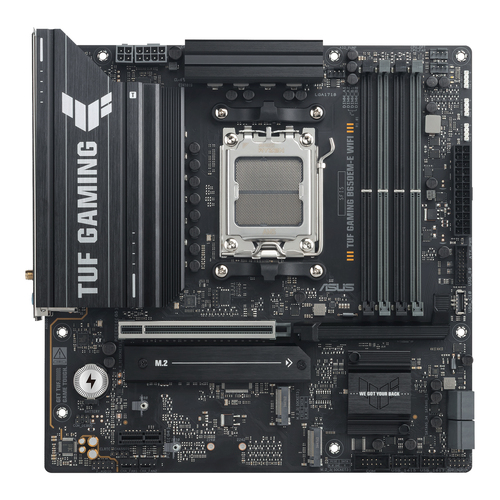

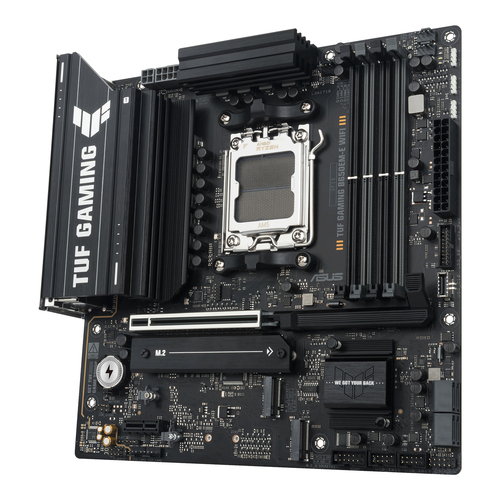

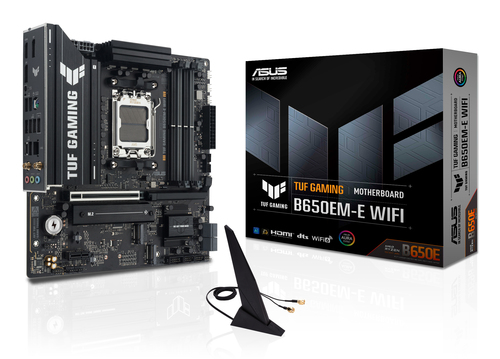

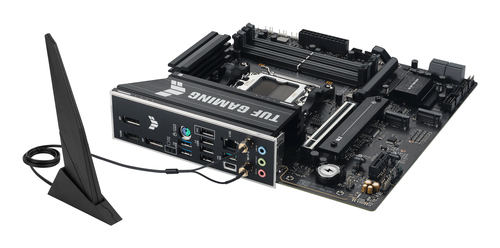

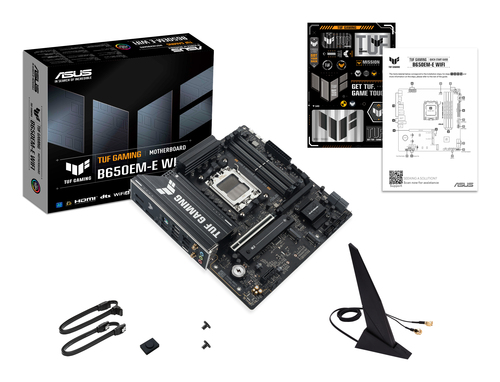

TUF GAMING B650EM-E WIFI

Model TUF GAMING B650EM-E WIFIEAN 199291040533

93 specifications

Overview

Brand: ASUS
Category: Motherboard
Model: TUF GAMING B650EM-E WIFI
Part number: TUF GAMING B650EM-E WIFI
EAN / UPC: 199291040533
Also known as: ASUS TUF GAMING B650EM-E WIFI motherboard AMD B650 Socket AM5 micro ATX

93 specifications in 13 groups

Specification	Value
Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5

Specification	Value
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Supported memory clock speed (max)	8000 MHz
Maximum internal memory	256 GB
Unbuffered memory	Yes
Maximum internal memory per slot	64 GB

Specification	Value
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Number of HDDs supported	4
Number of storage drives supported	7
RAID support	Yes
RAID levels	0, 1, 5, 10

Specification	Value
Parallel processing technology support	Not supported
On-board graphics card	No
Maximum resolution	7680 x 4320 pixels

Specification	Value
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	1
Number of chassis fan connectors	2
Chassis intrusion connector	Yes
Peripheral (Molex) power connectors (4-pin)	1
EPS power connector (8-pin)	Yes
Number of EPS power connectors (8-pin)	1
12V power connector	Yes
Number of COM connectors	1
Number of water pump connectors	1
RGB LED pin header	Yes
Number of RGB LED pin headers	3

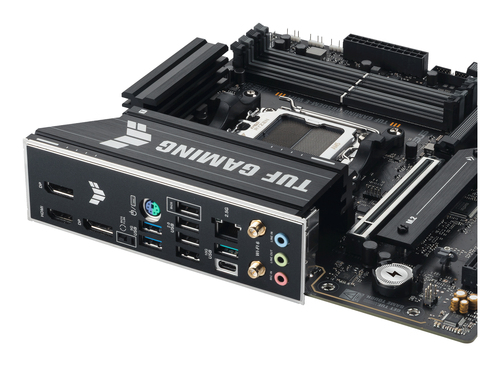

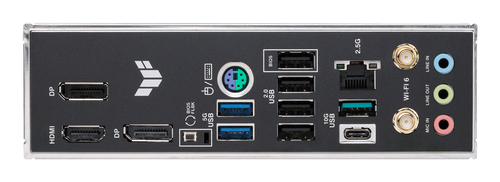

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
DVI-D ports quantity	0
DisplayPorts quantity	2
DisplayPort version	1.4
Headphone outputs	1
Line-in	Yes
Microphone in	Yes

Specification	Value
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD B650
Audio output channels	7.1 channels
Product colour	Grey
Cooling type	Passive
Power source type	ATX
Windows operating systems supported	Windows 10 x64, Windows 11

Specification	Value
PCI Express x4 (Gen 1.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	3
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
