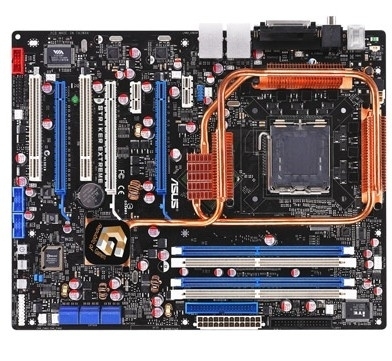

ASUS Striker Extreme
Model Striker ExtremePart no. 90-MIB140-G0EAY00TEAN 610839146994
33 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors3
- Networking featuresDual Giabit Ethernet
- Motherboard form factorATX
- Width305 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 3
- Networking features
- Dual Giabit Ethernet
- Motherboard form factor
- ATX
- Width
- 305 mm
- Brand
- ASUS
- Category
- Motherboard
- Model
- Striker Extreme
- Part numbers
- 90-MIB140-G0EAY00T, 90-MIB140-G0EAY00Z, 90-MIB140-G0AAY00T, MIB140-G0EAY00T, STRIKER EXTREME?REFU, 90-MIB140-GORAYC +1 more
- EAN / UPC
- 610839146994, 4719543146996
- Also known as
- ASUS Striker Extreme LGA 775 (Socket T) ATX
Specifications
33 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Dual Giabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
| Overclocking features | AI NOS ASUS AI Booster |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2x PCI Express x16 1x PCI Express x16 1x PCI Express x1 2x PCI 2.2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 245 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Ghost Recon Drivers ASUS PC Probe II ASUS Update ASUS AI Booster Futuremark 3DMark'06 AE NVIDIA MediaShield RAID Kaspersky Anti-Virus |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | Ultra DMA 133/100/66/33 |
| Controller interface type | Serial ATA I/II |
| Floppy disk drive connector | Yes |
| Special features | Q-Fan Plus ASUS EZ Flash2 ASUS Music Alarm ASUS MyLogo3 |
