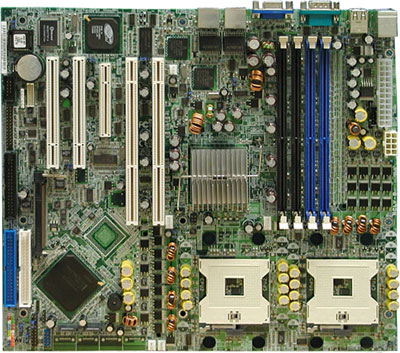

SER MB ASUS NCLV-D XEON E7320
Model SER MB ASUS NCLV-D XEON E7320Part no. NCLV-D
10 specifications
- Processor system buses supported800 MHz
- ECC сompatibilityECC
- Maximum graphics card memory8 MB
- Power source typeATX
Overview
- Processor system buses supported
- 800 MHz
- ECC сompatibility
- ECC
- Maximum graphics card memory
- 8 MB
- Power source type
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- SER MB ASUS NCLV-D XEON E7320
- Part number
- NCLV-D
- Also known as
- ASUS SER MB NCLV-D XEON E7320
Specifications
10 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor system buses supported | 800 MHz |
Memory
| Specification | Value |
|---|---|
| ECC сompatibility | ECC |
| Maximum internal memory | 16 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 8 MB |
Network
| Specification | Value |
|---|---|
| Networking features | Braodcom BCM5721 PCI-Express Gigabit controller; Braodcom BCM5705 PCI Gigabit Ethernet controller |
Features
| Specification | Value |
|---|---|
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2 x 64-bit/133MHz PCI expansion slot, 1 x x4/x8 PCI-Express |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 305 x 267 |
| Graphics controller | ATI RAGE-XL |
| I/O ports | On Board Connectors: Floppy Connector x1 PSU Connector: SSI 24-pin +12V 8-pin Management Connector x1 Front USB x1 Fan x6 SMBus x1 Chassis Instrusion x1 Front LAN LED x2 Rear IO Connectors: External Serial Port x1 External USB Port x2 VGA Port x1 RJ-45 x2 PS/2 Mouse/Mouse x1 |
