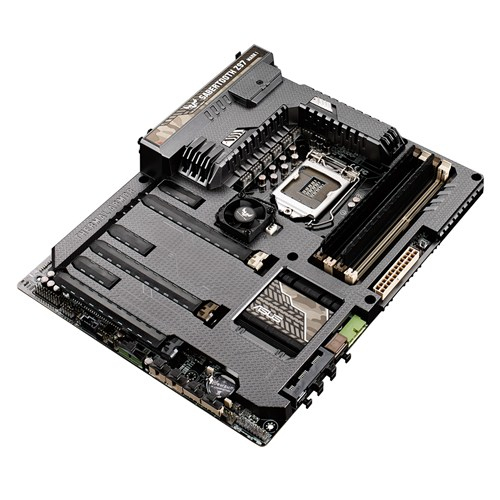

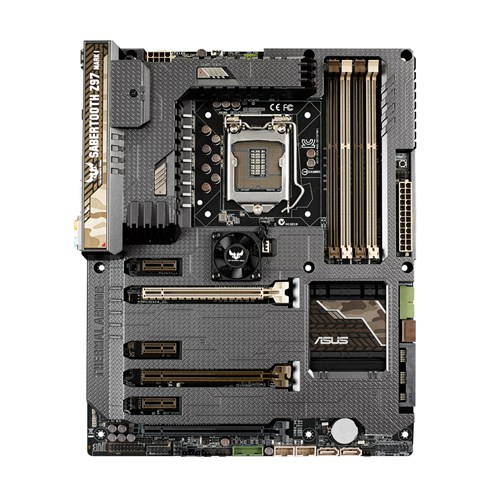

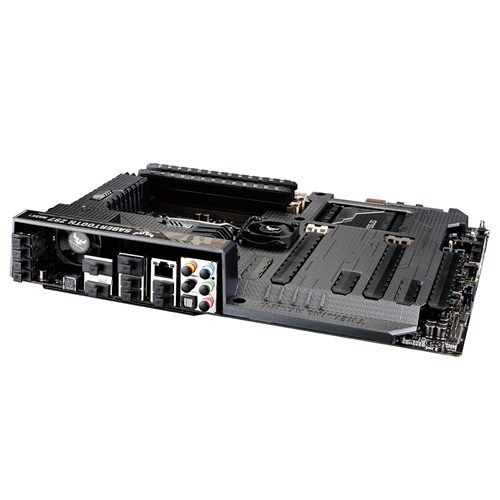

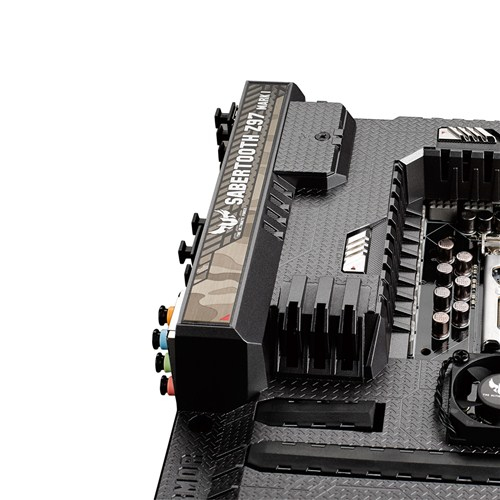

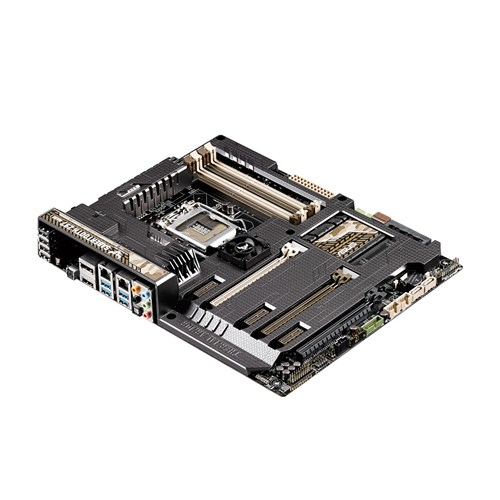

ASUS SABERTOOTH Z97 MARK1

ASUS SABERTOOTH Z97 MARK1

Model SABERTOOTH Z97 MARK1EAN 803983044876

76 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA III
  • Maximum graphics card memory512 MB
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA III
Maximum graphics card memory
512 MB
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
SABERTOOTH Z97 MARK1
Part number
SABERTOOTH Z97 MARK1
EAN / UPC
803983044876, 886227764457
Also known as
ASUS SABERTOOTH Z97 MARK1 motherboard Intel® Z97 LGA 1150 (Socket H3) ATX

Specifications

76 specifications in 14 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Maximum number of SMP processors1
Intel Core i3/i5/i7/i9 seriesi3-4xxx, i5-4xxx, i7-4xxx
Supported processor socketsLGA 1150 (Socket H3)

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1600,1866 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA III
RAID levels0, 1, 5, 10

Graphics

Maximum graphics card memory512 MB
Parallel processing technology supportQuad-GPU CrossFireX, Quad-GPU SLI
Graphics cardHD Graphics
Maximum resolution4096 x 2160 pixels
Discrete graphics supportYes
Number of displays supported3

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors6
Number of SATA II connectors0
Number of SATA connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
Number of EATX power connectors1
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
TPM connectorYes

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
Headphone outputs1
Microphone inYes
Digital audio optical out1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I218-V, Realtek 8111GR

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z97
Audio chipRealtek ALC1150
Audio output channels7.1 channels
PC health monitoringCPU, Fan, Temperature
Cooling typeActive
Power source typeATX
Windows operating systems supportedWindows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win
Overclocking featuresTUF Features: TUF ENGINE! Power Design : - 8 + 2 Digital Phase Power Design - TUF Components (New Alloy Choke, Ti-Cap. & MOSFET; certified by military-standard) - ASUS DIGI+ Power Control Utility Ultimate COOL! Thermal Solution : - TUF Thermal Armor with Flow Valve - TUF Thermal Radar 2 - TUF ICe Sa

Expansion slots

PCI Express x1 slots3
PCI Express x16 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots2

BIOS

BIOS typeUEFI AMI
BIOS memory size64 Mbit
ACPI version5.0
Clear CMOS jumperYes

Processor special features

Trusted Platform Module (TPM)Yes

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Quick installation guideYes
