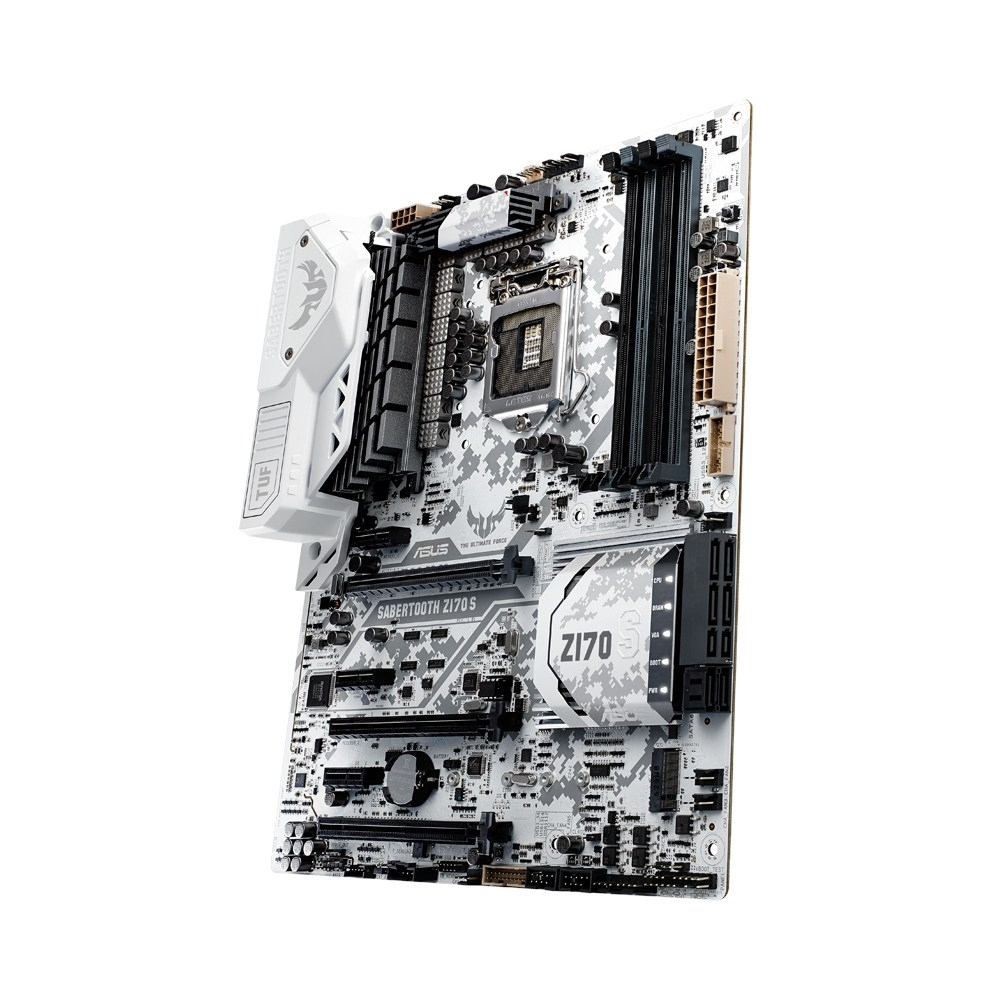

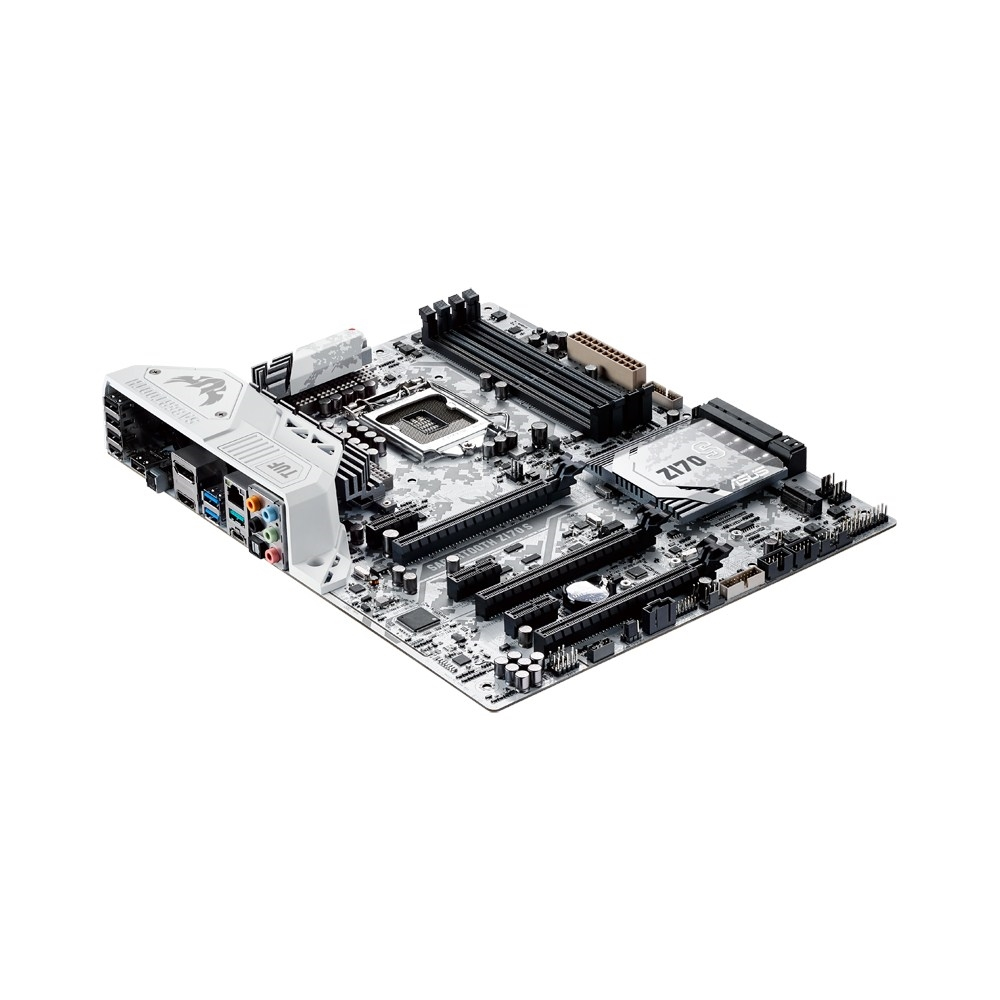

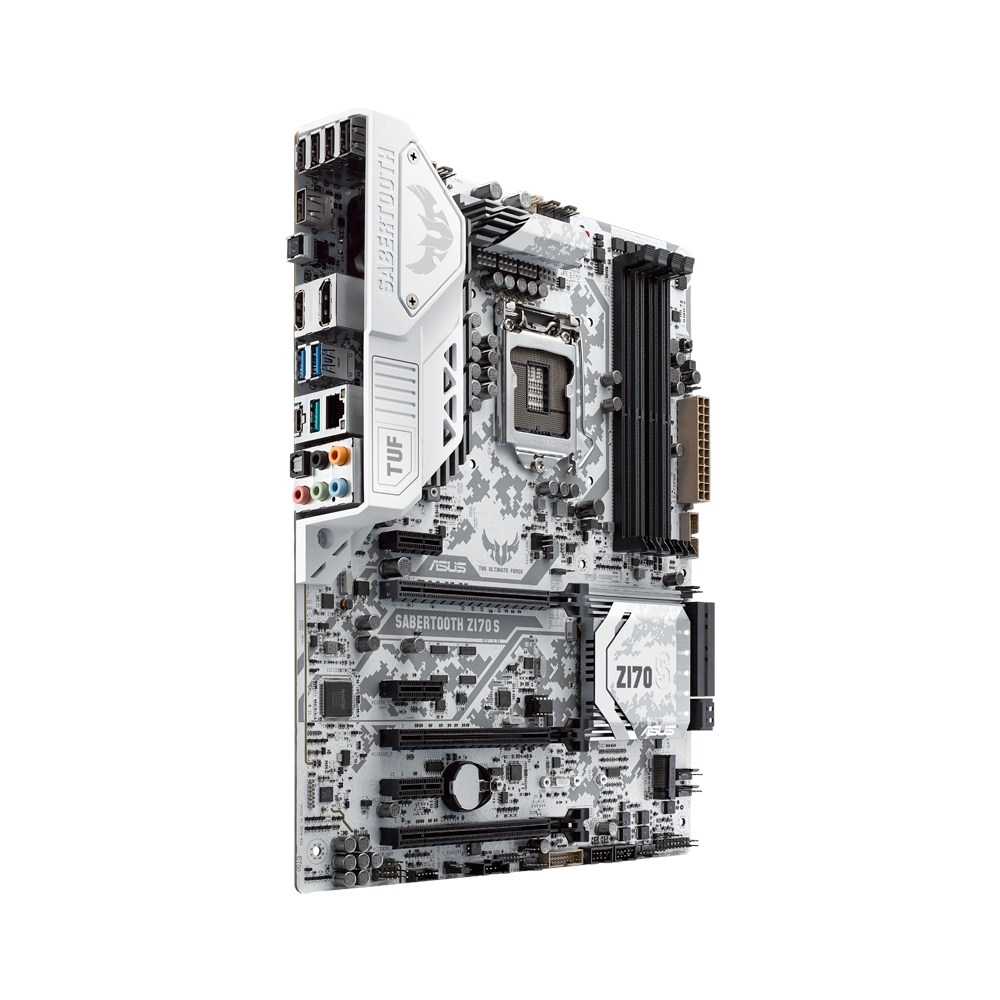

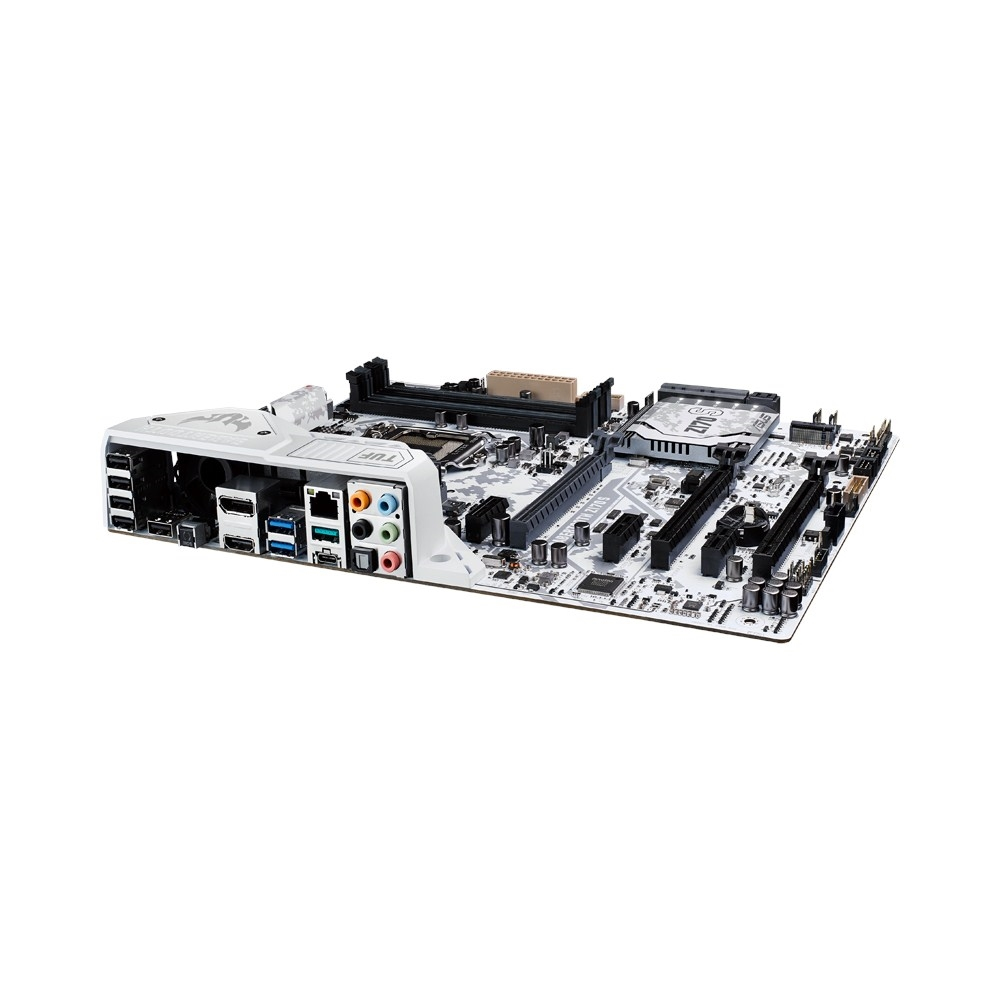

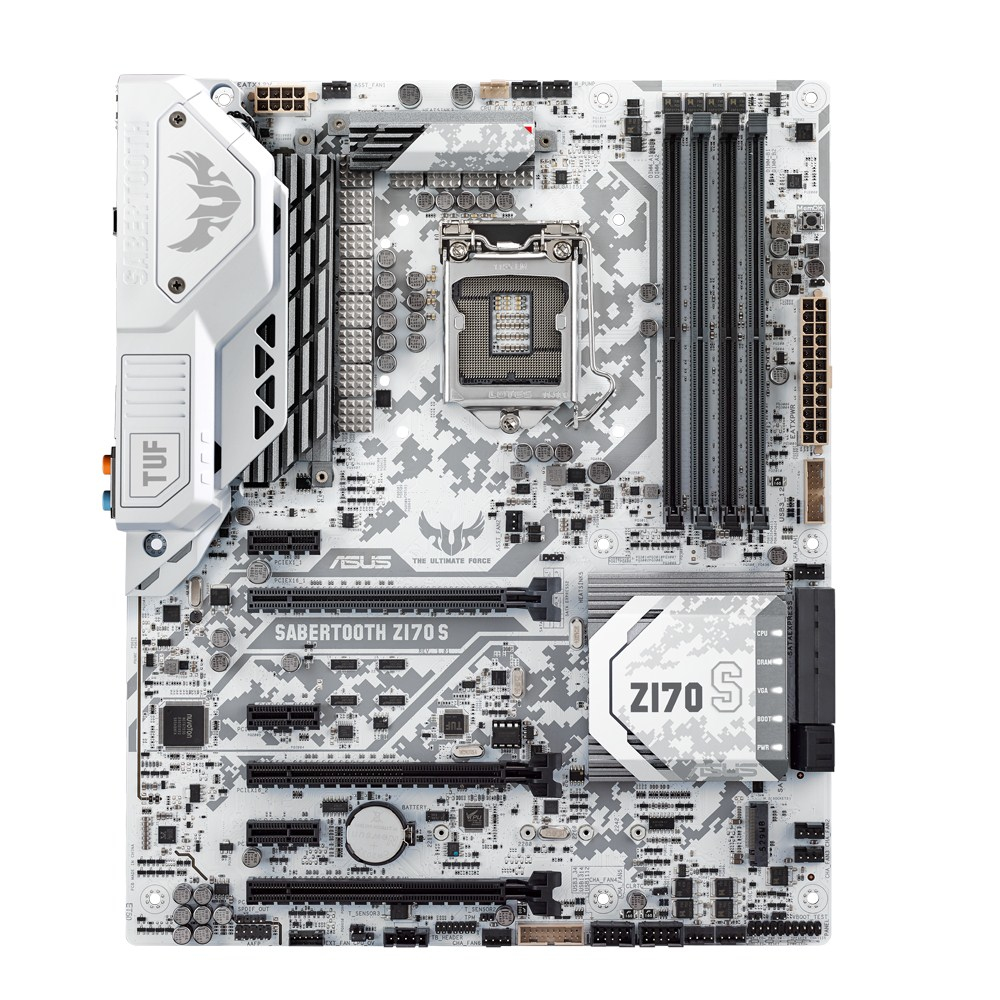

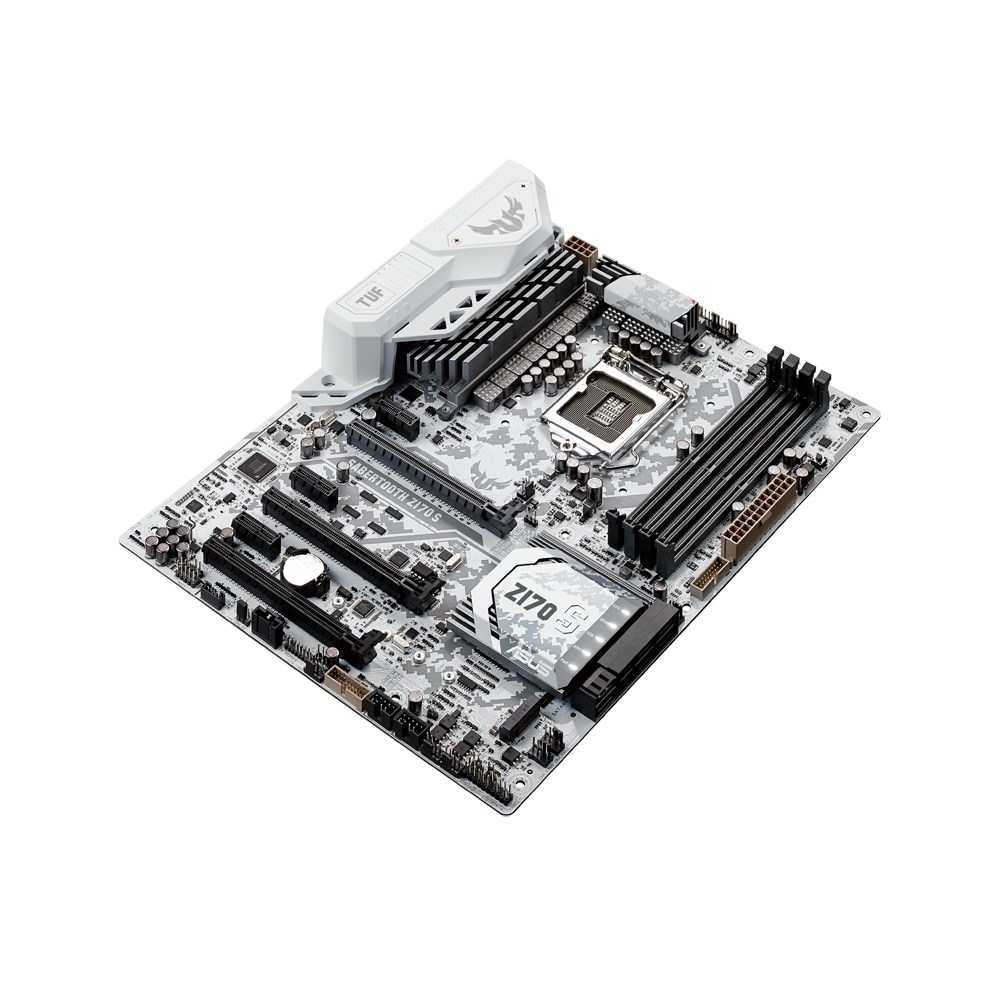

ASUS SABERTOOTH Z170 S

ASUS SABERTOOTH Z170 S

Model SABERTOOTH Z170 SPart no. 90MB0PT0-M0EAY0EAN 7734322923688

84 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesM.2, SATA III
  • Maximum graphics card memory1024 MB
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
M.2, SATA III
Maximum graphics card memory
1024 MB
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
SABERTOOTH Z170 S
Part number
90MB0PT0-M0EAY0
EAN / UPC
7734322923688, 796594669715, 889349298053, 4058154091883 +5 more
Also known as
ASUS SABERTOOTH Z170 S Intel® Z170 LGA 1151 (Socket H4) ATX

Specifications

84 specifications in 14 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Intel Core i3/i5/i7/i9 seriesi3-6xxx, i5-6xxx, i7-6xxx

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesM.2, SATA III
RAID levels0, 1, 5, 10

Graphics

Maximum graphics card memory1024 MB
Parallel processing technology support2-Way SLI, 3-Way CrossFireX, Quad-GPU CrossFireX, Quad-GPU SLI
On-board graphics cardNo
Graphics card familyIntel
Graphics cardHD Graphics
Maximum resolution4096 x 2160 pixels
Discrete graphics supportYes
Number of displays supported3

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0

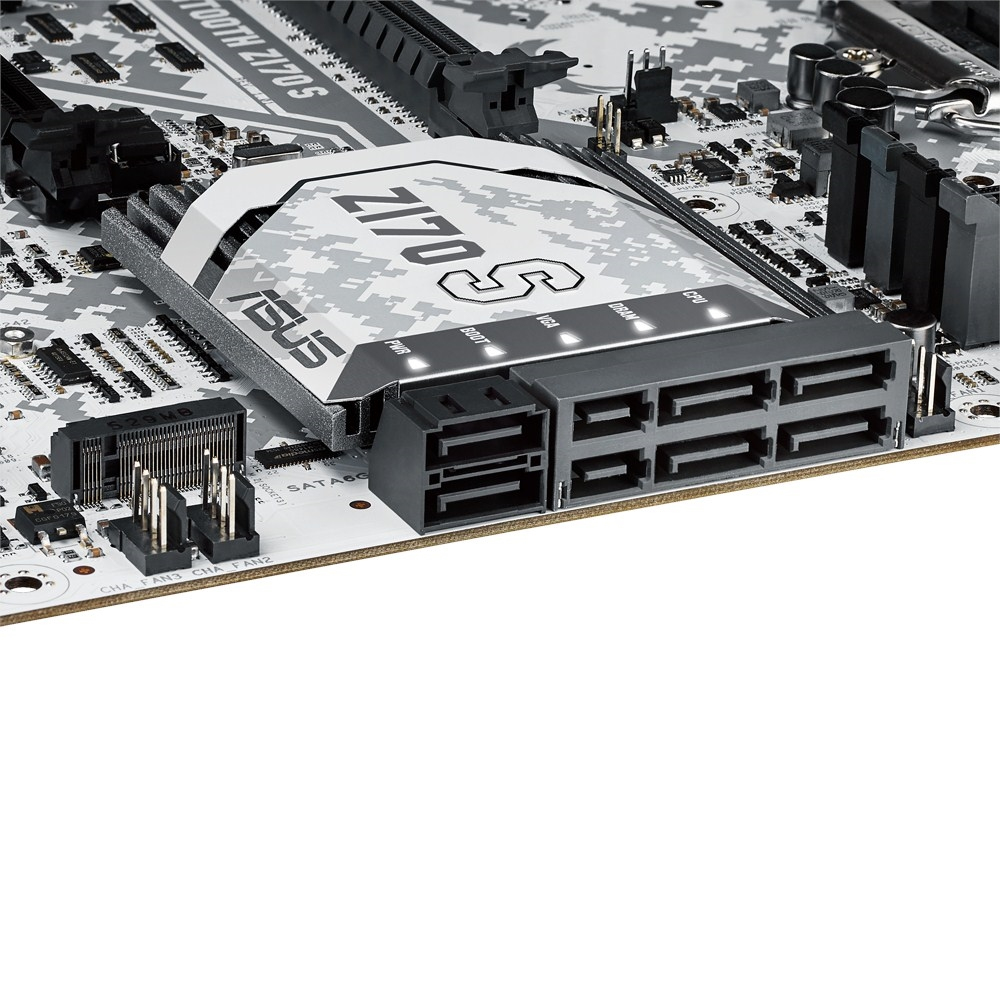

Number of SATA III connectors6
Number of SATA II connectors0
Number of SATA Express connectors2
Number of Parallel ATA connectors0
S/PDIF out connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors6
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
TPM connectorYes
Thunderbolt headers1

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
Headphone outputs1
S/PDIF out portYes

Network

Ethernet LANYes
LAN controllerIntel® I219-V
Wake-on-LAN readyYes

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z170
Audio chipRealtek ALC1150
Audio output channels7.1 channels
Cooling typePassive
Power source typeATX
Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots2
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size16 Mbit
ACPI version5.0
Clear CMOS jumperYes

Processor special features

Intel Clear Video TechnologyYes
Intel Extreme Memory Profile (XMP)Yes
Intel Rapid Storage TechnologyYes
Intel® InTru™ 3D TechnologyYes
Intel® Insider™Yes
Intel® Quick Sync Video TechnologyYes
Intel® Smart Response TechnologyYes
Intel® Turbo Boost Technology2.0

Weight & dimensions

Width305 mm
Depth244 mm

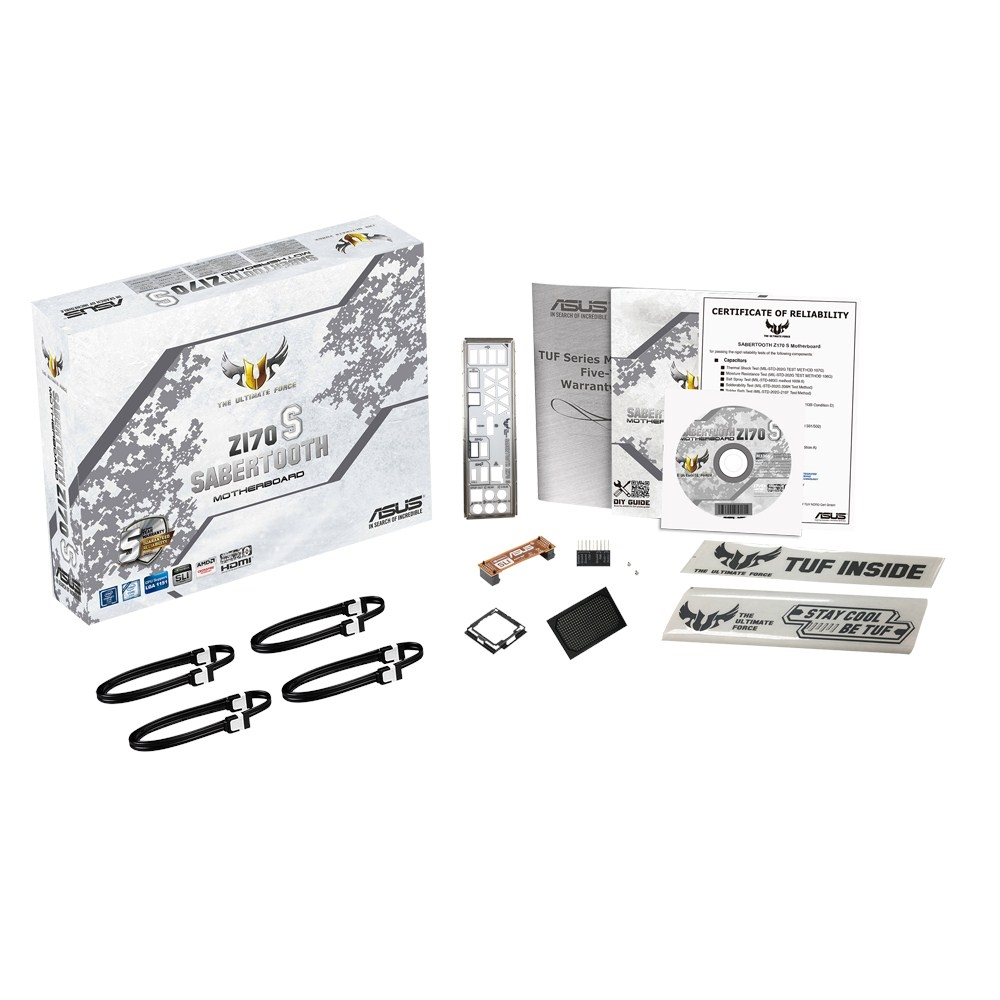

Packaging content

Cables includedSATA
Bundled softwareASUS PRO Clock Technology ASUS DIGI+ Power Control Utility TUF Thermal Radar 2 TUF ICe TUF ESD Guards 2 TUF LANGuard GPU Boost USB BIOS Flashback MemOK! AI Suite 3 Ai Charger+ PC Cleaner Disk Unlocker ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS USB BIOS Flashback ASUS UEFI BIOS EZ Mode ASUS Q-Shield

Other features

Quick installation guideYes
