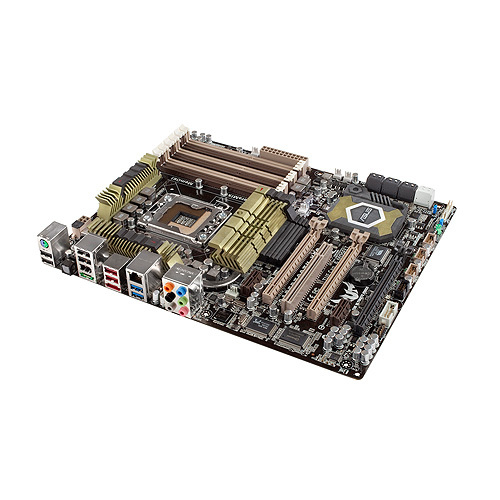

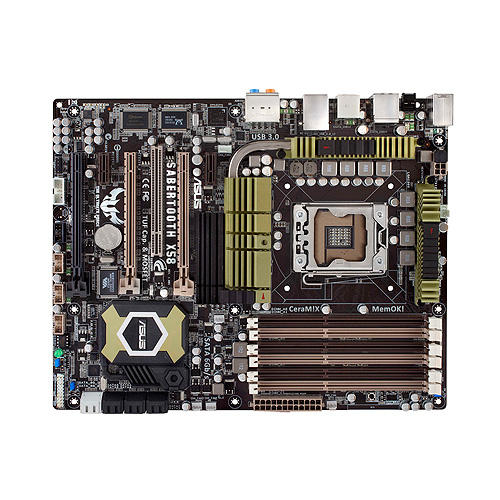

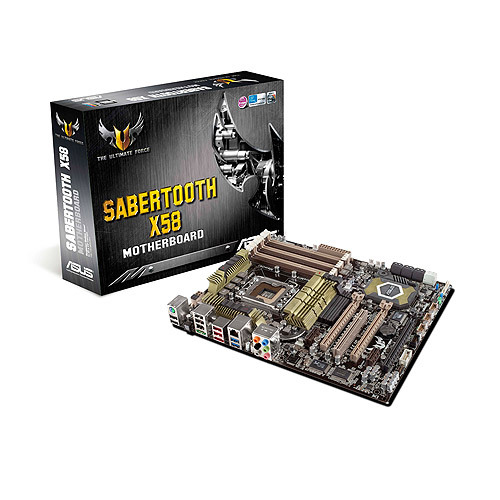

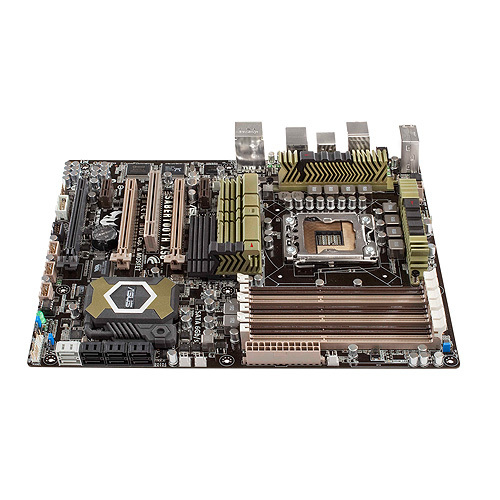

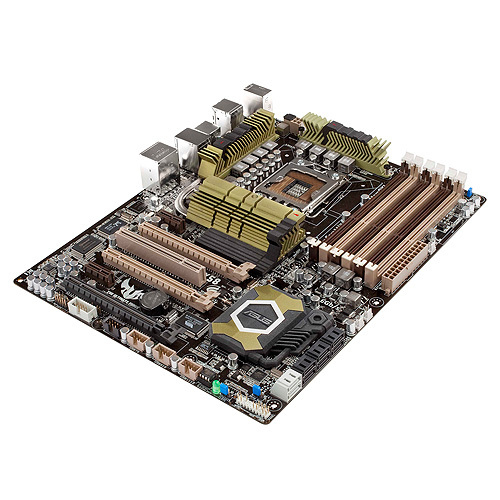

ASUS Sabertooth X58
Model Sabertooth X58Part no. 90-MIBDK0-G0EAY00ZEAN 610839177073
40 specifications
- Processor manufacturerIntel
- Number of memory slots6
- RAID levels0, 1, 10
- Networking featuresGigabit LAN
- Component forPC
- PCI Express x1 slots2
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 6
- RAID levels
- 0, 1, 10
- Networking features
- Gigabit LAN
- Component for
- PC
- PCI Express x1 slots
- 2
- Brand
- ASUS
- Category
- Motherboard
- Model
- Sabertooth X58
- Part numbers
- 90-MIBDK0-G0EAY00Z, 90-MIBDK0-G0AAY00Z
- EAN / UPC
- 610839177073, 4719543177075
- Also known as
- ASUS Sabertooth X58 Socket B (LGA 1366) ATX
Specifications
40 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket B (LGA 1366) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333,1600,1800,1866 MHz |
| Maximum internal memory | 24 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
| Number of SATA connectors | 8 |
| S/PDIF out connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| Number of IEEE1394 connectors | 1 |

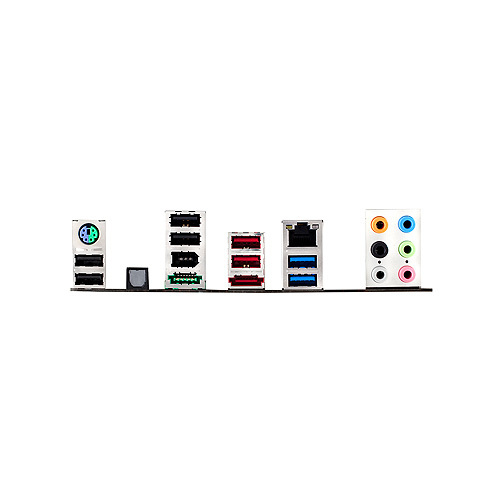

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit LAN |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows 7 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 16 Mbit |
| ACPI version | 2.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASUS MyLogo 2 ASUS EZ Flash 2 ASUS CrashFree BIOS 3 ASUS Q-Connector ASUS O.C. Profile ASUS Q-DIMM ASUS Q-Slot ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) ASUS Q-Shield |
Other features
| Specification | Value |
|---|---|
| Manageability features | WfM 2.0, DMI 2.0, WOL @ PME, WOR @ PME, PXE |
