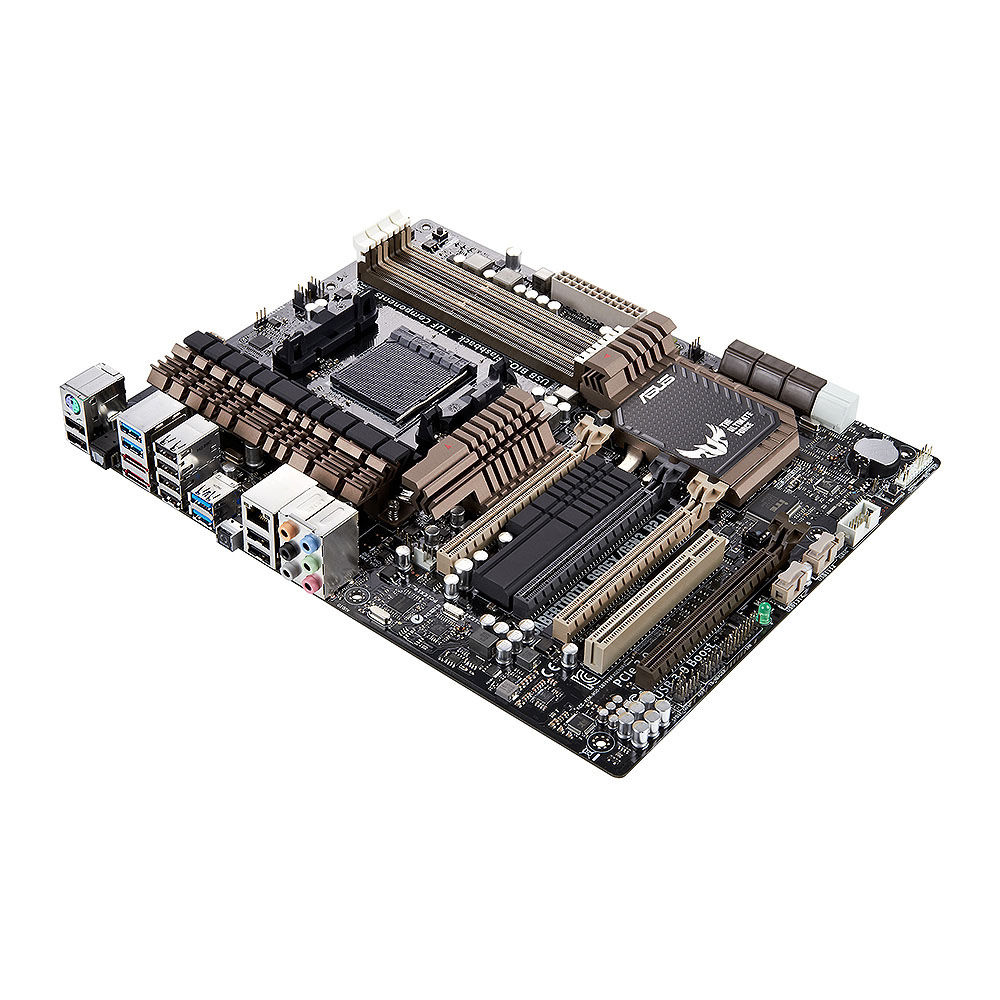

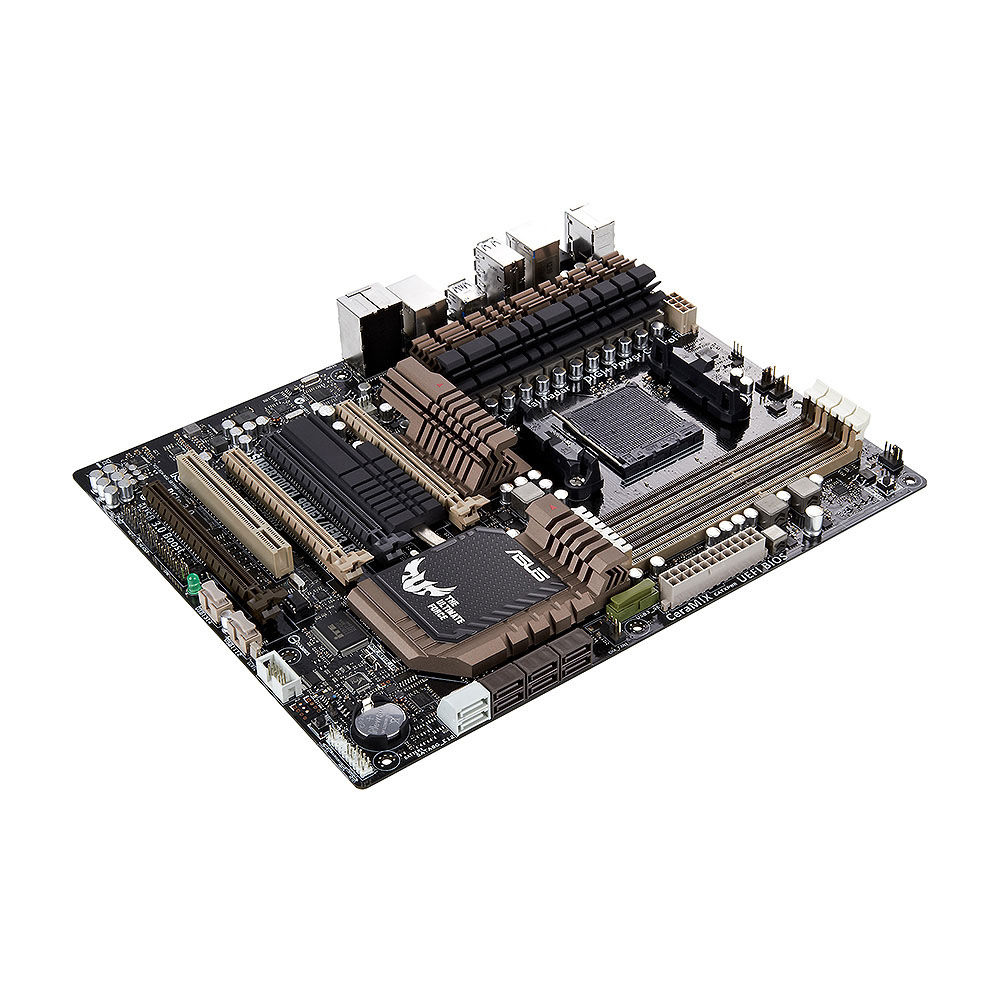

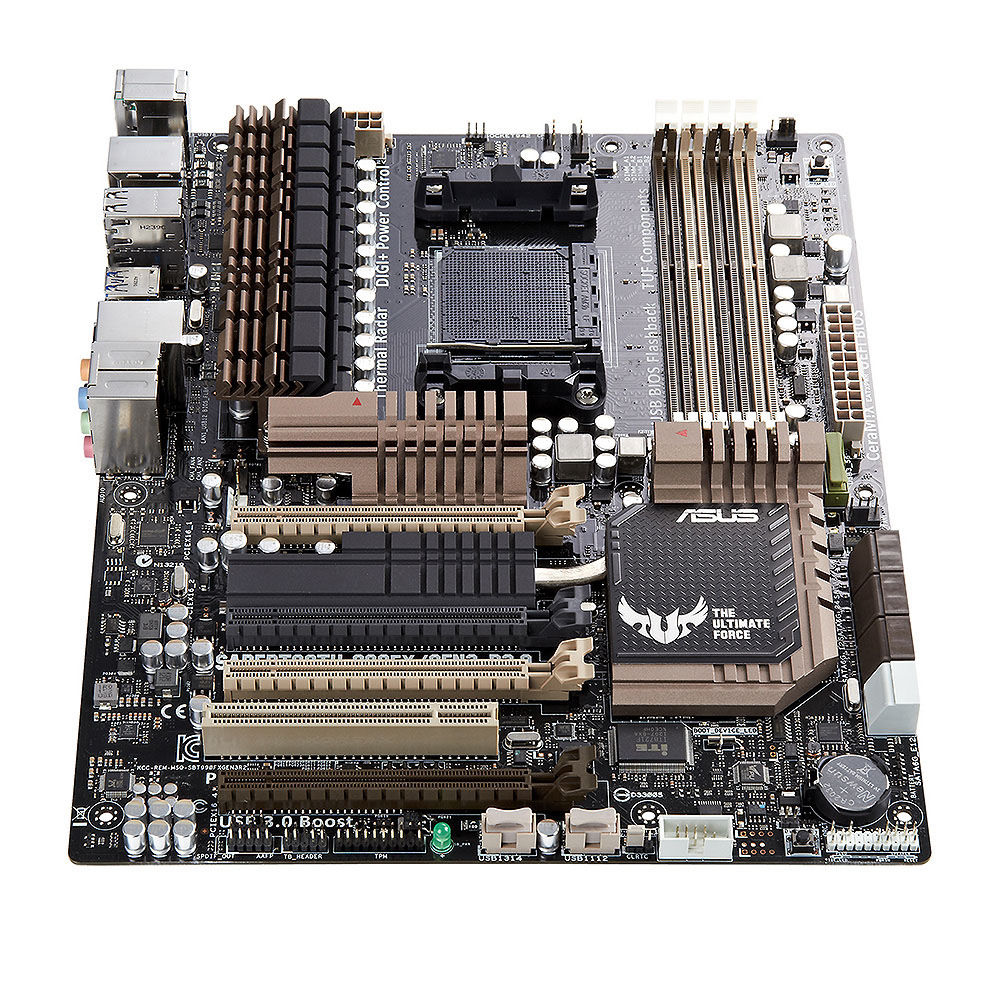

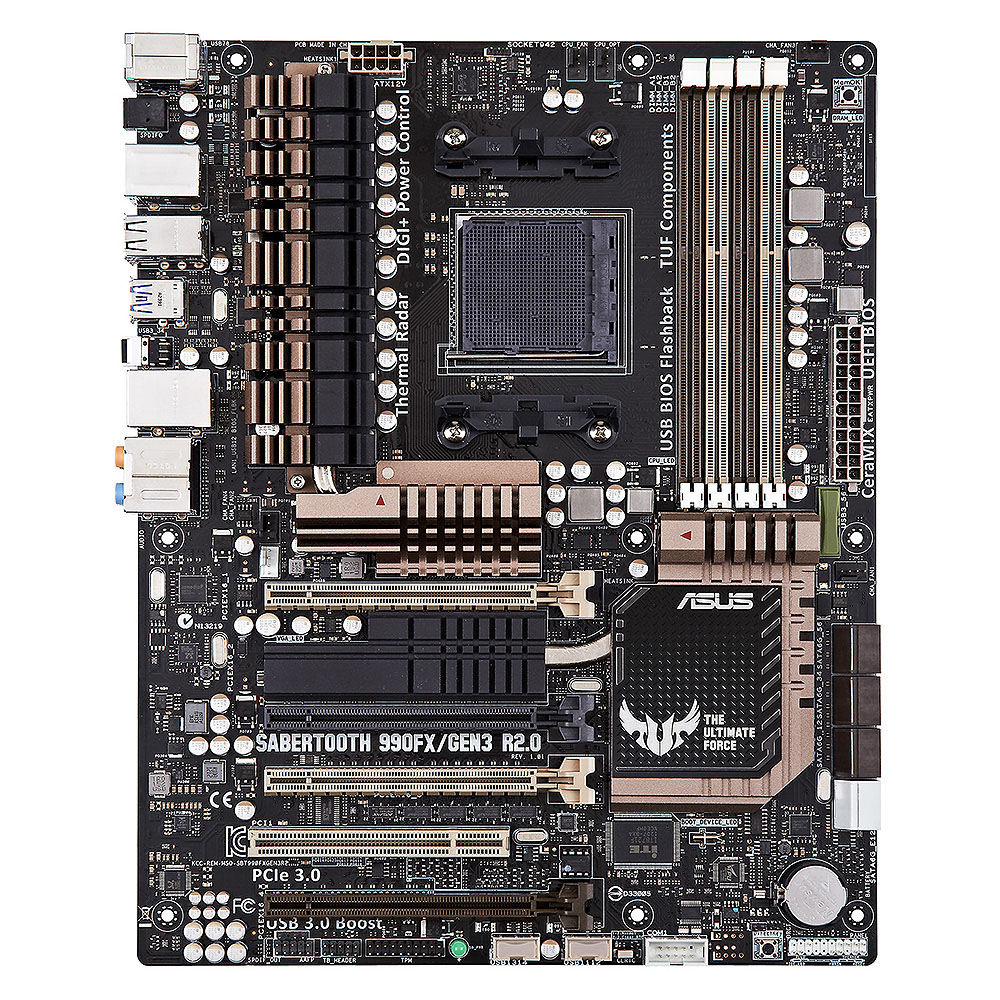

ASUS SABERTOOTH 990FX/GEN3 R2.0
Model SABERTOOTH 990FX/GEN3 R2.0Part no. 90MB0DL0-M0EAY0
68 specifications
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA III
- Discrete graphics supportYes
- USB 2.0 connectors2
- USB 2.0 ports quantity8
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA III
- Discrete graphics support
- Yes
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 8
- Brand
- ASUS
- Category
- Motherboard
- Model
- SABERTOOTH 990FX/GEN3 R2.0
- Part number
- 90MB0DL0-M0EAY0
- Also known as
- ASUS SABERTOOTH 990FX/GEN3 R2.0 AMD 990FX Socket AM3+ ATX
Specifications
68 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3+ |
| Compatible processor series | AMD Phenom II Dual-Core Mobile, AMD Phenom II Quad-Core Mobile, AMD Phenom II Triple-Core Mobile |
| System bus rate | 5.2 GT/s |
| Processor thermal power (max) | 140 W |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 1066,1333,1600,1866 MHz |
| Maximum internal memory | 32 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Quad-GPU CrossFireX, Quad-GPU SLI |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 8 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111F |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD 990FX |
| Motherboard southbridge | AMD SB950 |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| Power source type | ATX |

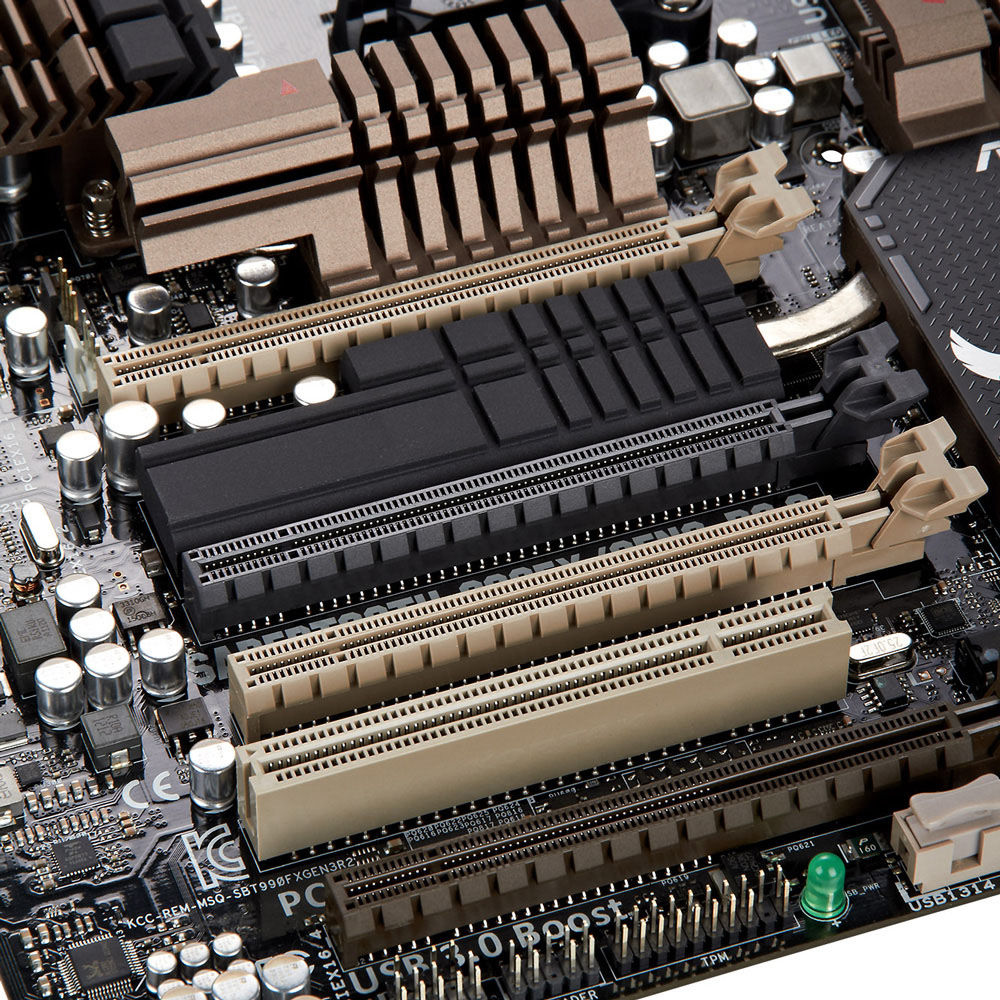

Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| PCI Express slots version | 2.0, 3.0 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
| BIOS memory size | 64 Mbit |
| ACPI version | 2.0a |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Number of processors supported | 1 |
| PCI Express slots quantity | 4 |
What people say
Reviews & ratings
ASUS SABERTOOTH 990FX/GEN3 R2.0
No reviews yet
Be the first to tell others how ASUS SABERTOOTH 990FX/GEN3 R2.0 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS SABERTOOTH 990FX/GEN3 R2.0
All motherboard comparisons- ASUS SABERTOOTH 990FX/GEN3 R2.0 vsASUS Z9NA-D6C Intel® C602 LGA 1356 (Socket B2) ATXCompare specs
- ASUS SABERTOOTH 990FX/GEN3 R2.0 vsASUS E2KM1I-DELUXE AMD A50M FCH BGA 413 (Socket FT1) mini ITXCompare specs
- ASUS SABERTOOTH 990FX/GEN3 R2.0 vsASUS P8H61-M LK R2.0Compare specs

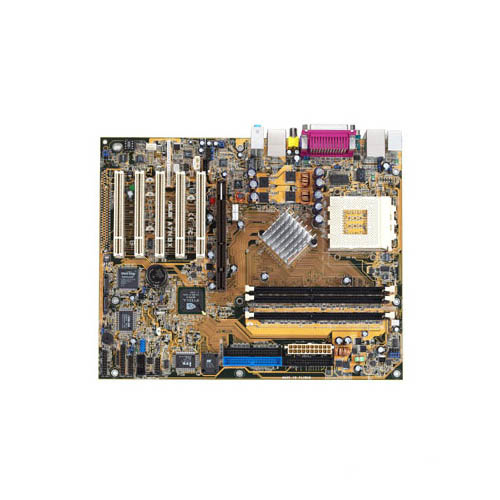

- ASUS SABERTOOTH 990FX/GEN3 R2.0 vsASUS A7N8X DeluxeCompare specs
