ROG Zenith II Extreme Alpha
Model ROG Zenith II Extreme AlphaPart no. 90MB14K0-M0EAY0EAN 4718017619684
70 specifications
- Processor manufacturerAMD
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
- Parallel processing technology support3-Way CrossFireX, 3-Way SLI
- USB 2.0 connectors2
- USB 2.0 ports quantity0
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- Parallel processing technology support
- 3-Way CrossFireX, 3-Way SLI
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 0
- Brand
- ASUS
- Category
- Motherboard
- Model
- ROG Zenith II Extreme Alpha
- Part numbers
- 90MB14K0-M0EAY0, 90MB14K0-M0AAY0
- EAN / UPC
- 4718017619684, 192876619681
- Also known as
- ASUS ROG Zenith II Extreme Alpha AMD TRX40 Socket sTRX4 Extended ATX
Specifications
70 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket sTRX4 |
| Compatible processor series | AMD Ryzen Threadripper 3000 Series |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Quad-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,3400,3733,3800,4133,4266,4333,4400,4600,4733 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 3-Way CrossFireX, 3-Way SLI |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 2 |
| Number of SATA III connectors | 8 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| 12V power connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |

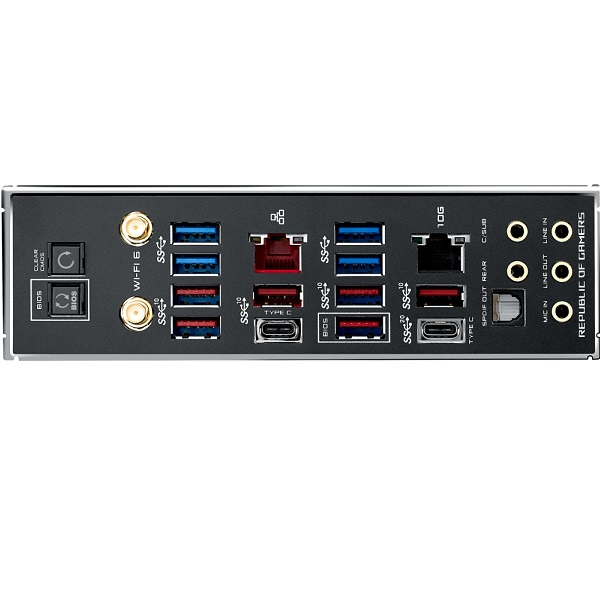

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I211-AT |
| Wake-on-LAN ready | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD TRX40 |
| Audio chip | SupremeFX S1220 |
| Audio output channels | 8 channels |
| Compatible operating systems | Windows 10 64-bit |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 4 |
| Number of M.2 (M) slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 7.1 |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 3.0 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 310 mm |
| Depth | 277 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
