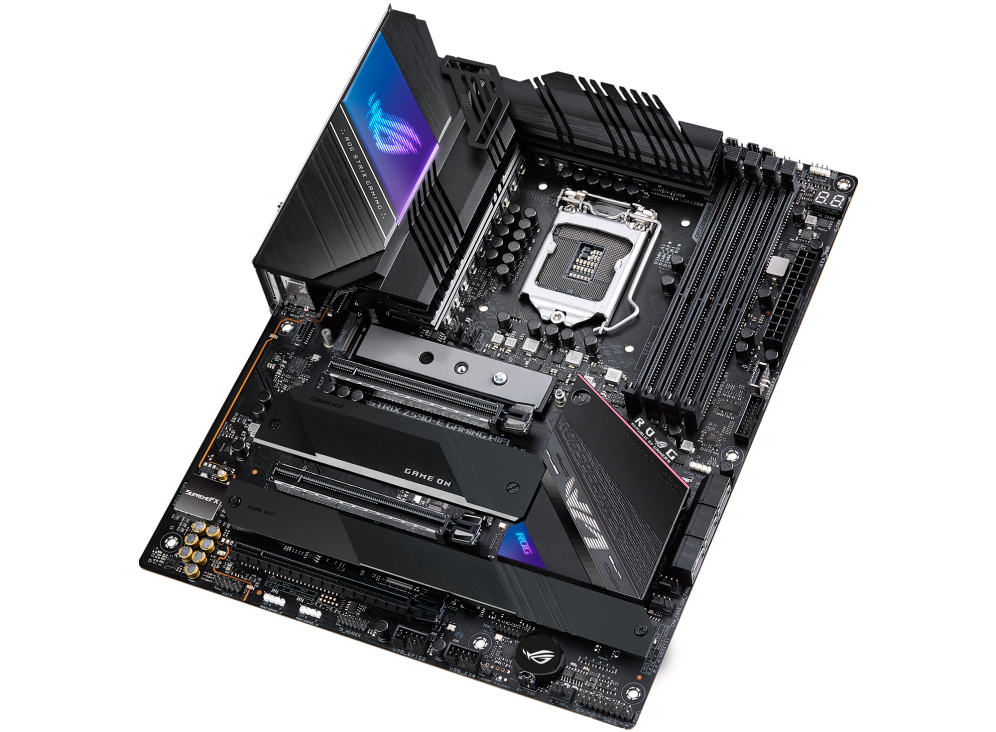

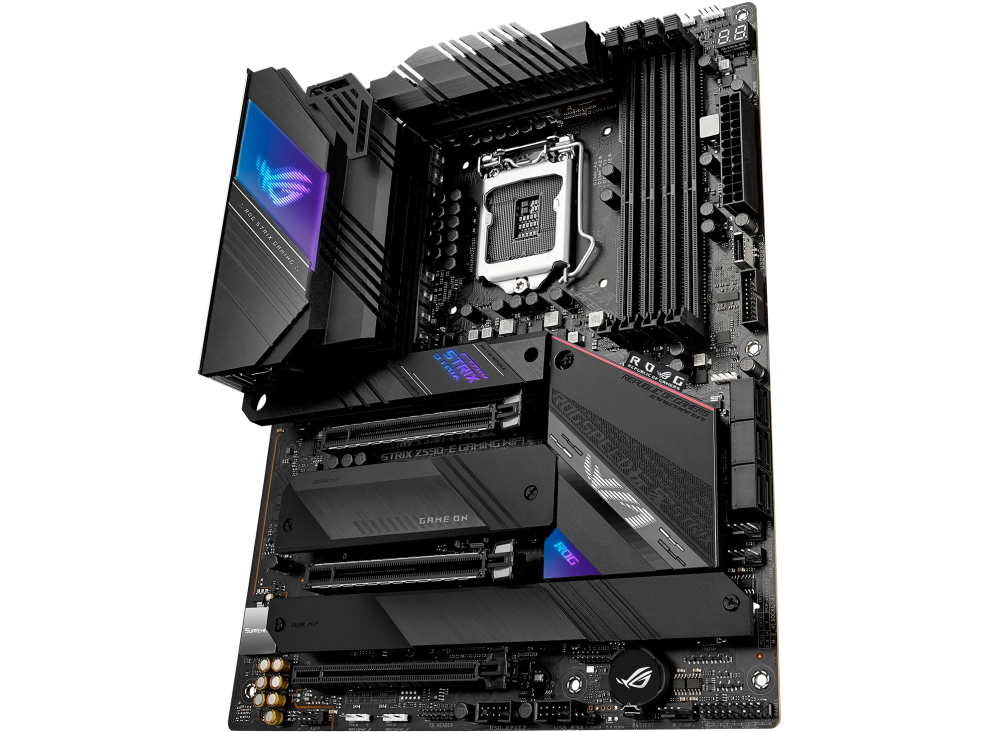

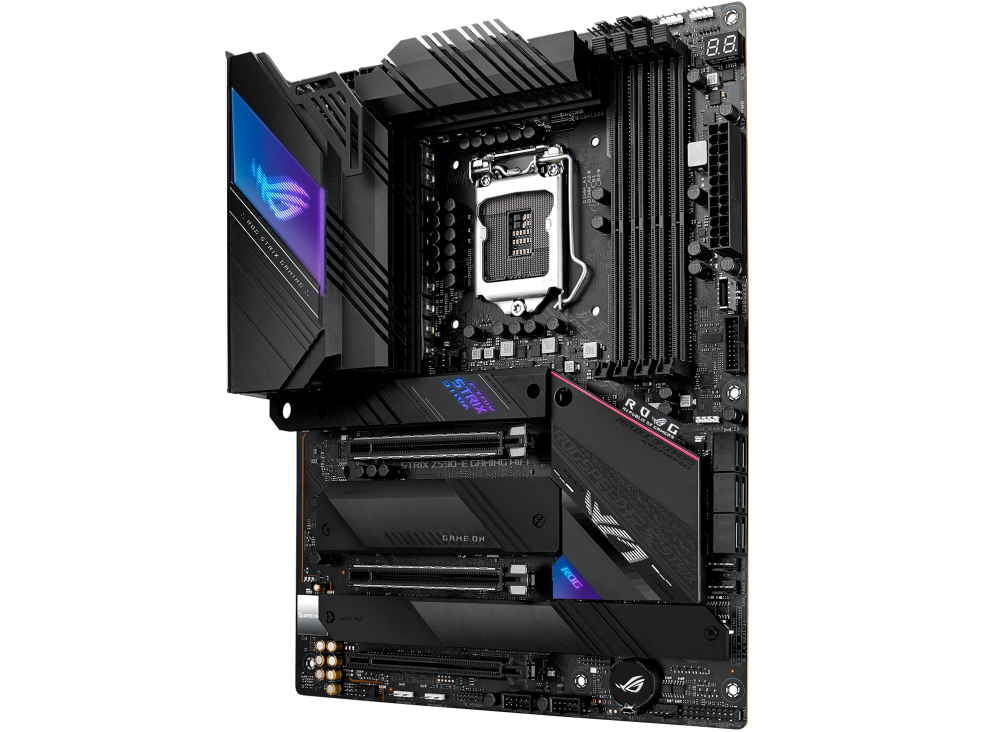

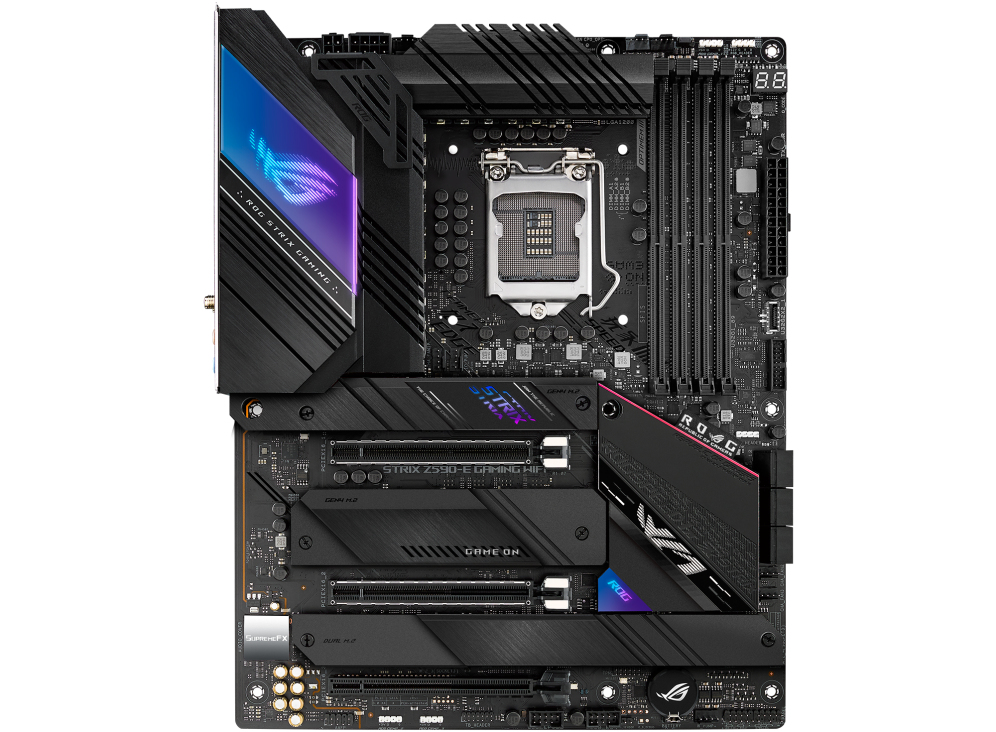

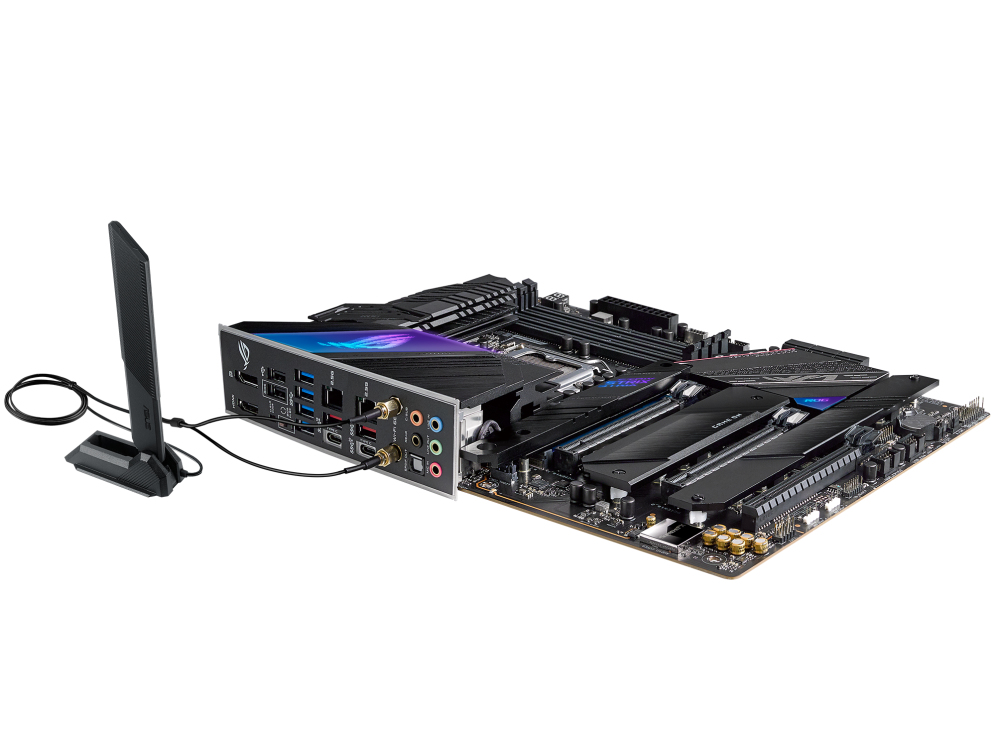

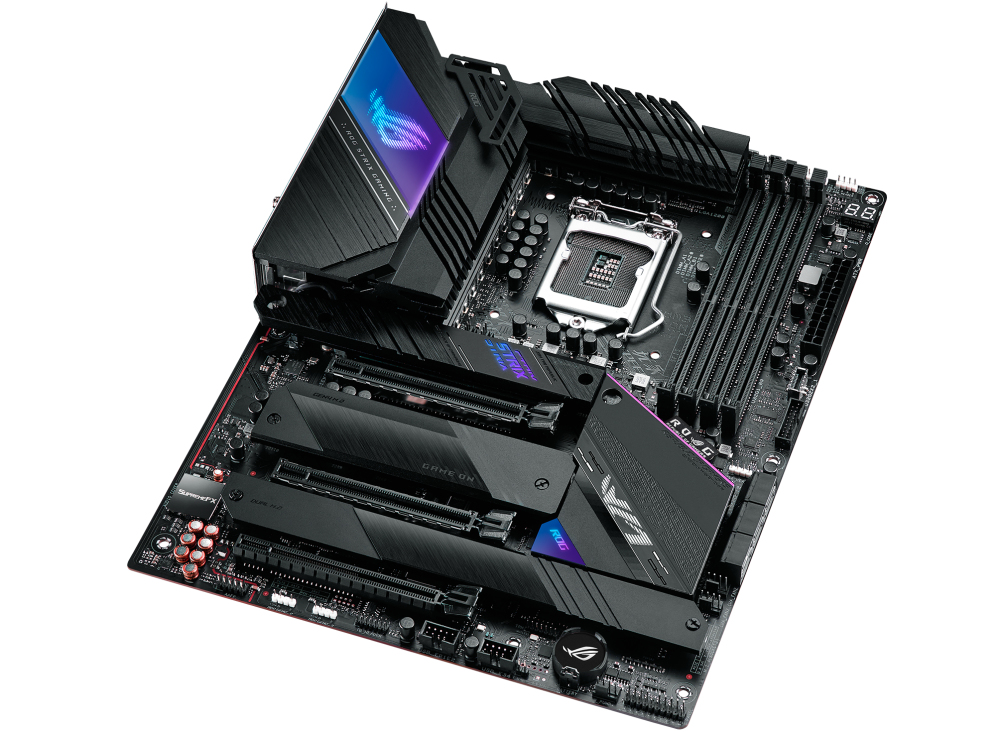

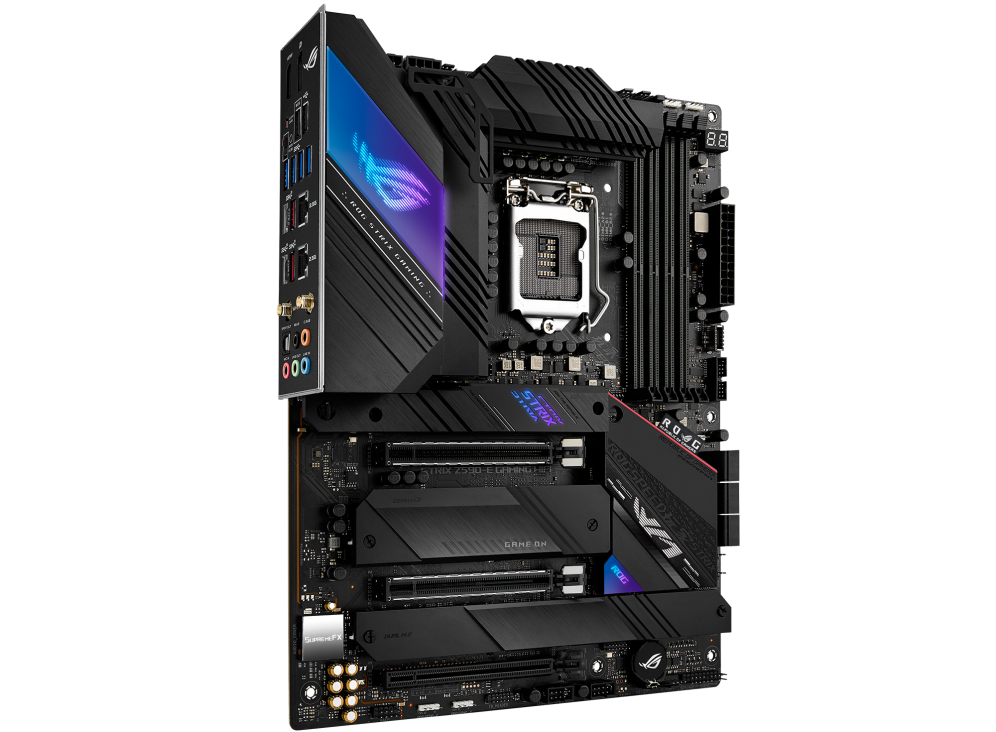

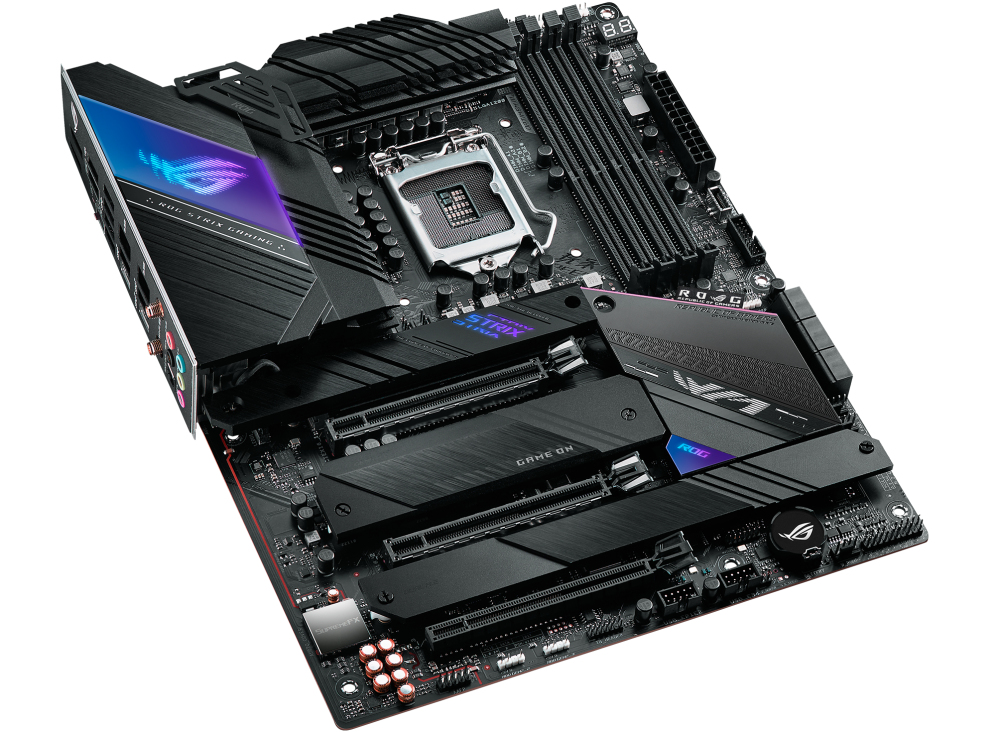

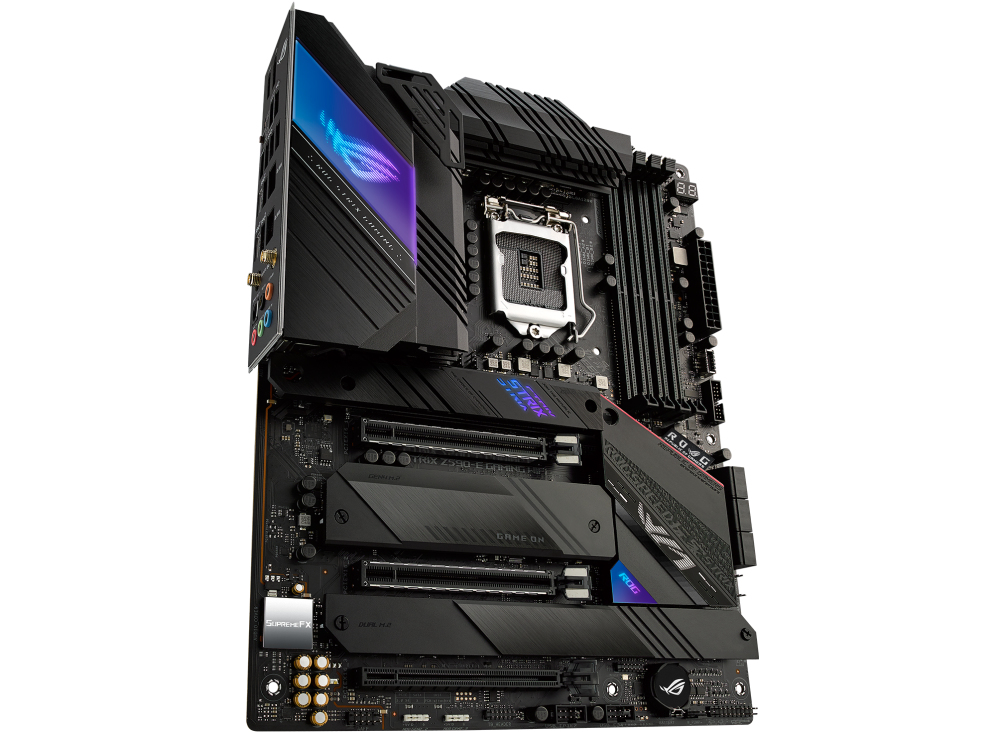

ROG STRIX Z590-E GAMING WIFI

Model ROG STRIX Z590-E GAMING WIFIPart no. 90MB1640-M0EAY0EAN 195553093934

82 specifications

Overview

Brand: ASUS
Category: Motherboard
Model: ROG STRIX Z590-E GAMING WIFI
Part numbers: 90MB1640-M0EAY0, 90MB1640-M0UAY0
EAN / UPC: 195553093934, 4711081093923
Also known as: ASUS ROG STRIX Z590-E GAMING WIFI Intel Z590 LGA 1200 (Socket H5) ATX

82 specifications in 13 groups

Specification	Value
Processor manufacturer	Intel
Processor socket	LGA 1200 (Socket H5)
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Supported processor sockets	LGA 1200 (Socket H5)

Specification	Value
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speeds	2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4266,4400,4500,4600,4700,4800,5000,5133,5333 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes

Specification	Value
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of storage drives supported	10

Specification	Value
Parallel processing technology support	2-Way SLI
Maximum resolution	5120 x 2880 pixels

Specification	Value
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	6
Number of SATA II connectors	0
Number of Parallel ATA connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
Power fan connector	Yes
CPU fan connector	Yes
Number of chassis fan connectors	3
EPS power connector (8-pin)	Yes
12V power connector	Yes
TPM connector	Yes
Thunderbolt headers	1
RGB LED pin header	Yes

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	2
eSATA ports quantity	0
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
HDMI version	2.0
DVI-D ports quantity	0
DisplayPorts quantity	1
DisplayPort version	1.4
Headphone outputs	5
Microphone in	Yes
S/PDIF out port	Yes
WiFi-AP antenna jack	1
USB connector type	USB Type-A, USB Type-C

Specification	Value
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Intel I225-V
Wake-on-LAN ready	Yes
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX210
Bluetooth	Yes
Bluetooth version	5.2

Specification	Value
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel Z590
Audio chip	Realtek ALC4080
Audio output channels	7.1 channels
Windows operating systems supported	Windows 10 x64
