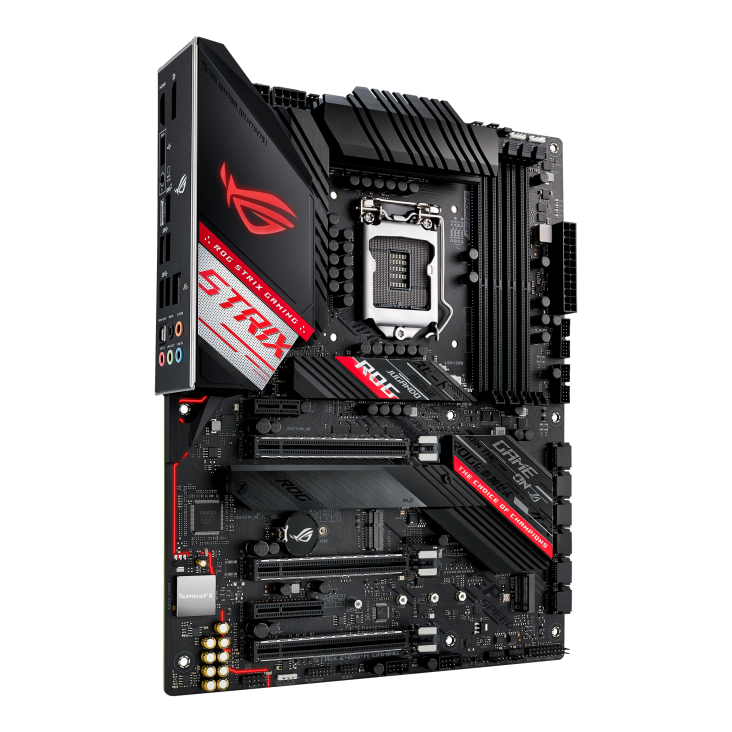

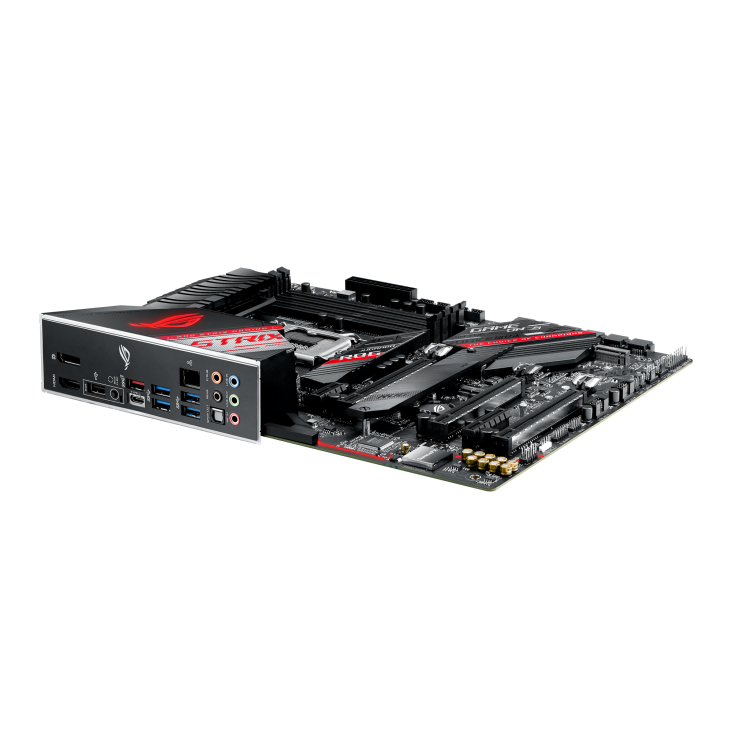

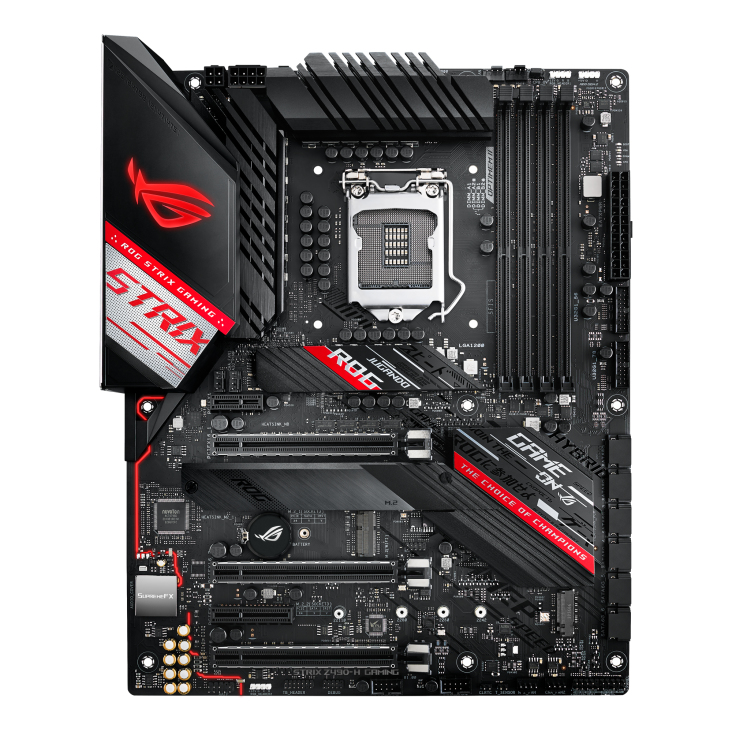

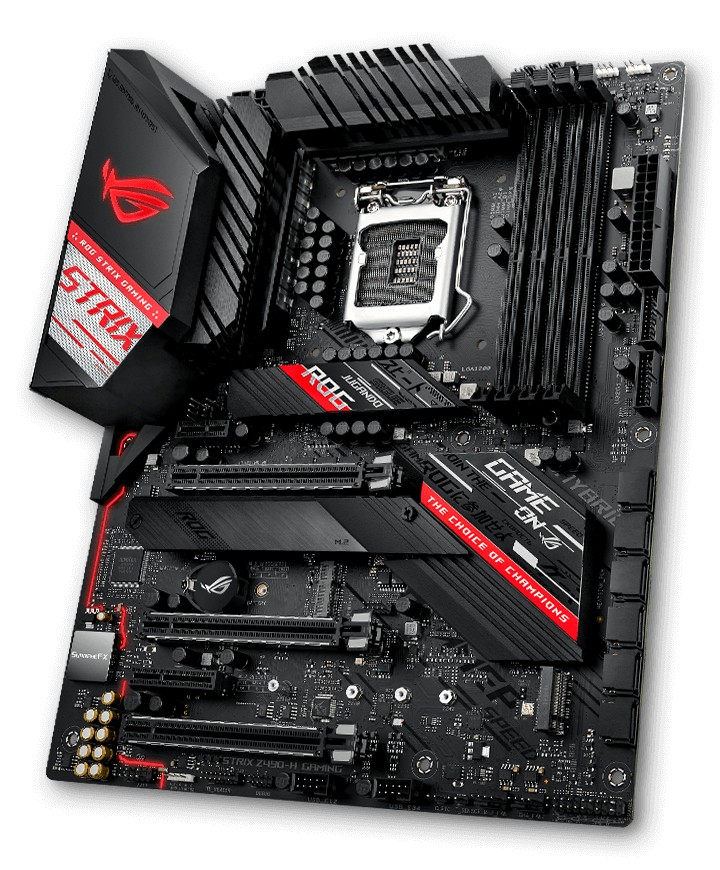

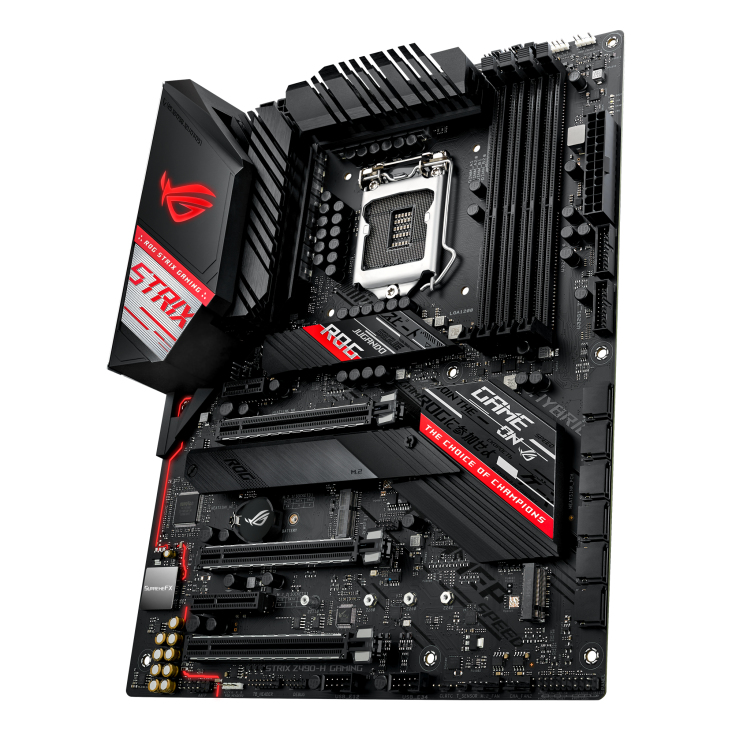

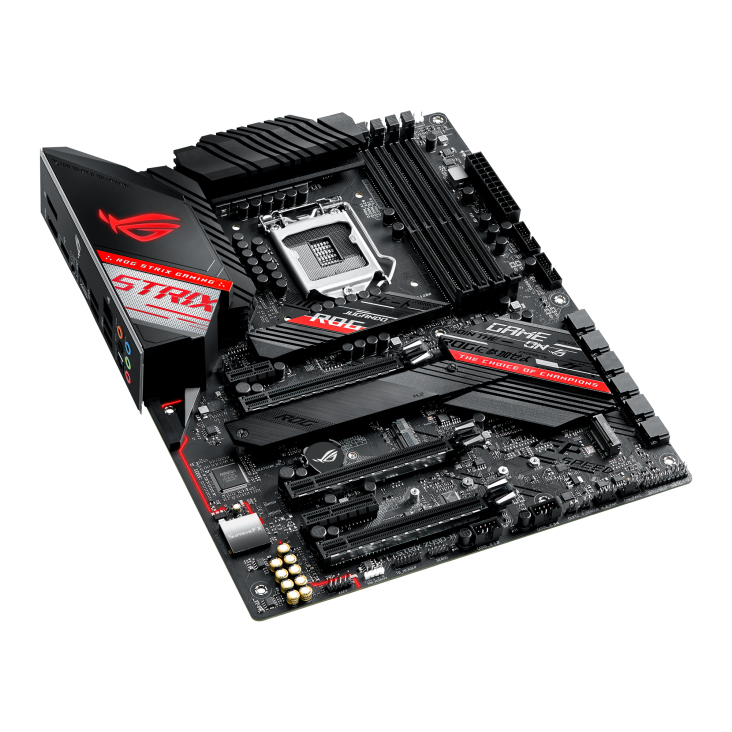

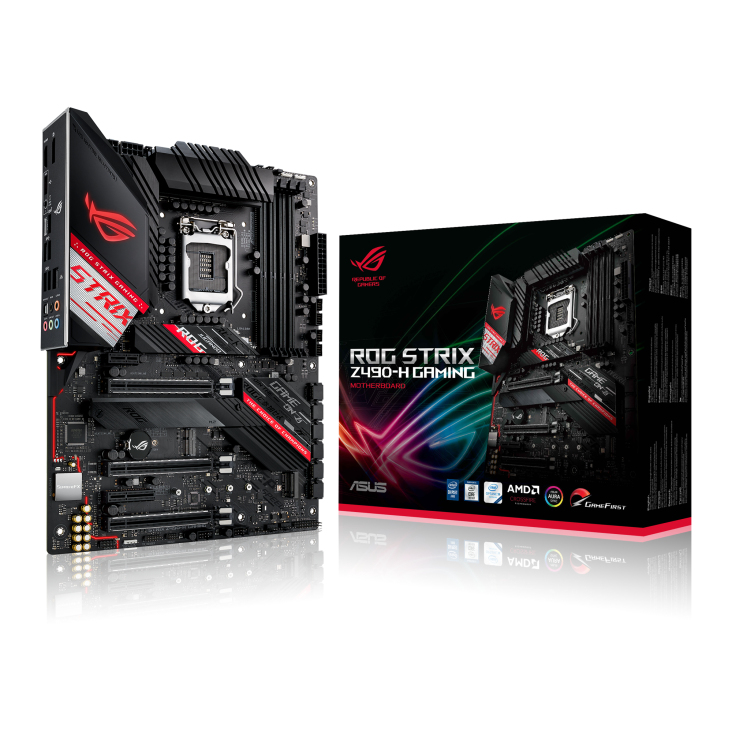

ROG Strix Z490-H
Model ROG Strix Z490-HPart no. 90MB12S0-M0AAY0EAN 192876674291
56 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesM.2, SATA
- Parallel processing technology support2-Way CrossFireX
- USB 2.0 connectors2
- USB 2.0 ports quantity1
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- M.2, SATA
- Parallel processing technology support
- 2-Way CrossFireX
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 1
- Brand
- ASUS
- Category
- Motherboard
- Model
- ROG Strix Z490-H
- Part number
- 90MB12S0-M0AAY0
- EAN / UPC
- 192876674291
- Also known as
- ASUS ROG Strix Z490-H Intel Z490 LGA 1200 (Socket H5) ATX
Specifications
56 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel Pentium G |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | M.2, SATA |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX |
| On-board graphics card | Yes |
| Graphics card family | AMD |
| Maximum resolution | 4096 x 2304 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| Audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| 12V power connector | Yes |
| Thunderbolt headers | 1 |
| RGB LED pin header | Yes |

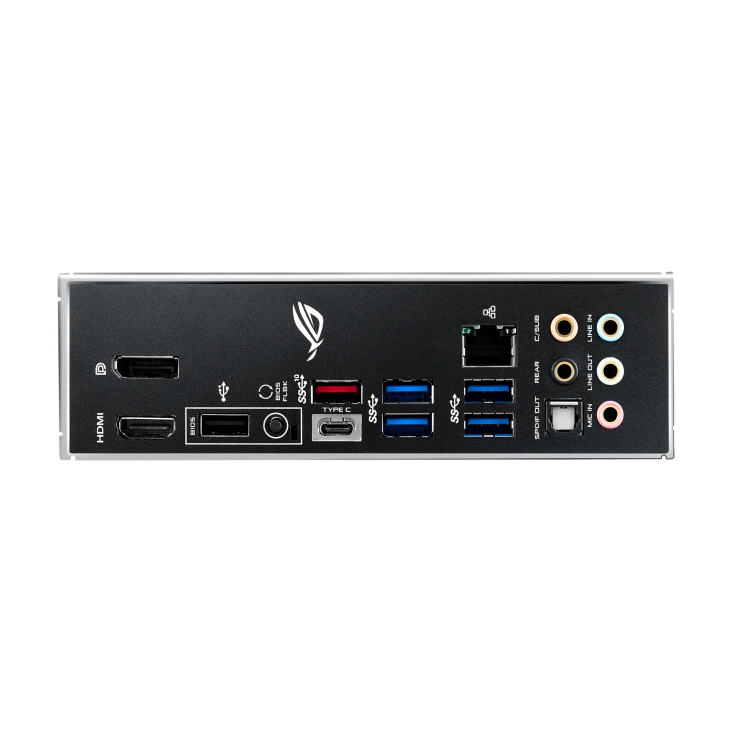

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| S/PDIF out port | Yes |
| Digital audio optical out | 5 |
| USB connector type | USB Type-A, USB Type-C |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Intel I225-V |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z490 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 1536 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |

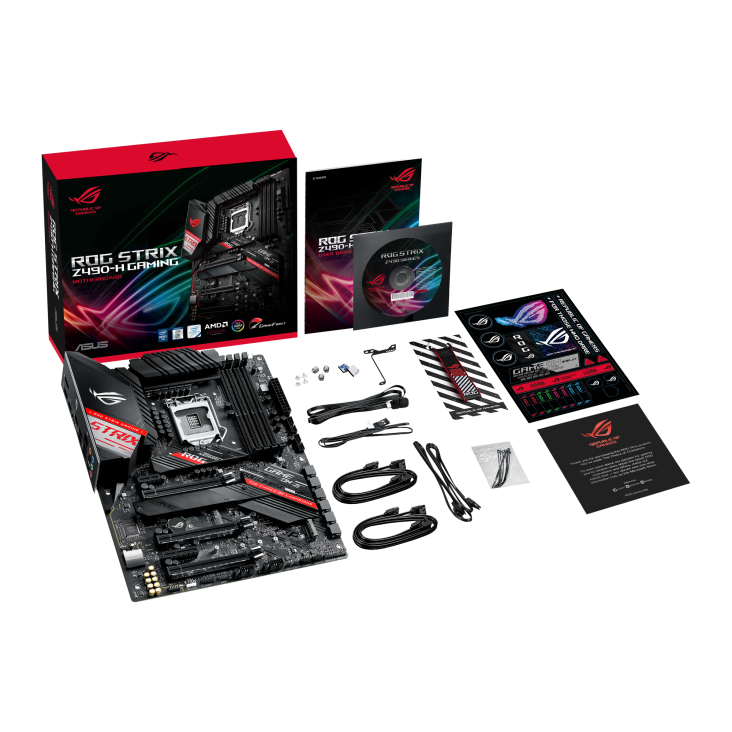

Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Bundled software | ROG - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound AI. TPU EPU Digi + VRM Fan Xpert 4 Turbo app -EZ update WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS E |
