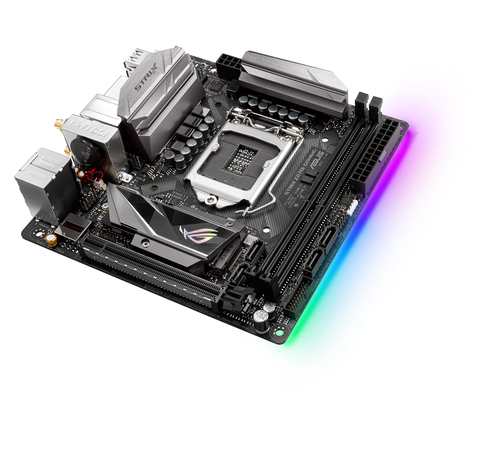

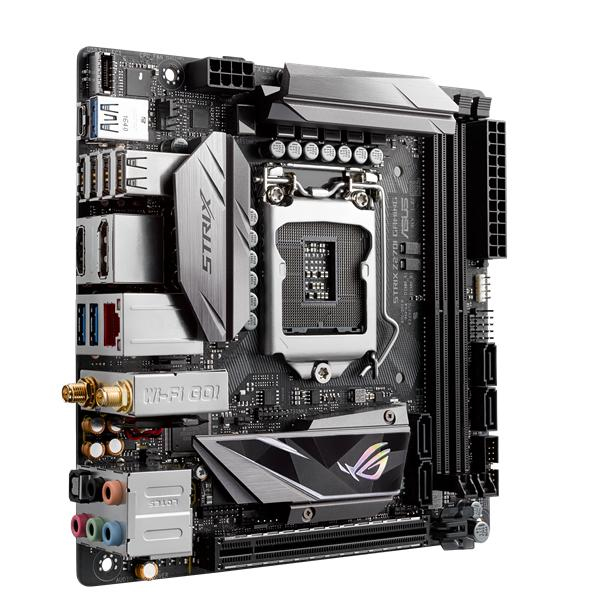

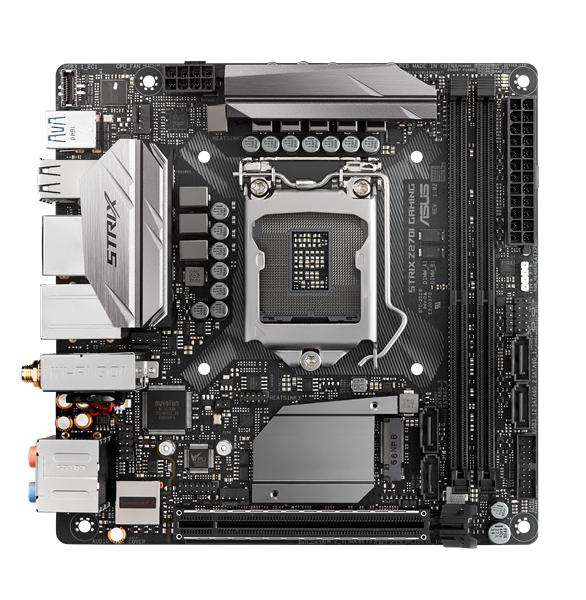

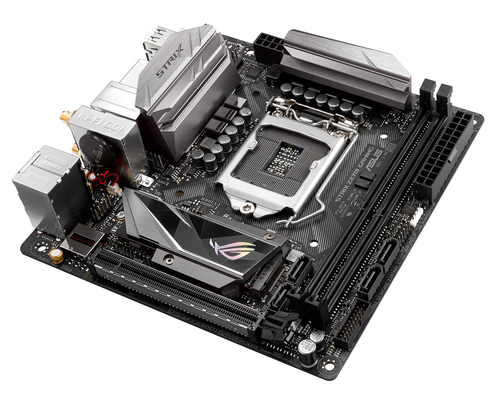

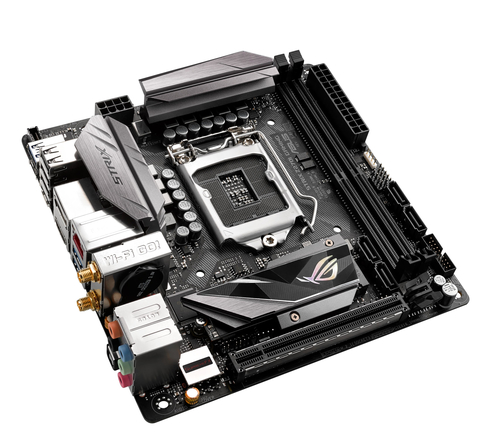

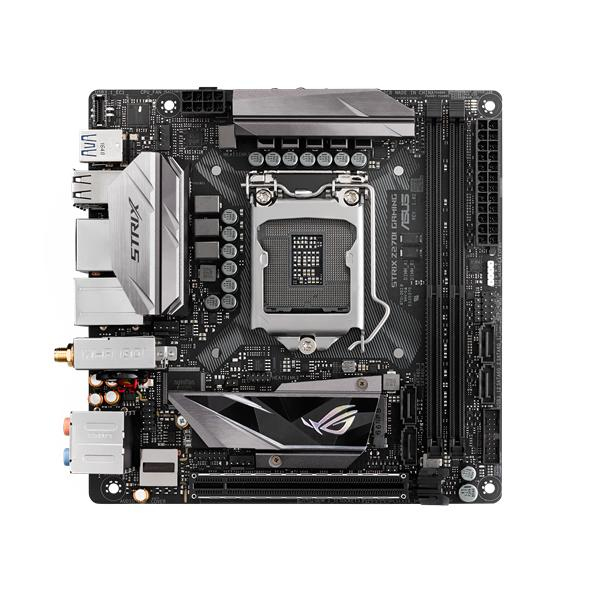

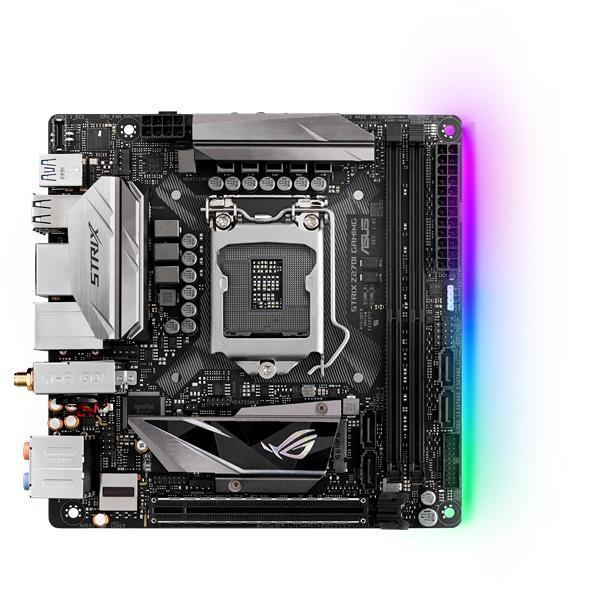

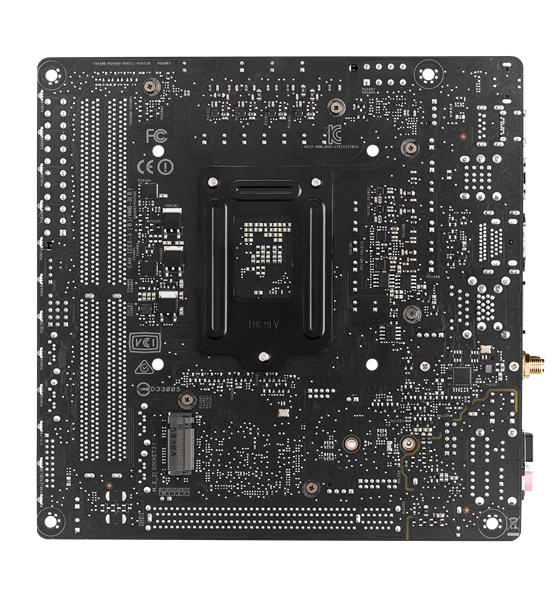

ASUS ROG Strix Z270I Gaming

ASUS ROG Strix Z270I Gaming

Model ROG Strix Z270I GamingPart no. 90MB0SD0-M0EAY0EAN 889349651452

52 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Maximum resolution4096 x 2160 pixels
  • USB 2.0 connectors0
  • USB 2.0 ports quantity4
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Maximum resolution
4096 x 2160 pixels
USB 2.0 connectors
0
USB 2.0 ports quantity
4
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
ROG Strix Z270I Gaming
Part number
90MB0SD0-M0EAY0
EAN / UPC
889349651452, 4058154169476, 4712900651454
Also known as
ASUS ROG Strix Z270I Gaming Intel® Z270 LGA 1151 (Socket H4) mini ITX

Specifications

52 specifications in 10 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds2133,2400,2666,2800,3000,3200,3300,3333,3466,3600,3733,3866,4000,4133,4266 MHz
Maximum internal memory32 GB

Graphics

Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors0
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
Number of SATA II connectors0
Front panel audio connectorYes
CPU fan connectorYes
Number of chassis fan connectors1
TPM connectorYes

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
LAN controllerIntel® I219-V
Wi-FiYes
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Features

Component forPC
Motherboard form factormini ITX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z270
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots2

BIOS

BIOS typeUEFI AMI
BIOS memory size16 Mbit
ACPI version6.0
Clear CMOS jumperYes

Weight & dimensions

Width170 mm
Depth170 mm
