ASUS Rog Strix Z270F Gaming
Model Rog Strix Z270F GamingPart no. 90MB0SS0-M0AAY0
60 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- RAID levels0, 1, 5, 10
- USB 2.0 connectors3
- USB 2.0 ports quantity0
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- RAID levels
- 0, 1, 5, 10
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 0
- Ethernet LAN
- Yes
- Brand
- ASUS
- Category
- Motherboard
- Model
- Rog Strix Z270F Gaming
- Part number
- 90MB0SS0-M0AAY0
- Also known as
- ASUS Rog Strix Z270F Gaming Intel® Z270 LGA 1151 (Socket H4) ATX
Specifications
60 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3300,3333,3400,3466,3600,3733,3866 MHz |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 0 |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |

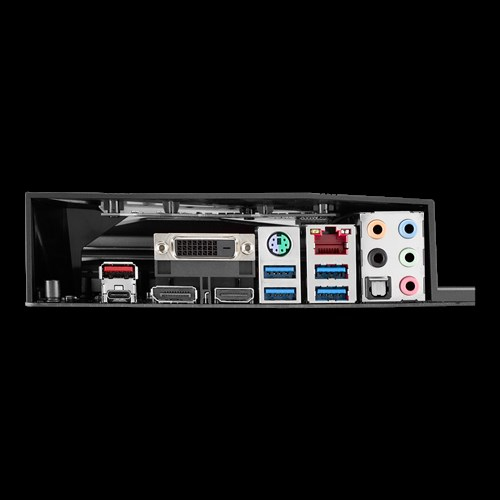

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® Z270 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 4 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 6.0 |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 305 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Combo headphone/mic port | Yes |
What people say
Reviews & ratings
ASUS Rog Strix Z270F Gaming
No reviews yet
Be the first to tell others how ASUS Rog Strix Z270F Gaming works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS Rog Strix Z270F Gaming
All motherboard comparisons- ASUS Rog Strix Z270F Gaming vsASUS ROG STRIX B350-I GAMINGCompare specs
- ASUS Rog Strix Z270F Gaming vsASUS WS C621E SAGECompare specs
- ASUS Rog Strix Z270F Gaming vsASUS EX-A320M-GAMING AMD A320 Socket AM4 micro ATXCompare specs

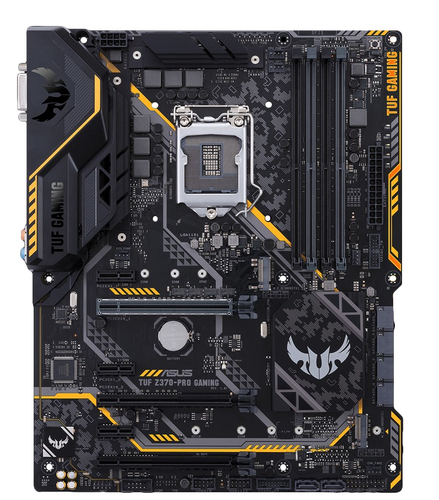

- ASUS Rog Strix Z270F Gaming vsASUS TUF Z370-PRO GAMINGCompare specs
