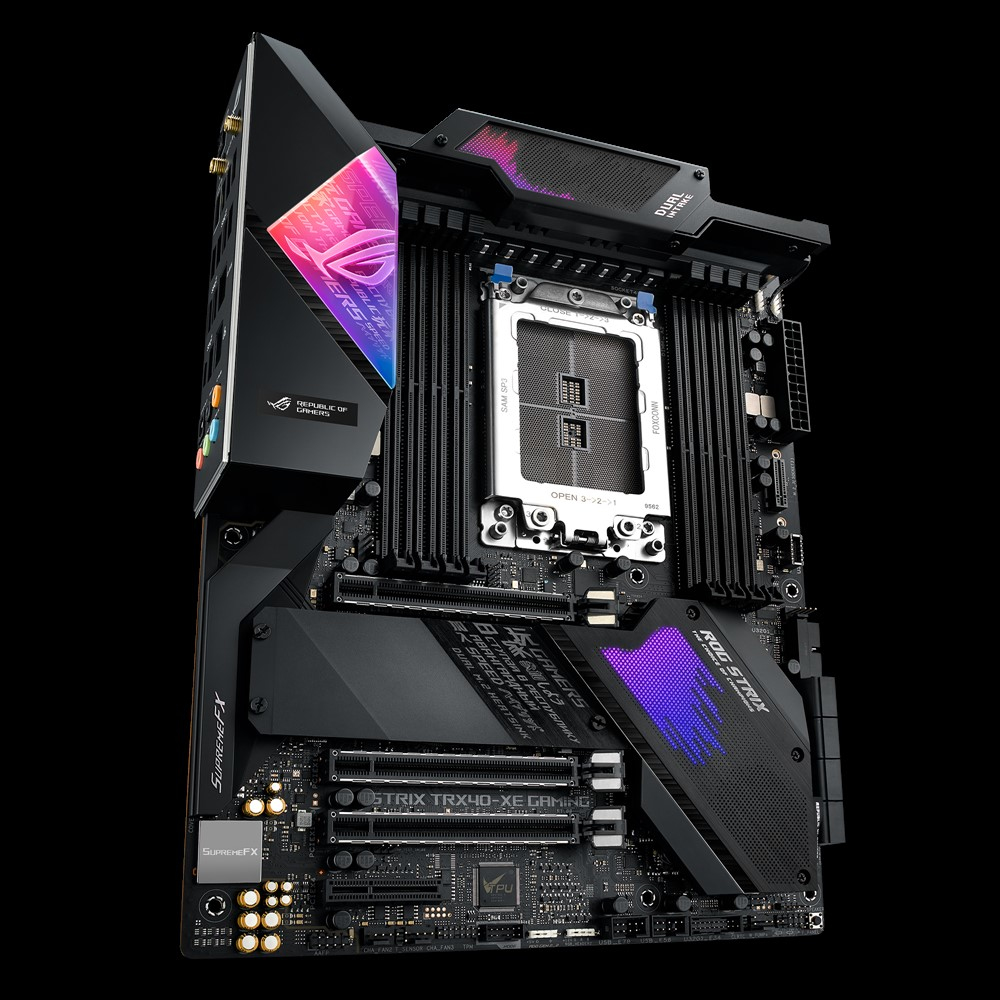

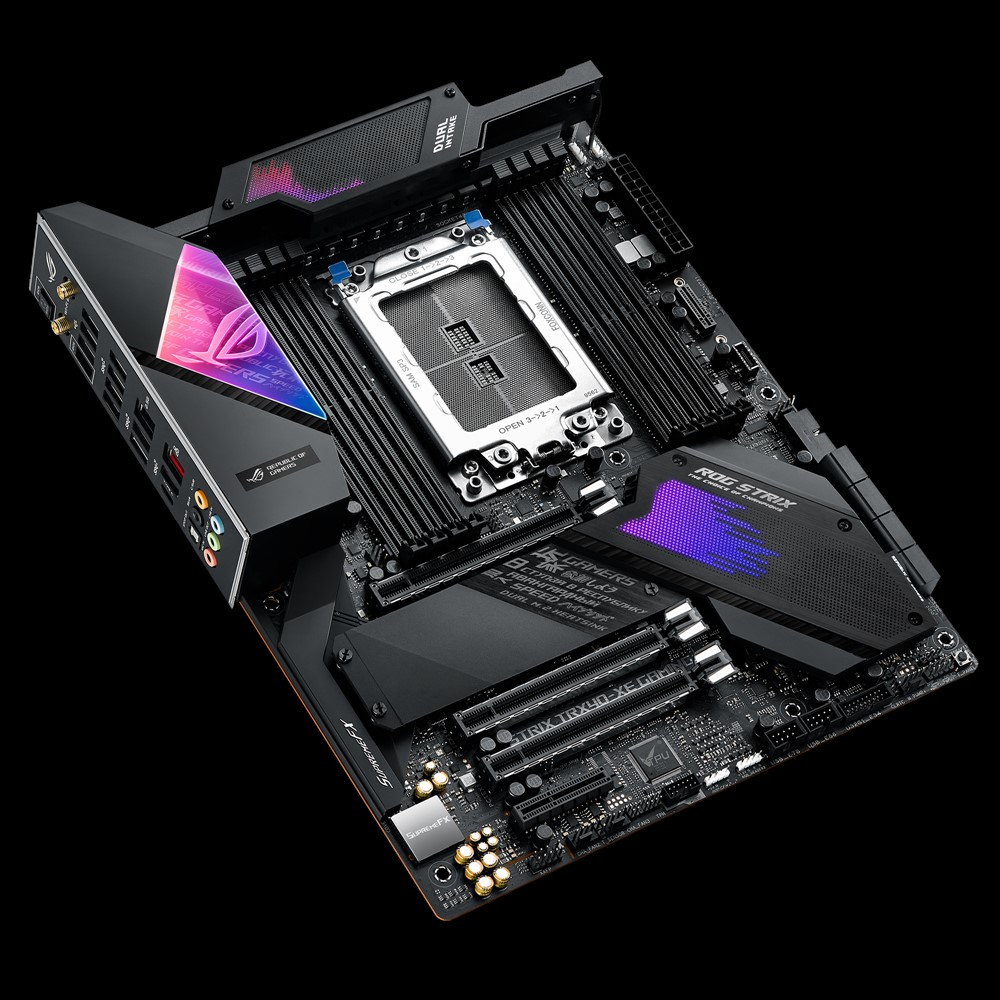

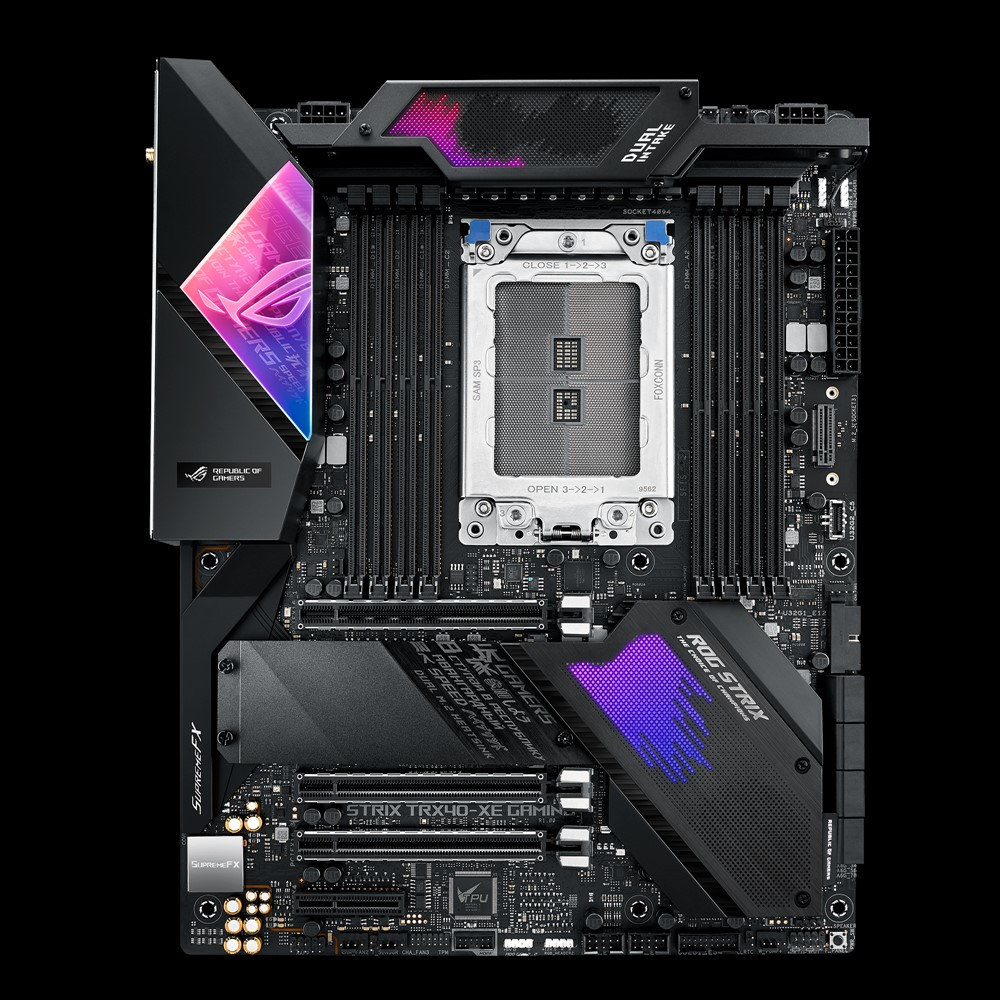

ROG STRIX TRX40-XE GAMING
Model ROG STRIX TRX40-XE GAMINGPart no. 90MB14M0-M0AAY0EAN 4718017665872
69 specifications
- Processor manufacturerAMD
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- Parallel processing technology support2-Way CrossFireX, 2-Way SLI
- USB 2.0 connectors2
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- Parallel processing technology support
- 2-Way CrossFireX, 2-Way SLI
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Brand
- ASUS
- Category
- Motherboard
- Model
- ROG STRIX TRX40-XE GAMING
- Part numbers
- 90MB14M0-M0AAY0, 90MB14M0-M0EAY0
- EAN / UPC
- 4718017665872, 192876621561, 4718017621564, 192876665879
- Also known as
- ASUS ROG STRIX TRX40-XE GAMING AMD TRX40 Socket sTRX4 ATX
Specifications
69 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket sTRX4 |
| Compatible processor series | AMD Ryzen Threadripper 3000 Series |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Quad-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,3200,3400,3466,3733,3800,4133,4266,4333,4400,4600,4666 MHz |
| Maximum internal memory | 256 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX, 2-Way SLI |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 8 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| 12V power connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |

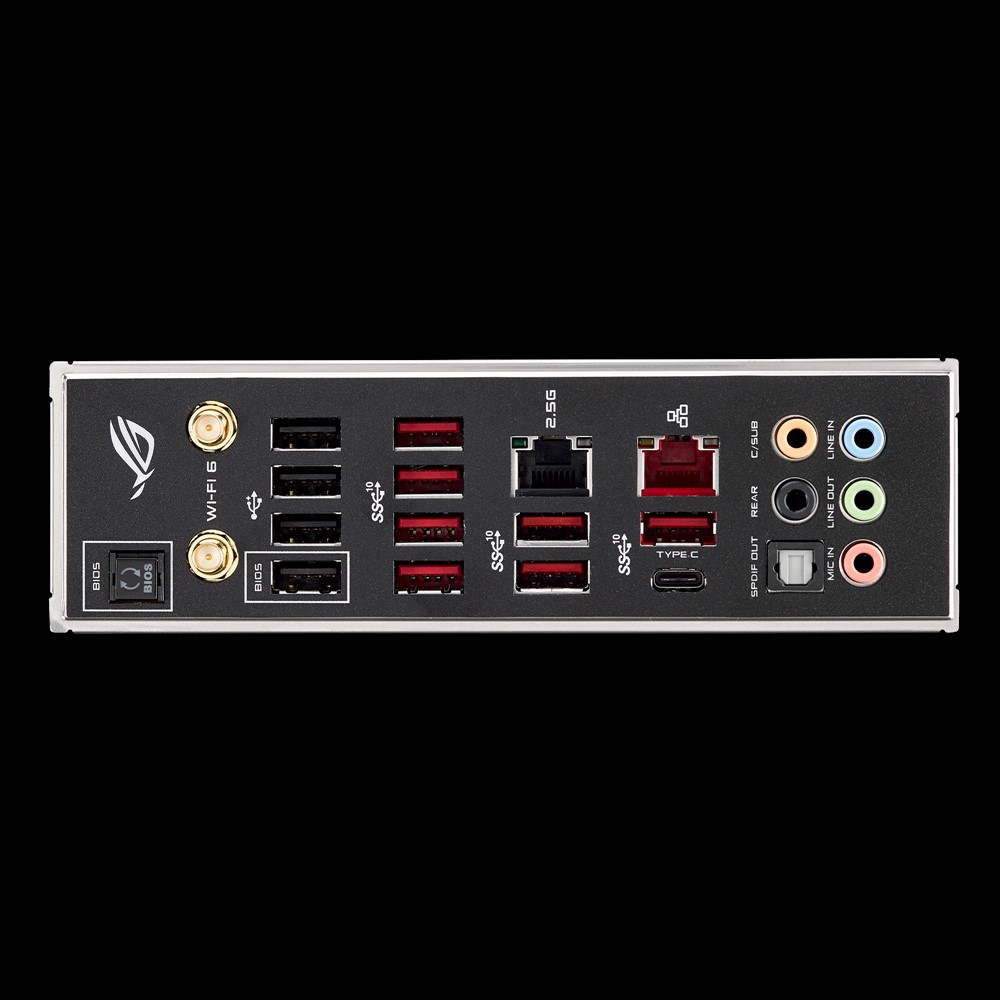

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 7 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, Gigabit Ethernet |
| LAN controller | Realtek RTL8125-CG |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD TRX40 |
| Audio chip | SupremeFX S1220 |
| Audio output channels | 8 channels |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| Number of M.2 (M) slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 6.2 |
| Clear CMOS jumper | Yes |
| System Management BIOS (SMBIOS) version | 3.2 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |

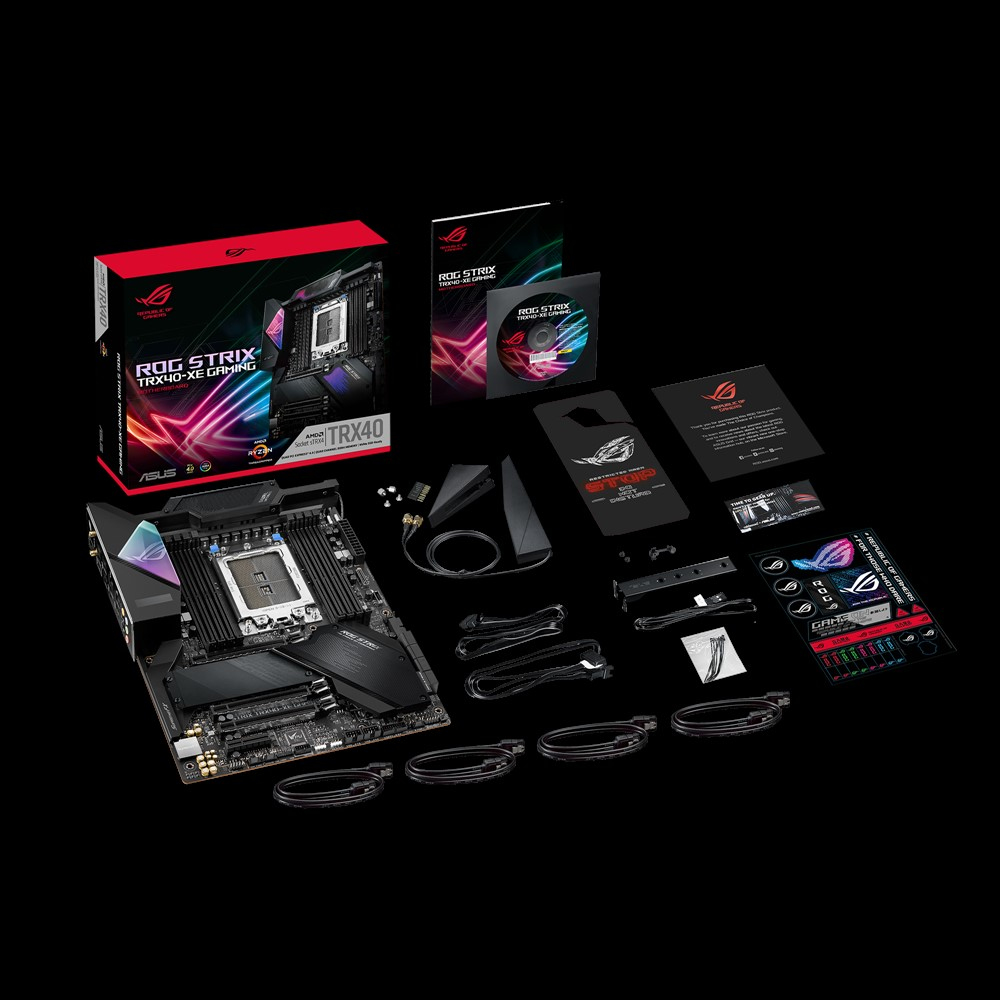

Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
