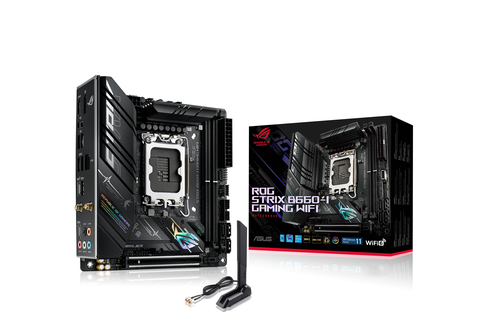

ASUS ROG STRIX B660-I GAMING WIFI

ASUS ROG STRIX B660-I GAMING WIFI

Model ROG STRIX B660-I GAMING WIFIPart no. 90MB19C0-M0EAY0EAN 4711081514978

70 specifications
  • SpeedWi-Fi 6 (802.11ax)
  • Weight1 kg
  • Processor manufacturerIntel
  • Supported memory typesDDR5-SDRAM
  • Supported storage drive typesHDD & SSD
  • Number of displays supported2
See all specifications

Overview

Speed
Wi-Fi 6 (802.11ax)
Weight
1 kg
Processor manufacturer
Intel
Supported memory types
DDR5-SDRAM
Supported storage drive types
HDD & SSD
Number of displays supported
2
Brand
ASUS
Category
Motherboard
Model
ROG STRIX B660-I GAMING WIFI
Part numbers
90MB19C0-M0EAY0, 90MB19C0-M0UAY0, 90MB19C0-M1EAY0
EAN / UPC
4711081514978, 195553514965, 4711081514961
Also known as
ASUS ROG STRIX B660-I GAMING WIFI Intel B660 LGA 1700 mini ITX

Specifications

70 specifications in 14 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold
Maximum number of SMP processors1

Memory

Supported memory typesDDR5-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds4800,5000,5200,5400,5600,5800,6000,6200 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA
RAID levels0, 1, 5, 10

Graphics

Number of displays supported2

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
12V power connectorYes
RGB LED pin headerYes

Rear panel I/O ports

USB 2.0 ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
USB 3.2 Gen 2x2 Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version2.1
DVI-D ports quantity0
DisplayPorts quantity1
DisplayPort version1.4
Headphone outputs1
Microphone inYes
S/PDIF out portYes
USB connector typeUSB Type-A, USB Type-C

Network

Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerIntel I225-V
Wi-FiYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
BluetoothYes
Bluetooth version5.2

Features

Component forPC
Motherboard form factormini ITX
Motherboard chipset familyIntel
Motherboard chipsetIntel B660
Audio chipSupremeFX S1220A
Audio output channels7.1 channels
Windows operating systems supportedWindows 10 x64, Windows 11 x64

Expansion slots

PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots2

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width170 mm
Depth170 mm
Height94 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Weight1 kg
