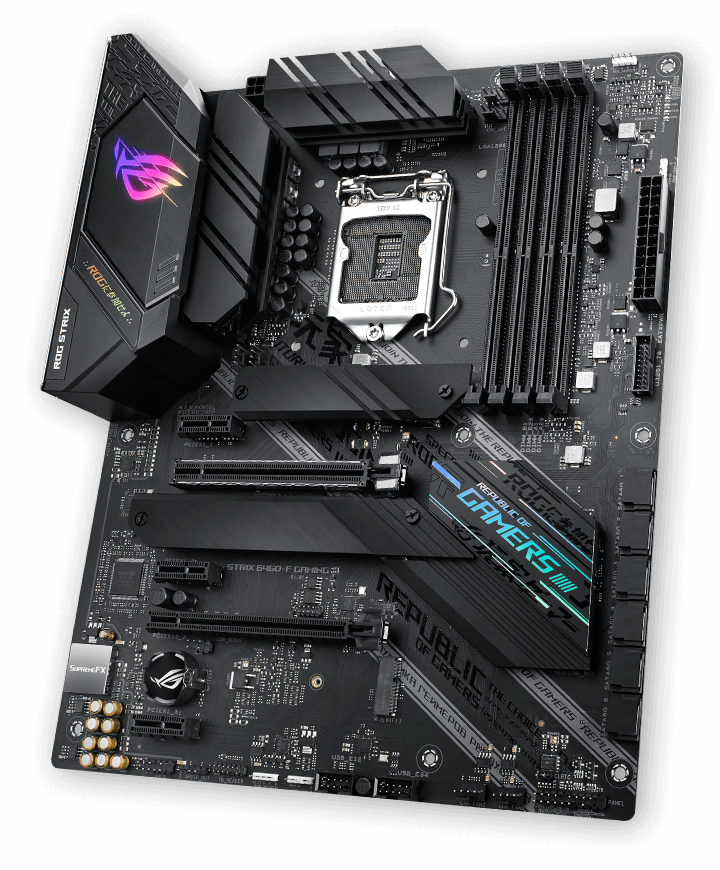

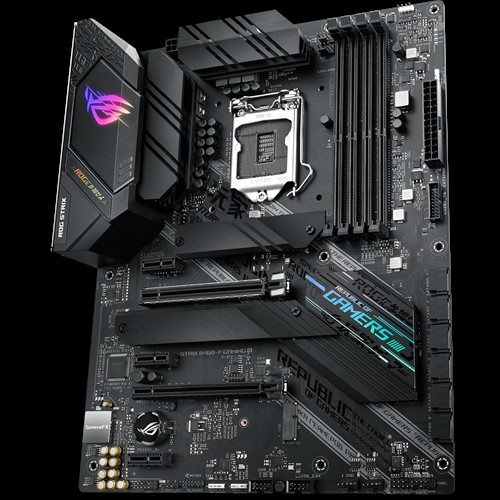

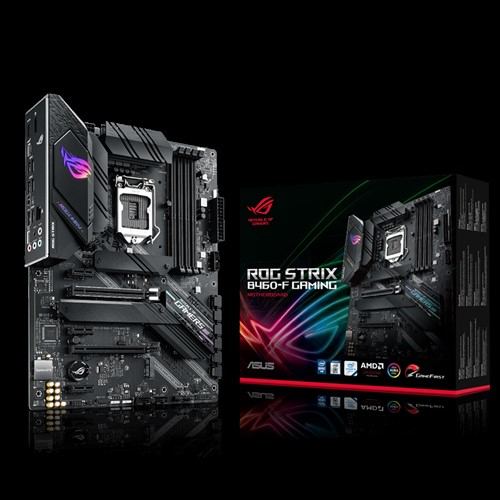

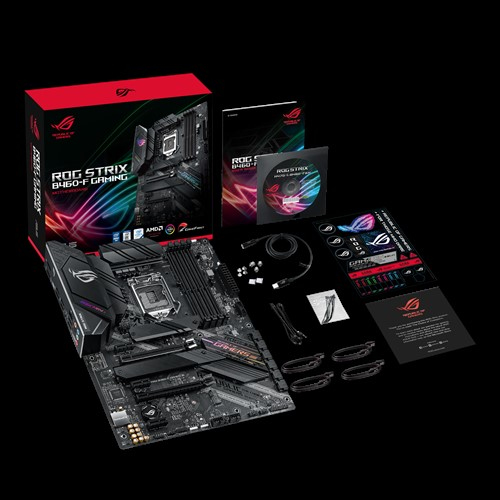

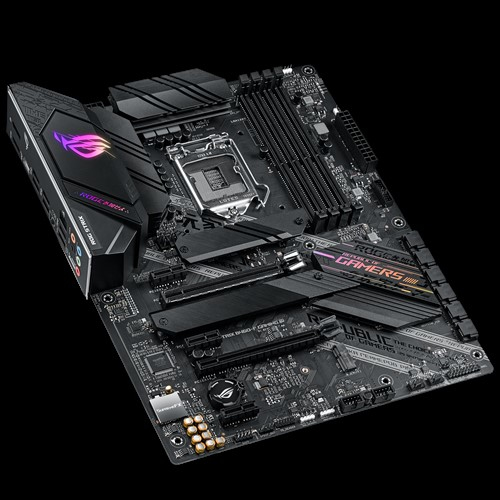

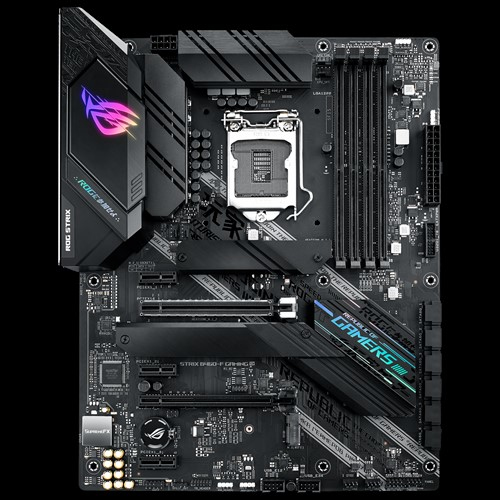

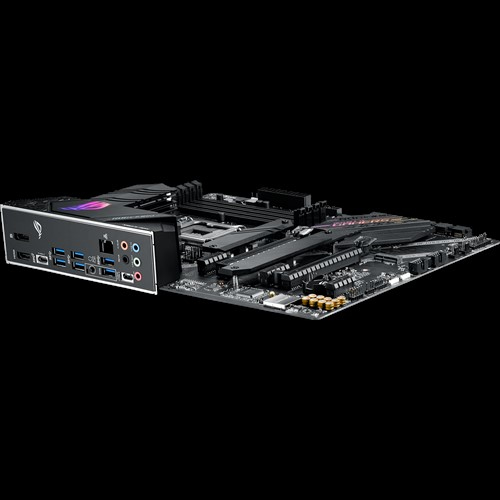

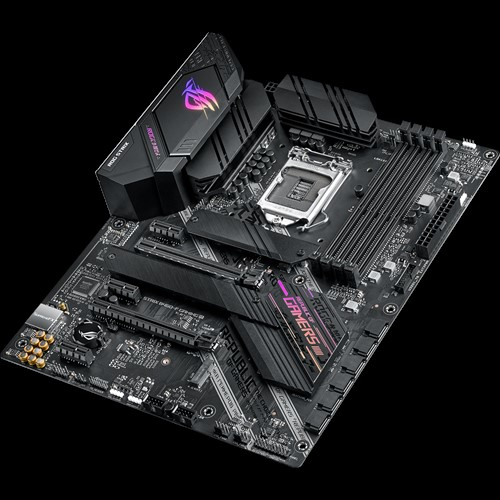

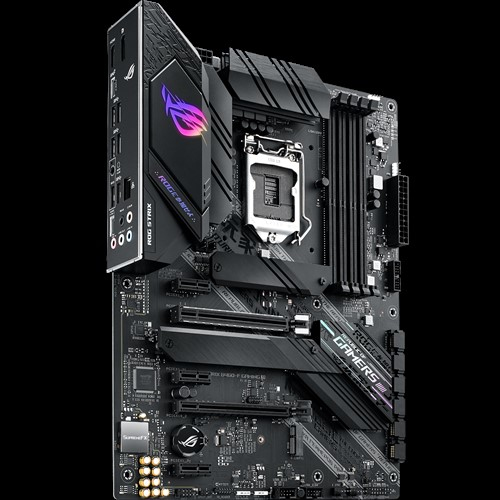

ASUS ROG Strix B460-F Gaming

Model ROG Strix B460-F GamingPart no. 90MB13R0-M0EAY0EAN 4718017715072

65 specifications

Overview

Brand: ASUS
Category: Motherboard
Model: ROG Strix B460-F Gaming
Part number: 90MB13R0-M0EAY0
EAN / UPC: 4718017715072
Also known as: ASUS ROG Strix B460-F Gaming Intel B460 LGA 1200 (Socket H5) ATX

65 specifications in 12 groups

Specification	Value
Processor manufacturer	Intel
Processor socket	LGA 1200 (Socket H5)
Compatible processor series	Intel® Celeron® G, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Maximum number of SMP processors	1
Supported processor sockets	LGA 1200 (Socket H5)

Specification	Value
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speeds	2133,2400,2666,2800,2933 MHz
Maximum internal memory	128 GB

Specification	Value
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	PCI Express 3.0, SATA III
RAID levels	0, 1, 5, 10

Specification	Value
Parallel processing technology support	2-Way CrossFireX

Specification	Value
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	6
Number of SATA II connectors	0
Number of Parallel ATA connectors	0
S/PDIF out connector	Yes
Front panel connector	Yes
Number of EATX power connectors	1
CPU fan connector	Yes
Number of chassis fan connectors	3
EPS power connector (8-pin)	Yes
12V power connector	Yes

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
eSATA ports quantity	0
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
HDMI version	1.4b
DVI-D ports quantity	0
DisplayPorts quantity	1
DisplayPort version	1.4
Headphone outputs	1
Microphone in	Yes
S/PDIF out port	Yes

Specification	Value
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel B460
Audio output channels	7.1 channels
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64

Specification	Value
Harmonized System (HS) code	84733020

Specification	Value
Width	305 mm
Depth	244 mm
