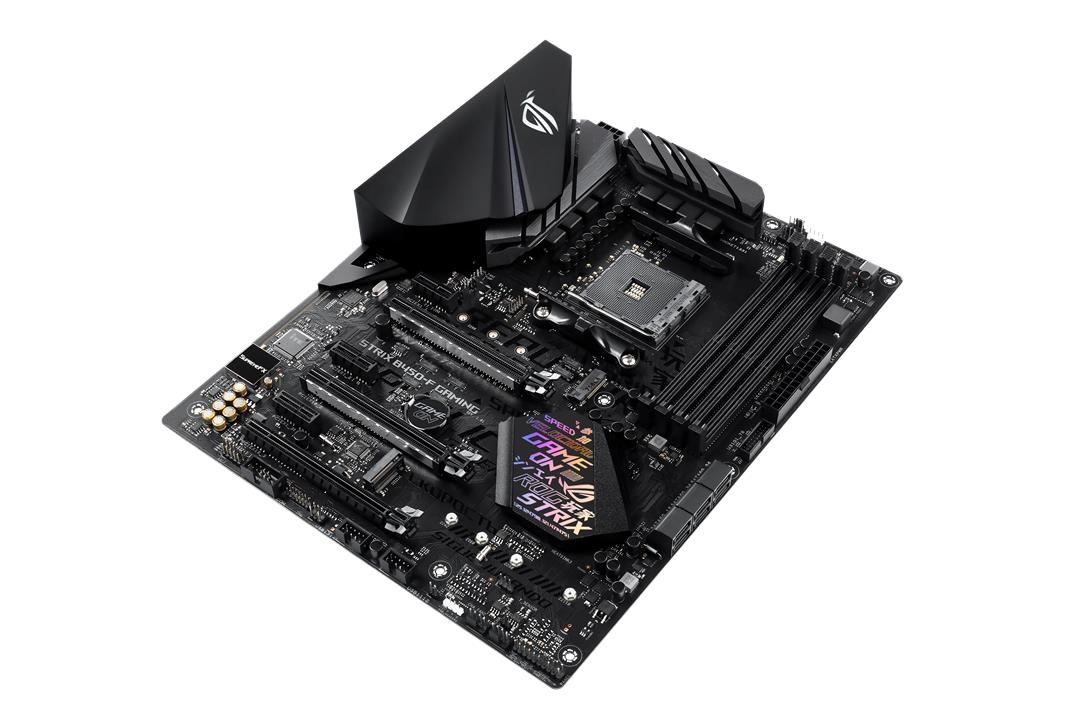

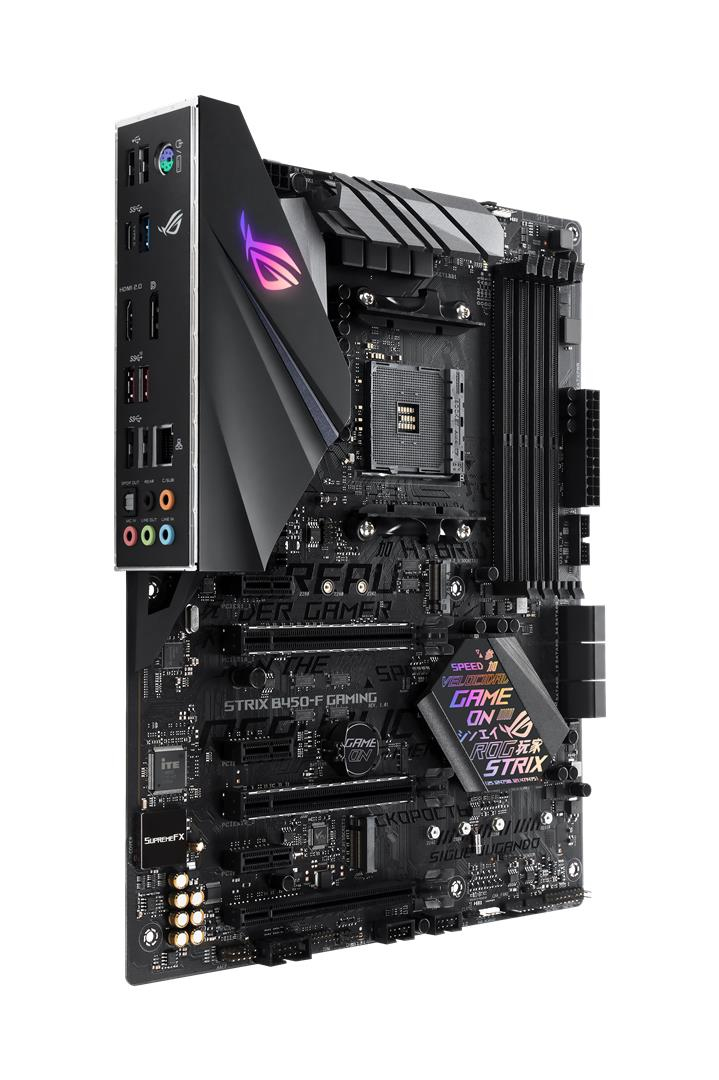

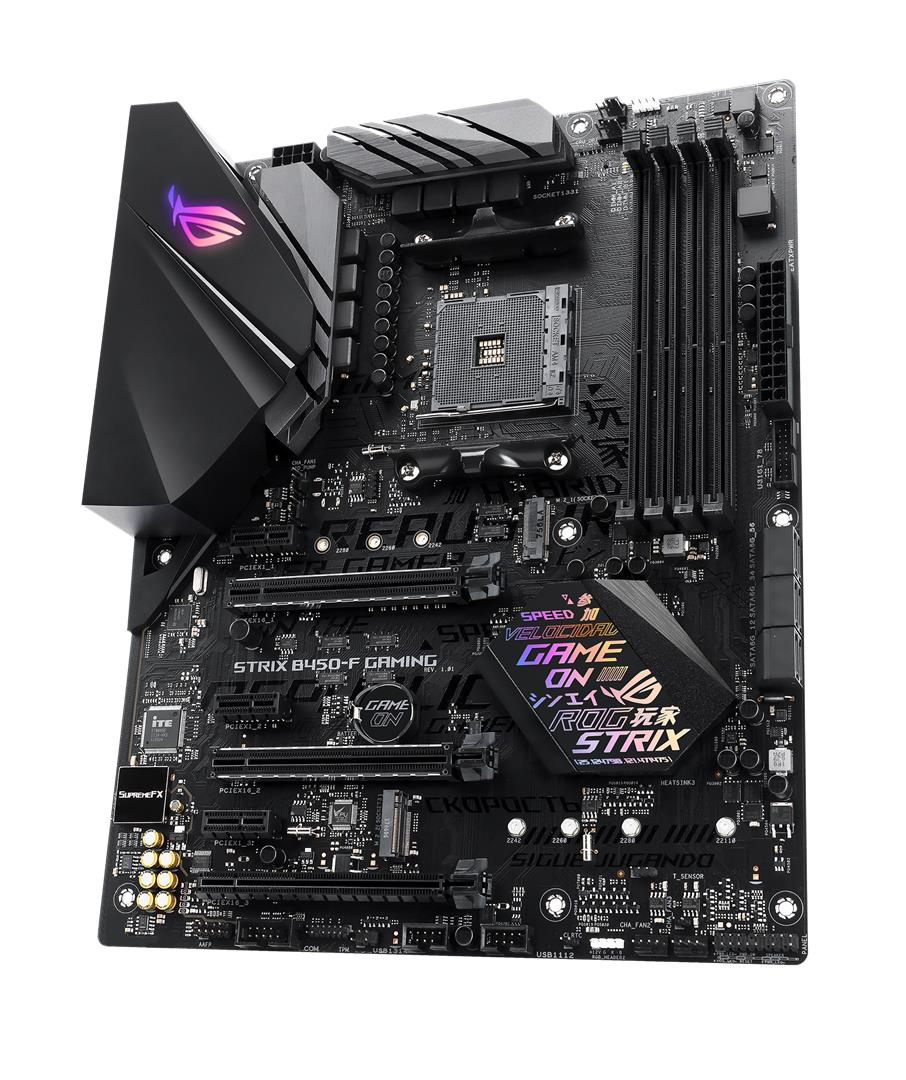

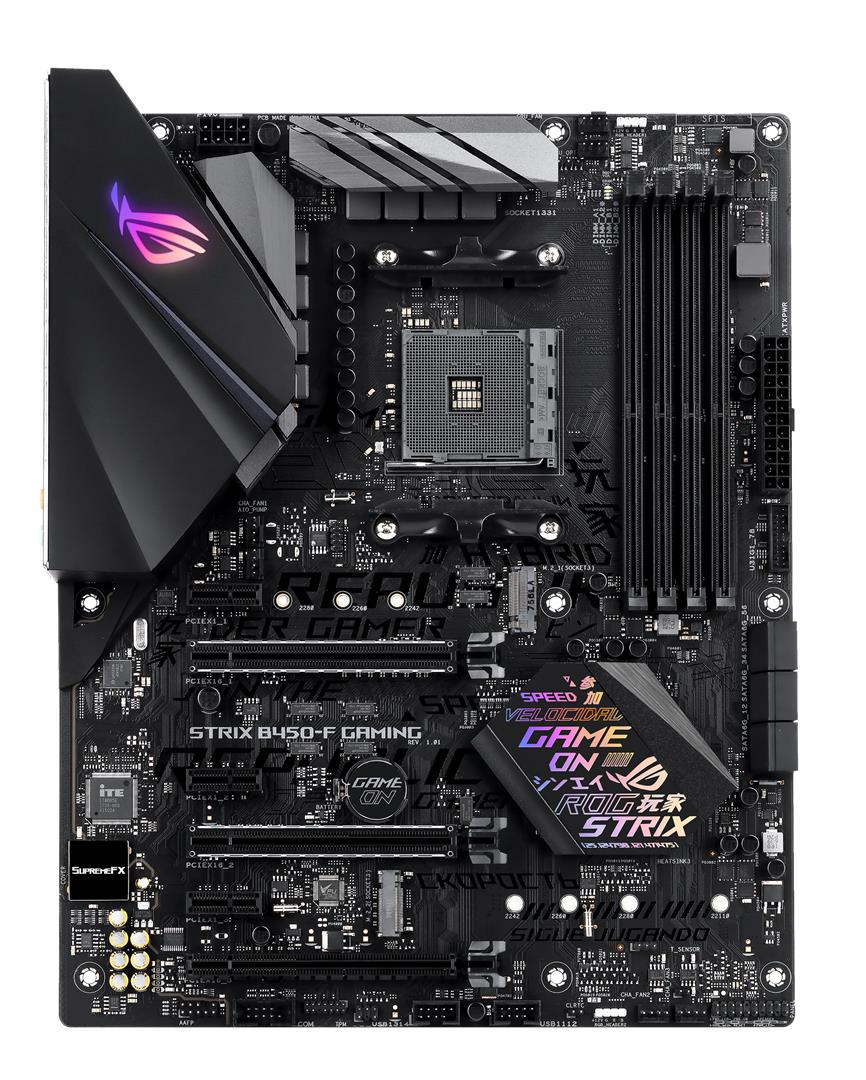

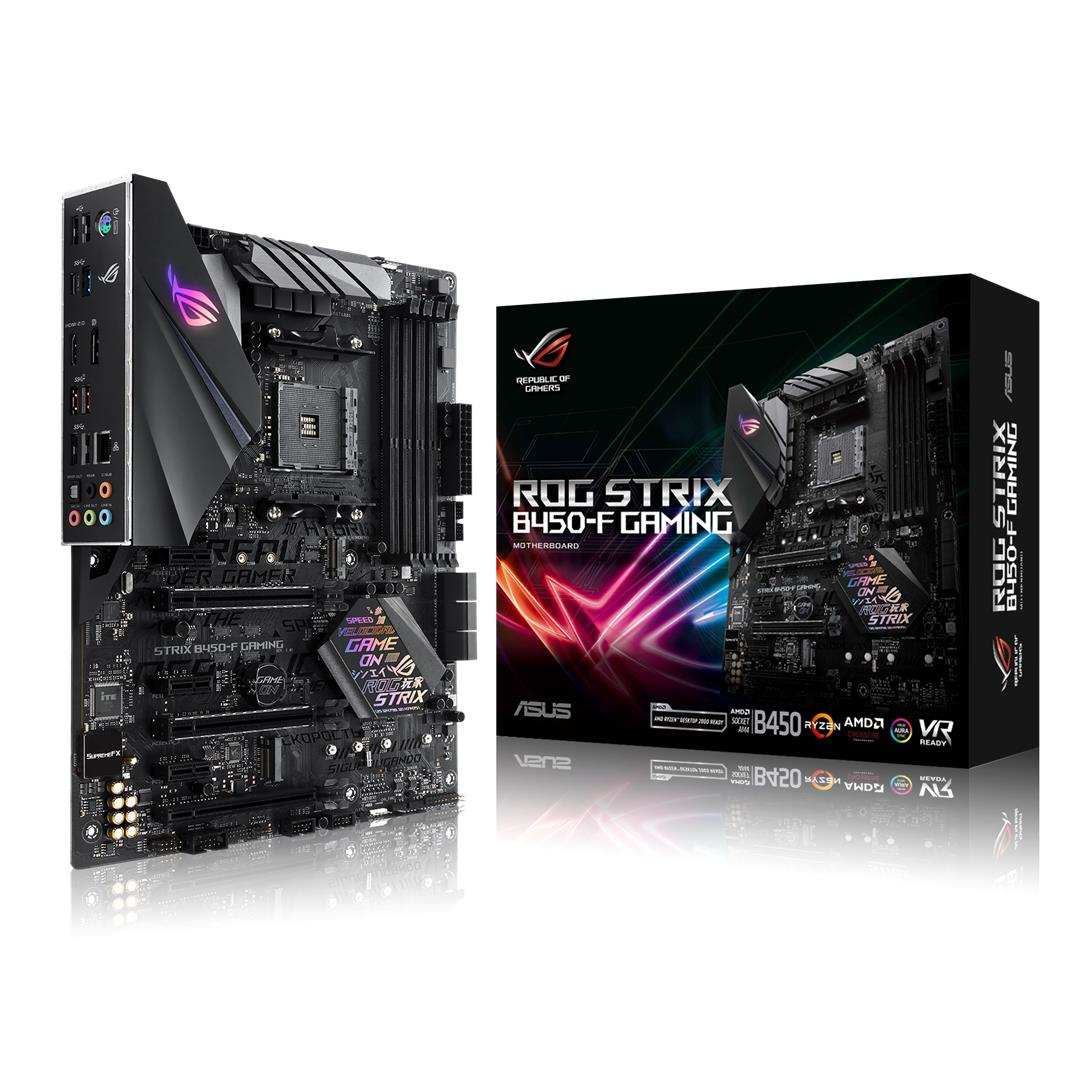

ASUS ROG STRIX B450-F GAMING

ASUS ROG STRIX B450-F GAMING

Model ROG STRIX B450-F GAMINGPart no. 90MB0YS0-M0AAY0EAN 192876080276

67 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • Parallel processing technology support3-Way CrossFireX
  • USB 2.0 connectors2
  • Ethernet LANYes
  • Component forPC
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
Parallel processing technology support
3-Way CrossFireX
USB 2.0 connectors
2
Ethernet LAN
Yes
Component for
PC
Brand
ASUS
Category
Motherboard
Model
ROG STRIX B450-F GAMING
Part numbers
90MB0YS0-M0AAY0, 90MB0YS0-M0EAY0
EAN / UPC
192876080276, 4718017080279
Also known as
ASUS ROG STRIX B450-F GAMING AMD B450 Socket AM4 ATX

Specifications

67 specifications in 10 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Athlon, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666,2800,3000,3200 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Graphics

Parallel processing technology support3-Way CrossFireX
Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors3
EPS power connector (8-pin)Yes
Number of COM connectors1
RGB LED pin headerYes

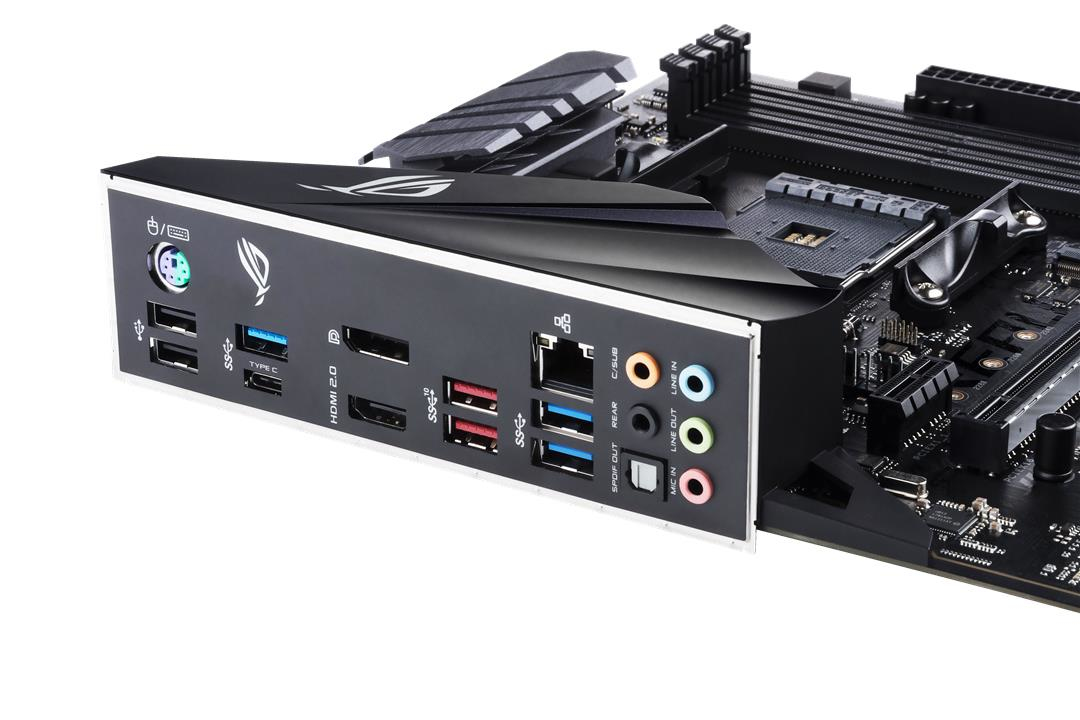

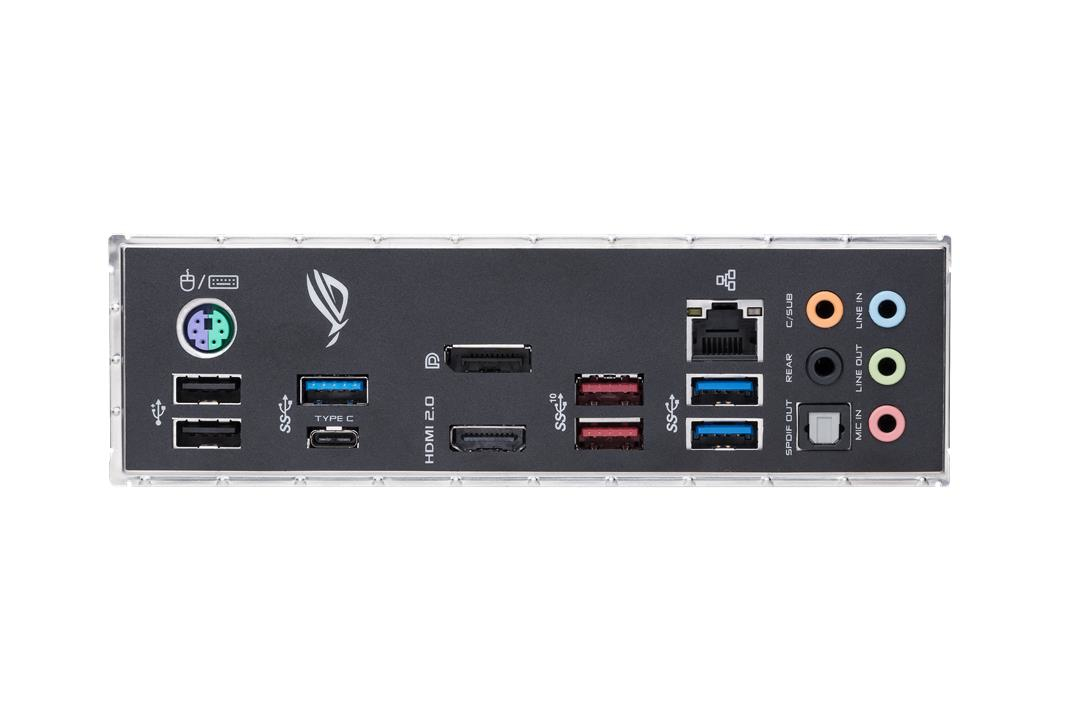

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DVI-I ports quantity0
DisplayPorts quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes
Digital audio optical out0
Thunderbolt ports quantity0
COM ports quantity0
Parallel ports quantity0
Serial ports quantity0
WiFi-AP antenna jack0

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I211-AT

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD B450
Audio chipRealtek ALC S1220A
Audio output channels8.0 channels
Windows operating systems supportedWindows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64

Expansion slots

PCI Express x1 (Gen 2.x) slots3
PCI Express x16 (Gen 2.x) slots2

Weight & dimensions

Width305 mm
Depth244 mm

Other features

Mini HDMI ports quantity0
Mini DisplayPorts quantity0
Analog audio output0
Thunderbolt 2 ports quantity0
eSATA/USB 2.0 ports quantity0
