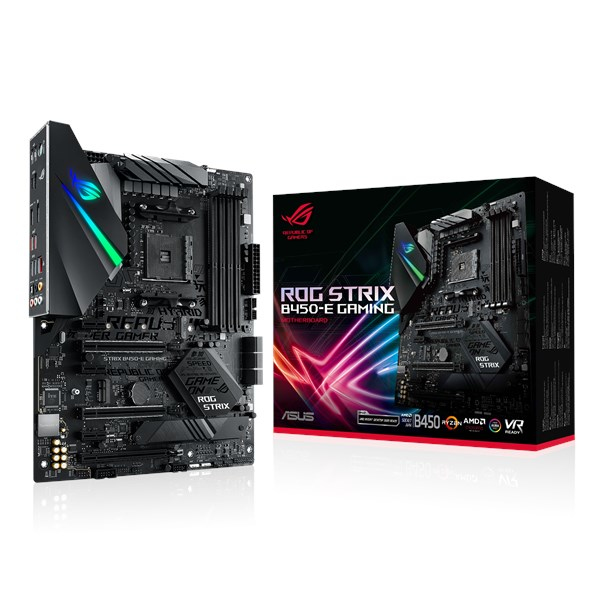

ASUS ROG STRIX B450-E GAMING

ASUS ROG STRIX B450-E GAMING

Model ROG STRIX B450-E GAMINGPart no. 90MB1070-M0EAY0EAN 192876132876

66 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • RAID levels0, 1, 10
  • Parallel processing technology support3-Way CrossFireX
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
RAID levels
0, 1, 10
Parallel processing technology support
3-Way CrossFireX
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
ROG STRIX B450-E GAMING
Part number
90MB1070-M0EAY0
EAN / UPC
192876132876, 4718017132879
Also known as
ASUS ROG STRIX B450-E GAMING AMD B450 Socket AM4 ATX

Specifications

66 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Athlon, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666,2800,3000,3200,3466,3533 MHz
Maximum internal memory64 GB

Storage controllers

RAID levels0, 1, 10

Graphics

Parallel processing technology support3-Way CrossFireX
On-board graphics cardYes
Maximum resolution4096 x 2160 pixels
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors3
EPS power connector (8-pin)Yes
TPM connectorYes
RGB LED pin headerYes

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version2.0b
DVI-D ports quantity0
DisplayPorts quantity1
DisplayPort version1.2
Headphone outputs1
Microphone inYes
S/PDIF out portYes
COM ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I211-AT
Wi-FiYes
BluetoothYes
Bluetooth version5.0

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD B450
Audio chipRealtek ALC S1220A
Audio output channels8.0 channels
Windows operating systems supportedWindows 7 x64

Expansion slots

PCI Express x1 (Gen 2.x) slots3
PCI Express x16 (Gen 2.x) slots1
Number of M.2 (M) slots1

BIOS

Clear CMOS jumperYes

Weight & dimensions

Width305 mm
Depth244 mm
