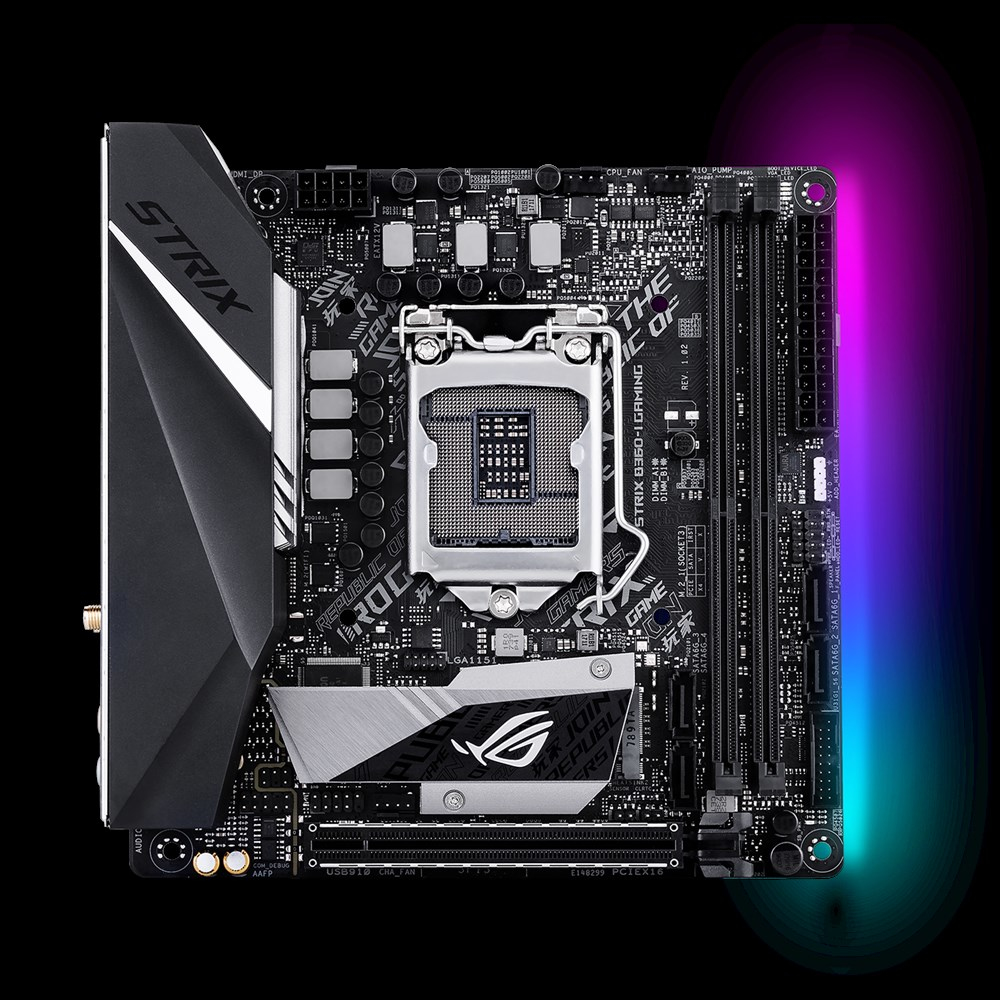

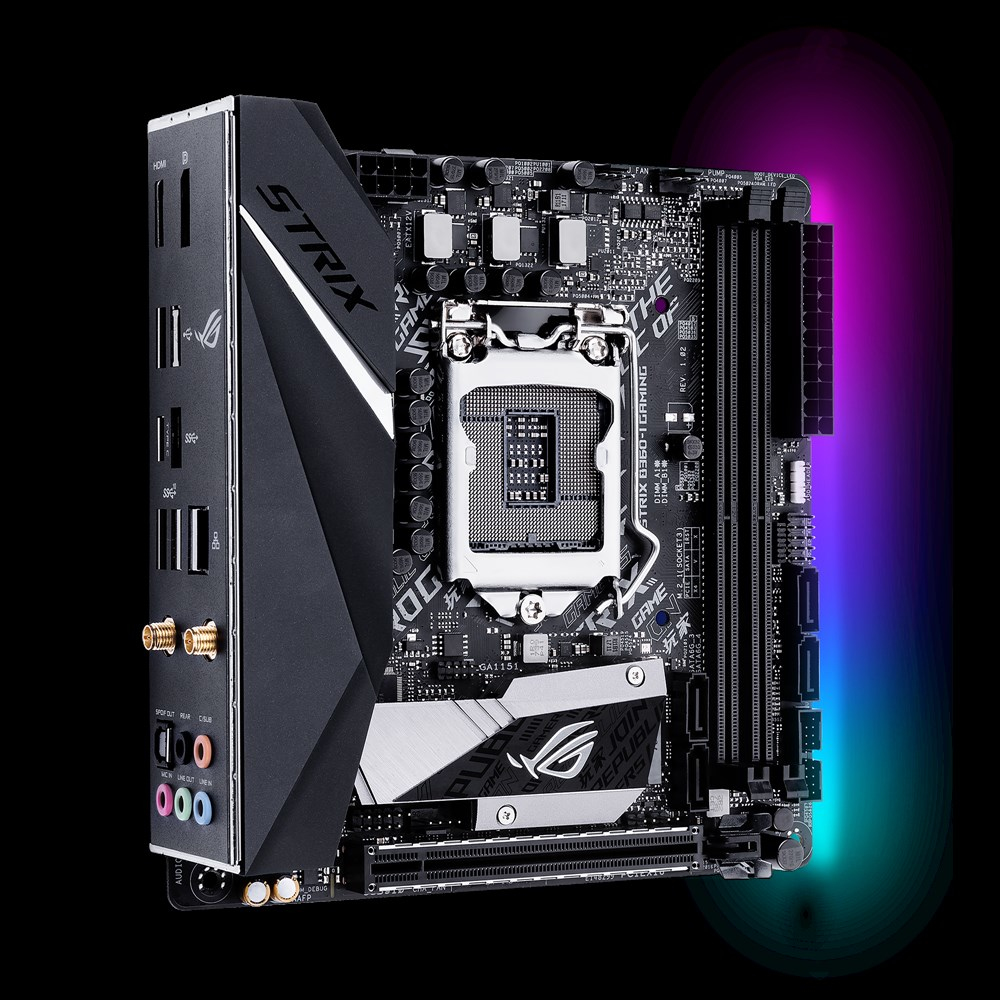

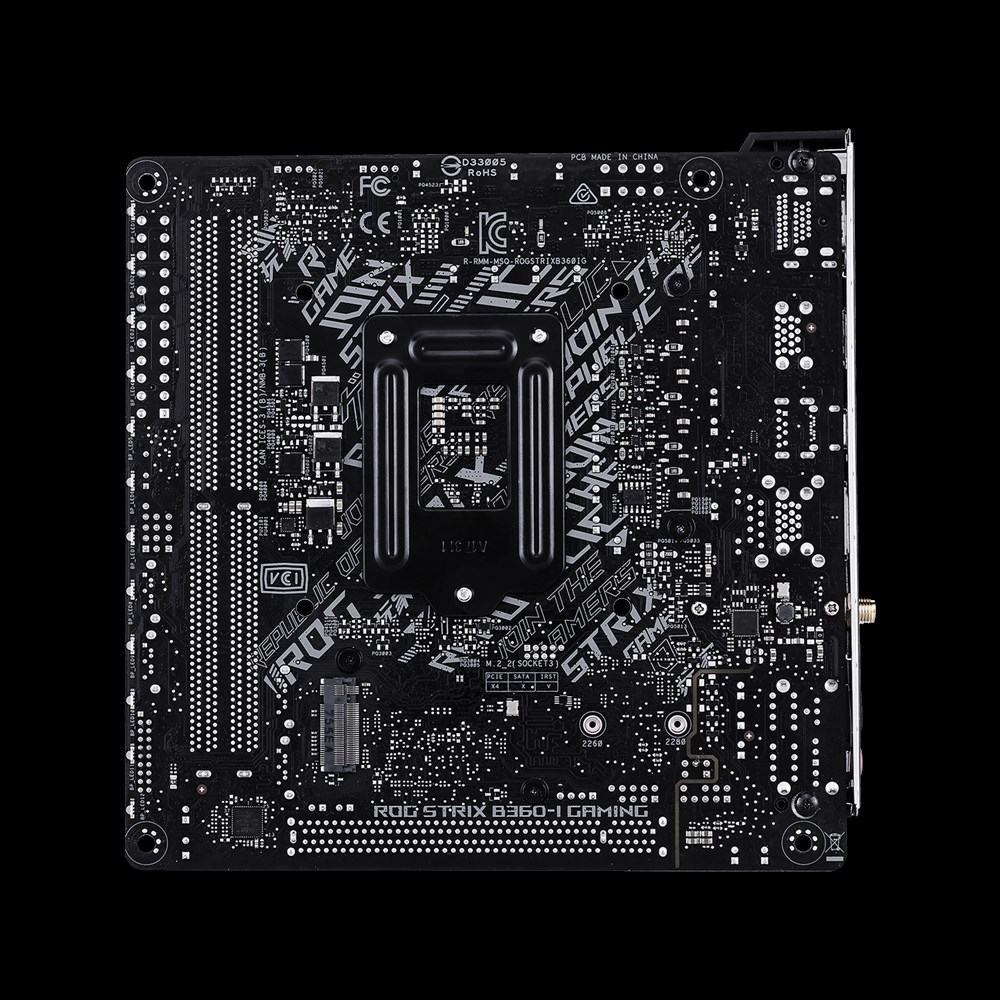

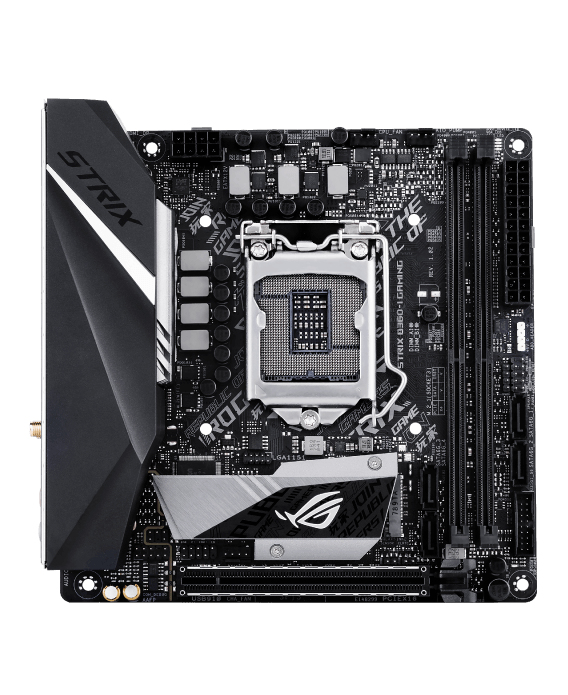

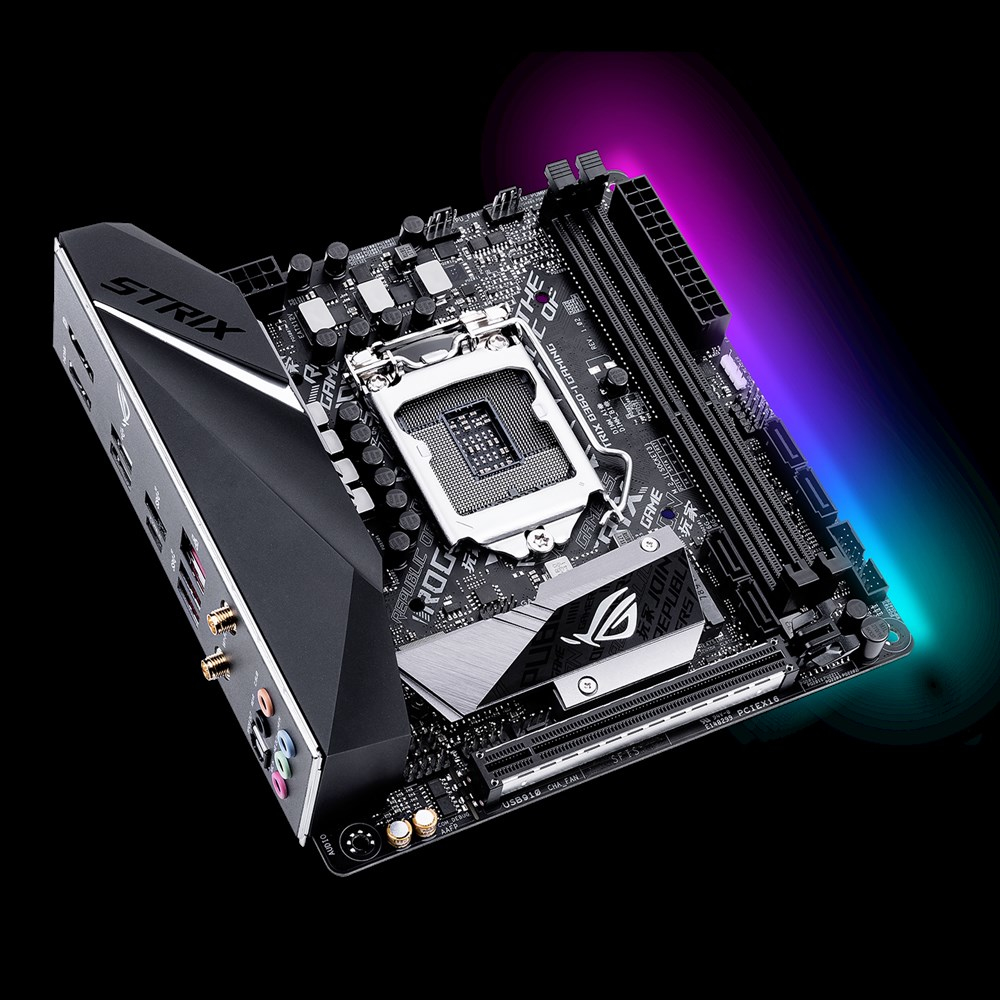

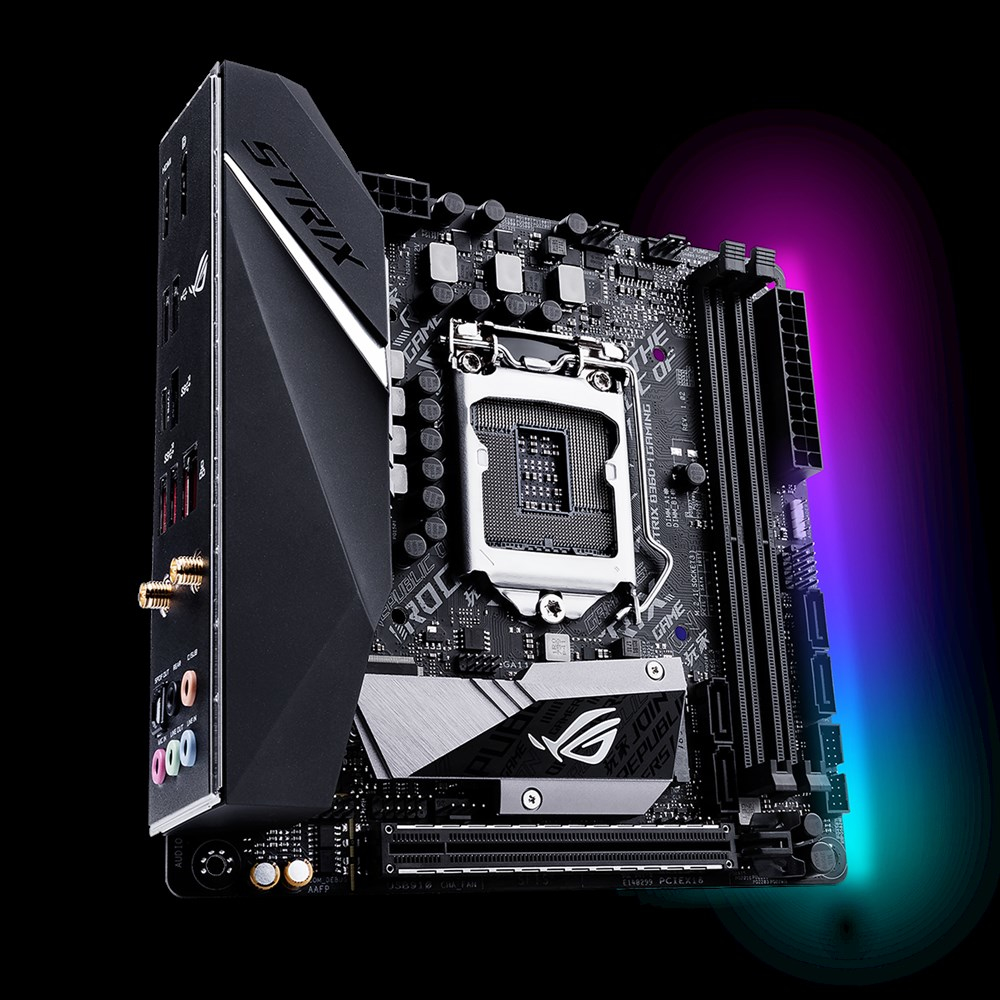

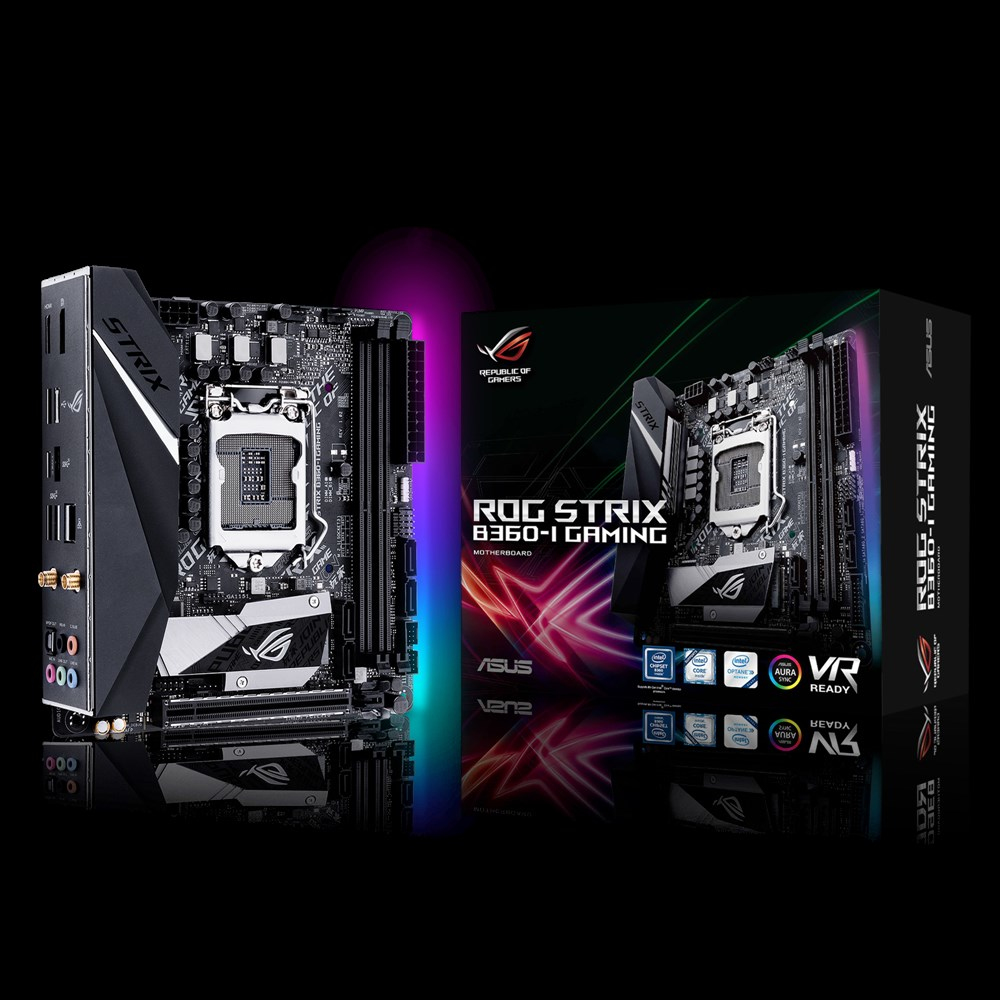

ASUS ROG STRIX B360-I GAMING
Model ROG STRIX B360-I GAMINGPart no. 90MB0WH0-M0EAY0EAN 889349966082
69 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Maximum graphics card memory1024 MB
- USB 2.0 connectors1
- USB 2.0 ports quantity2
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Maximum graphics card memory
- 1024 MB
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 2
- Ethernet LAN
- Yes
- Brand
- ASUS
- Category
- Motherboard
- Model
- ROG STRIX B360-I GAMING
- Part numbers
- 90MB0WH0-M0EAY0, 90MB0WH0-M0AAY0
- EAN / UPC
- 889349966082, 4712900966084
- Also known as
- ASUS ROG STRIX B360-I GAMING Intel® B360 LGA 1151 (Socket H4) mini ITX
Specifications
69 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| Maximum internal memory | 32 GB |
| Unbuffered memory | Yes |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1024 MB |
| Graphics card family | Intel |
| Maximum resolution | 4096 x 2304 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Audio connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| 12V power connector | Yes |

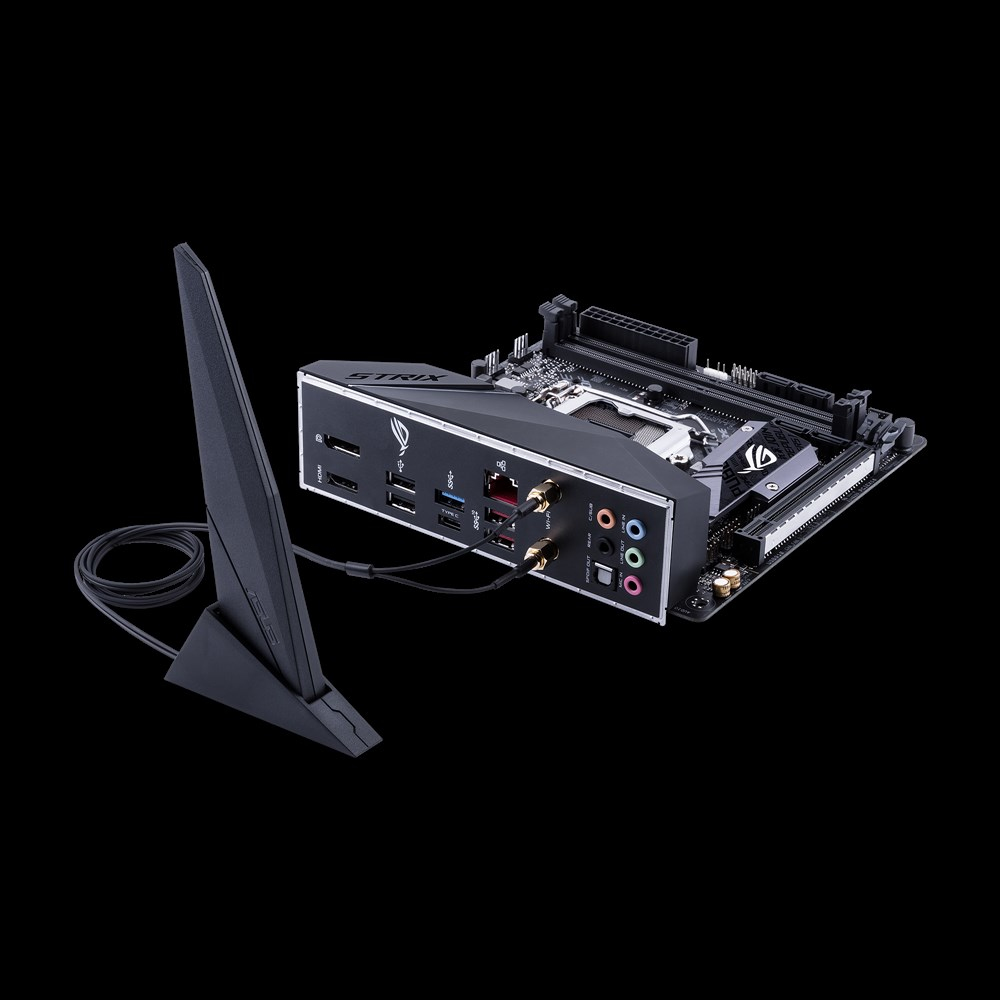

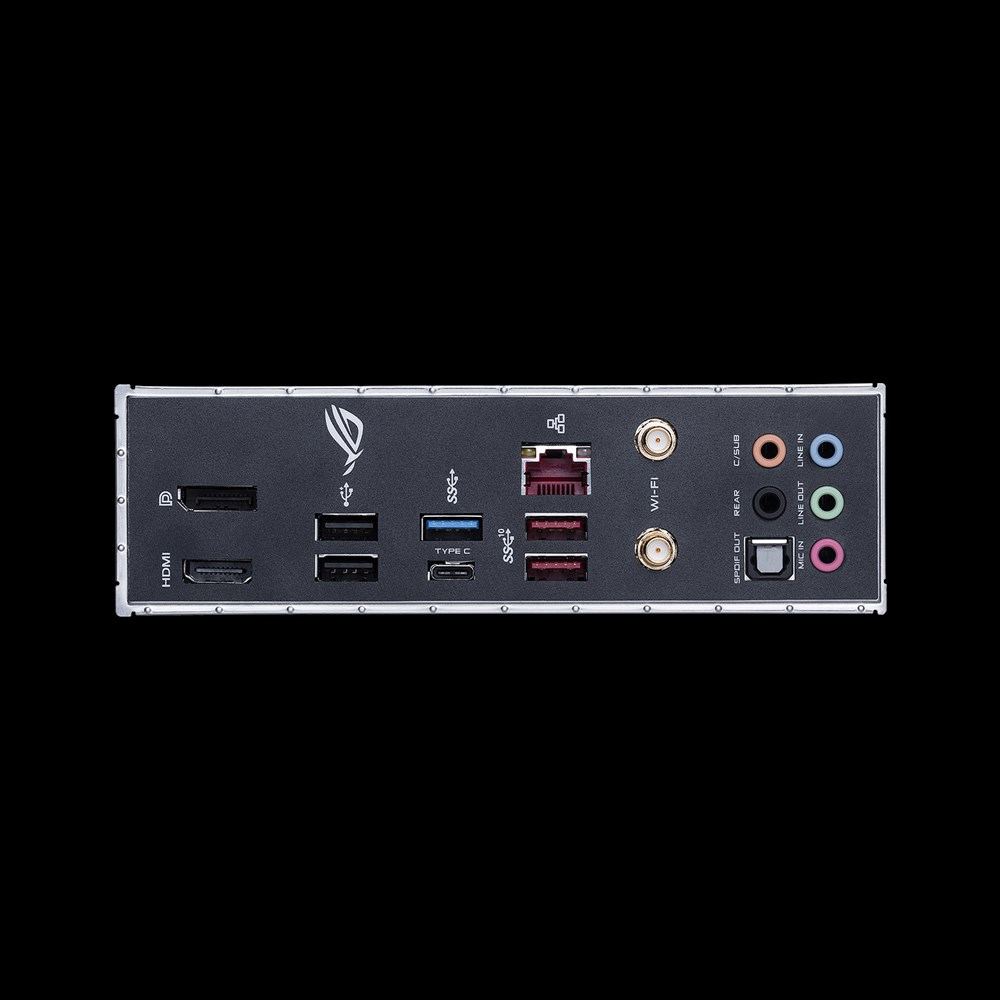

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel® I219-V |
| Wake-on-LAN ready | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® B360 |
| Audio chip | Realtek S1220A |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 6.1 |
| Clear CMOS jumper | Yes |
| Plug and Play | Yes |
| System Management BIOS (SMBIOS) version | 3.1 |
Processor special features
| Specification | Value |
|---|---|
| Intel Extreme Memory Profile (XMP) | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Manual | Yes |
| Drivers included | Yes |
What people say
Reviews & ratings
ASUS ROG STRIX B360-I GAMING
No reviews yet
Be the first to tell others how ASUS ROG STRIX B360-I GAMING works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS ROG STRIX B360-I GAMING
All motherboard comparisons- ASUS ROG STRIX B360-I GAMING vsASUS TUF H370-PRO GAMINGCompare specs
- ASUS ROG STRIX B360-I GAMING vsASUS ROG Strix H370-I GamingCompare specs

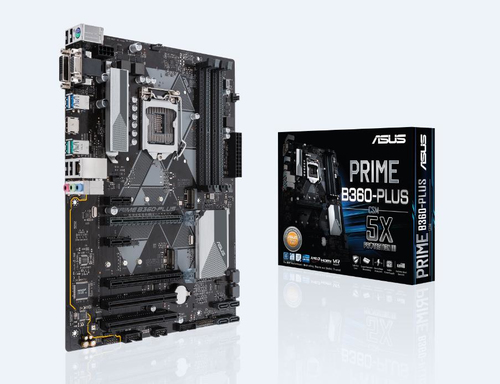

- ASUS ROG STRIX B360-I GAMING vsASUS PRIME B360-PLUSCompare specs

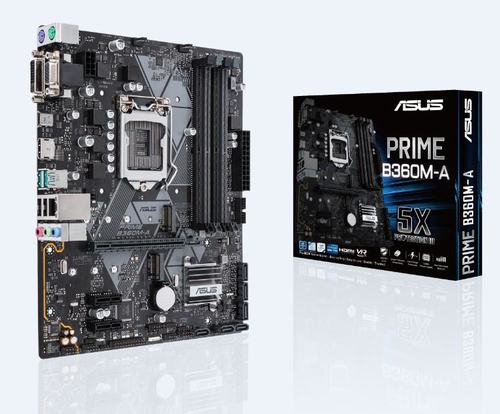

- ASUS ROG STRIX B360-I GAMING vsASUS PRIME B360M-ACompare specs
