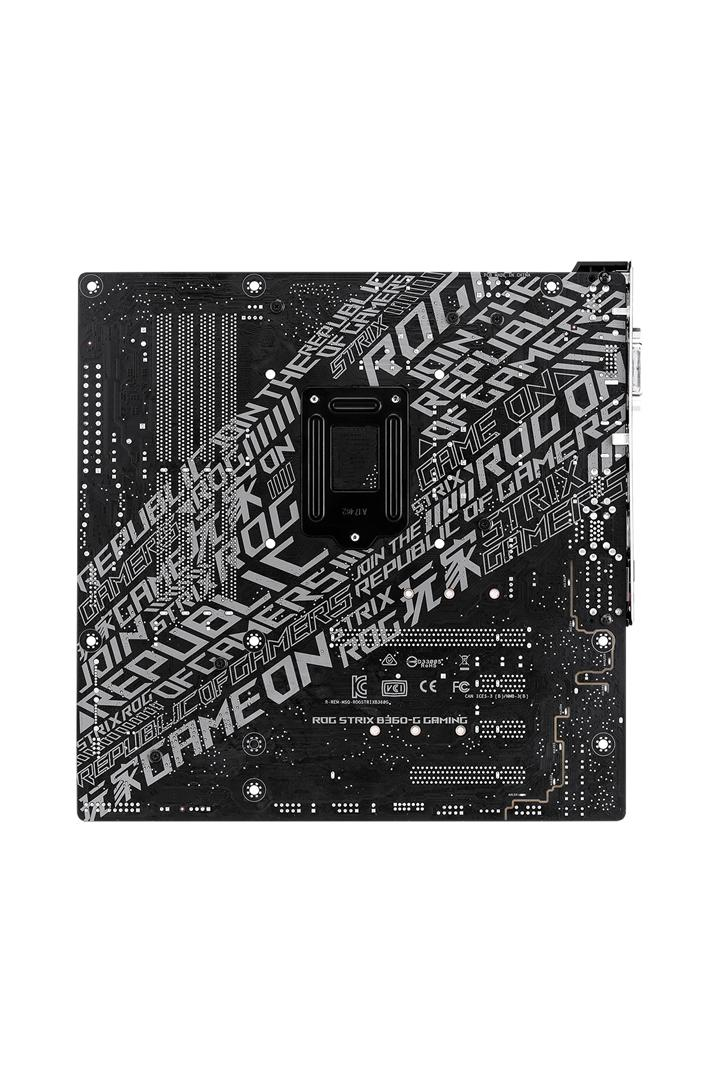

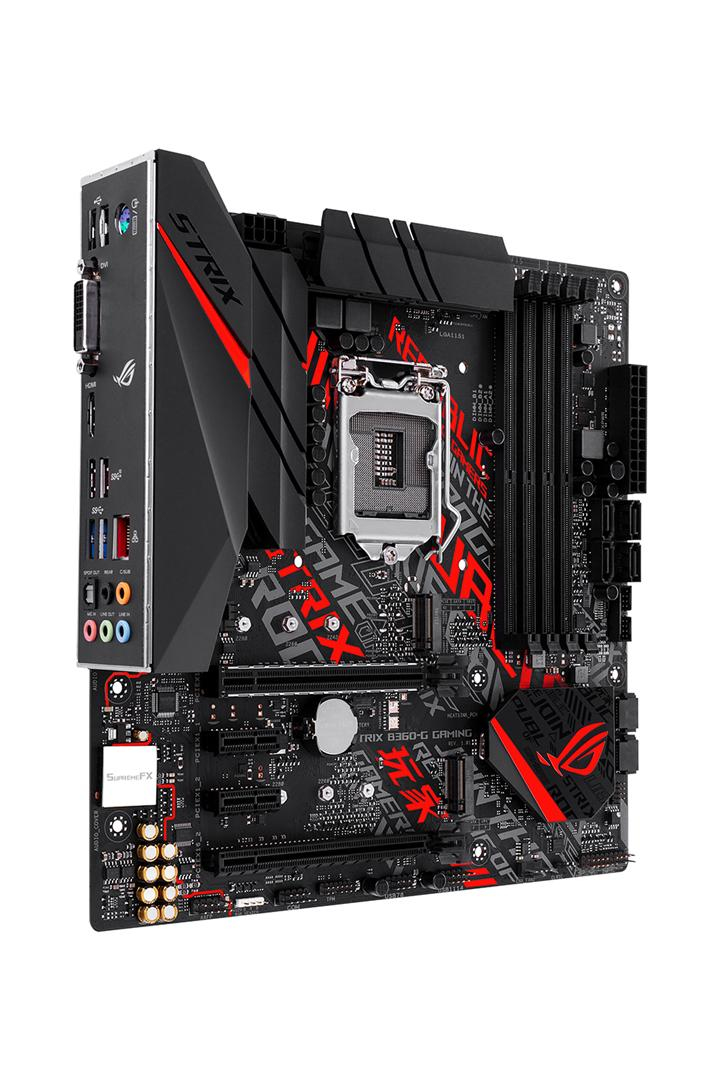

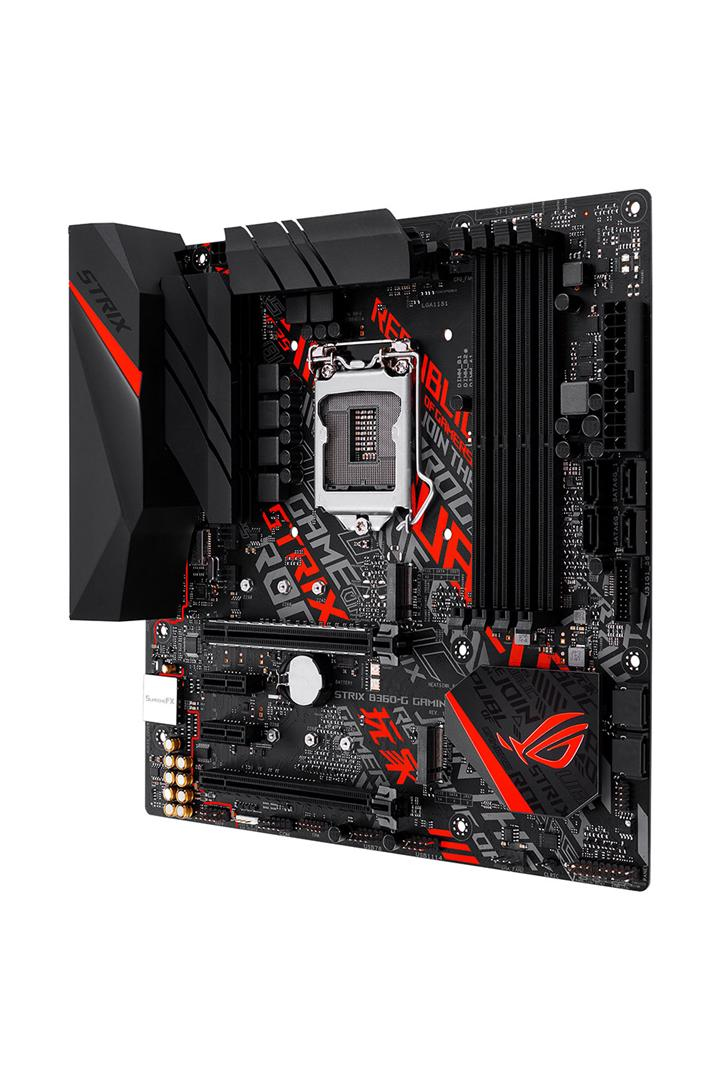

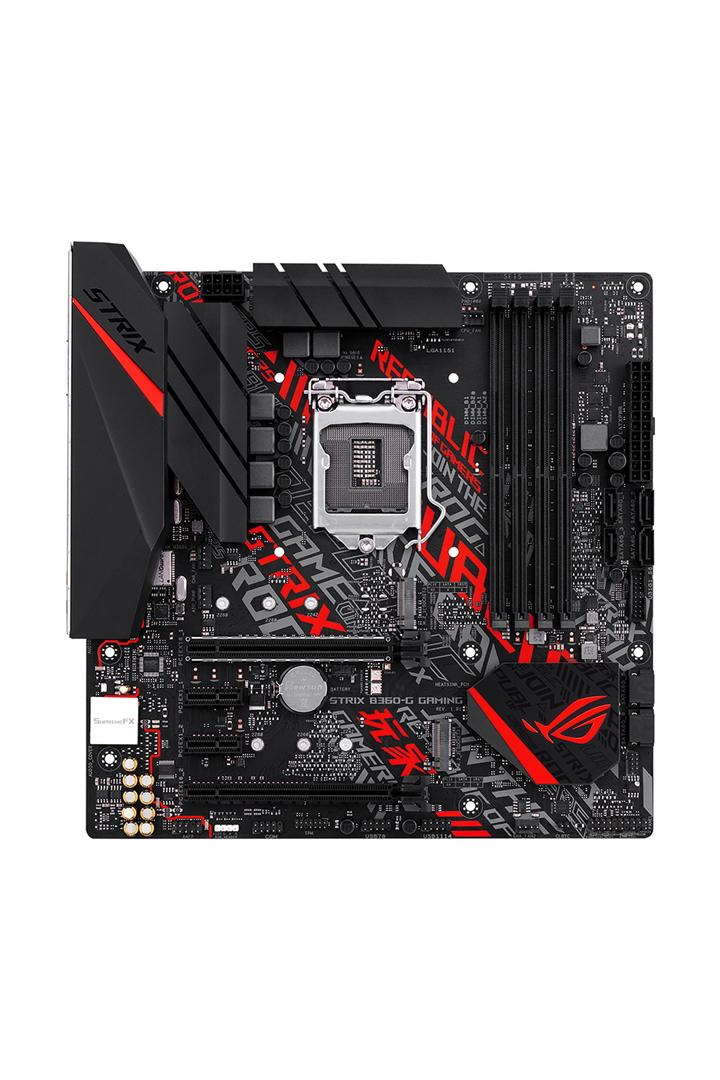

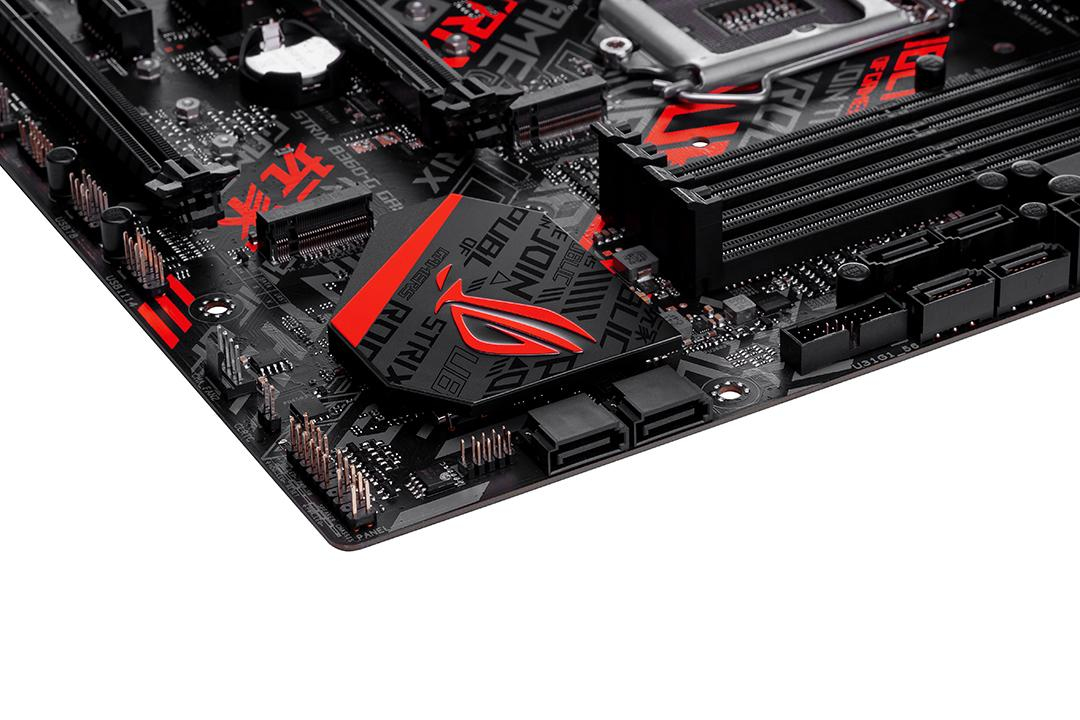

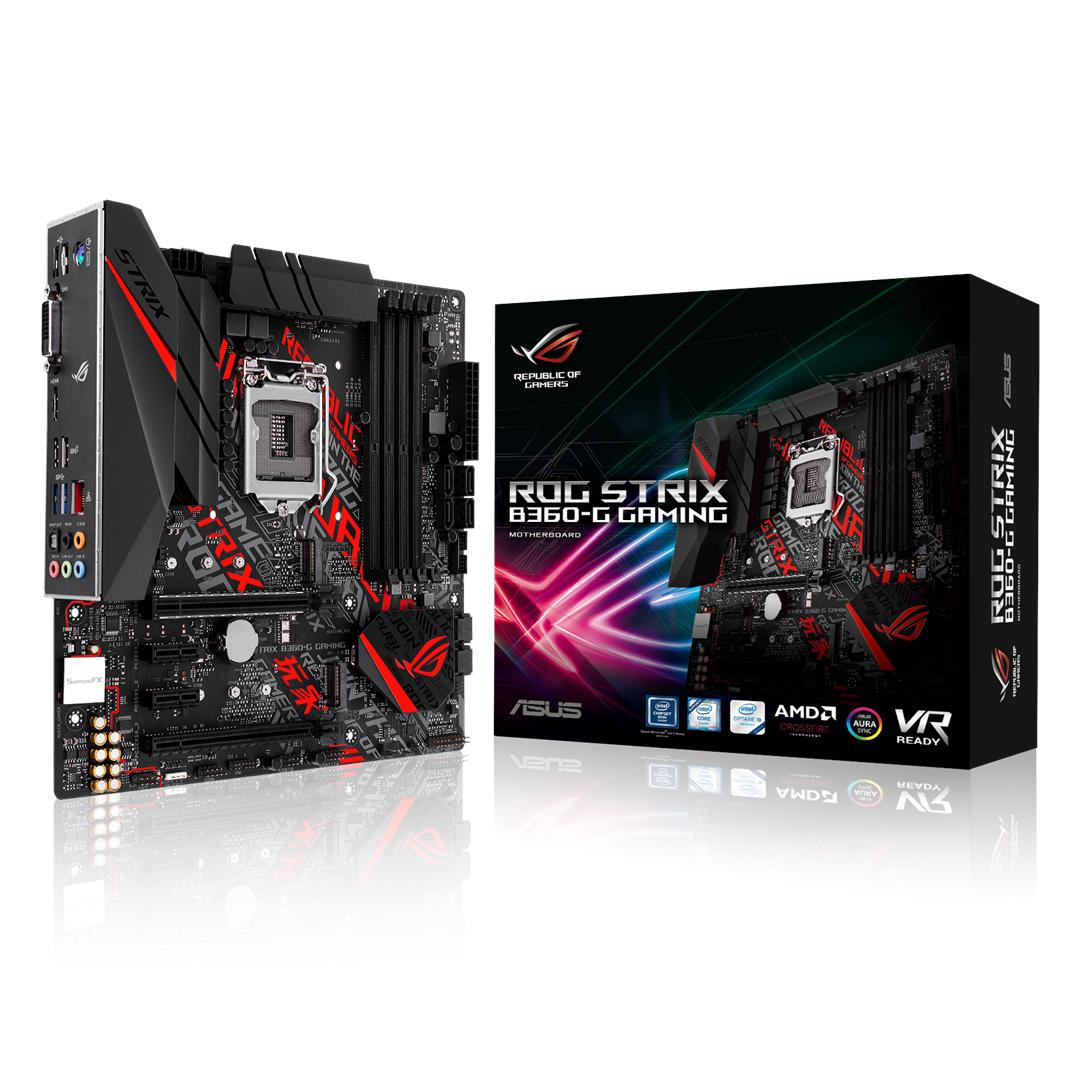

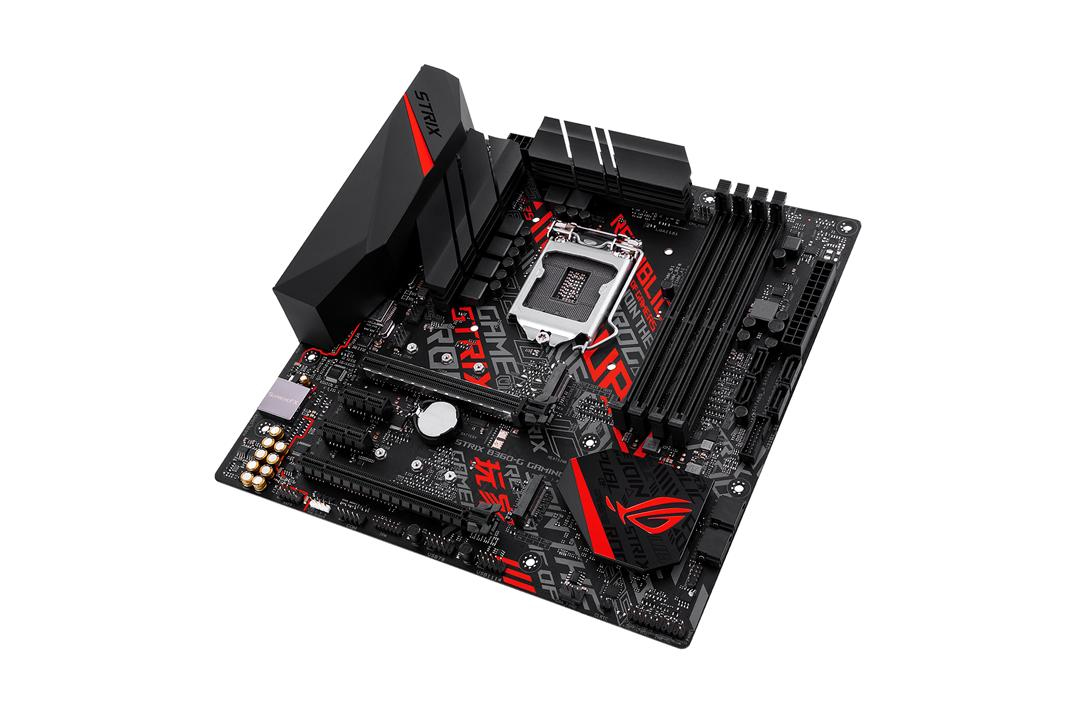

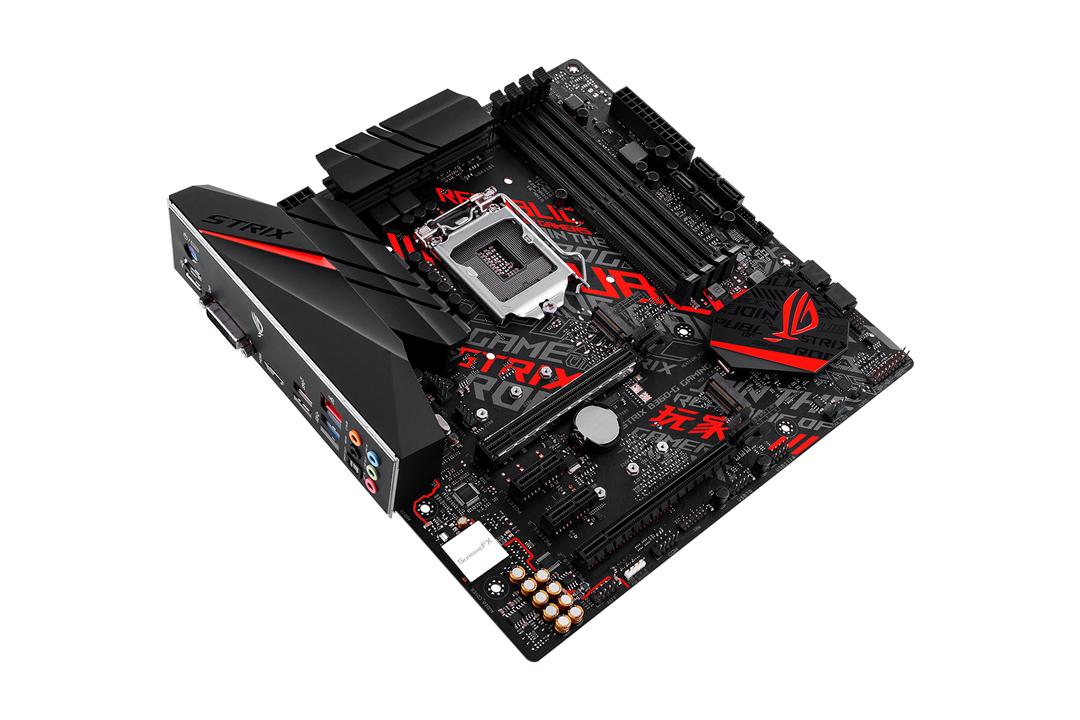

ASUS ROG STRIX B360-G GAMING

ASUS ROG STRIX B360-G GAMING

Model ROG STRIX B360-G GAMINGPart no. 90MB0WD0-M0EAY0EAN 889349975343

63 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Parallel processing technology support2-Way CrossFireX
  • USB 2.0 connectors2
  • USB 2.0 ports quantity0
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Parallel processing technology support
2-Way CrossFireX
USB 2.0 connectors
2
USB 2.0 ports quantity
0
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
ROG STRIX B360-G GAMING
Part numbers
90MB0WD0-M0EAY0, 90MB0WD0-M0AAY0
EAN / UPC
889349975343, 4712900975345, 5704174008088
Also known as
ASUS ROG STRIX B360-G GAMING Intel® B360 LGA 1151 (Socket H4) micro ATX

Specifications

63 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Graphics

Parallel processing technology support2-Way CrossFireX
Graphics cardHD Graphics
Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors2
Number of COM connectors1
TPM connectorYes

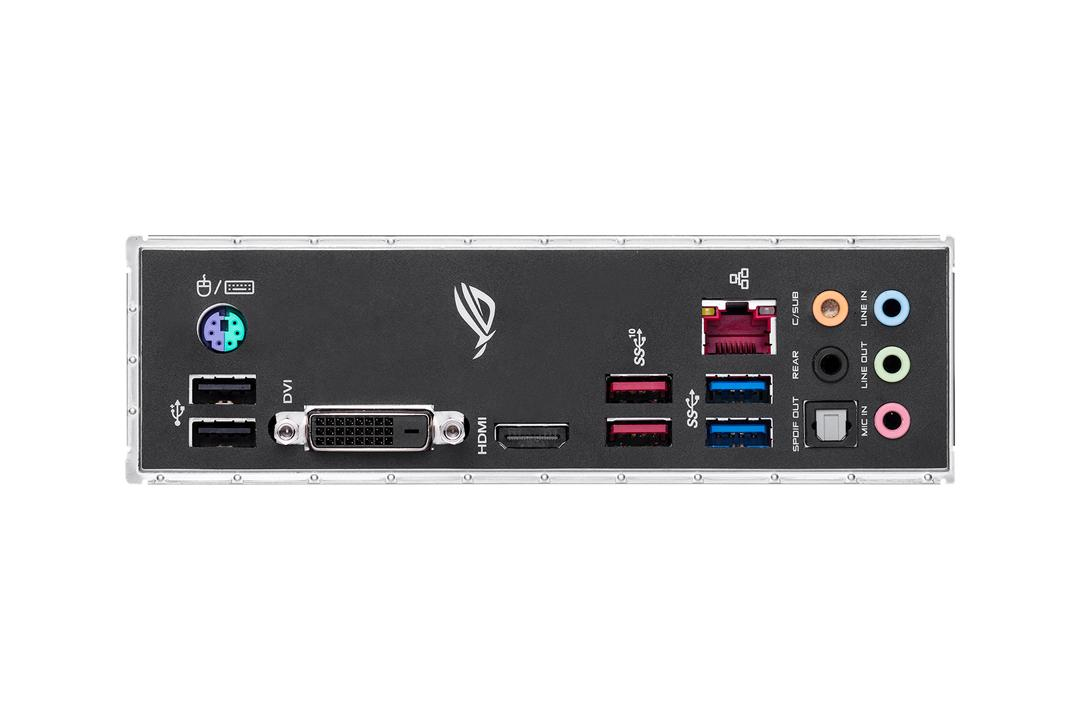

Rear panel I/O ports

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I219-V
Wake-on-LAN readyYes

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® B360
Audio chipRealtek S1220A
Audio output channels8.0 channels
Power source typeATX
Windows operating systems supportedWindows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64

Expansion slots

PCI Express x16 (Gen 3.x) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version6.0
Clear CMOS jumperYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes
Trusted Platform Module (TPM)Yes

Weight & dimensions

Width244 mm
Depth244 mm

Packaging content

Cables includedSATA
ManualYes
