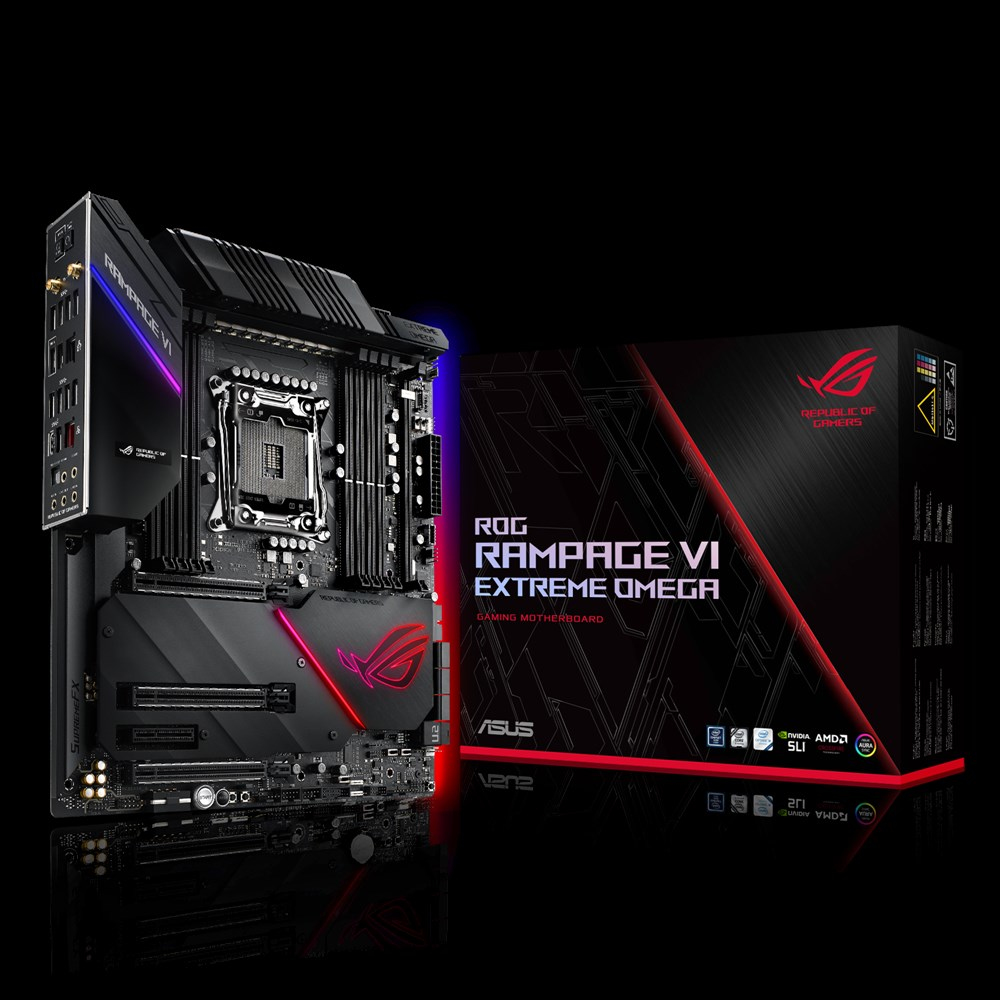

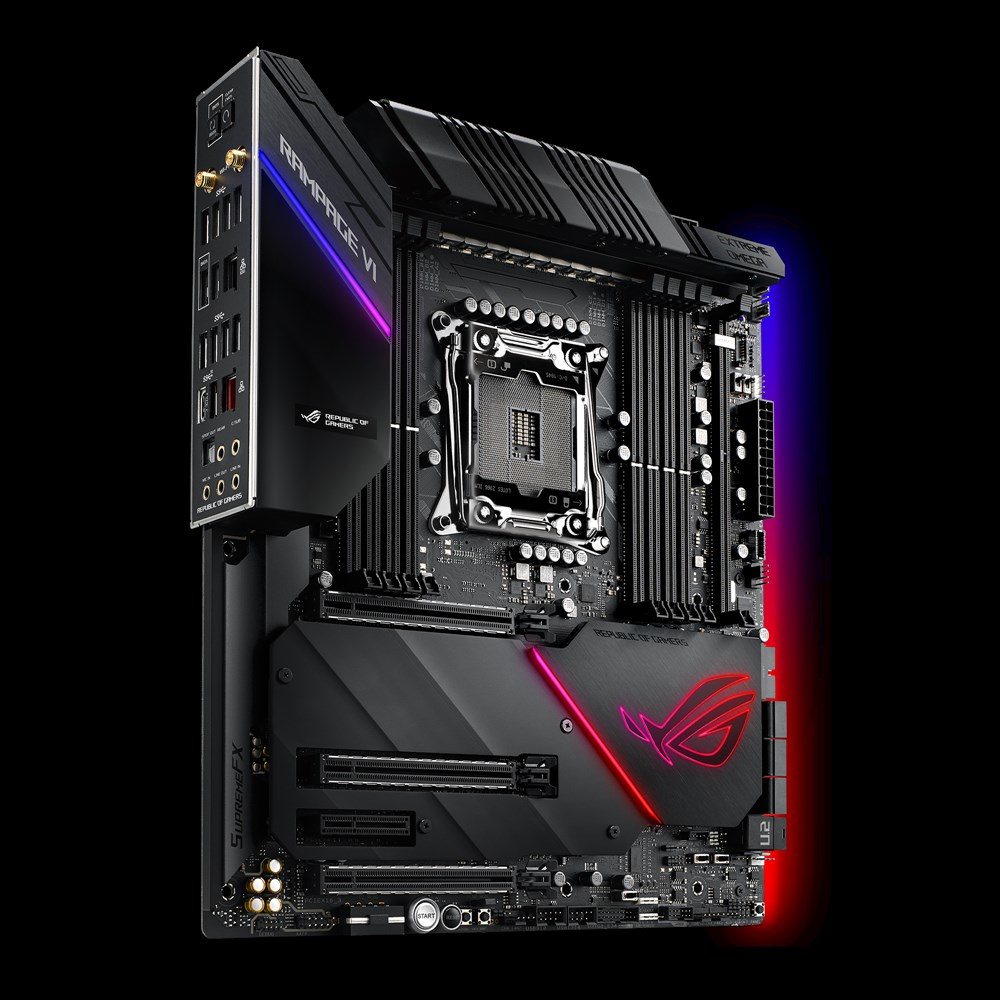

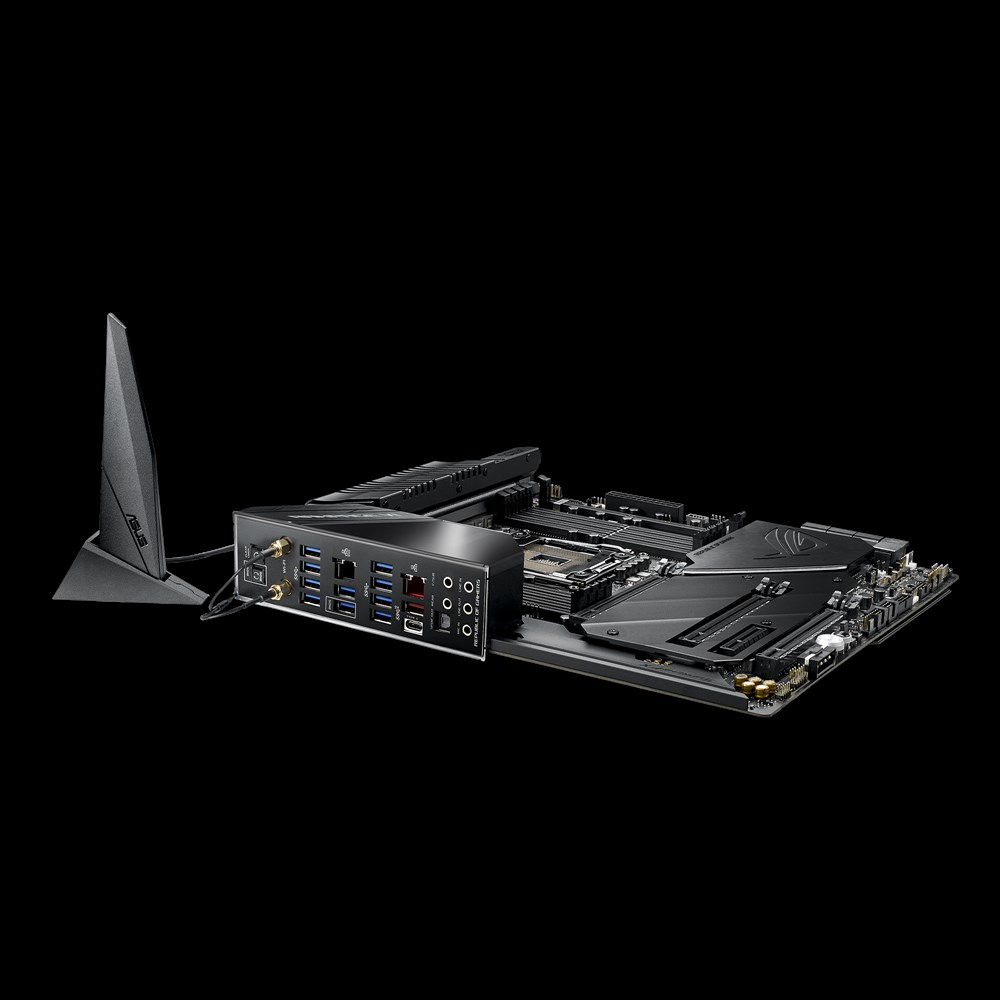

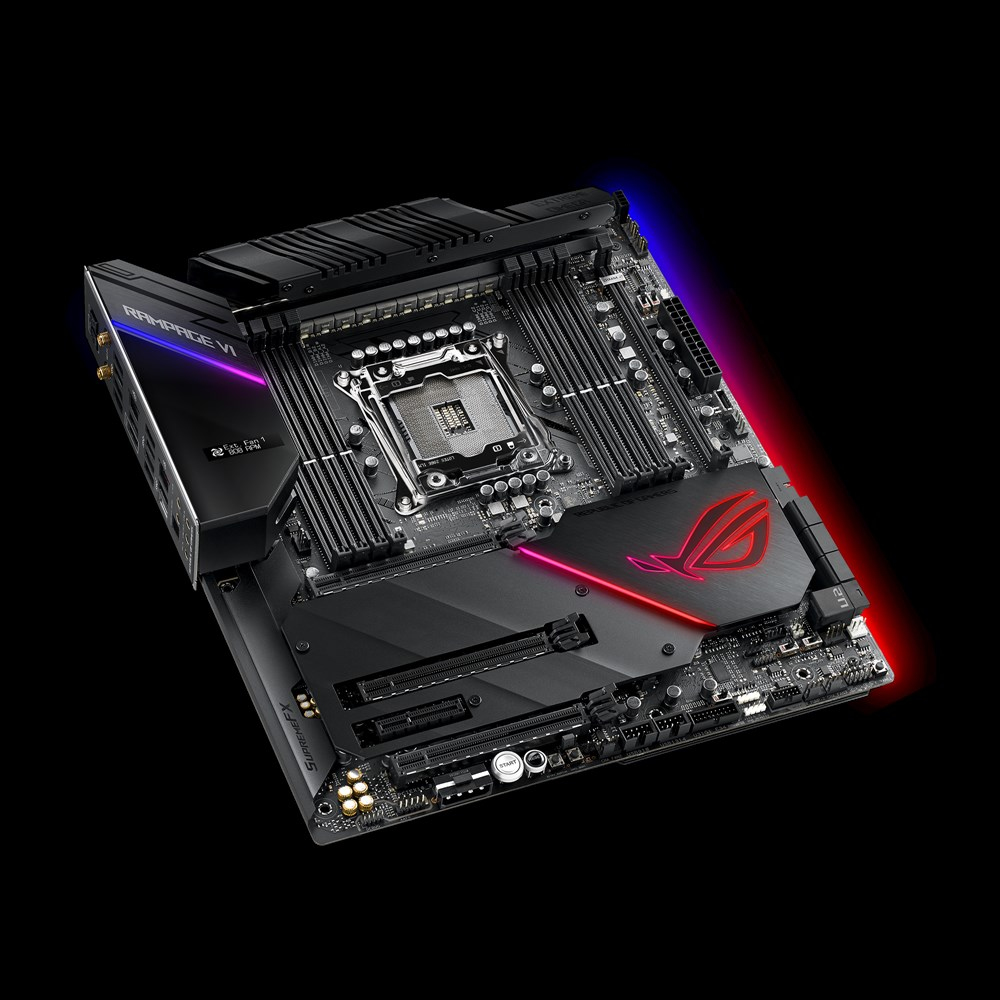

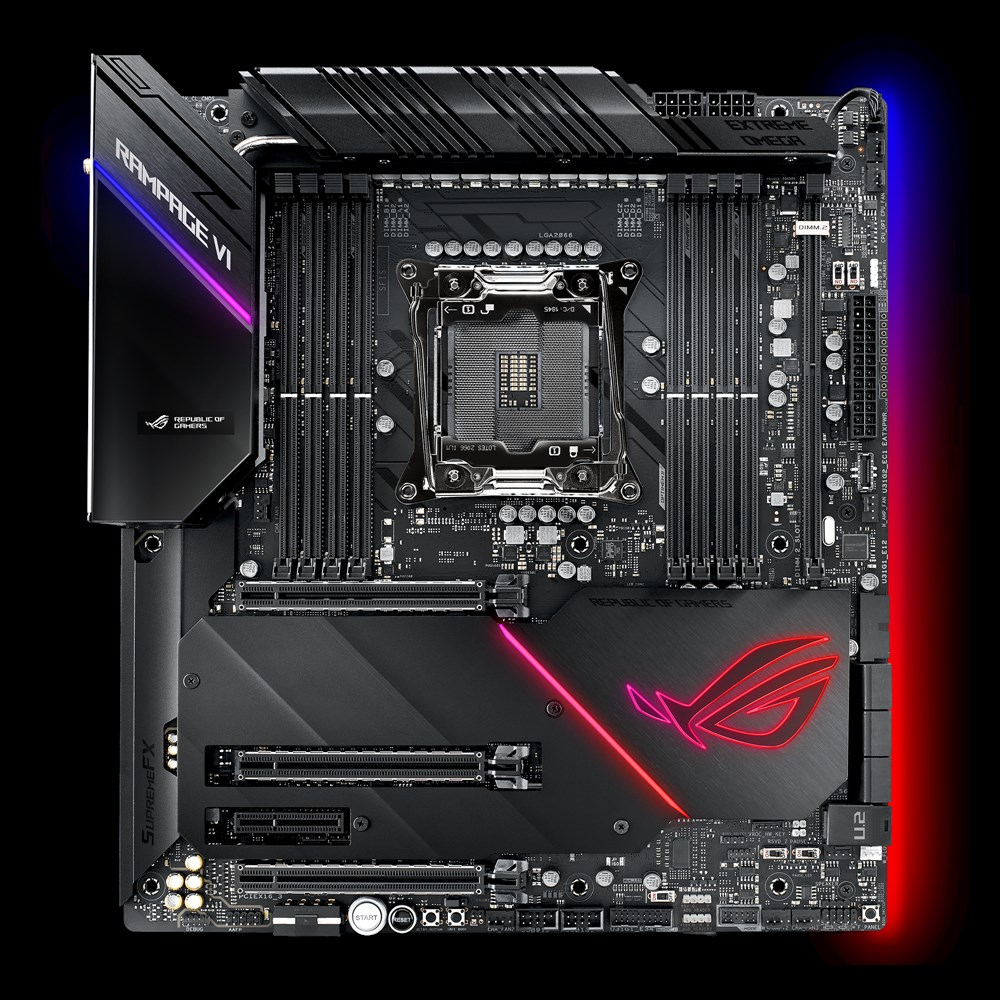

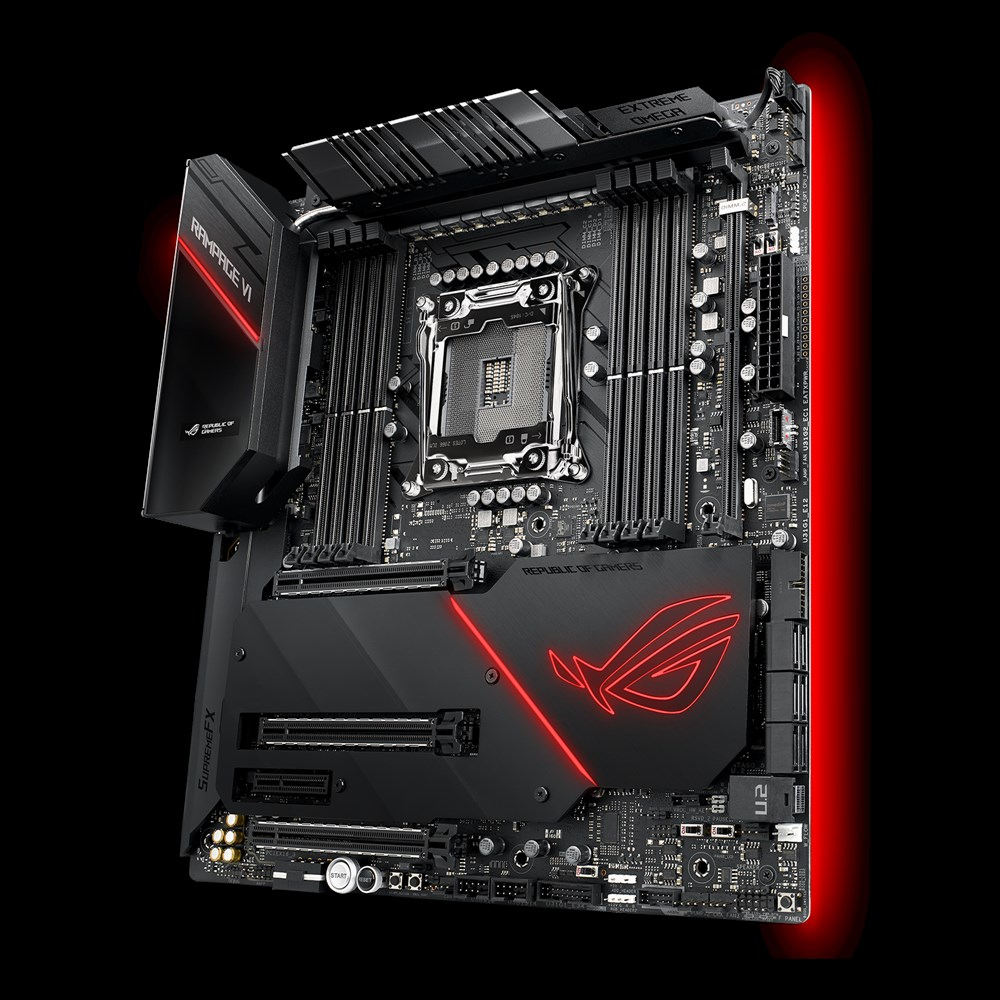

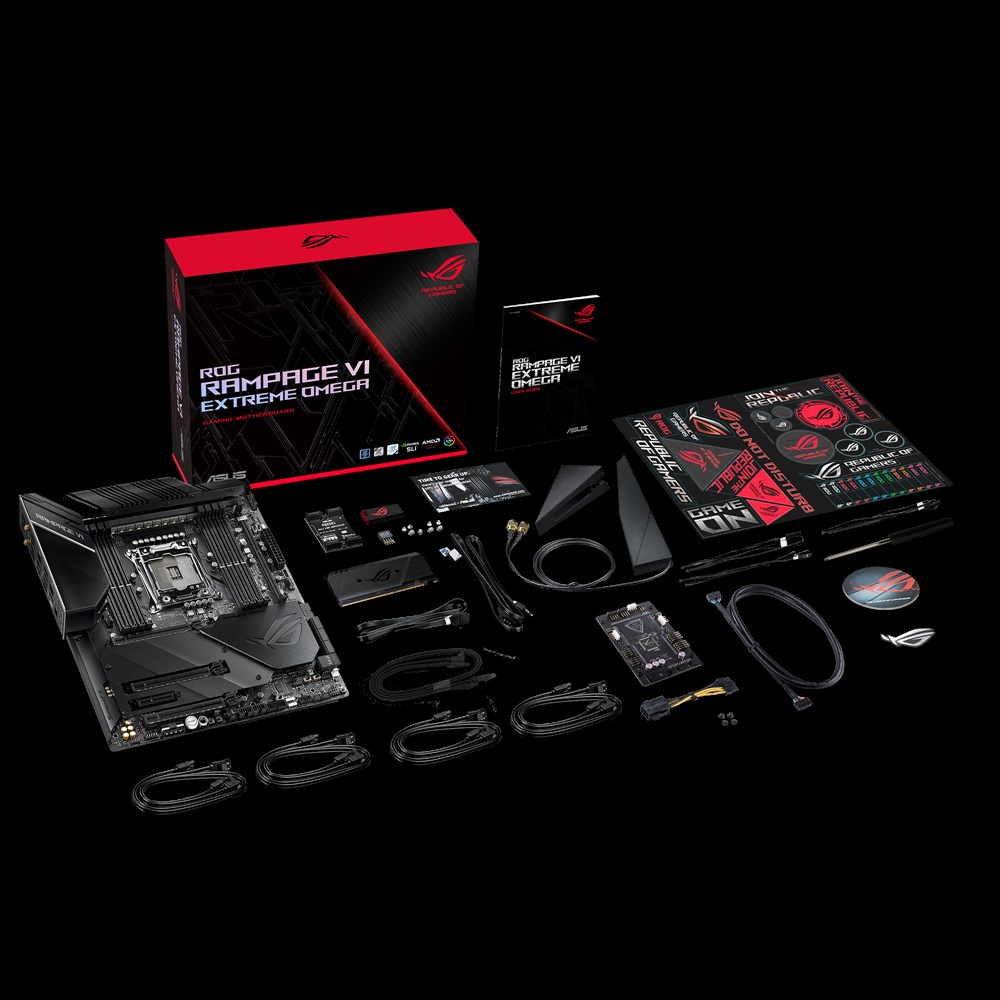

ASUS ROG RAMPAGE VI EXTREME OMEGA
Model ROG RAMPAGE VI EXTREME OMEGAPart no. 90MB0ZJ0-M0EAY0EAN 4718017225656
62 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- RAID levels0, 1, 5, 10
- USB 2.0 connectors2
- USB 2.0 ports quantity0
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- RAID levels
- 0, 1, 5, 10
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 0
- Ethernet LAN
- Yes
- Brand
- ASUS
- Category
- Motherboard
- Model
- ROG RAMPAGE VI EXTREME OMEGA
- Part number
- 90MB0ZJ0-M0EAY0
- EAN / UPC
- 4718017225656
- Also known as
- ASUS ROG RAMPAGE VI EXTREME OMEGA Intel® X299 LGA 2066 (Socket R4) Extended ATX
Specifications
62 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2066 (Socket R4) |
| Compatible processor series | Intel® Core™ X-series |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Quad-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3733,3800,3866,4000,4133,4266 MHz |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | Yes |

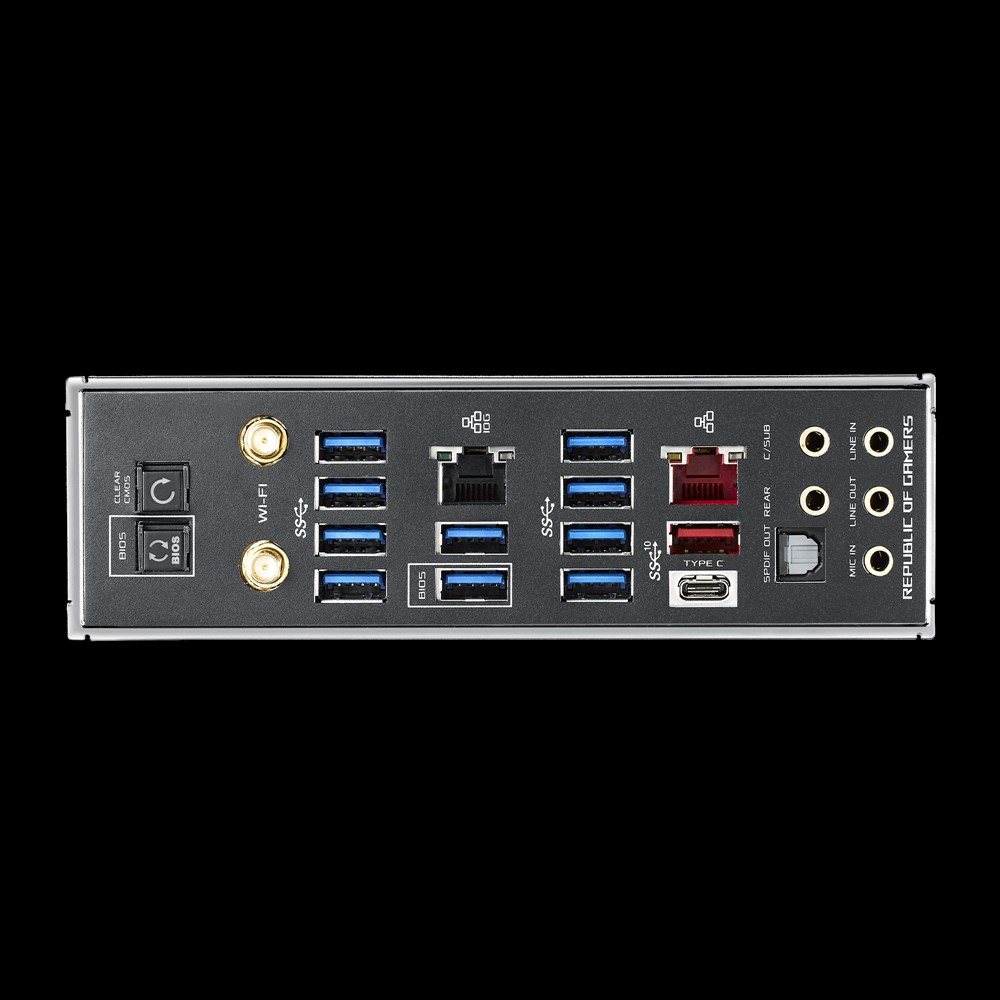

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 10 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Aquantia AQC107 |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® X299 |
| Audio output channels | 8.0 channels |
| Windows operating systems supported | Windows 10 x64 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 3 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.0 |
| Clear CMOS button | Yes |
| Plug and Play | Yes |
| System Management BIOS (SMBIOS) version | 3.0 |
Processor special features
| Specification | Value |
|---|---|
| Intel Extreme Memory Profile (XMP) | Yes |
| Intel® Turbo Boost Technology | 3.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 277 mm |
Other features
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 3.x) slots | 1 |
What people say
Reviews & ratings
ASUS ROG RAMPAGE VI EXTREME OMEGA
No reviews yet
Be the first to tell others how ASUS ROG RAMPAGE VI EXTREME OMEGA works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS ROG RAMPAGE VI EXTREME OMEGA
All motherboard comparisons- ASUS ROG RAMPAGE VI EXTREME OMEGA vsASUS ROG Dominus ExtremeCompare specs
- ASUS ROG RAMPAGE VI EXTREME OMEGA vsASUS PRIME N4000TCompare specs

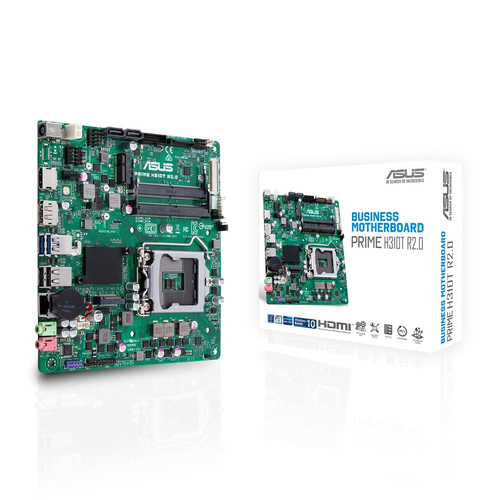

- ASUS ROG RAMPAGE VI EXTREME OMEGA vsASUS PRIME H310T R2.0Compare specs

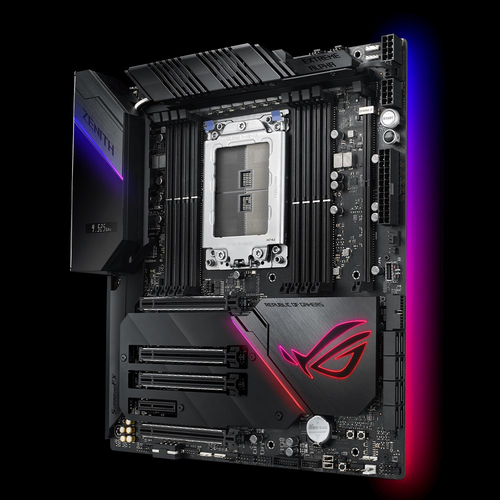

- ASUS ROG RAMPAGE VI EXTREME OMEGA vsASUS ROG Zenith Extreme AlphaCompare specs
- ASUS ROG RAMPAGE VI EXTREME OMEGA vsFujitsu D3654-B Intel H310 Express LGA 1151 (Socket H4) Mini-STXCompare specs
- ASUS ROG RAMPAGE VI EXTREME OMEGA vsGIGABYTE GA-E2500N (rev. 1.0)Compare specs

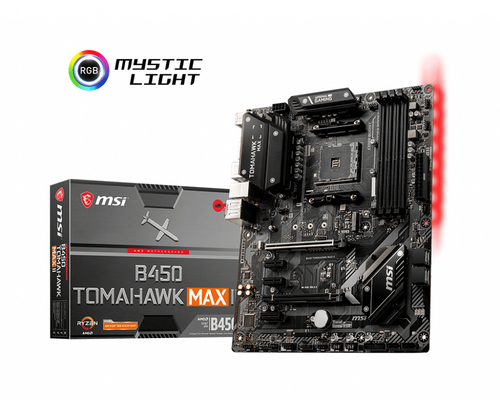

- ASUS ROG RAMPAGE VI EXTREME OMEGA vsMSI B450 TOMAHAWK MAX IICompare specs

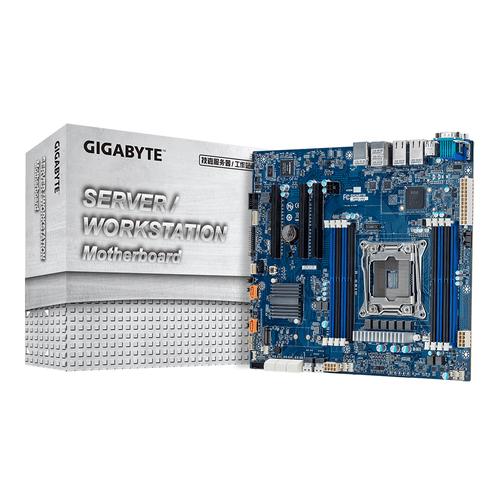

- ASUS ROG RAMPAGE VI EXTREME OMEGA vsGIGABYTE MF51-ES1 motherboard Intel® C422 LGA 2066 (Socket R4) CEBCompare specs
