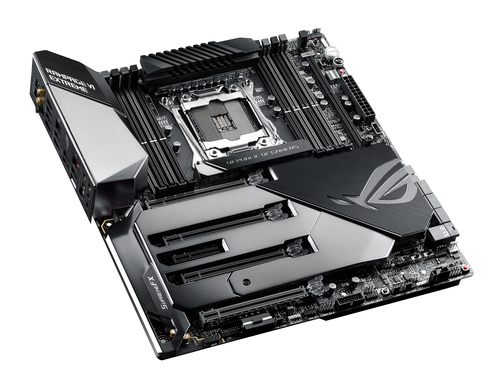

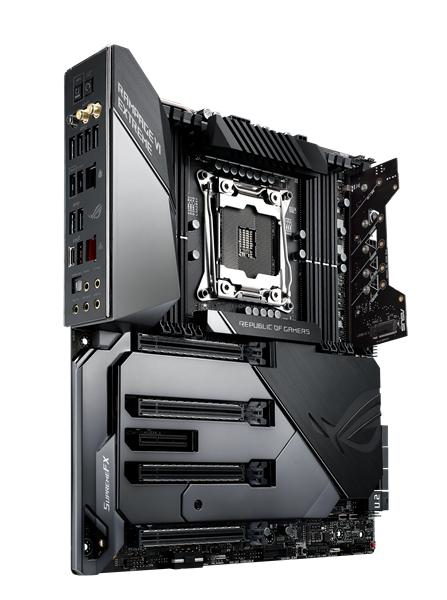

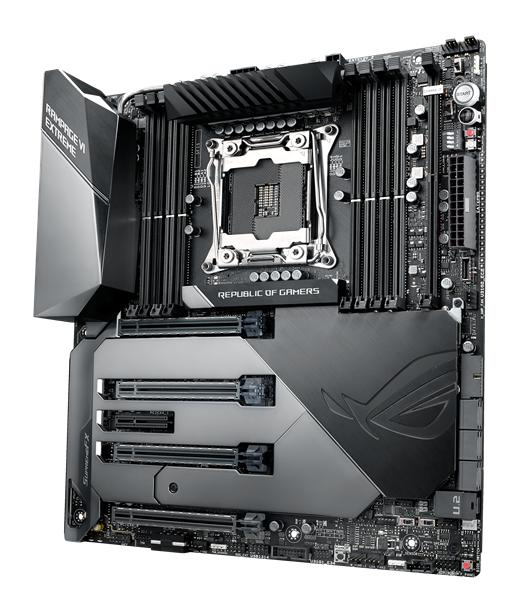

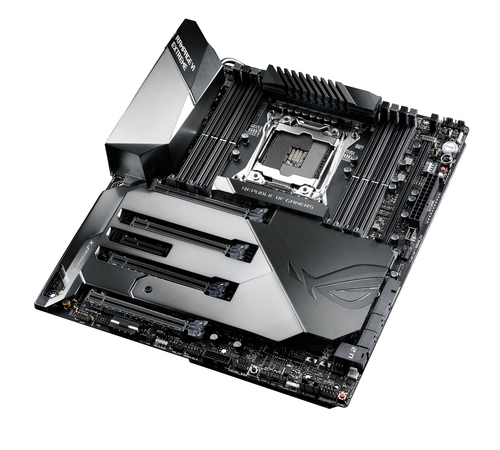

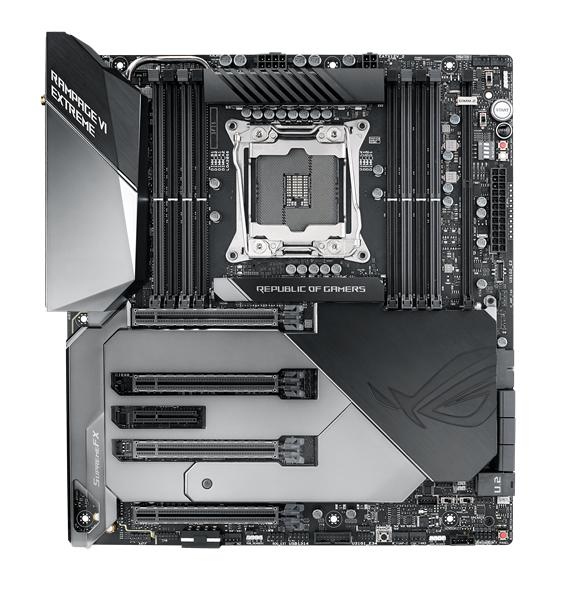

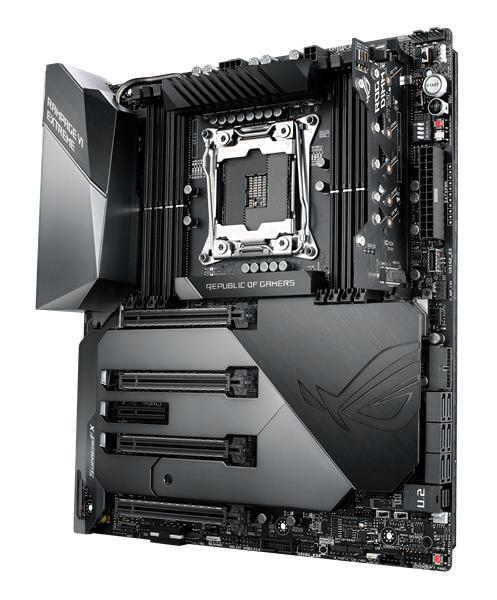

ASUS ROG RAMPAGE VI EXTREME
Model ROG RAMPAGE VI EXTREMEPart no. 90MB0U30-M0EAY0EAN 889349805534
68 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- USB 2.0 connectors1
- USB 2.0 ports quantity0
- Ethernet LANYes
- Component forPC
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 0
- Ethernet LAN
- Yes
- Component for
- PC
- Brand
- ASUS
- Category
- Motherboard
- Model
- ROG RAMPAGE VI EXTREME
- Part number
- 90MB0U30-M0EAY0
- EAN / UPC
- 889349805534, 4712900805536
- Also known as
- ASUS ROG RAMPAGE VI EXTREME Intel® X299 LGA 2066 (Socket R4) Extended ATX
Specifications
68 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2066 (Socket R4) |
| Compatible processor series | Intel® Core™ i7, Intel® Core™ i9 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Quad-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3300,3333,3600,3733,3866,4000,4133,4200 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| Thunderbolt headers | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Intel® I219-V |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11ad, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® X299 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 4 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 32 Mbit |
| ACPI version | 6.0 |
| Clear CMOS button | Yes |
Processor special features
| Specification | Value |
|---|---|
| Intel Extreme Memory Profile (XMP) | Yes |
| Intel® Turbo Boost Technology | 3.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 277 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| BIOS switch button | Yes |
What people say
Reviews & ratings
ASUS ROG RAMPAGE VI EXTREME
No reviews yet
Be the first to tell others how ASUS ROG RAMPAGE VI EXTREME works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS ROG RAMPAGE VI EXTREME
All motherboard comparisons- ASUS ROG RAMPAGE VI EXTREME vsASUS Rampage VI ApexCompare specs
- ASUS ROG RAMPAGE VI EXTREME vsASUS PRIME X399-ACompare specs

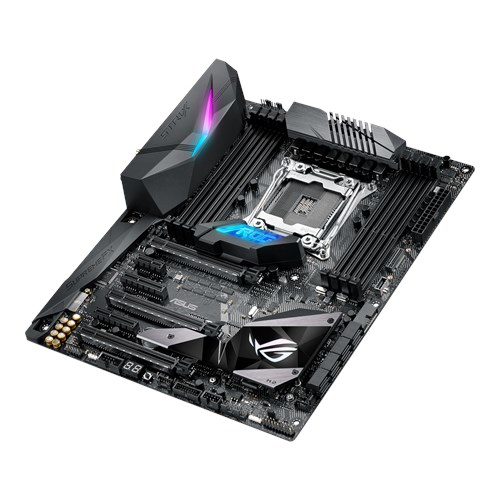

- ASUS ROG RAMPAGE VI EXTREME vsASUS ROG STRIX X299-XE GAMINGCompare specs
- ASUS ROG RAMPAGE VI EXTREME vsASUS ROG STRIX X399-E GAMINGCompare specs
- ASUS ROG RAMPAGE VI EXTREME vsMSI B350M PRO-VD PLUSCompare specs
- ASUS ROG RAMPAGE VI EXTREME vsMSI B350 TOMAHAWK PLUSCompare specs

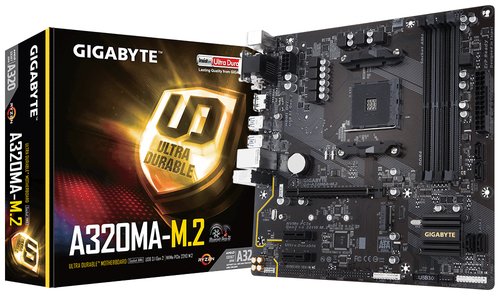

- ASUS ROG RAMPAGE VI EXTREME vsGIGABYTE GA-A320MA-M.2 motherboard AMD A320 Socket AM4 micro ATXCompare specs

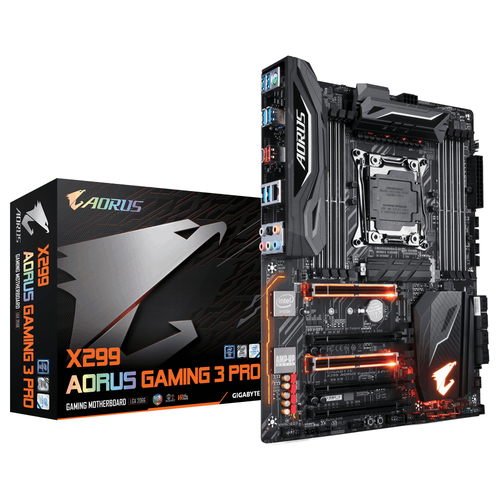

- ASUS ROG RAMPAGE VI EXTREME vsGIGABYTE X299 AORUS Gaming 3 ProCompare specs
