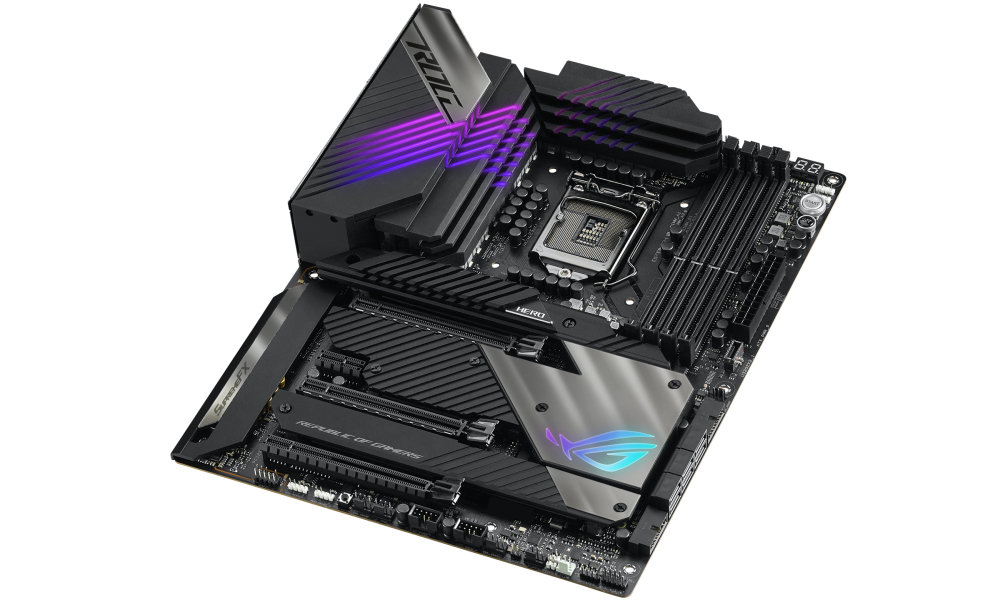

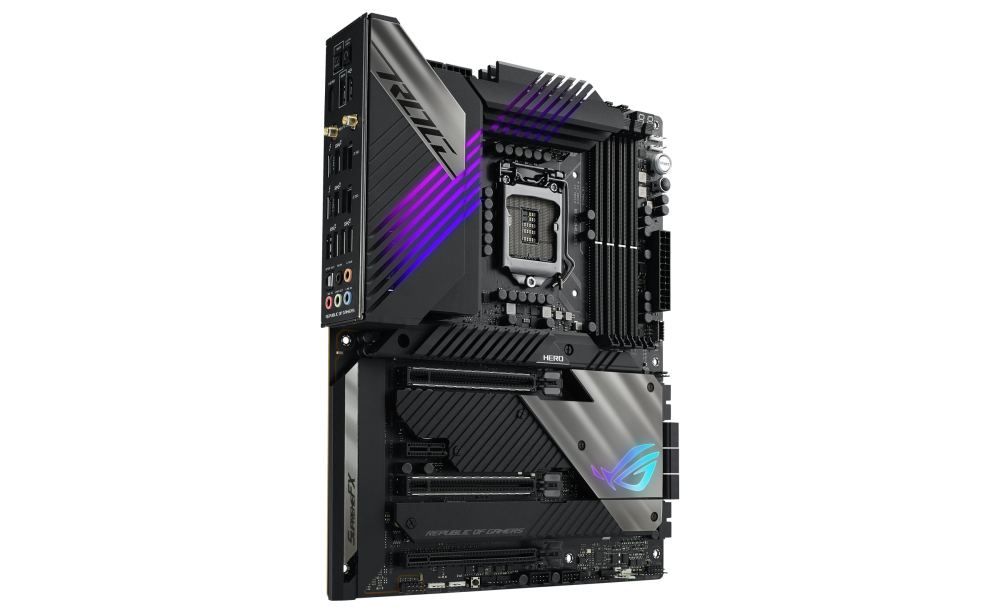

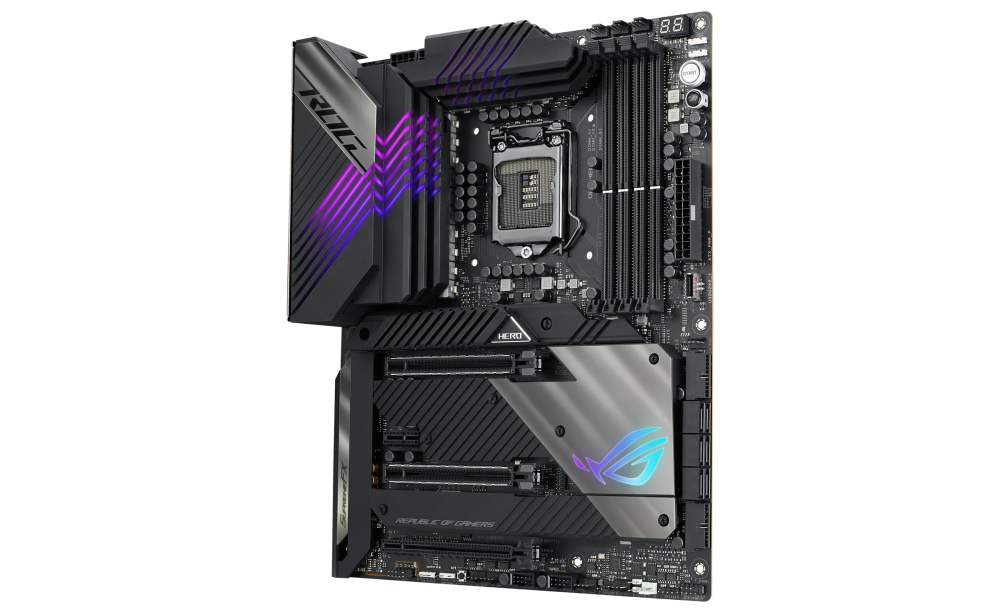

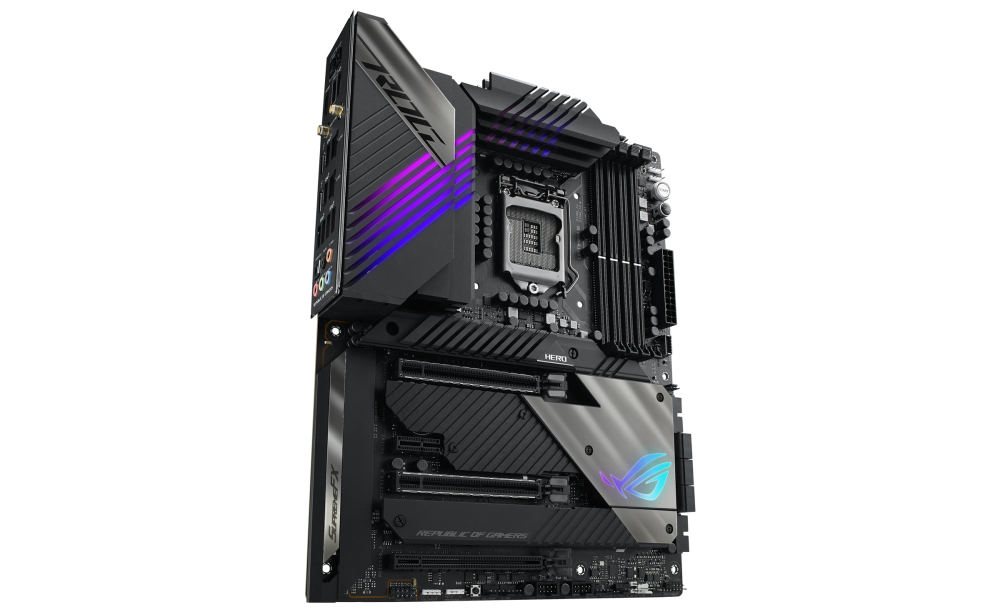

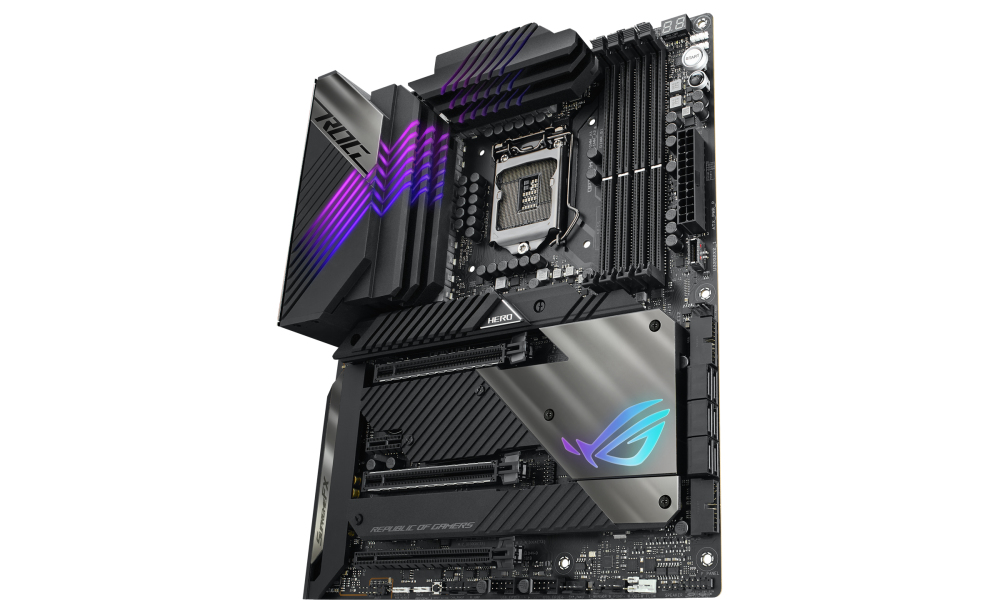

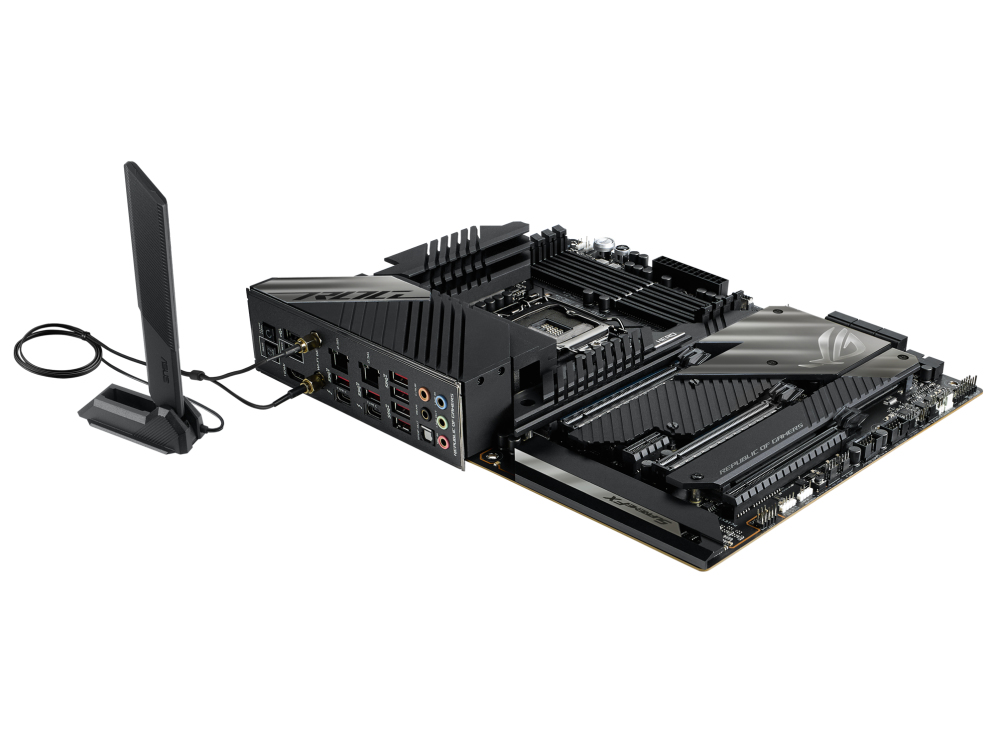

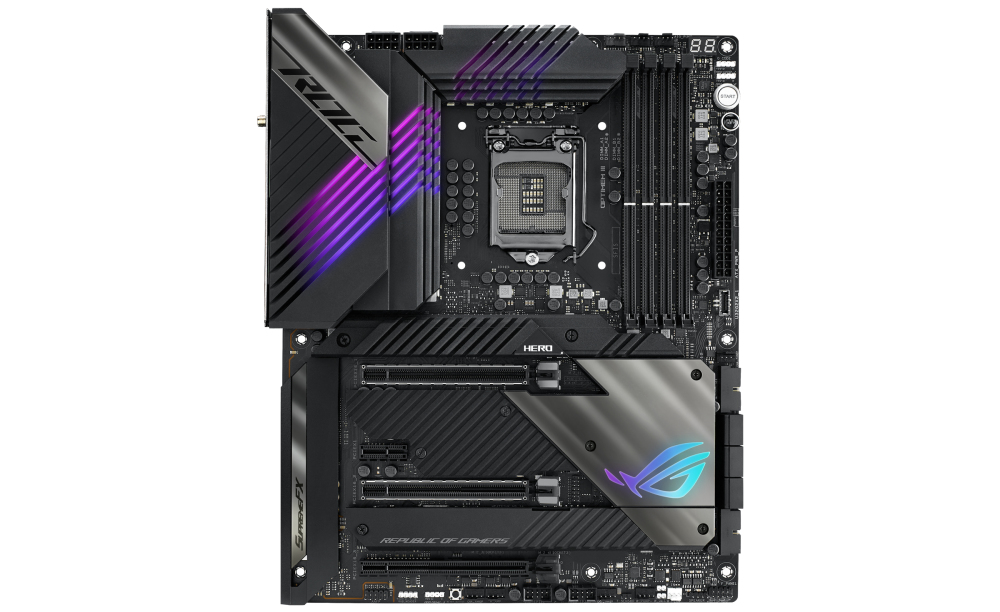

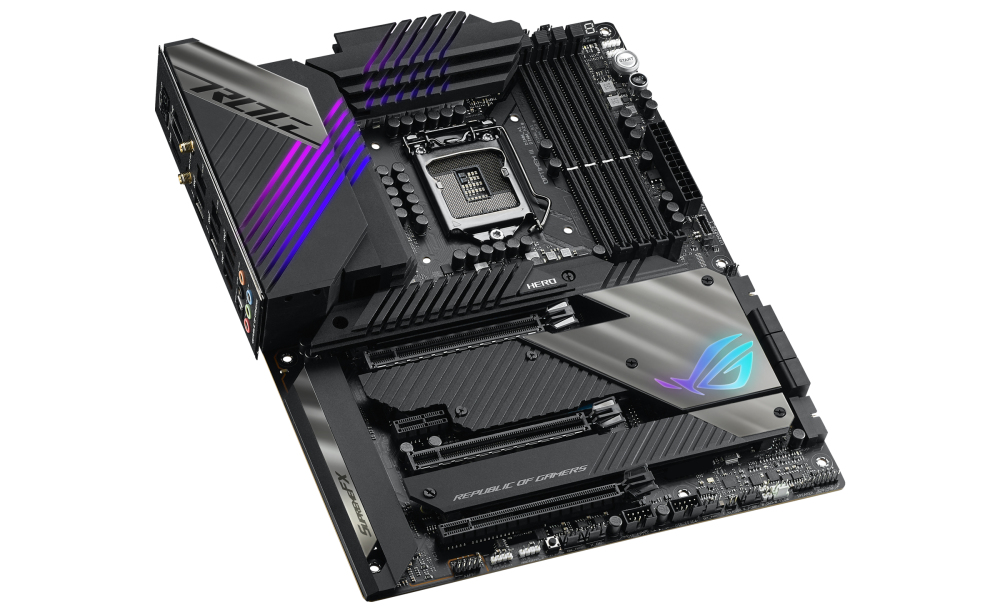

ROG MAXIMUS XIII HERO

Model ROG MAXIMUS XIII HEROPart no. 90MB15X0-M0EAY0EAN 4711081089353

114 specifications

Overview

Brand: ASUS
Category: Motherboard
Model: ROG MAXIMUS XIII HERO
Part numbers: 90MB15X0-M0EAY0, 90MB15X0-M0UAY0, D-ROG MAXIMUS XIII HERO
EAN / UPC: 4711081089353
Also known as: ASUS ROG MAXIMUS XIII HERO Intel Z590 LGA 1200 (Socket H5) ATX

114 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor socket	LGA 1200 (Socket H5)
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Supported processor sockets	LGA 1200 (Socket H5)

Specification	Value
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speeds	2133,2400,2666,2800,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4500,4600,4700,4800,5000,5133,5333 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes

Specification	Value
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of storage drives supported	10
RAID support	Yes

Specification	Value
Parallel processing technology support	2-Way SLI
On-board graphics card	No
Maximum resolution	3840 x 2160 pixels
On-board graphics card model	Not available

Specification	Value
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2x2 connectors	1
Number of SATA III connectors	6
Number of SATA II connectors	0
Number of SATA connectors	0
Number of Parallel ATA connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
Power fan connector	Yes
CPU fan connector	Yes
Number of chassis fan connectors	3
Peripheral (Molex) power connectors (4-pin)	7
EPS power connector (8-pin)	Yes
12V power connector	Yes
TPM connector	Yes
RGB LED pin header	Yes

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	0
USB4 Gen 2x2 ports quantity	0
USB4 Gen 3x2 ports quantity	0
Ethernet LAN (RJ-45) ports	2
eSATA ports quantity	0
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	0
Headphone outputs	1
Line-in	Yes
Microphone in	Yes
S/PDIF out port	Yes
Thunderbolt ports quantity	2
WiFi-AP antenna jack	1
USB connector type	USB Type-A

Specification	Value
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Intel I225-V
Wake-on-LAN ready	Yes
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX210
Bluetooth	Yes
Bluetooth version	5.2

Specification	Value
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel Z590
Audio chip	Realtek ALC4082
Audio output channels	7.1 channels
Product colour	Black
Windows operating systems supported	Windows 10 x64

Specification	Value
PCI Express x1 slots	0
PCI Express x1 (Gen 2.x) slots	0
PCI Express x1 (Gen 3.x) slots	1
PCI Express x1 (Gen 4.x) slots	0
PCI Express x4 slots	0
PCI Express x4 (Gen 1.x) slots	0
PCI Express x4 (Gen 2.x) slots	0
PCI Express x4 (Gen 4.x) slots	0
PCI Express x8 slots	0
PCI Express x8 (Gen 1.x) slots	0
PCI Express x16 slots	0
PCI Express x16 (Gen 2.x) slots	0
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	2
PCI Express x16 (Gen 5.x) slots	0
PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots	0
Mini PCI Express (Gen 1.x) slots	0
Mini PCI Express (Gen 2.x) slots	0
Mini PCI Express slot (full length)	0
Mini PCI Express slot (half-length)	0
Mini PCI Express slots	0
PCI slots	0
PCI-X slots	0
Number of M.2 (M) slots	4
