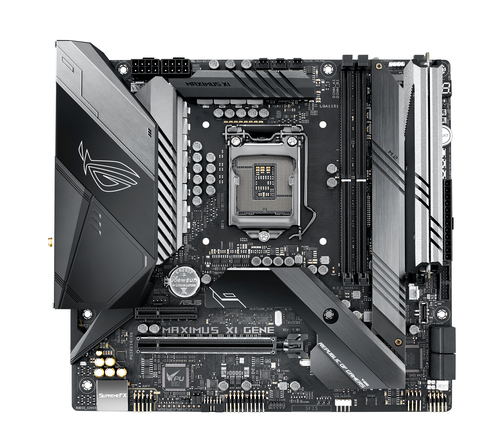

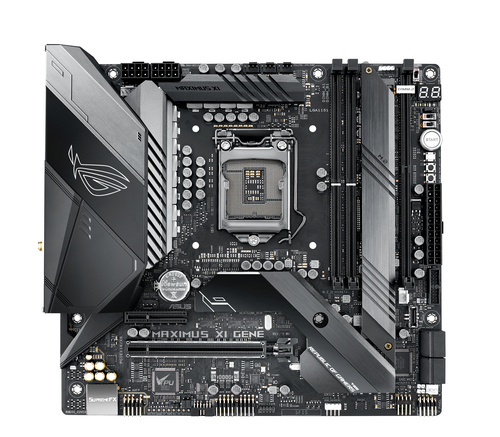

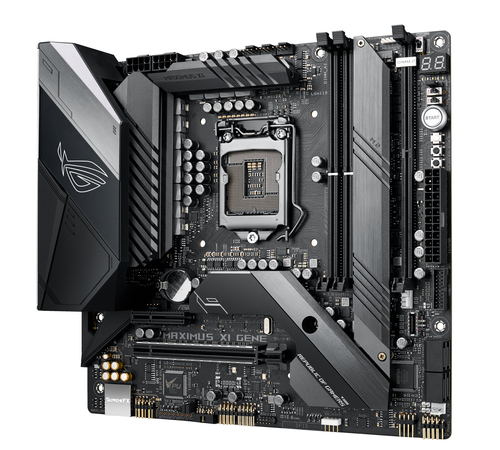

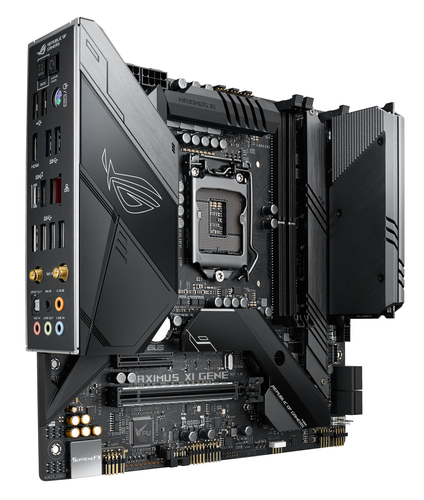

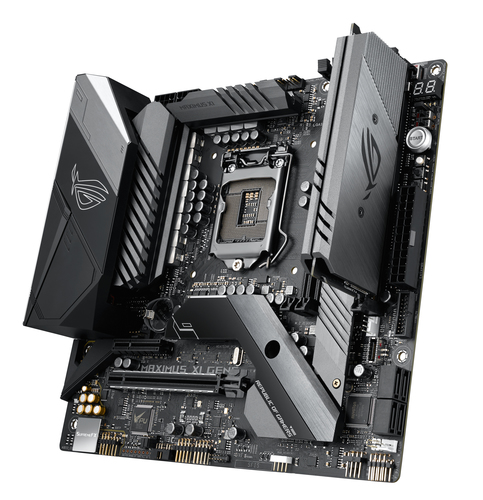

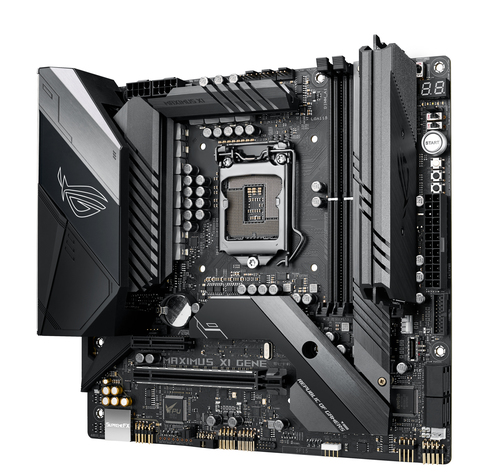

ASUS ROG MAXIMUS XI GENE

ASUS ROG MAXIMUS XI GENE

Model ROG MAXIMUS XI GENEPart no. 90MB10E0-M0EAY0EAN 192876141434

54 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesM.2, SATA III
  • Maximum resolution4096 x 2160 pixels
  • Number of SATA III connectors4
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
M.2, SATA III
Maximum resolution
4096 x 2160 pixels
Number of SATA III connectors
4
USB 2.0 ports quantity
2
Brand
ASUS
Category
Motherboard
Model
ROG MAXIMUS XI GENE
Part number
90MB10E0-M0EAY0
EAN / UPC
192876141434, 4718017141437
Also known as
ASUS ROG MAXIMUS XI GENE Intel Z390 LGA 1151 (Socket H4) micro ATX

Specifications

54 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Intel Core i3/i5/i7/i9 seriesi3-8xxx, i5-8xxx, i7-8xxx

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds4700,2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3866,4000,4133,4266,4400,4500,4600 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesM.2, SATA III

Graphics

Maximum resolution4096 x 2160 pixels

Internal I/O

Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors0

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
LAN controllerIntel® I219-V
Wi-FiYes
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
BluetoothYes
Bluetooth version5.0

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z390
Audio output channels7.1 channels
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64

Expansion slots

PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots2

BIOS

BIOS typeUEFI AMI
BIOS memory size16 Mbit
ACPI version6.0
Clear CMOS buttonYes

Processor special features

Intel® Optane™ Memory ReadyYes

Weight & dimensions

Width244 mm
Depth226 mm

Other features

PCI Express x4 (Gen 3.x) slots1
